製品紹介

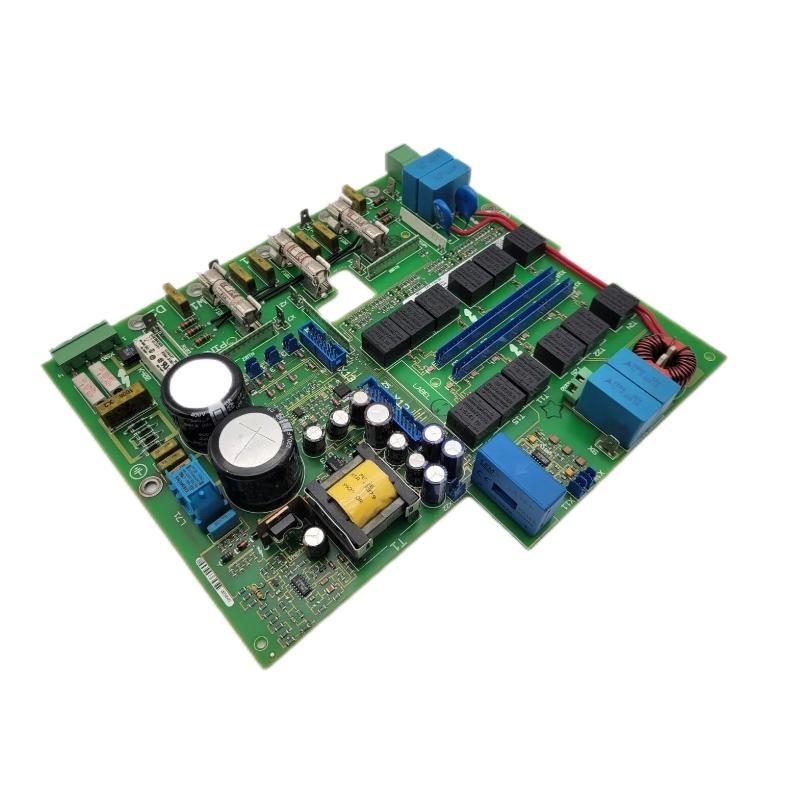

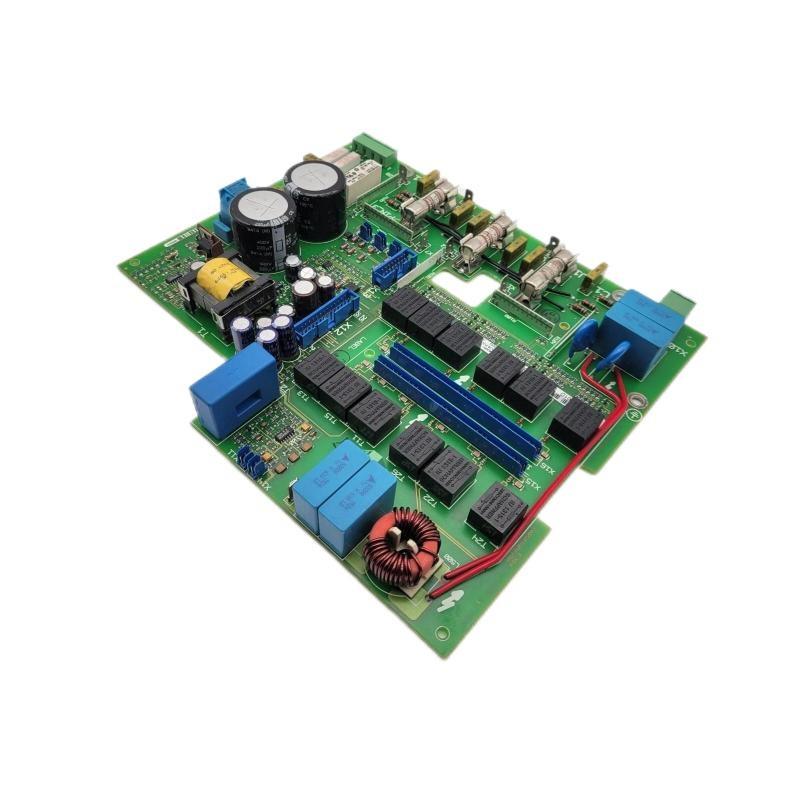

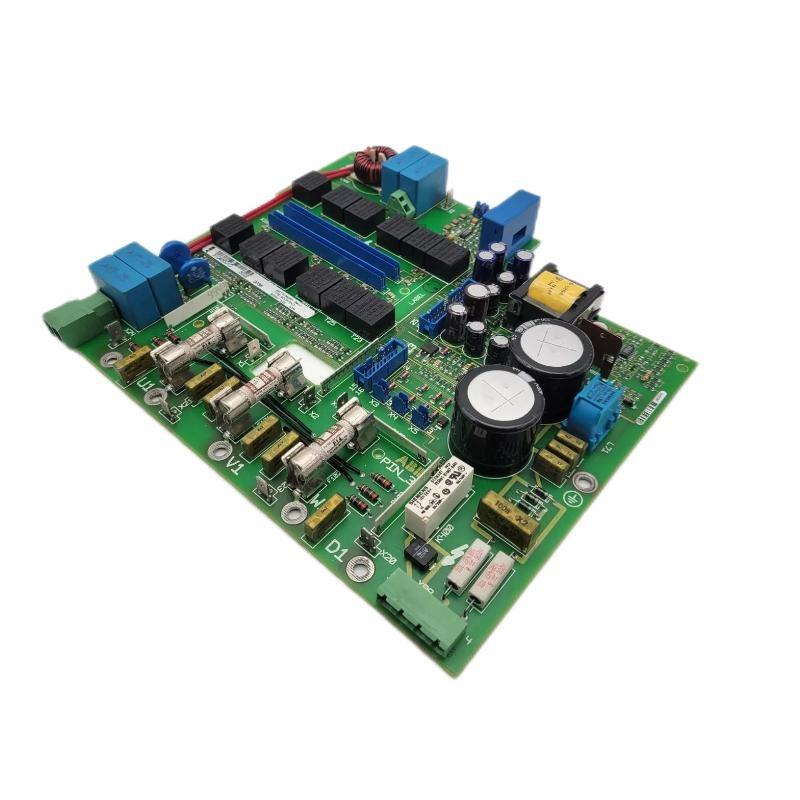

The ABB SDCS-PIN-3 (型番: 3ADT310400R1) is an industrial-grade power interface board designed for ABB’s legacy DCS500 and DCS600 DC drive systems. This board acts as a critical link between the drive’s control 台 and the power electronics, ensuring reliable analog and digital signal transmission for motor control and system monitoring.
Engineered to meet ABB’s stringent quality and durability standards, the SDCS-PIN-3 integrates seamlessly into drive systems where robust signal routing and hardware-level communication are essential. The board features easy-to-access terminal connections, LED diagnostics, and a compact form factor suitable for both OEM assemblies and field retr/its.
Its design reflects ABB’s focus on system longevity, safety, and compatibility, making it an essential component in industrial applications such as metal processing, pulp and paper, and heavy machinery automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | SDCS-PIN-3 |
| 型番 | 3ADT310400R1 |
| Product Type | Power Interface Board |
| Drive Compatibility | ABB DCS500 / DCS600 Series |
| Function | Signal interface between control logic and power modules |
| Signal Types サポートed | Analog Input/Output, Digital Input/Output |
| Supply Voltage | 24V DC (provided by control system) |
| Mounting Type | Plug-in with screw terminals |
| Cooling Method | Natural convection (passive cooling) |
| Diagnostic Indicators | Yes (status and fault LEDs) |
| Enclosure Requirement | IP00 – must be installed in enclosed control cabinets |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity (Non-Condensing) | 5% to 95% |
| Certifications | CE, RoHS, UL Recognized, EN61000 |
| Dimensions (W x H x D) | 265 x 282 x 40 mm |
| 重量 | 0.6 kg |
Applications
The SDCS-PIN-3 board is widely used across multiple industrial sectors where ABB DC drives form the core / motion and process control systems. Key applications include:
-
Steel Manufacturing – サポートs heavy-duty motor control in rolling mills and furnace systems.
-
Pulp & Paper Industries – Coordinates drive functions in continuous paper production lines.
-
Marine and Offshore Systems – Embedded in sealed enclosures for motor and winch systems.
-
Material Handling Equipment – Enables control / cranes, hoists, and conveyor motors.
-
Mining Operations – Works reliably in dusty, vibration-prone environments.
-
Industrial Automation Panels – Incorporated in OEM panels for system integration and control.
Product Advantages
-
Highly Reliable Signal Management – Handles complex I/O routing with precision.
-
Plug-and-Play Compatibility – Easily integrates into ABB DCS500 and DCS600 drives without modification.
-
LED Diagnostics – Provides quick visual feedback for system status and troubleshooting.
-
Rugged Industrial Design – Built to perform under thermal, electrical, and mechanical stress.
-
Zero S/tware Requirement – Operates independently without firmware or s/tware dependencies.
-
Service Friendly – Field-replaceable with standard tools and minimal downtime.
よくある質問 (FAQ)
-
What is the SDCS-PIN-3 board used for?
It serves as an interface between the drive’s control and power modules, facilitating signal communication. -
Can I install this board myself?
Yes, qualified technicians can install or replace it using standard tools. -
Is this board compatible with DCS800 drives?
No, it is specifically designed for DCS500 and DCS600 systems. -
Does the SDCS-PIN-3 handle both analog and digital signals?
Yes, it supports both analog and digital I/O for full signal integration. -
What do the onboard LEDs indicate?
They show power status and fault conditions for quick diagnostics. -
Can this board be used in outdoor enclosures?
番号 It must be housed in a sealed cabinet rated for industrial use. -
Is any s/tware required to operate this board?
No s/tware or firmware is needed. It is a passive hardware interface. -
Are replacement parts still available for this model?
Yes, it is still supported by ABB and select industrial distributors. -
What type / cable should be used for connections?
Use shielded industrial-grade control cables for both analog and digital signals. -
Is hot-swapping allowed for this board?
番号 Ensure power is disconnected before installing or removing the board.
Related モデルs (Same Series or Functional Group)
| モデル | 説明 | Compatibility | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| SDCS-PIN-205B | Power Interface Board (Standard) | DCS500/DCS600 | 225 x 130 x 45 | 0.42 |
| SDCS-PIN-205A | Early version power interface board | DCS Series | 210 x 120 x 40 | 0.35 |
| SDCS-PIN-206B | Enhanced version with diagnostics | DCS500/DCS600 | 230 x 135 x 50 | 0.48 |
| SDCS-PIN-22 | Signal control interface board | DCS500/DCS600 | 225 x 125 x 45 | 0.43 |
| SDCS-POW-1 | Power supply interface module | DCS Series | 225 x 130 x 50 | 0.50 |
| SDCS-IOB-2 | I/O signal board for additional interface | DCS500/DCS600 | 220 x 110 x 40 | 0.38 |
