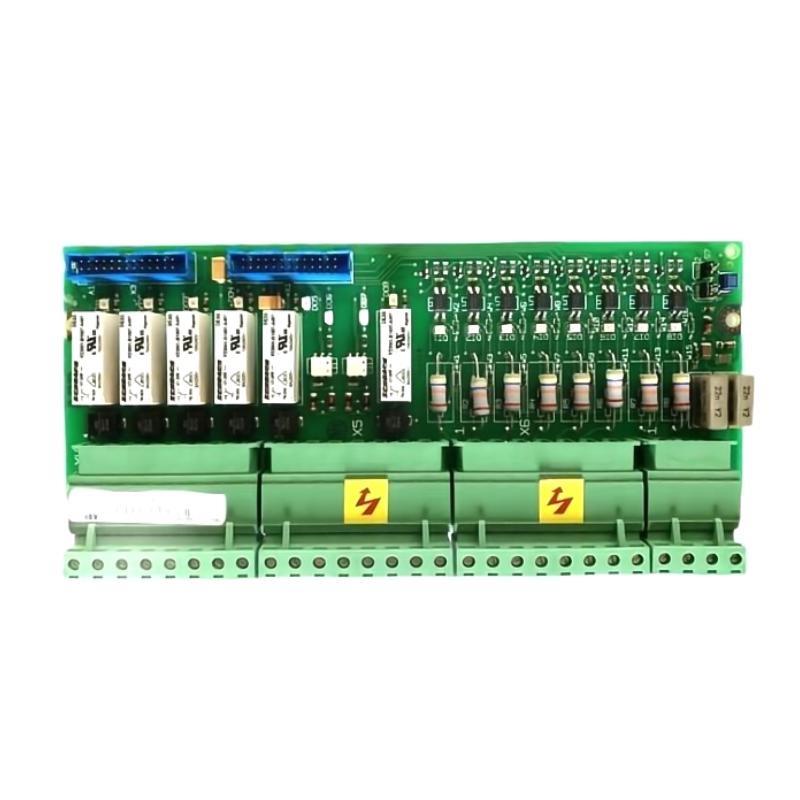

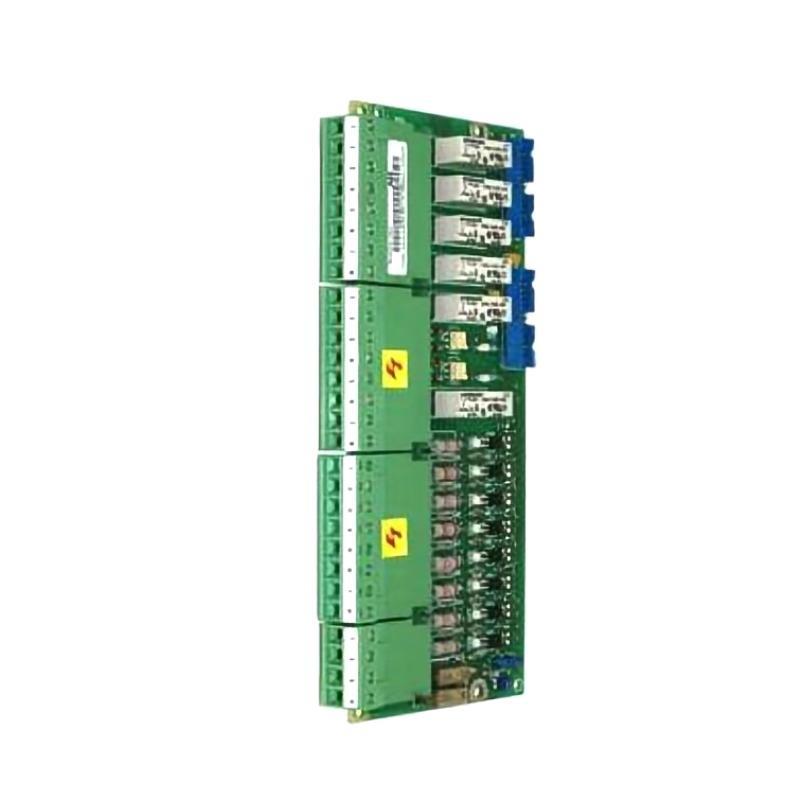

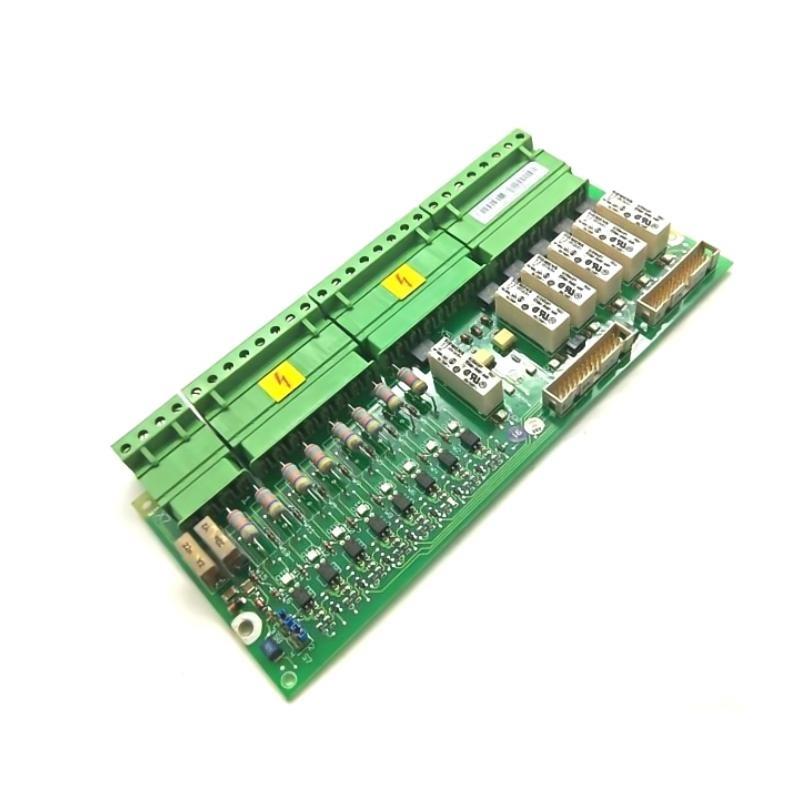

The ABB SDCS-IOB-23 3BSE005178R0001 Digital Connection Board is an integral component / ABB’s Speed and Digital Control System (SDCS) family, designed to provide reliable digital signal connection and distribution in industrial control and power generation environments. This connection board facilitates efficient interfacing / multiple digital inputs and outputs, ensuring secure and organized signal routing within control cabinets.
Engineered for durability and precision, the SDCS-IOB-23 supports seamless communication between field devices and SDCS controllers. Its design emphasizes ease / installation and maintenance, contributing to streamlined system architecture and reduced downtime in demanding industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル Number | SDCS-IOB-23 |
| ABB 型番 | 3BSE005178R0001 |
| Module Type | Digital Connection Board |
| Digital Inputs | 16 (24 V DC standard) |
| Digital Outputs | 16 (24 V DC standard) |
| Input Voltage Range | 20 – 30 V DC |
| Output Voltage Range | 24 V DC nominal |
| Response Time | < 10 milliseconds |
| Operating Temperature Range | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Communication Interface | ABB proprietary SDCS interface |
| Dimensions (HxWxD) | 233.5 × 97.5 ×18.5 mm |
| 重量 | 0.35 kg |
| Mounting | Rack-mounted |
| Protection Class | IP20 |
Applications
The SDCS-IOB-23 Digital Connection Board is used extensively in:
-
Power Generation Facilities: Connecting and managing digital signals from protection relays, alarms, and control switches.
-
Industrial Automation: Interfacing various sensors and actuators for process control systems.
-
Grid Automation Systems: Providing reliable digital communication for substations and distribution networks.
-
Renewable Energy Plants: Integration / wind, hydro, and solar digital control components.
-
Safety and Emergency Systems: Connecting emergency shutdown circuits and interlocks.
-
Remote Monitoring and Control: Facilitating digital signal routing for remote diagnostics.
Advantages
-
Robust Design: Engineered to withstand harsh industrial environments with consistent performance.
-
High-Speed Signal Processing: Response time under 10 milliseconds ensures timely control and monitoring.
-
Flexible Digital I/O Handling: サポートs multiple input and output configurations for diverse system requirements.
-
Seamless System Integration: Fully compatible with ABB SDCS controllers and communication protocols.
-
Diagnostic Features: Provides real-time status and fault detection to support maintenance.
-
Modular and Scalable: Easily expandable by installing additional connection boards as system needs grow.
-
Space-Efficient: Compact, rack-mounted design conserves valuable cabinet space.
-
Compliance and Safety: Meets international electrical safety and EMC standards.
よくある質問 (FAQ)
-
What is the primary role / the SDCS-IOB-23 connection board?
It facilitates organized connection and routing / digital input and output signals within the SDCS system. -
How many digital inputs and outputs does the board support?
The board supports 16 digital inputs and 16 digital outputs, typically at 24 V DC. -
What is the operating temperature range / the module?
It operates reliably from -20 °C to +70 °C. -
Can the SDCS-IOB-23 handle different types / digital signals?
It supports standard 24 V DC digital signals, suitable for most industrial field devices. -
Is the module compatible with ABB’s other SDCS components?
Yes, it integrates seamlessly with ABB’s SDCS controllers and system modules. -
What are the mounting options for the connection board?
It is designed for rack mounting inside control cabinets. -
Does the board include diagnostics for fault detection?
Yes, it provides diagnostic feedback for input/output status and fault conditions. -
How scalable is the system when using the SDCS-IOB-23?
The modular design allows multiple boards to be installed for expanded capacity. -
Is the SDCS-IOB-23 suitable for retr/it projects?
Yes, it can be integrated into existing SDCS systems for upgrades or expansions. -
What safety standards does the connection board meet?
It complies with international electrical safety and electromagnetic compatibility standards.
Related and Recommended モデルs
| Related/Similar モデルs | 説明 | ABB 型番 |
|---|---|---|
| SDCS-IOB-20 | Basic Digital I/O Module | 3BSE005175R0001 |
| SDCS-IOB-21 | Digital I/O Module | 3BSE005176R0001 |
| SDCS-IOB-22 | Digital I/O Module with Diagnostics | 3BSE005177R0001 |
| SDCS-ADC-11 | Analog Input Module | 3BSE005179R0001 |
| SDCS-AOC-12 | Analog Output Module | 3BSE005180R0001 |
| SDCS-DIG-15 | High-Speed Digital I/O Module | 3BSE005181R0001 |
Popular ABB モデルs
| Popular ABB モデルs | Application | ABB 型番 |
|---|---|---|
| ACS880 | Variable Frequency Drive (VFD) | 3HAC028002-001 |
| ACS550 | General Purpose Drive | 3HAC023982-001 |
| PM850 | Process Automation Controller | 3BHT300004R0101 |
| Relion 615 | Protection Relay | 1SDA075675R1 |
| RTU560 | Remote Terminal ユニット | 3BHT300011R0101 |
| ABB Ability System 800xA | Distributed Control System | N/A |
