製品紹介

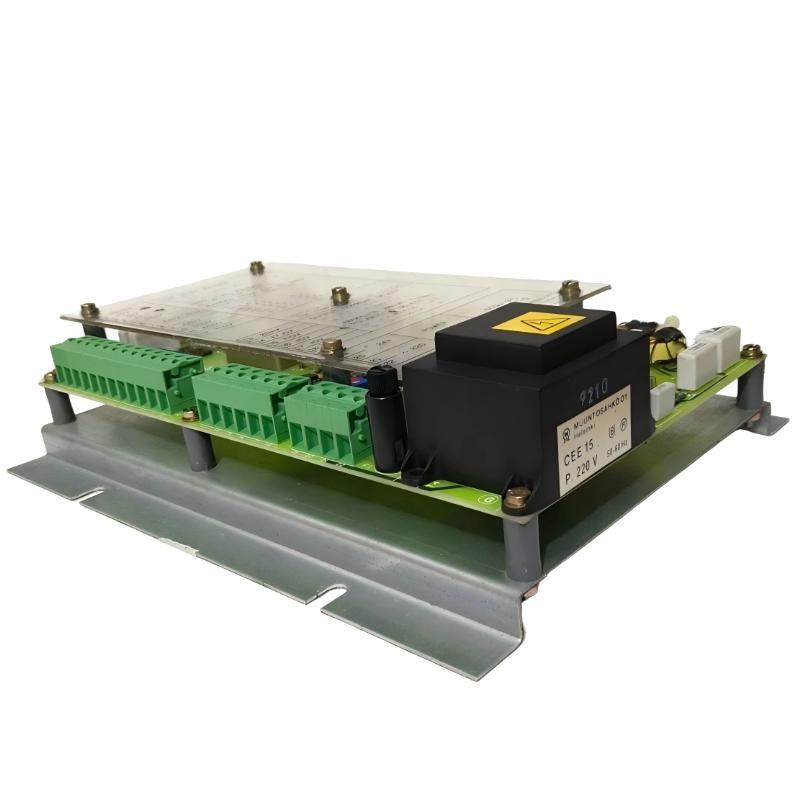

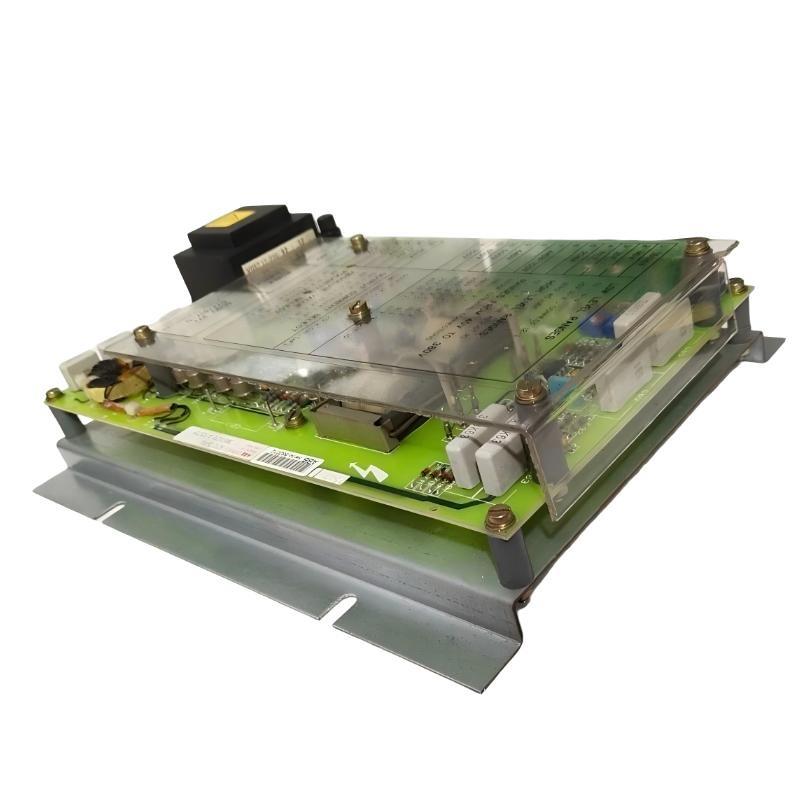

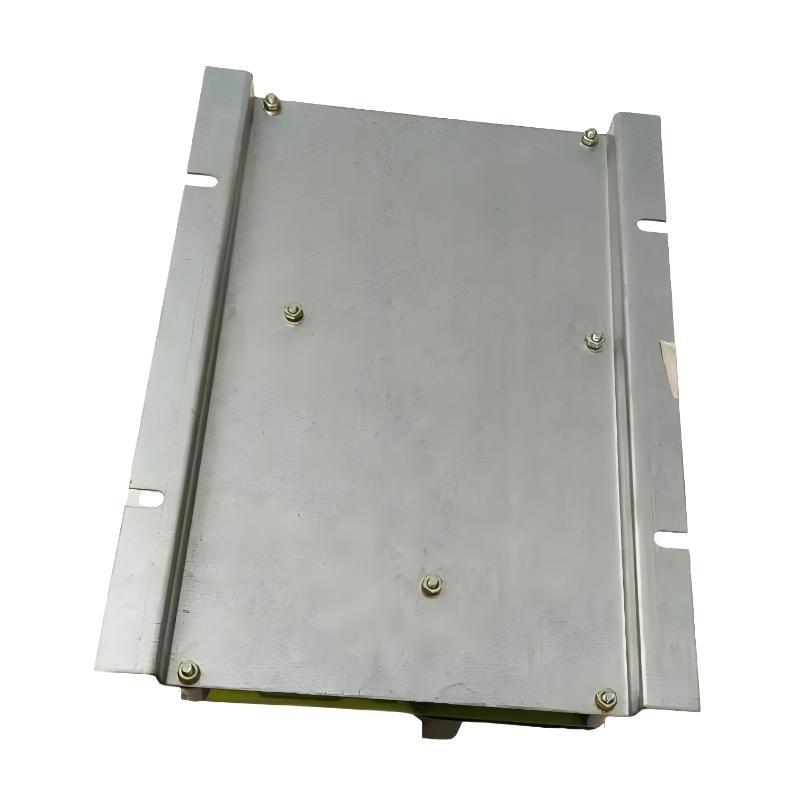

The ABB SCYC 56901 58070271 Measurement Transducer is a high-precision device designed for converting electrical signals from sensors and field devices into standardized outputs for industrial monitoring and control systems. This transducer ensures accurate signal scaling, isolation, and conversion, providing reliable data for PLCs, control systems, and protective relays.
Engineered for industrial environments, it features robust construction and high-quality components capable / operating under electrical noise, vibration, and temperature fluctuations. Its design emphasizes signal integrity, stability, and rapid response, making it ideal for critical applications in power generation, process automation, and instrumentation systems.
The compact form factor allows for easy panel mounting and integration into existing control systems without compromising performance or safety.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | SCYC 56901 58070271 |
| Type | Measurement Transducer |
| Function | Converts sensor signals to standardized output |
| Input Signal | Analog voltage/current or resistance |
| Output Signal | 4–20 mA, 0–10 V, or selectable standard output |
| Accuracy | ±0.2% full scale |
| Temperature Range | -20°C to +70°C |
| Response Time | ≤ 50 ms |
| Isolation | 2 kV RMS between input/output |
| Power Supply | 24–48 VDC nominal |
| Mounting Type | DIN rail / panel mount |
| Dimensions | 195 × 50 × 89 mm |
| 重量 | 0.8 kg |
Applications
• Industrial Monitoring Systems: Converts field sensor data into standardized signals for control and monitoring.
• Power Generation Equipment: Measures current, voltage, or process signals and transmits accurate data to protective relays.
• Automation and Process Control: Interfaces with PLCs and DCS for precise monitoring and feedback loops.
• Protective Relays and Switchgear: Provides isolated, accurate signals for protective and control devices.
• Testing and Calibration Rigs: Used for equipment validation, sensor calibration, and signal verification.
• Data Acquisition Systems: Integrates analog field signals into centralized monitoring platforms.
Advantages
• High Accuracy: ±0.2% full scale ensures reliable measurement for critical applications.
• Robust Industrial Reliability: Operates stably under temperature variations, vibration, and electrical noise.
• Signal Isolation: Provides 2 kV RMS isolation to protect downstream devices and control systems.
• Versatile Output Options: サポートs multiple standard analog outputs (4–20 mA, 0–10 V).
• Fast Response: Response time ≤ 50 ms allows real-time monitoring and control.
• Compact and Easy Installation: DIN rail or panel mounting simplifies integration into existing setups.
