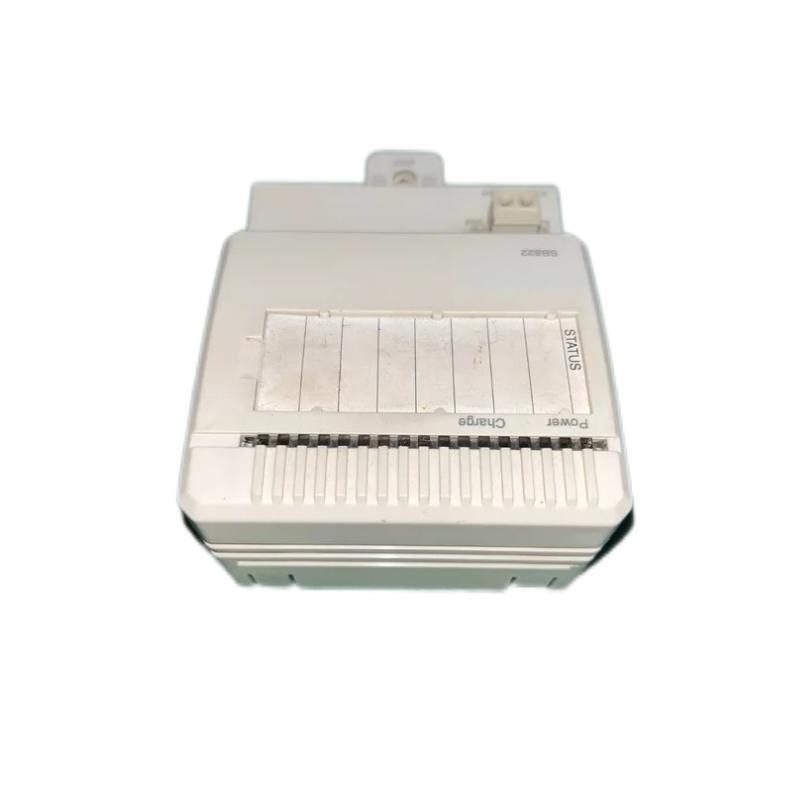

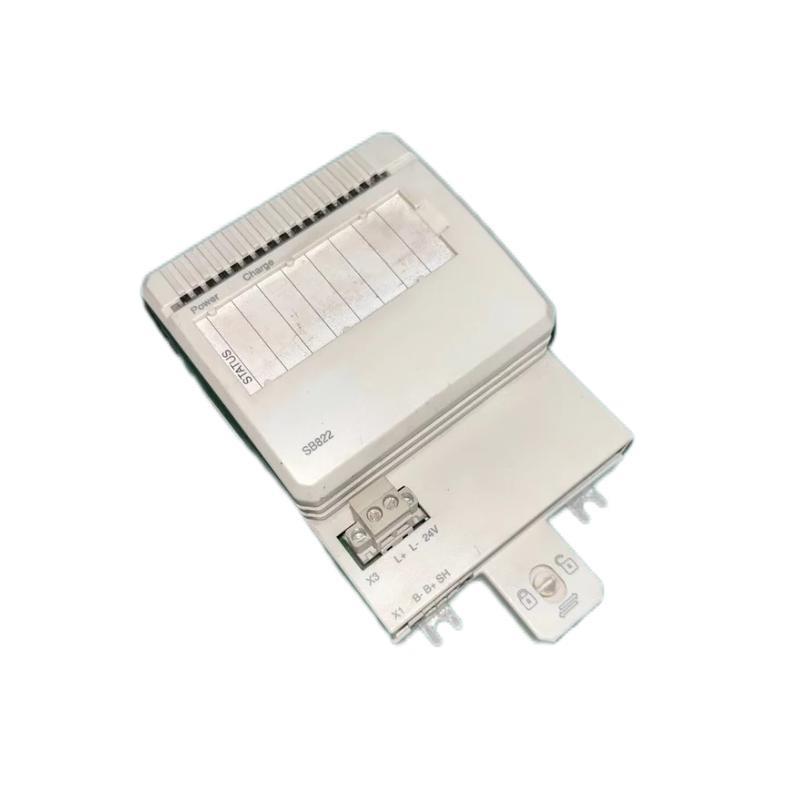

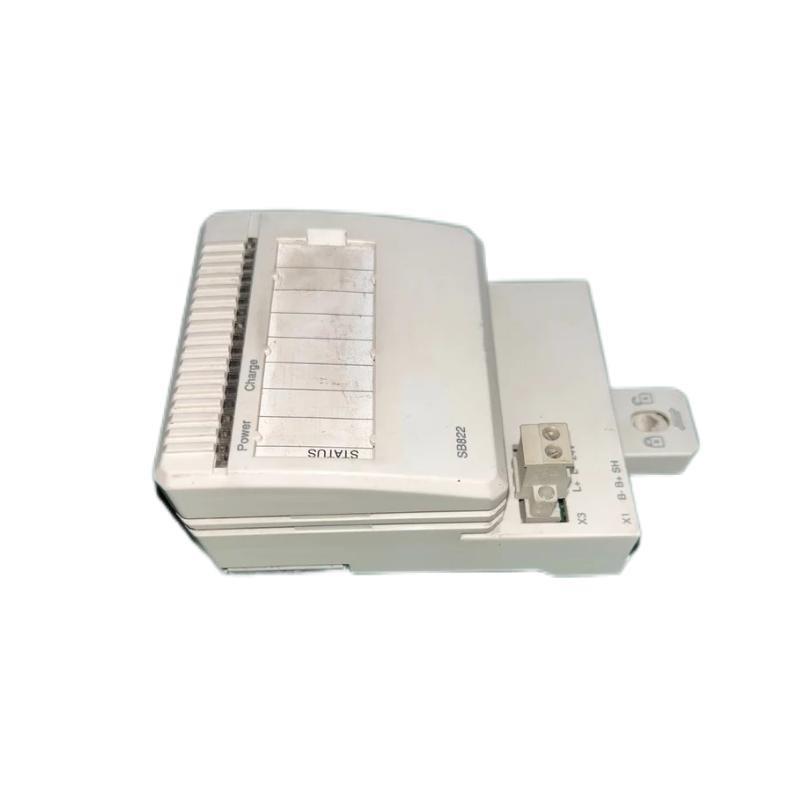

The ABB SB822 3BSE018172R1 is a high-performance safety relay module designed for industrial automation and control systems. It ensures reliable safety functions, such as emergency stop (E-stop), safety gate monitoring, and machine safety interlocking. This module is part / ABB’s renowned safety product lineup, /fering robust performance, easy integration, and compliance with international safety standards like ISO 13849-1 and IEC 62061.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル Number | SB822 3BSE018172R1 |
| Input Voltage | 24V DC (18-30V DC range) |
| お問い合わせ Configuration | 2 NO (Normally Open) + 2 NC (Normally Closed) |
| Max Switching Current | 5A (resistive load) |
| Operating Temperature | -25°C to +55°C |
| Safety Standards | ISO 13849-1, IEC 62061, SIL 3, PL e |
| Dimensions | 184.5 x139.5x 76.5 mm |
| 重量 | 0.55 kg |
| Enclosure Rating | IP20 |
| Mounting Type | DIN rail mounting |
| Response Time | <20ms |
Product Applications
The ABB SB822 3BSE018172R1 is widely used in industrial environments requiring high safety integrity, including:
-
Machine Safety Systems: Emergency stop circuits, safety gates, and light curtains.
-
Automated Production Lines: Safety interlocking for robotic cells and conveyor systems.
-
Packaging Machinery: Ensuring operator safety during high-speed operations.
-
Material Handling: Safety monitoring for cranes, lifts, and AGVs.
-
Process Industries: Compliance with safety protocols in chemical and pharmaceutical plants.
Product Advantages
-
High Reliability: SIL 3 and PL e certification ensures fail-safe operation.
-
Compact Design: Space-saving DIN rail mounting for easy installation.
-
Fast Response Time: <20ms reaction time for critical safety functions.
-
Wide Voltage Range: Operates reliably under fluctuating power conditions.
-
Durability: Robust construction for harsh industrial environments.
-
Easy Integration: Compatible with ABB and third-party control systems.
よくある質問 (FAQ)
-
What safety standards does the SB822 comply with?
-
It meets ISO 13849-1, IEC 62061, SIL 3, and PL e.
-
-
Can this relay be used for emergency stop applications?
-
Yes, it is designed for E-stop and safety gate monitoring.
-
-
What is the maximum switching current?
-
5A for resistive loads.
-
-
Is the SB822 suitable for outdoor use?
-
No, its IP20 rating limits it to indoor/dry environments.
-
-
How do I mount the relay?
-
It is designed for standard DIN rail mounting.
-
-
What is the operating temperature range?
-
-25°C to +55°C.
-
-
Does it support redundant safety circuits?
-
Yes, it supports dual-channel safety inputs.
-
-
Can I use it with non-ABB PLCs?
-
Yes, it is compatible with most industrial control systems.
-
-
How long is the warranty period?
-
The standard warranty is 1 years, subject to proper usage and conditions.
-
-
Is the module certified for industrial comp?
-
Yes, it meets CE, UL, CSA, and RoHS standards.
-
Recommended Related モデルs
| モデル Number | 説明 | Key Feature |
|---|---|---|
| SB821 3BSE018171R1 | Safety relay module (1 NO + 1 NC) | Compact, basic safety functions |
| SB823 3BSE018173R1 | Enhanced safety relay (3 NO + 2 NC) | Higher contact capacity |
| SD822 3BSE018174R1 | Safety relay with diagnostics | Fault detection and signaling |
| SC822 3BSE018175R1 | Safety controller module | Programmable safety logic |
| SA822 3BSE018176R1 | Safety relay for AS-i networks | Network-compatible safety solution |
| SR822 3BSE018177R1 | Redundant safety relay | Dual-channel redundancy |
Popular ABB モデルs in the Same ブランド
| モデル Number | 説明 | Key Feature |
|---|---|---|
| ACS880-01-04A5-4 | Industrial drive (4kW) | High-efficiency motor control |
| CP635-T6 | Panel-mounted HMI | 6″ touchscreen, rugged design |
| REF615 Feeder Relay | Protection relay | Grid and feeder protection |
| PML630 Power Meter | Energy monitoring device | Real-time power quality analysis |
| DCS800-S01-0005-5 | DC drive controller | Precision speed control |
| UMC100.1B-1 | Universal motor controller | Multi-protocol communication |
