Product Overview

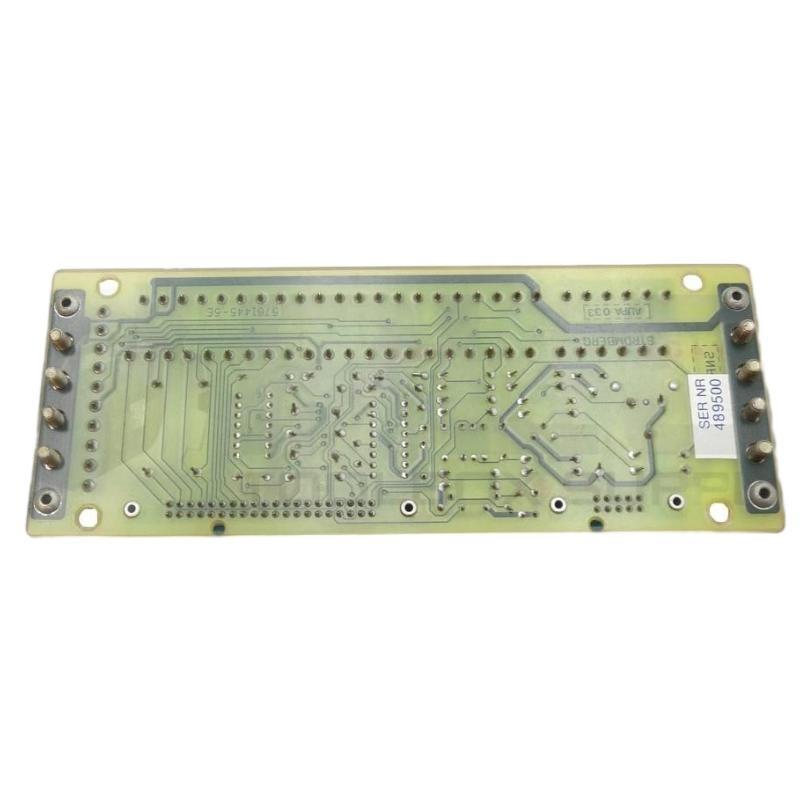

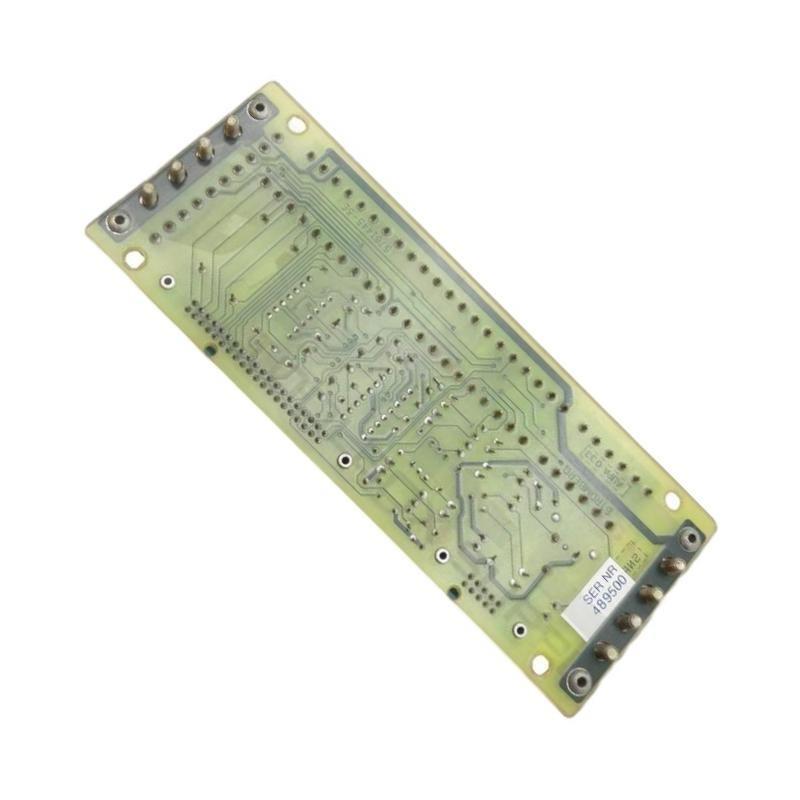

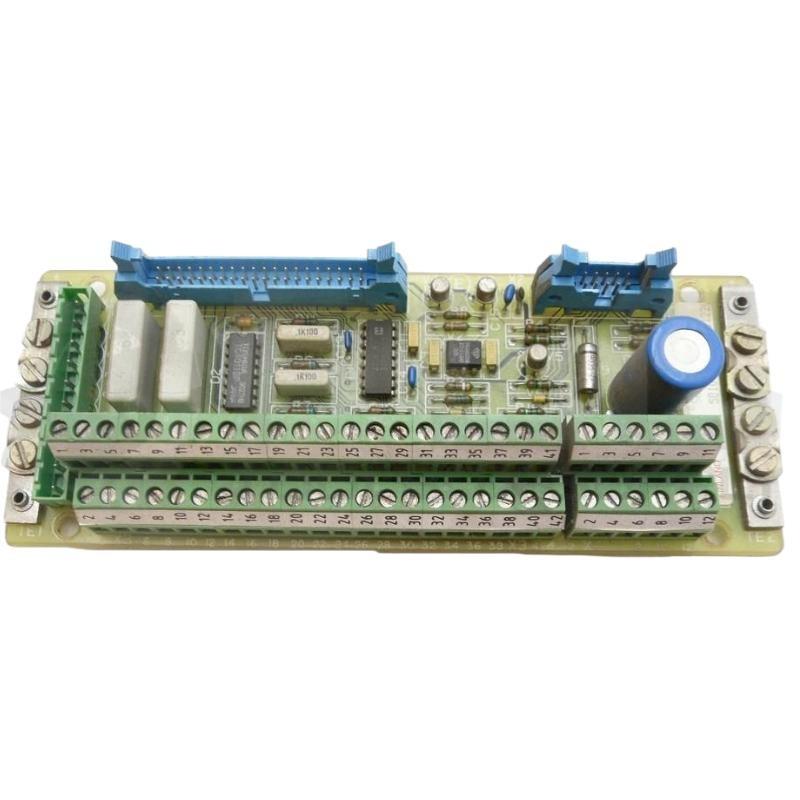

The ABB SAFT174TBC 5761445-5E Terminal Block is a high-quality electrical terminal designed for reliable power and signal connections in industrial and automation systems. Engineered for ABB control panels and distribution systems, it ensures secure wiring, excellent electrical performance, and long-term durability.
Key Features
-
High-quality, durable terminal block for industrial applications
-
Provides secure and reliable electrical connections
-
サポートs multiple wire sizes for flexible installation
-
Easy mounting in ABB control panels and distribution boards
-
優良 electrical performance and conductivity
-
Compact design to optimize panel space
-
Safe and reliable for high-current and signal circuits
-
Compatible with ABB modular systems
Technical Specifications
| Item | Specification |
|---|---|
| メーカー | ABB |
| 型番 | SAFT174TBC / 5761445-5E |
| Product Type | Terminal Block |
| Dimensions | 50 × 46 × 6 mm |
| 重量 | 0.05 kg |
| Material | Flame-retardant thermoplastic housing |
| Rated Current | Up to 24 A |
| Rated Voltage | 500 V AC/DC |
| Wire Size | 0.2–2.5 mm² (solid or stranded) |
| Connection Type | Screw or spring clamp (depending on variant) |
| Mounting | DIN rail or panel mounting |
| Operating Temperature | –40 °C to +105 °C |
| Certifications | UL, CE, IEC compliant |
| Applications | Industrial control panels, power distribution, signal connections |
Industry Applications
-
Industrial control panels and automation systems
-
Power distribution systems
-
Motor control centers
-
Switchgear assemblies
-
Renewable energy systems
-
Factory and process automation
-
Electrical maintenance and upgrades
よくある質問 (FAQ)
Q1: What is the rated current / the SAFT174TBC terminal block?
It supports up to 24 A.
Q2: What wire sizes are compatible with this terminal block?
0.2–2.5 mm², solid or stranded wires.
Q3: What is the rated voltage?
Up to 500 V AC/DC.
Q4: How is the terminal block mounted?
It can be mounted on DIN rails or panels.
Q5: Is it compatible with ABB modular systems?
Yes, it is designed to integrate seamlessly with ABB control panels and modular assemblies.
Q6: What is the operating temperature range?
It operates from –40 °C to +105 °C.
Q7: What materials are used in the terminal block?
Flame-retardant thermoplastic housing with high-conductivity metal contacts.
Q8: Can it be used in high-current or signal circuits?
Yes, it is suitable for both high-current and low-signal connections.
Related ABB Modules
| モデル | 説明 |
|---|---|
| SAFT170TBC | Terminal block, 2.5 mm² capacity |
| SAFT172TBC | Terminal block, 4 mm² capacity |
| SAFT174TBC | Terminal block, 24 A rated |
| SAFT176TBC | Terminal block, 32 A rated |
| SAFT180TBC | Terminal block, 35 A rated |
| SAFT184TBC | Terminal block, 50 A rated |
Popular ABB Modules
| モデル | 説明 |
|---|---|
| SAFT174TBC | 24 A terminal block |
| SAFT172TBC | 4 mm² terminal block |
| SAFT180TBC | 35 A terminal block |
| SAFT176TBC | 32 A terminal block |
| SAFT170TBC | 2.5 mm² terminal block |
| SAFT184TBC | 50 A terminal block |
