製品紹介

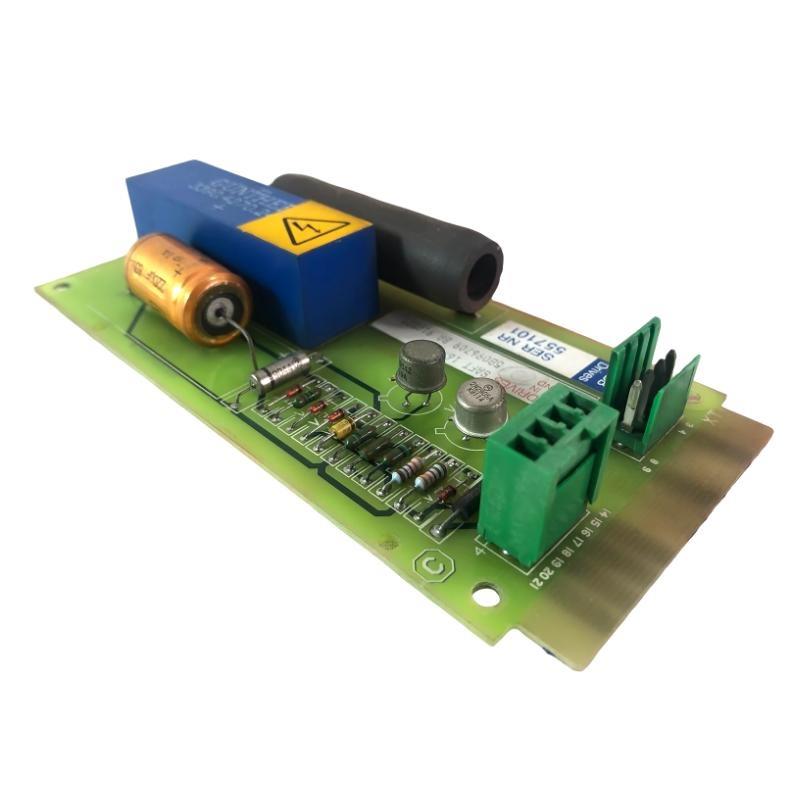

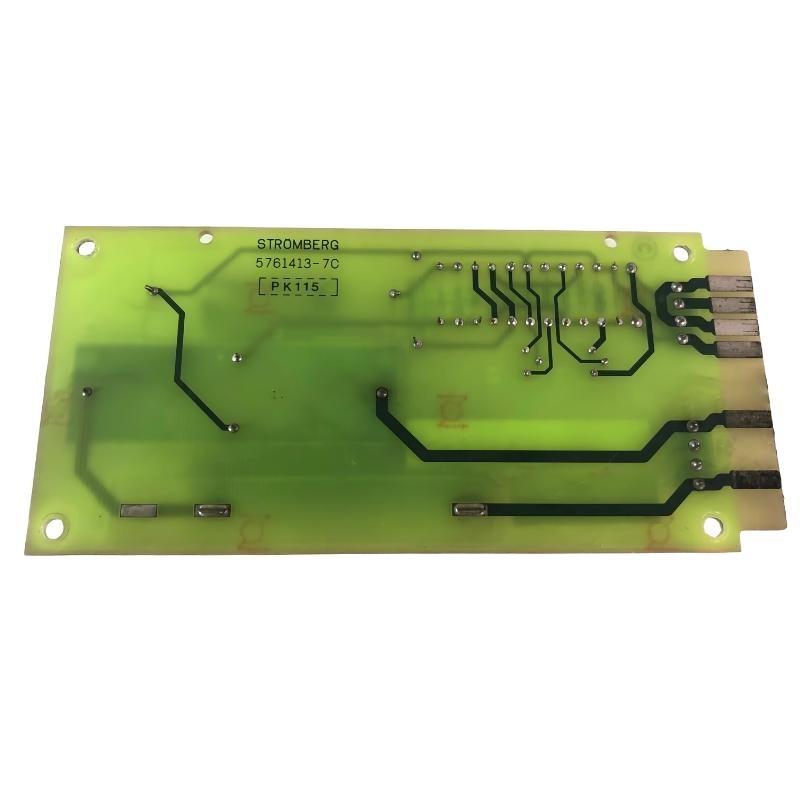

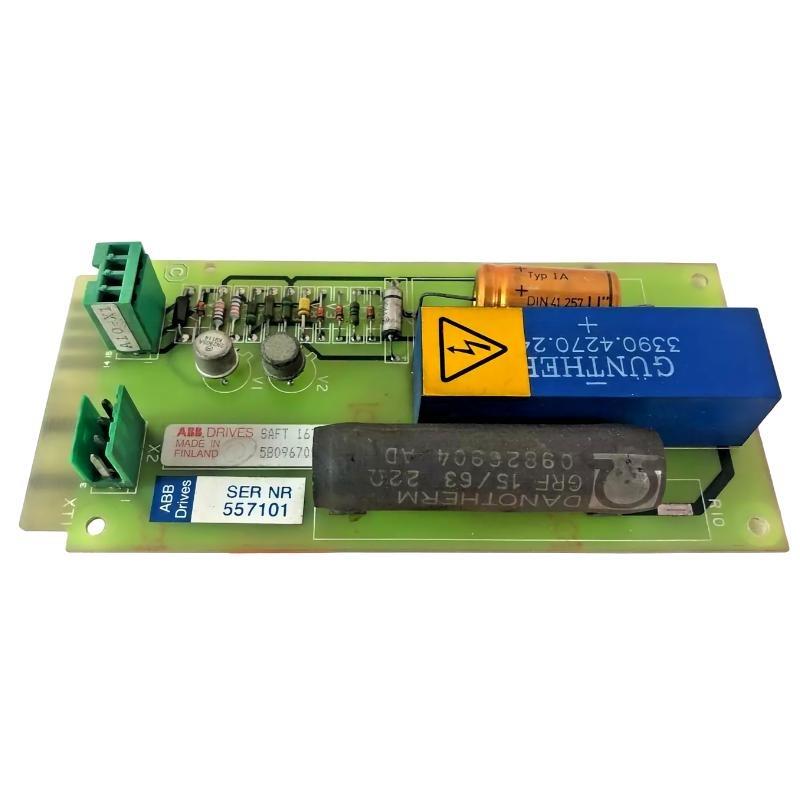

The ABB SAFT167APC 58096707 Power Connection Board is a precision-engineered power interface component designed to enable safe, reliable, and efficient distribution / electrical power within ABB’s industrial automation and control systems. As a critical part / the Symphony Plus and Advant Master Distributed Control Systems (DCS), this board acts as the primary interface for power input/output interconnection, routing supply voltages to various processing and I/O modules.
This board is not a power converter or supply in itself, but it ensures proper voltage handling, electrical isolation, and structured distribution, especially within modular systems requiring highly organized electrical layouts. It provides terminal points, voltage bus interfaces, and built-in diagnostics support for status indication, fault tracking, and connection integrity monitoring.
The SAFT167APC is deployed in a wide range / mission-critical environments, such as power stations, petrochemical plants, and heavy industries, where electrical reliability and modular expandability are paramount.
製品仕様
| Parameter | Value |
|---|---|
| Product Name | Power Connection Board |
| モデル Number | SAFT167APC |
| 型番 | 58096707 |
| メーカー | ABB |
| Function | Power routing and interconnection platform |
| System Compatibility | Symphony Plus, Advant Master, Master DCS |
| Input Voltage Range | 24–48 V DC nominal (pass-through) |
| Maximum Load Current | 10 A (bus capacity) |
| Termination Type | Screw or spring clamp terminal blocks |
| Connection Monitoring | Yes – LED indicators for voltage presence |
| Electrical Isolation | Yes – channel-to-channel and system ground |
| Bus Configuration | Multi-channel voltage bus distribution |
| Protection Features | Reverse polarity protection, overcurrent path |
| Mounting Method | Slot/rack-mounted |
| Grounding Method | Dedicated grounding pin and chassis contact |
| Cooling Method | Passive (no active components) |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Tolerance | 5%–95% RH, non-condensing |
| Conformal Coating | Yes – for industrial protection |
| Dimensions (W x H x D) | 120 × 180 × 30 mm |
| 重量 | 0.4 kg |
| Communication Interface | None (passive board) |
| Firmware | Not applicable |
| Maintenance | Tool-free terminal access for quick servicing |
Applications
The SAFT167APC Power Connection Board is ideal for structured and safe power distribution within complex industrial control environments. Though passive in function, its role in maintaining organized and fault-tolerant electrical pathways makes it indispensable in systems with critical uptime requirements.
Common applications include:
-
Power Plants: Ensures stable distribution / auxiliary and control voltages across DCS modules and field terminals.
-
Petrochemical Facilities: Routes safe power to process controllers, interface 台s, and remote I/O cabinets.
-
Steel and Metal Processing ユニットs: Manages power flow for heavy machinery and high-noise environments.
-
Water Treatment Plants: サポートs modular panel construction with structured wiring and status indication.
-
Marine Automation Systems: Provides robust electrical interfacing for compact marine control rooms.
-
Factory Automation and Robotics: Simplifies electrical expansion and centralization / power feeds.
Advantages
-
Structured Power Delivery: Centralizes power routing within ABB DCS systems, improving cable management and fault isolation.
-
Enhanced Safety: Built-in reverse polarity protection and isolation help prevent electrical faults and damage.
-
Reliable Terminal Design: Robust terminals allow secure connections, minimizing loose contact risks in vibration-prone environments.
-
Indicator LEDs: Built-in LEDs display voltage presence on key buses, allowing visual confirmation during commissioning or servicing.
-
Passive, Maintenance-Free Operation: With no active circuitry, the board minimizes heat, EMI, and long-term failure risks.
-
Industrial-Grade Protection: Coated for humidity, dust, and chemical resistance, suitable for harsh process environments.
-
Easy Integration: Designed for plug-and-play compatibility with ABB racks and wiring harnesses.
よくある質問 (FAQ)
-
Can the SAFT167APC handle multiple voltage lines simultaneously?
Yes, it supports multi-channel voltage bus distribution within one board. -
Does it provide reverse polarity protection?
Yes, the board includes circuit protection features to prevent damage from incorrect wiring. -
Is it capable / monitoring power status?
While passive, it includes LED indicators to show voltage presence across connected lines. -
Can this board be hot-swapped in live systems?
Only if the system and rack design support live insertion/removal. Consult ABB system documentation. -
What is the maximum allowable load current per channel?
Typically up to 10 A, depending on the system design and wire gauge. -
Is there built-in overvoltage protection?
It relies on upstream breakers or fuses. Onboard it supports current-limiting path design. -
Does the board support grounding via chassis or external wire?
Yes, it includes a grounding pin and contacts for full system earth connection. -
Is there any intelligence or firmware on this board?
No, it is a passive connection board and does not include programmable logic. -
How do I verify proper voltage distribution across terminals?
Use the onboard LED indicators or measure with a multimeter on designated test points. -
Can this board be used in parallel with another connection board for load sharing?
Yes, when designed properly within the system, it can operate in parallel for distribution.
Related or Similar モデルs (Same Series or Application Family)
| モデル Number | 説明 | System Compatibility |
|---|---|---|
| SAFT166APC 58096652 | Power Supply Board | Symphony Plus / Advant Master |
| SAFT132PAC 57411704 | Processor Module for Control and I/O | ABB Control Systems |
| SAFT125CHC 57411546 | Chopper Control Board | ABB Drives & Power Systems |
| SAFT115PAC 57411495 | Digital Signal Interface Module | ABB Master DCS |
| SAFT130PAC 57411703 | Power Control Board | Symphony Plus / Advant Master |
| SAFT132CBS 57411619D | Monitoring Board for Voltage/Current Checks | ABB DCS |
Popular ABB モデルs (Same ブランド – High Demand in Automation & Power Control)
| モデル Number | 説明 | Application Area |
|---|---|---|
| PM864AK01 | AC800M High-Speed Controller | Process Automation Systems |
| CI854AK01 | PROFIBUS DP Interface Module | Industrial Communication |
| AI835 | Analog Input Module (8 Channels) | Sensor Data Acquisition |
| DI830 | Digital Input Module (16 Channels) | Discrete Control Input |
| CP600-Pro | HMI Panel for Industrial Systems | Human-Machine Interface |
| TB840 | Redundant Communication Terminal Base | High Availability Architectures |
