製品紹介

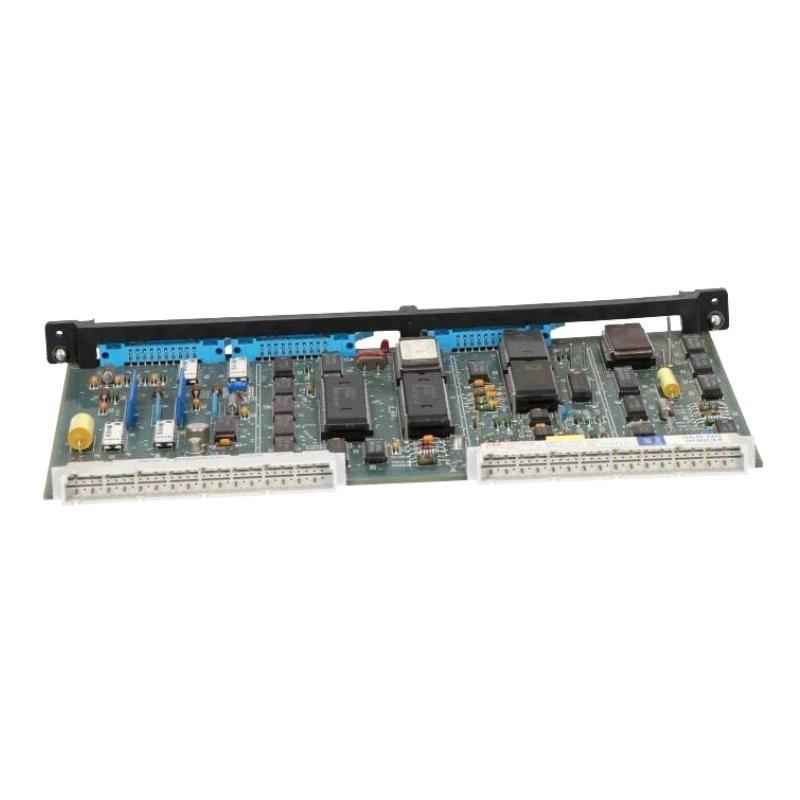

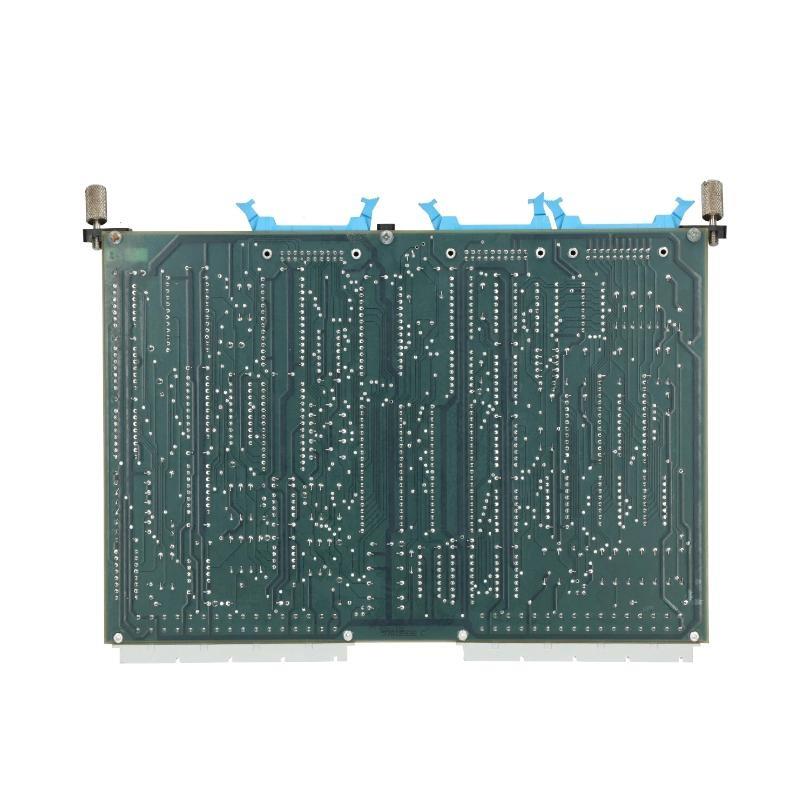

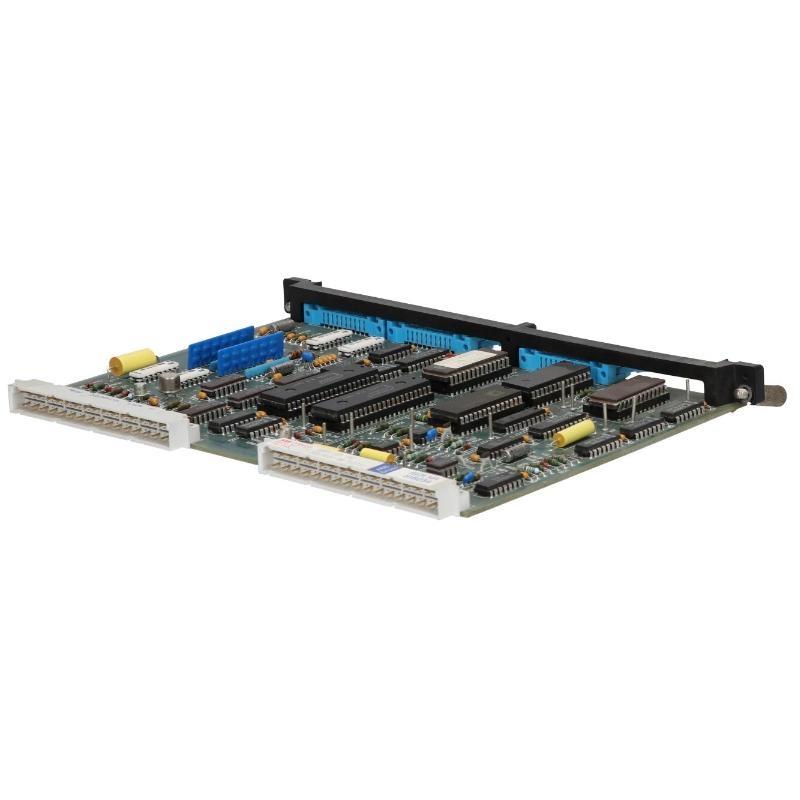

The ABB SAFT 185 TBC 58119687 Circuit Board is a robust and precision-engineered electronic control board designed for critical industrial automation and power management systems. As part / ABB’s SAFT series, this circuit board provides reliable signal processing, communication, and control capabilities in demanding environments. Built with industrial-grade components, it ensures stable operation, seamless integration with ABB control architectures, and long-term reliability for applications requiring high performance and continuous uptime.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル | SAFT 185 TBC 58119687 |
| Type | Industrial Control Circuit Board |
| Input Voltage | 24 V DC nominal |
| Signal Interfaces | Multiple analog/digital I/O, serial communication ports |
| Processing Capability | High-speed microprocessor for real-time control |
| Protection Features | Over-voltage, reverse polarity, and thermal safeguards |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Range | 5 %–95 % non-condensing |
| Mounting | Rack or panel installation |
| Compliance | CE, RoHS, UL certified |
| Dimensions (L × W × H) | 150 × 120 × 30 mm |
| 重量 | 0.34 kg |
Applications
-
Power Generation Plants – Provides core control logic for generator protection and excitation subsystems.
-
Industrial Automation – サポートs precise signal processing and communication in manufacturing and process control systems.
-
Substation Control – Enhances data acquisition and protection for high-voltage switchgear and distribution equipment.
-
Marine and Offshore Systems – Ensures reliable monitoring and automation for shipboard power networks.
-
Heavy Industry – Ideal for mining, oil & gas, and chemical plants where robust circuit control is required.
Advantages
-
High Processing Reliability – Built with industrial-grade components for 24/7 operation in harsh environments.
-
Versatile Integration – Compatible with ABB’s extensive control systems and third-party equipment.
-
Comprehensive Protection – Safeguards against over-voltage, thermal stress, and wiring faults.
-
Fast Real-Time Response – High-speed microprocessor enables quick signal processing and accurate control.
-
Long Service Life – Rigid PCB design resists vibration and mechanical stress.
-
Modular Architecture – Simplifies maintenance, replacement, and upgrades.
-
Stable Communication – Multiple analog and digital interfaces support seamless data exchange across systems.
-
Compact Form Factor – Space-saving design for easy installation in dense control cabinets.
FAQ
-
What type / control signals can the SAFT 185 TBC board handle?
It supports both analog and digital signals, enabling versatile control / industrial sensors, actuators, and protective relays. -
Is the board compatible with ABB distributed control systems (DCS)?
Yes, it integrates smoothly with ABB DCS platforms, including legacy and modern systems, via standard communication protocols. -
How does the board ensure reliable operation in high-vibration environments?
The PCB is designed with reinforced layers and industrial soldering techniques to withstand continuous mechanical stress. -
What is the recommended input voltage range for stable performance?
The nominal input is 24 V DC, with a tolerance / ±10 % to accommodate power fluctuations without performance degradation. -
Can the SAFT 185 TBC board be used in redundant control configurations?
Yes, it supports hot-standby or parallel configurations for high-availability installations. -
What protection features are built into the circuit board?
Integrated over-voltage, reverse polarity, and thermal shutdown features protect both the board and connected devices. -
Does the board support remote diagnostics or monitoring?
Standard communication ports allow real-time data monitoring and diagnostics through plant SCADA or remote systems. -
What is the typical response time for signal processing?
The high-speed processor provides sub-millisecond response for critical automation tasks. -
How is heat dissipation managed in continuous operation?
The board utilizes a thermally optimized layout and high-efficiency components to minimize heat buildup during 24/7 use. -
Can it interface with non-ABB equipment?
Yes, the board supports open communication standards, allowing integration with third-party industrial control systems.
Related ABB モデルs (Same Series or Function)
| モデル | 説明 |
|---|---|
| SAFT 185 TBC 58119688 | Enhanced circuit board for advanced control functions |
| SAFT 185 TBC 58119689 | High-speed version for demanding automation tasks |
| SAFT 185 TBC 58119700 | Control board optimized for substation protection |
| SAFT 185 TBC 58119710 | Variant with extended communication options |
| SAFT 185 TBC 58119720 | Ruggedized model for extreme environments |
| SAFT 185 TBC 58119730 | Compact version for space-constrained panels |
Popular ABB Modules
| モデル | Application Highlight |
|---|---|
| AC800M | High-performance process controller for complex automation systems |
| REG670 | Generator and grid protection relay with advanced control features |
| UNITROL 5000 | Digital excitation control for large power generators |
| DCS550 | Precision DC drive controller for industrial processes |
| PPD517A | Exciter control module for generator voltage regulation |
| DCS880 | Heavy-duty DC drive for demanding industrial applications |
