Product Overview

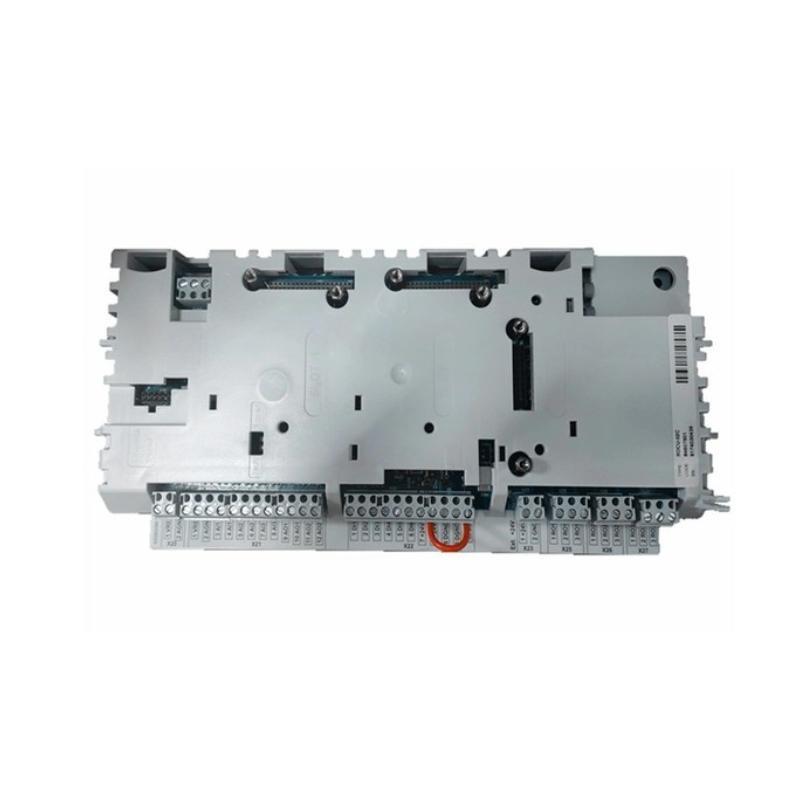

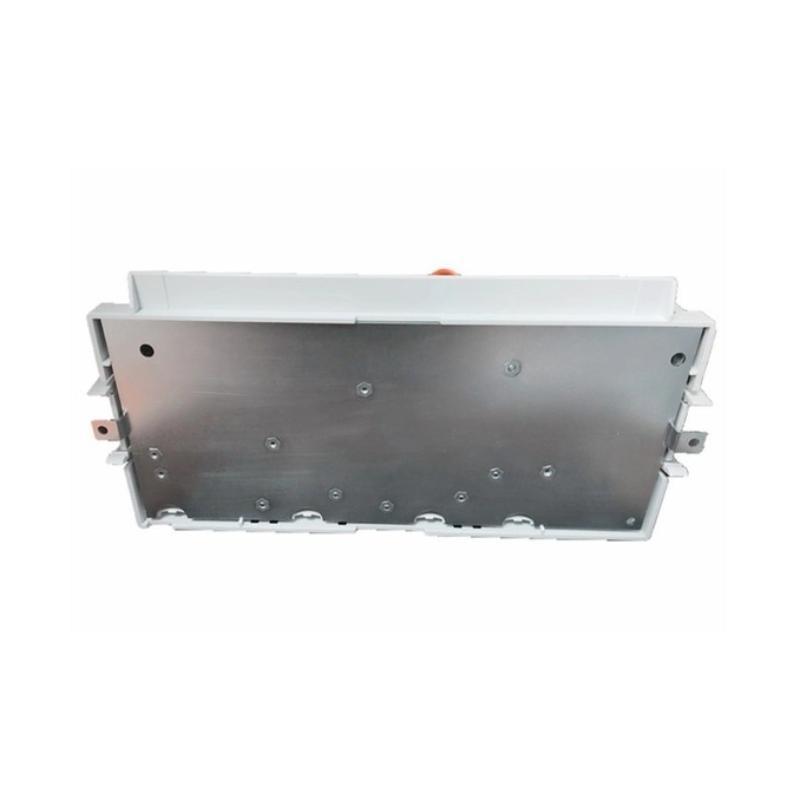

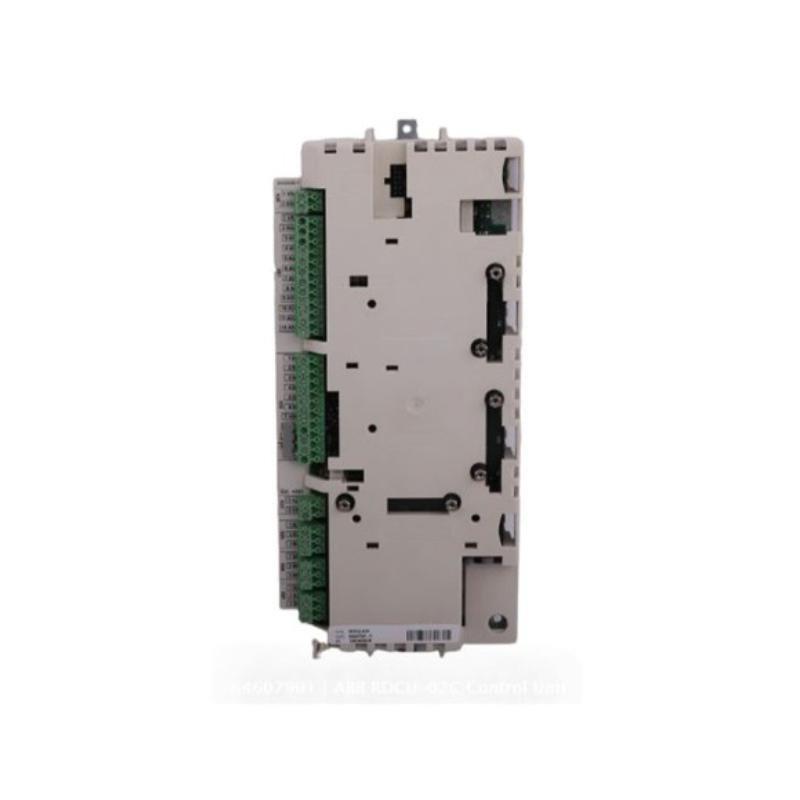

The ABB RDCU-02C 64607901 Inverter Accessory is an advanced control 台 designed to function as a central processing and communication interface within ABB’s ACS800 inverter drive systems. It provides enhanced system control, real-time monitoring, and communication management, enabling precise regulation / motor speed, torque, and process parameters in complex industrial applications.
As part / ABB’s proven inverter platform, the RDCU-02C facilitates high-performance drive operation, secure communication with automation systems, and flexible integration into networked industrial environments. Its modular, compact design ensures easy installation, reliable operation, and simplified maintenance.
Key Features
-
Central control 台 for ABB ACS800 inverter drives
-
Provides advanced real-time processing and system management functions
-
サポートs comprehensive parameter configuration and drive diagnostics
-
Ensures reliable communication with control systems and networks
-
Compact, modular design for simplified installation and replacement
-
サポートs various fieldbus protocols via optional modules
-
Robust construction suitable for harsh industrial conditions
-
Integral part / ABB drive system architecture for seamless integration
-
Designed for continuous, reliable operation in demanding environments
-
Fully certified for industrial use worldwide
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Inverter Control ユニット (RDCU) |
| ブランド | ABB |
| モデル Number | RDCU-02C 64607901 |
| Compatible Drive Series | ABB ACS800 Inverter Drives |
| Function | Central processing, control, and communication interface |
| サポートed Communication | System bus, with optional fieldbus adapters |
| Diagnostics | Integrated parameter monitoring and fault diagnostics |
| User Interface | Connection for control panels or external HMI devices |
| Firmware | Upgradeable via ABB tools |
| Power Supply | Internal supply via inverter system |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity Range | 5% to 95% non-condensing |
| Shock Resistance | IEC 60068-2-27 compliant |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Certifications | CE, UL, CSA, RoHS compliant |
| Dimensions | 150 x 120 x 40 mm |
| 重量 | 0.45 kg |
Industry Applications
The ABB RDCU-02C Inverter Accessory is designed for industries that require precise motor control, high reliability, and advanced system communication:
-
Metals and Mining: Motor regulation for crushers, conveyors, and processing equipment
-
Oil & Gas: Pump and compressor control with robust fault diagnostics
-
Power Generation: Integration / drives into plant-wide control networks
-
Water and Wastewater Treatment: Efficient motor control for pumps and aeration systems
-
Marine and Offshore Applications: Drive control in vessels and /fshore platforms
-
Pulp and Paper: High-performance drive management for paper machines and process lines
Product Advantages
-
Centralized Control: Manages all drive processing, communication, and parameter configuration
-
Seamless ABB Integration: Fully compatible with ACS800 drive architecture
-
Flexible Communication: サポートs optional fieldbus modules for network connectivity
-
Real-Time Diagnostics: Provides fault detection and system health monitoring
-
Compact, Modular Design: 保存s space and simplifies system maintenance
-
Robust Industrial Build: Operates reliably in harsh environments
-
User-Friendly Configuration: サポートs external panels or PC-based tools for easy setup
-
Upgrade Capability: Firmware can be updated for future functionality enhancements
-
Global Compliance: Certified for worldwide industrial applications
-
Enhances Drive Performance: Optimizes inverter system response and operational efficiency
よくある質問 (FAQ)
1. What is the purpose / the RDCU-02C in ABB drives?
It acts as the central control and communication processor for ABB ACS800 inverter systems.
2. Which ABB drives are compatible with RDCU-02C?
It is designed specifically for ABB ACS800 series inverter drives.
3. Does the RDCU-02C support fieldbus communication?
Yes, it supports various fieldbus protocols with optional communication adapters.
4. Can I monitor system faults with the RDCU-02C?
Yes, it features integrated fault diagnostics and real-time monitoring capabilities.
5. Is the RDCU-02C suitable for harsh industrial environments?
Yes, it meets international standards for shock, vibration, and temperature resistance.
6. How is the RDCU-02C powered?
It receives power directly from the connected ABB inverter drive system.
7. Can the RDCU-02C be used with external HMIs?
Yes, it supports connection to ABB control panels and third-party HMI interfaces.
8. Is the firmware / RDCU-02C upgradeable?
Yes, firmware updates are supported to enhance functionality or security.
9. What protocols does the RDCU-02C support?
It supports system bus communication natively, with additional fieldbus options available via modules.
10. Is the RDCU-02C globally certified?
Yes, it complies with CE, UL, CSA, and RoHS standards for worldwide industrial deployment.
