Product Overview

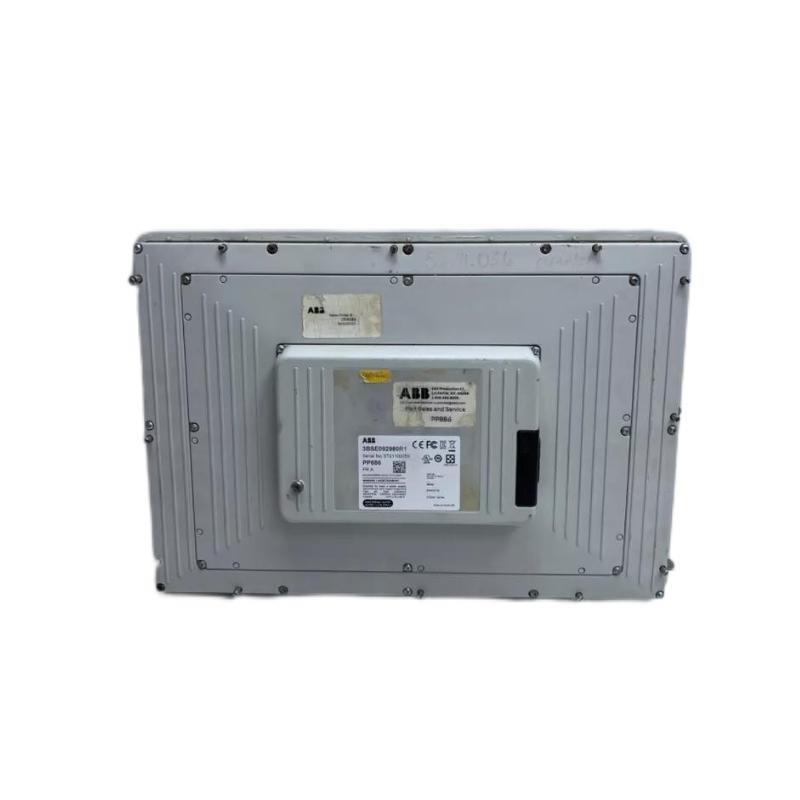

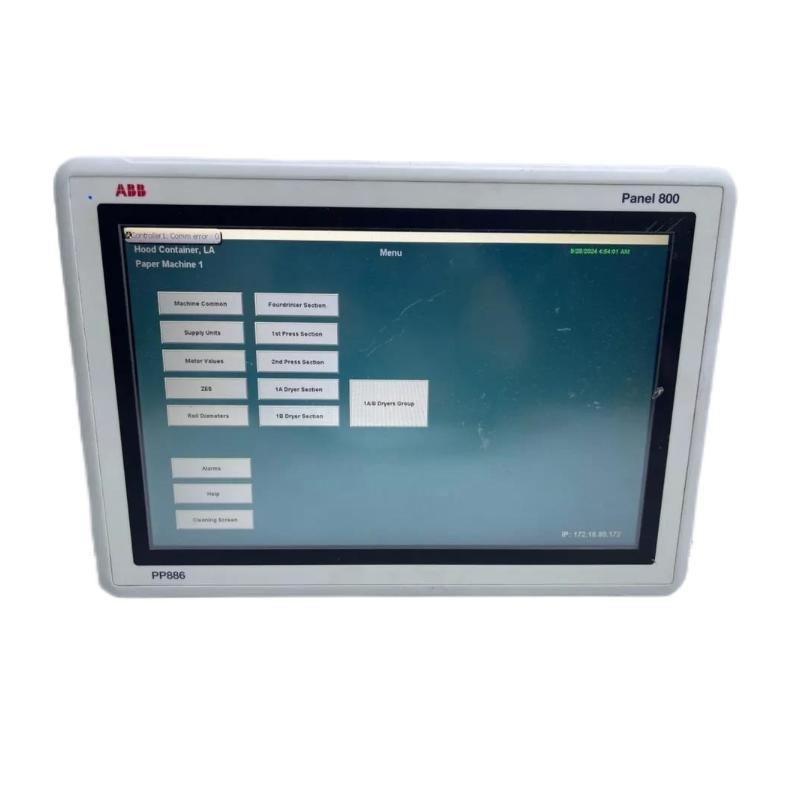

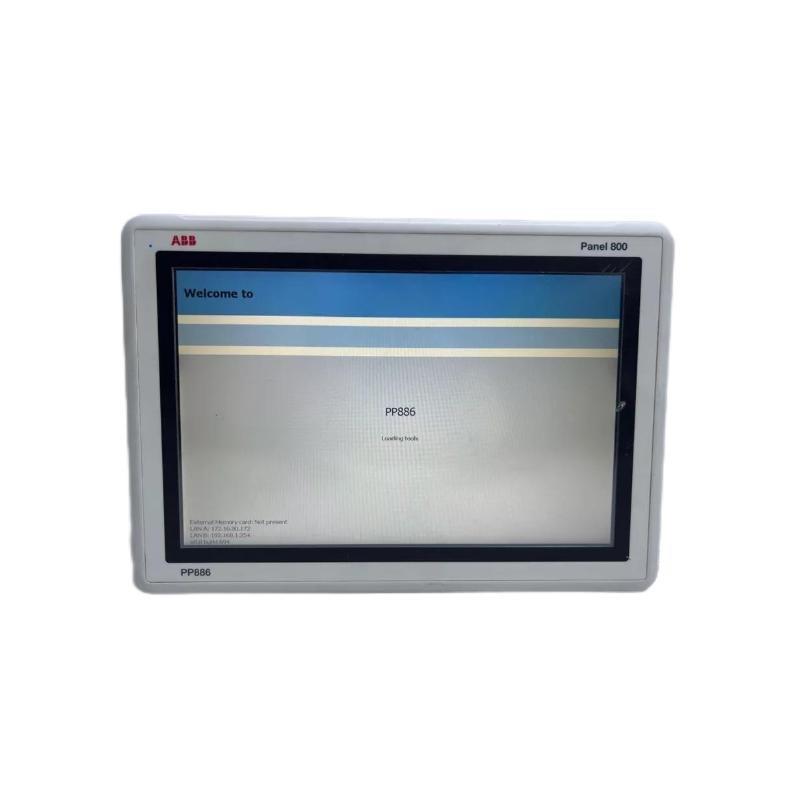

The ABB PP886 3BSE092980R1 is a robust 15.4″ HMI panel from the Panel 800 Standard series, engineered for industrial applications requiring clear visualization, reliable input, and versatile communication. Featuring a high-resolution TFT/LED display and wide protocol support, it enables intuitive and efficient operator interactions across automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Article Number | 3BSE092980R1 |
| Series | Panel 800 Standard |
| Display Type | TFT/LED Touchscreen |
| Display Size | 15.4″ |
| Resolution | 1280 × 800 (16:10) |
| Brightness | 450 cd/m² |
| Touch Technology | Resistive |
| Processor | ARM9 (1 GHz) |
| Main Memory | 1 GB |
| Storage | 2 GB SSD (1.5 GB usable) |
| Ethernet | 2 × 10/100 Base-T |
| USB | 2 × USB 2.0 |
| Serial Ports | 1 × RS232, 1 × RS422/485 |
| Power Supply | 24 V DC (18–32 VDC) |
| Power Consumption | 31.2 W |
| Operating Temperature | -10 °C to +60 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5%–85% (non-condensed) |
| Protection (Front/Rear) | IP65 / IP20 |
| Certifications | CE, FCC, KCC, UL, Marine (DNV, KR) |
| Mounting | Panel Mount, VESA 75 x 75 |
| Dimensions (W×H×D) | 410 × 286 × 61 mm |
| 重量 | 3.85 kg |
Applications
-
Process automation HMI terminals
-
Machine operation and visualization
-
Maritime control panels
-
Industrial control room displays
-
Manufacturing and packaging equipment interfaces
Key Advantages
-
High Clarity: Wide 15.4″ TFT display with high brightness and resolution.
-
Versatile Connectivity: Ethernet, USB, and multiple serial ports support integration with various controllers.
-
Durable Build: IP65-rated front and rugged aluminum frame for industrial use.
-
User-Friendly Engineering: Familiar Micros/t® Windows®-style Panel Builder s/tware with simulation support.
-
Global Certification: Suitable for marine and industrial environments with CE, UL, DNV approvals.
よくある質問 (FAQ)
Q1: What type / touchscreen does the PP886 use?
A1: It uses resistive touchscreen technology.
Q2: Can the PP886 be used in marine environments?
A2: Yes, it is certified by DNV, KR, LR, ABS, and CCS.
Q3: Is simulation available before deployment?
A3: Yes, applications can be simulated using the Panel Builder 800 s/tware.
Q4: What is the power input range?
A4: The 台 accepts 18–32 VDC, with 24 V DC nominal.
Q5: What is the front panel protection rating?
A5: It has an IP65 and NEMA 4X/12-rated front.
Q6: What is the resolution / the display?
A6: The display resolution is 1280 × 800 (16:10 aspect ratio).
Q7: What mounting options are available?
A7: It supports panel mounting and VESA 75 x 75 mount.
Q8: What programming environment is used?
A8: The device is configured using Panel Builder 800 in a Windows-like environment.
Q9: Does it support multilingual interfaces?
A9: Yes, the panel /fers multilingual support.
Q10: What are the cut-out dimensions for mounting?
A10: 394 × 270 mm.
Related モデルs (Same Series or Function)
| モデル | Display Size | Resolution | Power Supply | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| PP875 | 7″ | 800 x 480 | 24 VDC | 214 × 162 × 56 | 1.4 kg |
| PP881 | 10.4″ | 800 x 600 | 24 VDC | 296 × 218 × 56 | 2.4 kg |
| PP883 | 12.1″ | 1024 x 768 | 24 VDC | 350 × 270 × 56 | 3.2 kg |
| PP895 | 21.5″ | 1920 x 1080 | 24 VDC | 540 × 340 × 61 | 5.8 kg |
| CP6202-0001 | 15″ | 1024 x 768 | 24 VDC | 410 × 310 × 60 | 4.1 kg |
| CP6203-0001 | 12″ | 800 x 600 | 24 VDC | 320 × 240 × 60 | 3.6 kg |
Popular ABB モデルs (Similar Product Line)
| モデル | Type | Display Size | Resolution | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| CP600-ECO-70 | Economy HMI | 7″ | 800 x 480 | 212 × 146 × 36 | 0.9 kg |
| CP600-PRO-10 | Premium HMI | 10.1″ | 1280 x 800 | 287 × 186 × 42 | 1.8 kg |
| PM564-ETH | AC500 PLC Main Module | – | – | 120 × 90 × 60 | 0.7 kg |
| AC500-eCo | Compact PLC | – | – | 142 × 90 × 60 | 0.6 kg |
| CP6203 | Industrial PC Panel | 12″ | 1024 x 768 | 320 × 240 × 60 | 3.6 kg |
| CP6701 | Control Panel PC | 15.6″ | 1366 x 768 | 420 × 280 × 65 | 4.2 kg |
