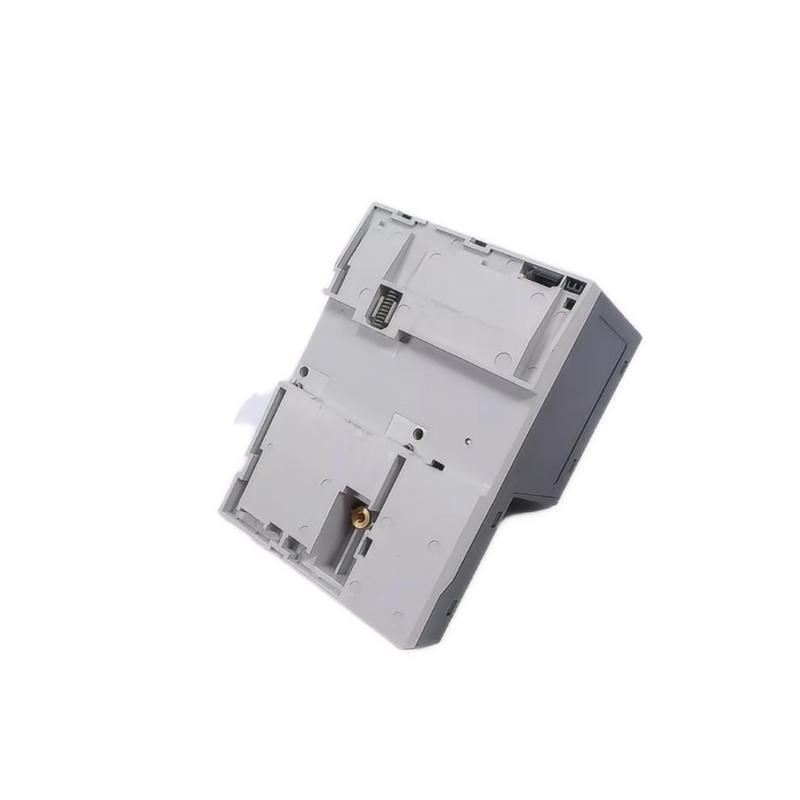

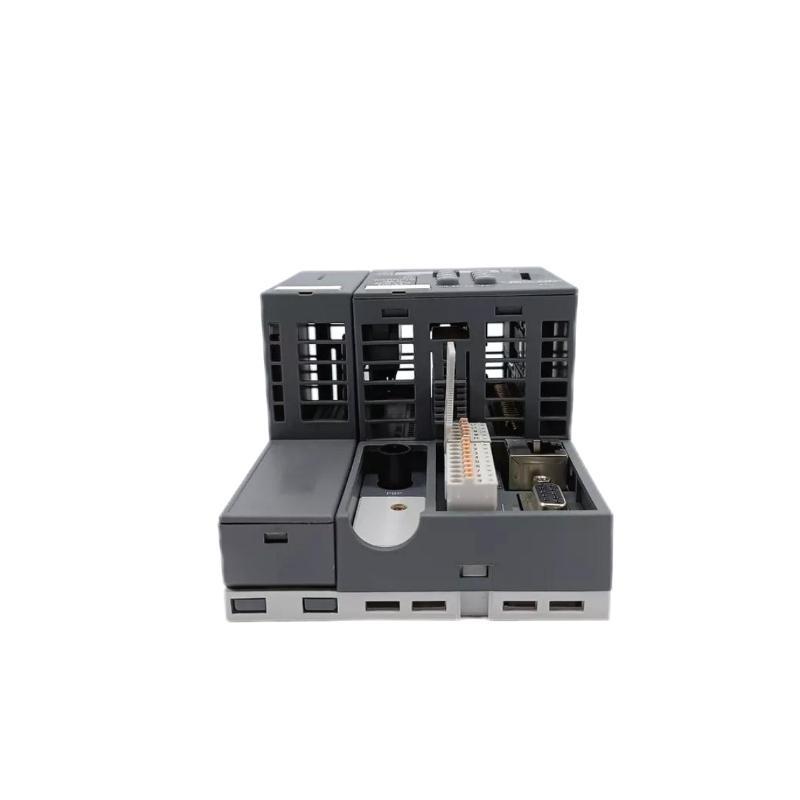

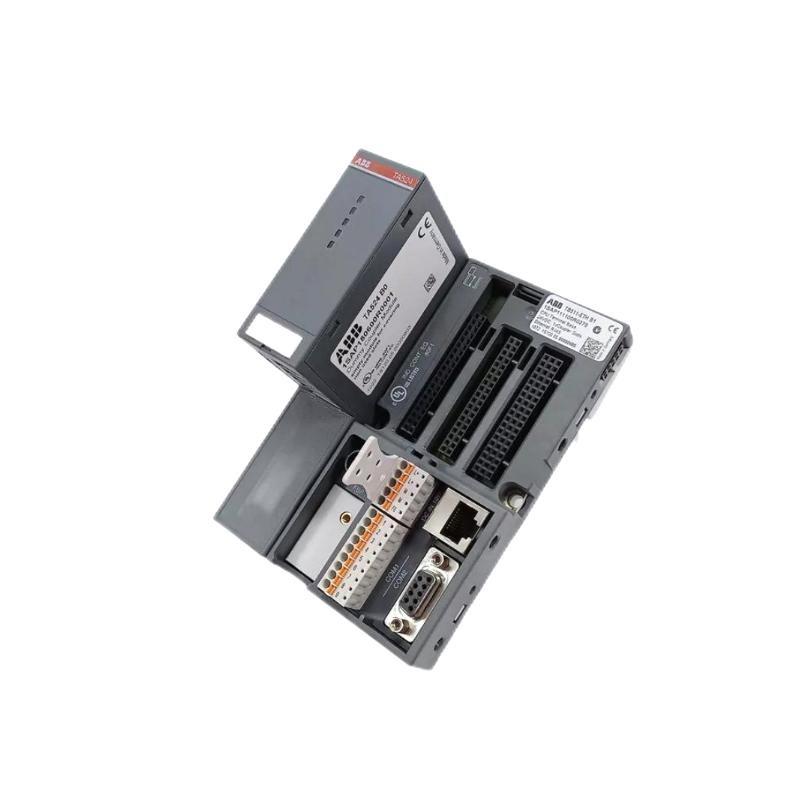

Product Overview
The ABB PM573 is a compact yet powerful CPU module belonging to the ABB AC500 series / programmable logic controllers (PLCs). Engineered to meet the growing demands / industrial automation, the PM573 /fers high-speed processing, flexible communication capabilities, and modular scalability, making it ideal for a wide range / applications in factory automation, process control, infrastructure management, and machine building.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル | PM573 |
| Processor | 32-bit RISC, 200 MHz |
| User Program Memory | 512 kB |
| User Data Memory | 512 kB |
| Memory Type | Flash EPROM, non-volatile RAM |
| Communication Interfaces | Ethernet, 2x RS232/485, FBP |
| Display | LCD with 1 line and 8 function keys |
| Power Supply | 24 VDC (20.4 – 28.8 VDC) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 |
| Mounting | DIN Rail (TH35-15) |
| Dimensions (H×W×D) | 62 × 76 × 67.5 mm |
| 重量 | 0.135 kg |
| I/O Expansion | Up to 10 modules (320 digital I/Os, 160 analog I/Os) |
| Certifications | CE, CSA, cULus, EAC |
Applications
The ABB PM573 is suitable for a wide range / industrial applications, including:
-
Manufacturing Automation: Control / assembly lines, robotic systems, and machinery.
-
Process Control: Monitoring and controlling processes in chemical, pharmaceutical, and food industries.
-
Building Automation: Managing HVAC systems, lighting, and security systems.
-
Energy Management: Supervising power generation, distribution, and consumption.
-
Water and Wastewater Management: Controlling treatment processes and distribution networks.
-
Transportation Systems: Automation in railways, airports, and traffic management.
Key Advantages
-
High Performance: Fast processing speed ensures efficient execution / complex control tasks.
-
Scalability: サポートs expansion with up to 10 I/O modules, accommodating growing system needs.
-
Flexible Communication: Multiple interfaces (Ethernet, RS232/485, FBP) for seamless integration.
-
User-Friendly Interface: LCD display with function keys for easy monitoring and configuration.
-
Robust Design: Operates reliably in a wide temperature range and industrial environments.
-
Compliance: Meets international standards and certifications for safety and performance.
よくある質問 (FAQ)
-
What is the processing speed / the PM573?
The PM573 operates at 200 MHz, providing fast and efficient processing for control applications. -
How much memory does the PM573 have?
It has 512 kB / user program memory and 512 kB / user data memory. -
What communication interfaces are available?
The PM573 includes Ethernet, two RS232/485 ports, and FBP communication interfaces. -
Can the PM573 be expanded with additional I/O modules?
Yes, it supports expansion with up to 10 I/O modules, allowing for 320 digital and 160 analog I/Os. -
What is the operating temperature range?
The module operates within a temperature range / 0°C to +60°C. -
Is the PM573 suitable for building automation?
Yes, its features make it ideal for applications in building automation, including HVAC and lighting control. -
What is the protection class / the PM573?
It has an IP20 protection class, suitable for installation in control cabinets. -
Does the PM573 have a display for user interaction?
Yes, it features an LCD display with one line and eight function keys for user interaction. -
What mounting options are available?
The PM573 is designed for DIN rail mounting (TH35-15). -
What certifications does the PM573 hold?
It is certified with CE, CSA, cULus, and EAC standards.
Related モデルs from the Same Series
| モデル Number | 説明 | Memory | Communication Interfaces |
|---|---|---|---|
| PM571 | Basic CPU Module | 128 kB | RS232/485 |
| PM572 | Mid-Range CPU Module | 256 kB | Ethernet, RS232/485 |
| PM574 | Enhanced CPU Module | 1 MB | Ethernet, RS232/485, CAN |
| PM582 | High-Performance CPU Module | 2 MB | Ethernet, RS232/485, CAN |
| PM590 | Advanced CPU Module with Web Server | 4 MB | Ethernet, RS232/485, CAN |
| PM595 | Premium CPU Module with Redundancy | 8 MB | Ethernet, RS232/485, CAN |
Popular ABB モデルs Across Product Lines
| モデル Number | 説明 | Application | Key Features |
|---|---|---|---|
| AC500-eCo | Compact PLC for Small Applications | Small-scale Automation | Cost-effective, Easy to Use |
| AC500-S | Safety PLC for Critical Applications | Safety-Critical Systems | SIL3 Certified |
| PM556 | CPU Module with Integrated I/Os | Medium-scale Automation | Integrated I/Os, Ethernet |
| PM567 | High-Speed CPU Module | High-speed Control Systems | Fast Processing, CAN サポート |
| CI541 | Communication Interface Module | Network Integration | サポートs Various Protocols |
| CM579 | Communication Module for Fieldbus | Fieldbus Communication | PROFIBUS, CANopen サポート |
