製品紹介

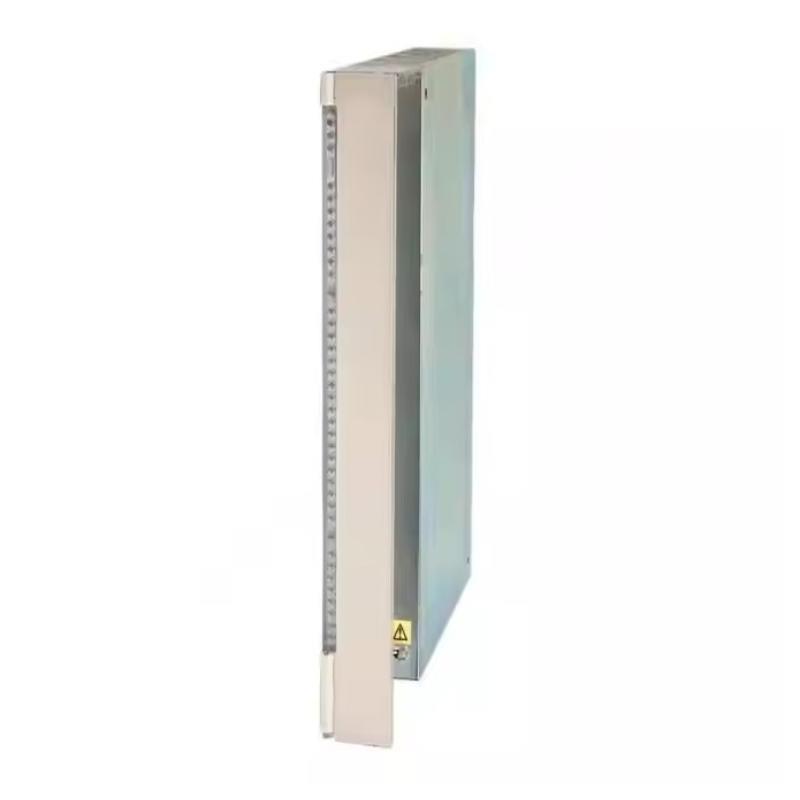

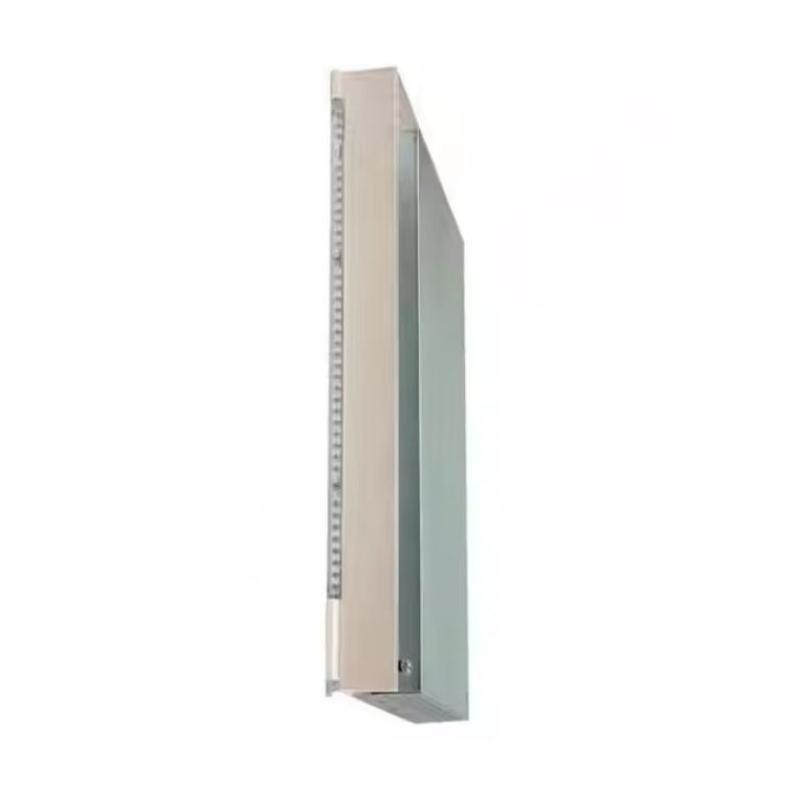

The ABB PFSK102 YM322001-EG is a highly reliable I/O communication module designed for use in industrial automation systems, particularly within ABB’s Symphony Plus control family. It serves as a vital component for signal processing and system communication, facilitating secure and fast data exchange between control 台s and field devices. The module is built with ABB’s renowned precision and rugged durability, ensuring consistent performance even under harsh industrial conditions.
Product Features & Advantages
-
Reliable Signal Conversion: サポートs efficient analog/digital I/O signal interface between field instruments and control processors.
-
Modular Design: Allows for easy installation, replacement, and expansion in DCS environments.
-
Robust Build Quality: Engineered for long-term operation in industrial environments with superior resistance to vibration and temperature fluctuations.
-
Optimized for Symphony Plus: Seamless compatibility with ABB Symphony Plus systems ensures reduced configuration time and maximized efficiency.
-
Diagnostic Capabilities: Built-in diagnostics help reduce downtime and enable preventive maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product モデル | PFSK102 YM322001-EG |
| メーカー | ABB |
| System Compatibility | Symphony Plus |
| Function | Signal I/O Communication Module |
| Communication Interface | Redundant, high-speed digital link |
| Mounting | Rack-mounted |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH non-condensing |
| Voltage Range | 18–36 VDC |
| Power Consumption | 3 W |
| Dimensions | 140 × 100 × 35 mm |
| 重量 | 1.9 kg |
| Certification | CE, UL, RoHS |
| Protection Class | IP20 |
Applications
The ABB PFSK102 YM322001-EG module is widely used in:
-
Power generation: Especially in thermal and hydroelectric plants for process automation.
-
Petrochemical plants: For managing complex control systems with high reliability.
-
Water treatment facilities: Used to ensure accurate monitoring and regulation / system parameters.
-
Manufacturing industries: For seamless integration / sensors, actuators, and controllers.
-
Oil and gas: Employed in upstream and downstream operations where signal integrity is crucial.
Product Advantages
-
High Stability: Ensures uninterrupted operation and minimal signal interference.
-
Easy Maintenance: Hot-swappable design allows module replacement without shutting down the system.
-
Future-Pro/: Compatible with current ABB systems and designed to support upcoming firmware upgrades.
-
Cost Efficiency: Reduces operational costs through robust performance and reduced failure rates.
-
Real-Time Data Processing: Fast and accurate communication improves system responsiveness.
よくある質問 (FAQ)
Q1: What system is the ABB PFSK102 YM322001-EG compatible with?
A1: It is designed specifically for ABB Symphony Plus control systems.
Q2: Is the module hot-swappable?
A2: Yes, the module can be replaced during operation without system shutdown.
Q3: What is the primary function / this module?
A3: It handles the communication and data exchange between field devices and controllers.
Q4: Can it operate in high humidity environments?
A4: Yes, it operates reliably in environments with 5% to 95% relative humidity, non-condensing.
Q5: What is the power supply requirement for this module?
A5: It requires 18–36 VDC with typical power consumption around 3W.
Q6: Is it resistant to industrial vibration?
A6: Yes, it’s built to withstand vibration and mechanical stress typically found in industrial settings.
Q7: Does the module support redundancy?
A7: Yes, it is equipped for redundant communication for increased system reliability.
Q8: What diagnostics are available in the module?
A8: It includes self-monitoring and fault indication for proactive maintenance.
Q9: How is it mounted in the system?
A9: It is rack-mounted in standard ABB control system racks.
Q10: What certifications does this module have?
A10: It is CE marked and compliant with UL and RoHS standards.
Related モデルs (Same Series or Functional Alternatives)
| モデル Number | 説明 | Dimensions (mm) | 重量 |
|---|---|---|---|
| PFSK101 | Analog input module for Symphony Plus | 25 × 170 × 130 | 340 g |
| PFSK103 | Digital output module | 25 × 170 × 130 | 355 g |
| PFSA140 | Analog signal converter | 25 × 170 × 130 | 350 g |
| PFSD112 | Digital I/O interface module | 25 × 170 × 130 | 340 g |
| PFSK202 | Redundant communication interface module | 25 × 170 × 130 | 360 g |
| PFSK301 | Pulse input interface module | 25 × 170 × 130 | 355 g |
Popular ABB モデルs
| モデル Number | 説明 | Dimensions (mm) | 重量 |
|---|---|---|---|
| CI854AK01 | PROFINET Communication Interface | 45 × 120 × 100 | 200 g |
| PM864AK01 | AC 800M Controller Module | 45 × 170 × 100 | 250 g |
| CI853K01 | PROFIBUS DP-V1 Master/Slave Interface | 45 × 120 × 100 | 180 g |
| AI810 | Analog Input Module (8 ch) | 45 × 120 × 100 | 200 g |
| DI830 | Digital Input Module (16 ch) | 45 × 120 × 100 | 190 g |
| DO820 | Digital Output Module (16 ch) | 45 × 120 × 100 | 195 g |
