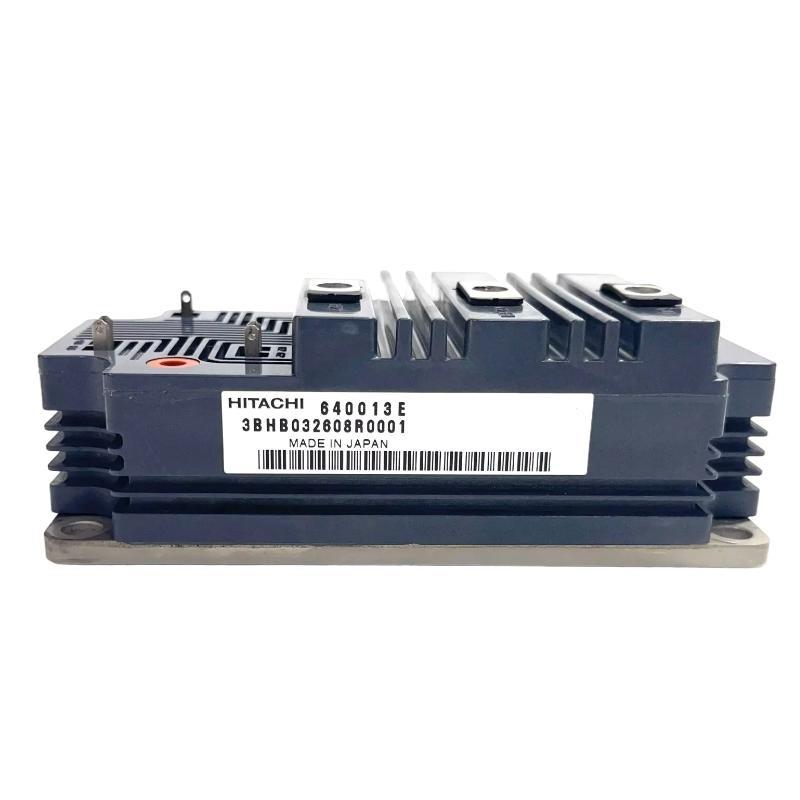

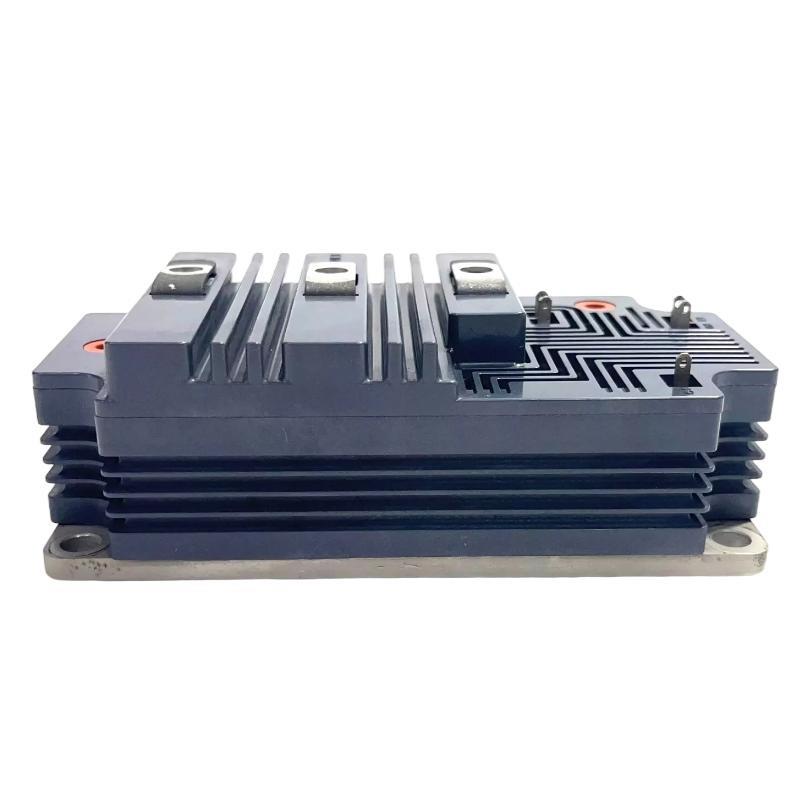

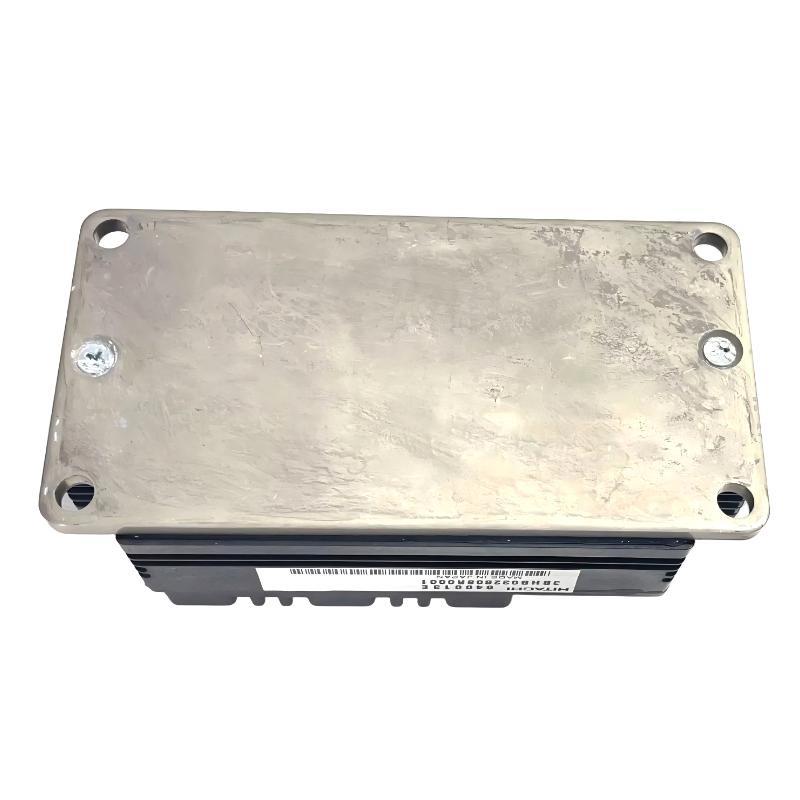

The ABB MBM200H45E2-H IGBT Module (3BHB032608R0001) is a high-performance power semiconductor module designed for industrial motor drives, inverters, and renewable energy applications. Utilizing Insulated Gate Bipolar Transistor (IGBT) technology, this module enables efficient switching / high current and voltage, ensuring reliable power conversion and minimal energy loss.
This module is engineered to handle high-frequency switching with fast response times while maintaining thermal stability under demanding industrial conditions. It is widely employed in medium- to high-power applications, including variable-speed drives, traction systems, and power converters.
The MBM200H45E2-H provides compact, modular construction, high insulation strength, and robust performance, making it an essential component for ABB’s industrial drive solutions.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | MBM200H45E2-H |
| ABB 型番 | 3BHB032608R0001 |
| Type | IGBT Module |
| Rated Voltage | 1200 V DC |
| Rated Current | 200 A |
| Switching Frequency | Up to 20 kHz |
| Isolation Voltage | 2500 V AC |
| Gate Voltage | ±15 V typical |
| Thermal Resistance (Junction to Case) | 0.30 °C/W |
| Operating Temperature | -40°C to 125°C |
| Material | Ceramic substrate with epoxy encapsulation |
| Dimensions (H × W × D) | 140 x 36.5 x 73 mm |
| 重量 | 0.84 kg |
| Mounting | Screw and baseplate mount |
| Certifications | UL, CE, RoHS |
| Cooling Method | Forced air or liquid cooling recommended |
| Application Range | Medium- and high-power industrial drives, renewable energy inverters |
Applications
The ABB MBM200H45E2-H IGBT Module is suitable for a wide range / industrial and power applications:
-
Variable-Speed Motor Drives: Efficiently controlling AC and DC motors in manufacturing plants.
-
Traction Systems: Powering locomotives, trams, and electric vehicles with high switching efficiency.
-
Renewable Energy Converters: Inverters for solar and wind power systems.
-
Industrial Inverters: Power conversion in industrial machinery and robotic systems.
-
UPS Systems: Reliable energy conversion in uninterruptible power supply 台s.
-
Power Supply Modules: High-performance IGBT for medium-voltage DC–AC converters.
Product Advantages
-
High Efficiency: Reduces conduction and switching losses for improved energy usage.
-
Fast Switching Response: サポートs high-frequency PWM applications.
-
Thermal Stability: Designed to handle high junction temperatures reliably.
-
Compact Design: Modular structure allows integration into constrained spaces.
-
Robust Construction: Ceramic substrate and encapsulation ensure durability under stress.
-
High Insulation: Provides strong electrical isolation for safe operation.
-
Scalable: Multiple modules can be used for higher power configurations.
-
Wide Operating Temperature Range: Suitable for harsh industrial environments.
-
Versatile Applications: Compatible with motors, inverters, traction systems, and power converters.
-
Compliance: Meets international safety and environmental standards (UL, CE, RoHS).
FAQ
1. What is the rated voltage / the MBM200H45E2-H module?
The module is rated for 1200 V DC operation.
2. What maximum current can the module handle?
It supports up to 200 A / continuous current.
3. Which switching frequency does the IGBT module support?
The module can operate up to 20 kHz for high-speed PWM applications.
4. What is the recommended gate voltage for control?
Typical gate voltage is ±15 V for optimal switching performance.
5. Can the module be used in traction systems?
Yes, it is suitable for locomotives, trams, and electric vehicles.
6. What cooling methods are recommended?
Forced air or liquid cooling is recommended to maintain thermal stability.
7. What isolation voltage does the module provide?
It has an isolation voltage / 2500 V AC.
8. Is the module suitable for renewable energy inverters?
Yes, it is designed for solar, wind, and other renewable power conversion systems.
9. How is the module mounted in equipment?
It can be mounted via screws and a baseplate for stable installation.
10. Can multiple modules be combined for higher power applications?
Yes, modules can be connected in parallel or series configurations for increased power handling.
Related モデルs (Same Series)
| モデル | 説明 | Rated Current | Voltage |
|---|---|---|---|
| MBM100H45E2-H | Medium-power IGBT module | 100 A | 1200 V |
| MBM150H45E2-H | High-efficiency IGBT module | 150 A | 1200 V |
| MBM200H65E2-H | High-current IGBT module | 200 A | 1500 V |
| MBM300H45E2-H | Heavy-duty IGBT module | 300 A | 1200 V |
| MBM400H45E2-H | Ultra-high-power IGBT module | 400 A | 1200 V |
| MBM200H45E3-H | Enhanced cooling IGBT module | 200 A | 1200 V |
Popular ABB モデルs
| モデル | Product Type | Application | Rated Current |
|---|---|---|---|
| 3BHB032607R0001 | IGBT Module | Medium-power drives | 150 A |
| 3BHB032609R0001 | IGBT Module | High-power drives | 250 A |
| 3BHB032610R0001 | IGBT Module | Solar inverters | 200 A |
| 3BHB032611R0001 | IGBT Module | Traction converters | 300 A |
| 3BHB032612R0001 | IGBT Module | Industrial inverters | 200 A |
| 3BHB032613R0001 | IGBT Module | Motor drive systems | 200 A |
