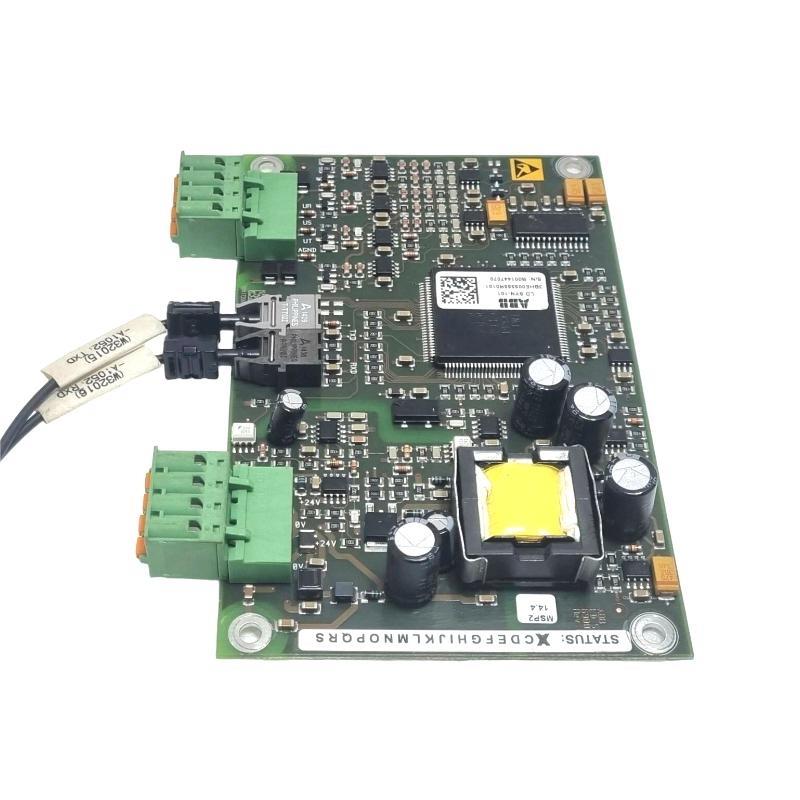

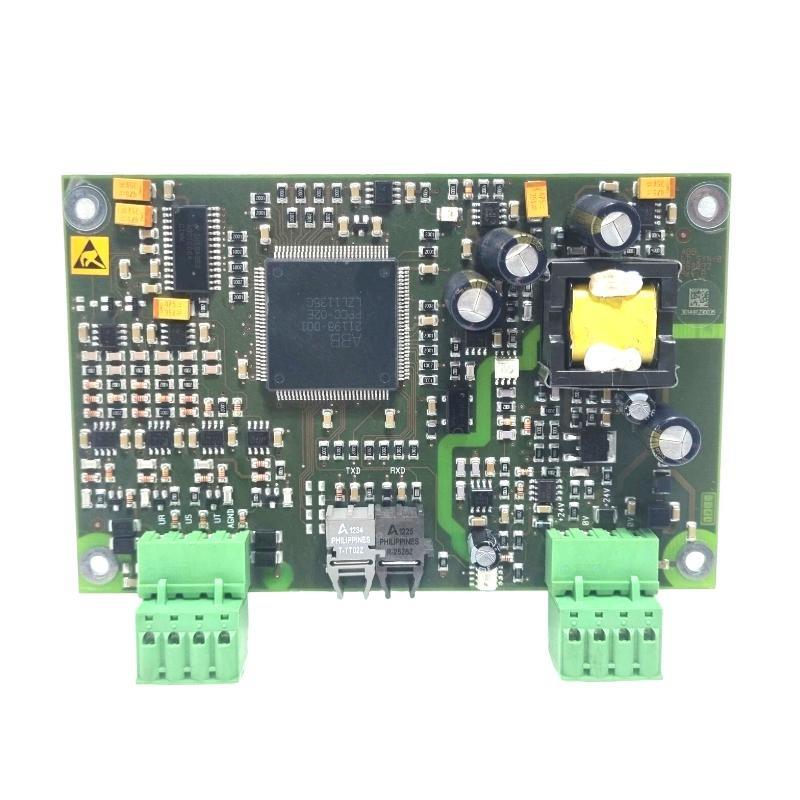

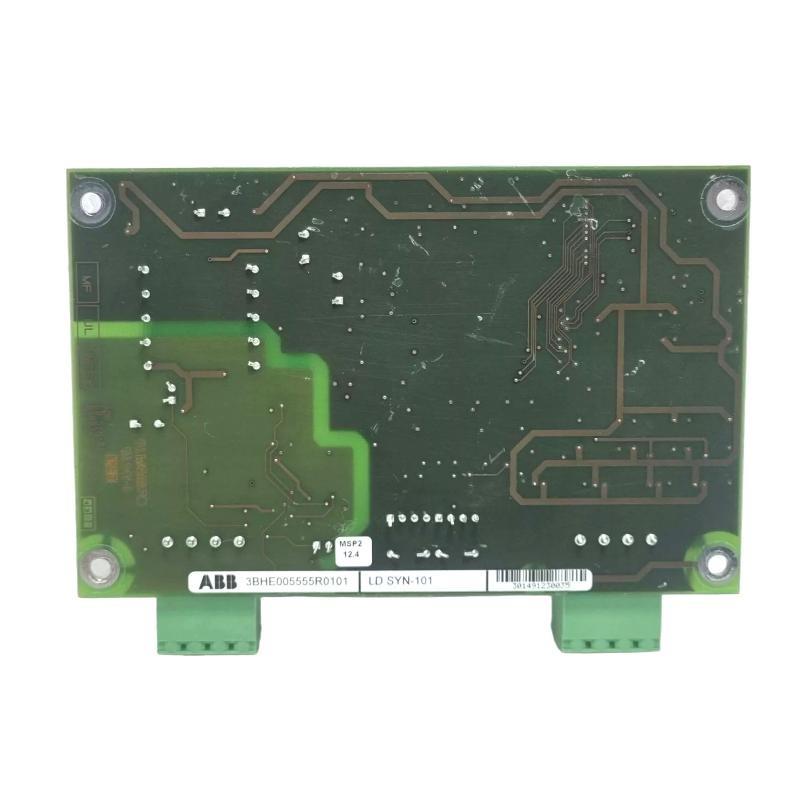

The ABB LD SYN-101 (3BHE005555R0101) is a high-precision synchronous voltage measurement board, developed by ABB for use in complex industrial automation systems. As part / ABB’s trusted suite / control and monitoring components, this module plays a vital role in capturing, processing, and transmitting synchronized voltage measurements, particularly within power generation, high-performance drives, and large-scale motor control systems.
Designed to work seamlessly with ABB’s control systems, the LD SYN-101 ensures accurate, real-time voltage monitoring, helping industries maintain synchronization in high-load, high-precision environments. With robust performance, enhanced diagnostics, and long lifecycle support, it is a preferred choice for operators requiring reliability in mission-critical applications.
製品仕様
| Parameter | Details |
|---|---|
| Product Name | ABB LD SYN-101 |
| Product Code | 3BHE005555R0101 |
| Function | Synchronous Voltage Measurement Board |
| Compatible Systems | ABB Industrial Drives and Control Systems |
| Input Voltage Range | 0 – 300V AC |
| Voltage Accuracy | ±0.1% full scale |
| Input Channels | Multiple synchronous channels |
| Signal Type | Analog (voltage measurement) |
| Update Rate | High-speed sampling (up to 1kHz) |
| Communication Interface | Internal backplane via system bus |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Cooling Method | Convection |
| Mounting Type | Rack or panel mounted via slots |
| Dimensions (L x W x H) | 210 × 120 × 30 mm |
| 重量 | 0.15 kg |
| Protection Rating | IP20 |
| Compliance Standards | CE, RoHS, ISO9001 |
Product Applications
The LD SYN-101 voltage measurement board is widely applied in sectors where synchronous voltage measurement is critical to maintaining system stability and performance. Common applications include:
-
Power Generation Facilities: Ensures voltage synchronization in turbines and generators.
-
High-Power Motor Drives: Provides feedback for precise motor control in heavy machinery.
-
Process Automation Systems: Part / ABB’s automation platforms for real-time voltage monitoring.
-
Renewable Energy Plants: Used in solar and wind power systems for grid synchronization.
-
Industrial Test Benches: Integrated into control panels for R&D and testing / electrical components.
-
Steel and Paper Mills: Helps maintain voltage balance across large motor-driven loads.
Product Advantages
-
High Accuracy Measurement: Delivers precise voltage readings even under fluctuating conditions.
-
Synchronous Monitoring: Enables time-aligned voltage data essential for real-time diagnostics.
-
Reliable Industrial Design: Withstands high temperatures and environmental stress with IP20 protection.
-
Modular Integration: Seamlessly fits into ABB’s larger control architecture with plug-and-play convenience.
-
Diagnostic Capabilities: Offers built-in diagnostics to support preventive maintenance and fault isolation.
-
Proven Performance in Harsh Environments: Extensively used in heavy industries worldwide with low failure rates.
-
Compact Form Factor: 保存s space in control cabinets with efficient layout.
-
Reduced Downtime: Helps maintain stable operations, reducing risks / voltage-related faults.
-
Globally Certified: Meets international safety and quality standards.
よくある質問 (FAQ)
-
What does the ABB LD SYN-101 measure?
It is designed to measure and transmit synchronized AC voltage signals within industrial systems. -
Which ABB systems is it compatible with?
It is commonly used in ABB drive systems, automation control 台s, and process control panels. -
Can it be used in high-temperature environments?
Yes, it is rated for operation between -25°C and +70°C. -
Is the board replaceable in the field?
Yes, the LD SYN-101 is modular and can be easily replaced or upgraded without disrupting the system. -
What certifications does the product have?
The board complies with CE, RoHS, and ISO9001 standards. -
Does it require active cooling?
No, it uses passive convection cooling and does not require additional fans. -
How accurate are its voltage readings?
It delivers precision up to ±0.1% / the full-scale voltage. -
What’s the typical lifespan / the board?
With proper use, the board can last over 10 years, supported by ABB’s lifecycle services. -
Is it suitable for renewable energy applications?
Yes, it is widely used in solar and wind systems for synchronized voltage monitoring. -
Can it detect abnormal voltage conditions?
Yes, the LD SYN-101 provides voltage data for advanced fault detection and alarm systems.
Related モデルs (Same Series or Functionality)
| モデル | 説明 | Function |
|---|---|---|
| LD SYN-102 3BHE005556R0101 | Advanced version / LD SYN-101 | Synchronous voltage monitoring |
| LD PMU-101 3BHE004573R0101 | Phasor Measurement ユニット for ABB systems | Time-synchronized phasor measurement |
| LD UVD-103 3BHE003848R0103 | Universal Voltage Detector board | Voltage and signal detection |
| LD SYN-104 3BHE006001R0104 | Multi-phase synchronous voltage module | Multi-channel voltage synchronization |
| LD MEA-101 3BHE004937R0101 | Measurement and Analysis module | Advanced data processing board |
| LD IVM-102 3BHE003764R0102 | Industrial Voltage Monitoring board | Wide-range industrial voltage monitoring |
Popular ABB モデルs (Same ブランド)
| モデル | 説明 | カテゴリー |
|---|---|---|
| 3BHE032025R0101 CPU Board | ABB AC 800M CPU controller board | PLC/Controller Module |
| PM864AK01 | Controller Module for AC800M Series | CPU ユニット |
| CI854AK01 | Communication Interface for Pr/ibus | Communication Adapter |
| AI810 | Analog Input Module (8 channels, 0-10V, 4-20mA) | I/O Module |
| DO820 | Digital Output Module (16 channel) | I/O Module |
| TU830V1 | Terminal ユニット for redundant field connection | Field Interface |
