製品紹介

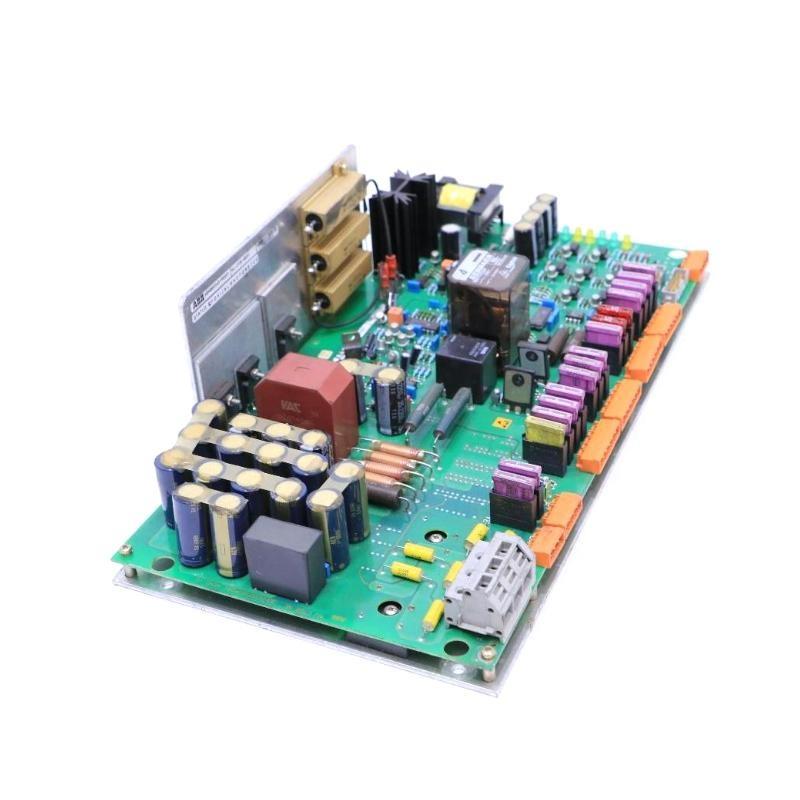

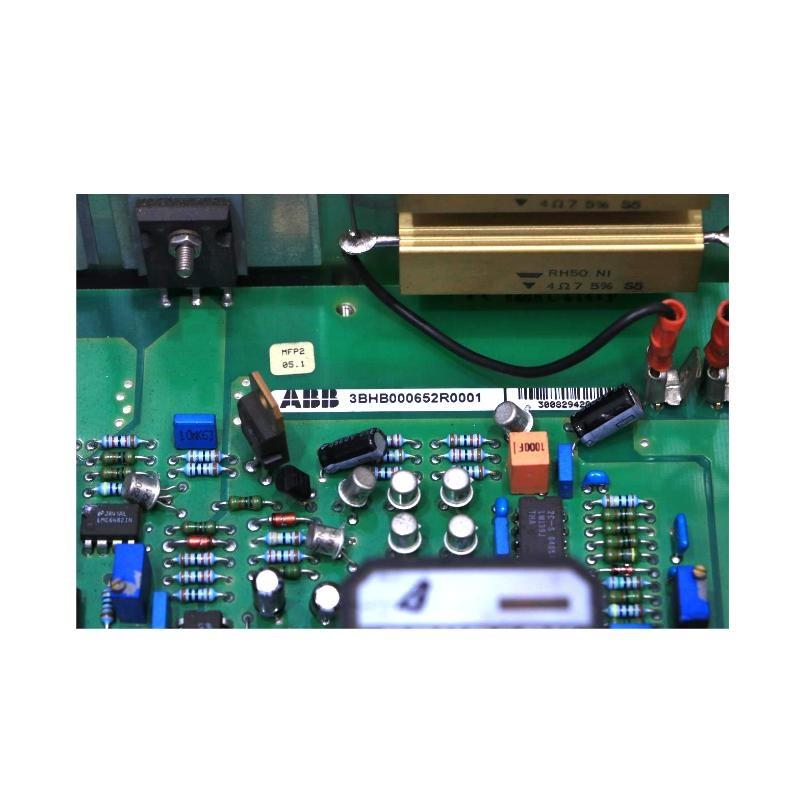

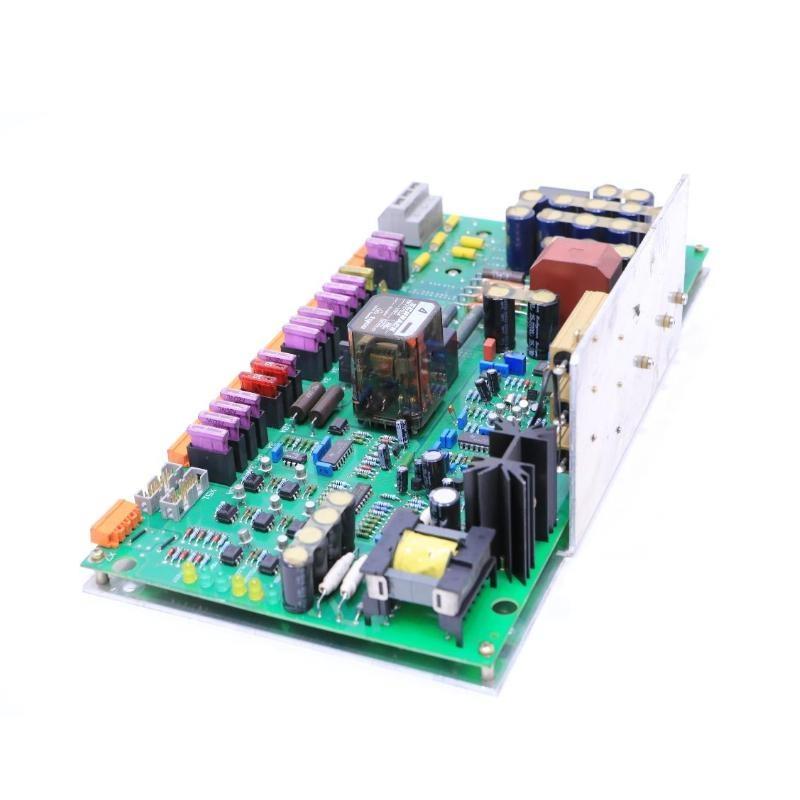

The ABB KU C720 AE01 3BHB000652R0001 Power Supply Board is a high-performance module designed to provide stable and reliable DC power to ABB automation and drive system components. It is an essential part / the KU C720 series, ensuring proper operation / control boards, interface modules, and I/O devices within ABB control platforms.
This power supply board converts input AC or DC voltage into regulated DC outputs, maintaining consistent voltage levels to ensure precise operation / connected devices. It is engineered to handle transient disturbances, voltage fluctuations, and industrial electromagnetic interference, making it suitable for demanding automation and industrial environments.
The board includes diagnostic features to monitor voltage stability, load conditions, and fault detection. Its robust design guarantees operational reliability, enabling continuous system performance and minimizing downtime. This module is compatible with ABB’s modular control systems, providing essential power to maintain the functionality / distributed control systems (DCS), programmable logic controllers (PLC), and other industrial automation platforms.
Technical Specifications
| Parameter | 説明 |
|---|---|
| Product モデル | ABB KU C720 AE01 3BHB000652R0001 |
| Product Type | Power Supply Board |
| Function | Provides stable DC power for ABB automation and drive systems |
| Input Voltage | 110–240 V AC, 50/60 Hz |
| Output Voltage | 24 V DC nominal |
| Output Current | 5 A maximum |
| Efficiency | >90% typical |
| Ripple & Noise | <50 mV peak-to-peak |
| Protection Features | Overvoltage, overcurrent, short circuit protection |
| Monitoring | LED indicators for output status and faults |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95%, non-condensing |
| Mounting Type | Rack-mounted or plug-in installation |
| PCB Material | Industrial-grade FR4 epoxy laminate |
| Dimensions | 210 × 140 × 45 mm |
| 重量 | 2 kg |
| EMC Compliance | IEC 61000-6-2 / IEC 61000-6-4 |
| Response Time | <100 ms for load change |
| Galvanic Isolation | 1500 V DC between input and output |
Product Applications
The ABB KU C720 AE01 Power Supply Board is widely used in various industrial and automation applications where reliable and stable power delivery is critical:
-
Distributed Control Systems (DCS): Powers control modules, interface boards, and I/O modules.
-
Programmable Logic Controllers (PLC): Ensures stable operation / logic control circuits and field devices.
-
Motor Control Systems: Supplies regulated power to drive control boards and protection devices.
-
Industrial Automation: サポートs sensors, actuators, relays, and monitoring equipment in manufacturing and processing plants.
-
Energy Management Systems: Provides reliable power for supervisory control and monitoring systems.
-
Critical Infrastructure: Maintains uninterrupted operation for systems requiring high reliability and precise control.
By delivering stable voltage and current under varying industrial conditions, this power supply board ensures optimal performance and system reliability.
Product Advantages
-
Stable Output Voltage: Ensures consistent DC supply to control and automation devices.
-
High Efficiency: Converts input power with minimal loss, reducing heat generation and energy costs.
-
Robust Protection: Incorporates overvoltage, overcurrent, and short-circuit protection for safe operation.
-
Fast Response: Rapid load regulation (<100 ms) maintains system stability under dynamic conditions.
-
Industrial-Grade Design: Resilient against EMI, voltage transients, and environmental stress.
-
Diagnostic Indicators: LED displays provide real-time status monitoring for operational and fault conditions.
-
Flexible Mounting: Can be installed in racks or plug-in configurations, facilitating system integration.
-
Reliable Performance: サポートs continuous operation in high-demand industrial applications.
-
Wide Input Voltage Range: Compatible with standard AC mains and industrial voltage variations.
-
Maintenance-Friendly: Modular design allows easy replacement and system upgrades.
FAQ
-
What is the main function / the ABB KU C720 AE01 Power Supply Board?
It provides stable DC power to ABB automation and drive system modules, ensuring reliable operation / connected devices. -
What is the nominal output voltage and current?
The module outputs 24 V DC with a maximum current / 5 A. -
Which input voltage range does it support?
It operates with 110–240 V AC at 50/60 Hz, suitable for industrial power supply standards. -
Does the board include protection features?
Yes, it has overvoltage, overcurrent, and short-circuit protection for safe operation. -
How quickly does it respond to load changes?
The response time is less than 100 milliseconds to maintain system stability. -
Is it suitable for harsh industrial environments?
Yes, it is designed for high EMI imm台y, voltage transients, and a wide operating temperature range (0–60°C). -
What types / devices can be powered by this board?
It can power control modules, I/O boards, sensors, actuators, and drive interface circuits. -
Does it provide diagnostic feedback?
Yes, LED indicators display output status and fault conditions in real time. -
Is the board compatible with ABB modular systems?
Yes, it is fully compatible with ABB KU C720 series modular control and automation systems. -
What is the efficiency / the power supply board?
It operates with typical efficiency above 90%, ensuring minimal energy loss and reduced heat generation.
Related モデルs (Same Series or Function)
| モデル | 説明 | Function | Compatibility |
|---|---|---|---|
| ABB KU C720 AE02 3BHB000653R0001 | Power Supply Board | Provides 24 V DC for automation modules | ABB KU C720 Series |
| ABB KU C720 AF01 3BHB000654R0001 | Power Supply Module | サポートs multiple I/O modules | ABB Modular Control Systems |
| ABB KU C720 AG01 3BHB000655R0001 | Redundant Power Supply | Backup DC power for control boards | ABB Automation Platforms |
| ABB KU C720 AH01 3BHB000656R0001 | High-Capacity Power Supply | サポートs higher load modules | ABB DCS Systems |
| ABB KU C720 AJ01 3BHB000657R0001 | Advanced Power Supply | Optimized for multi-module setups | ABB KU Series Control ユニットs |
| ABB KU C720 AK01 3BHB000658R0001 | Industrial Power Supply | Powers control and monitoring devices | ABB Industrial Control Systems |
Popular モデルs from the Same ブランド
| モデル | Product Type | Function | Power Supply |
|---|---|---|---|
| ABB DSPP4LT 1KHW001223R0003 | Power Supply Module | Supplies DC power to control electronics | 24 V DC |
| ABB DSBC 176 57310256-AV | Communication Interface | Data exchange for drives and automation | 24 V DC |
| ABB DSTX 120 57160001-MA | Connection ユニット | Signal distribution and interface | 24 V DC |
| ABB DSAI 130A 57120001-P | Analog Input Module | Input signal acquisition and conditioning | 24 V DC |
| ABB SDCS-KU2002 3ADT220090R0024 | Varistor Board | Surge protection for control systems | 24 V DC |
| ABB UNS 0880a-P,V2 3BHB005922R0002 | Interface Control Board | System communication and interface | 24 V DC |
