製品紹介

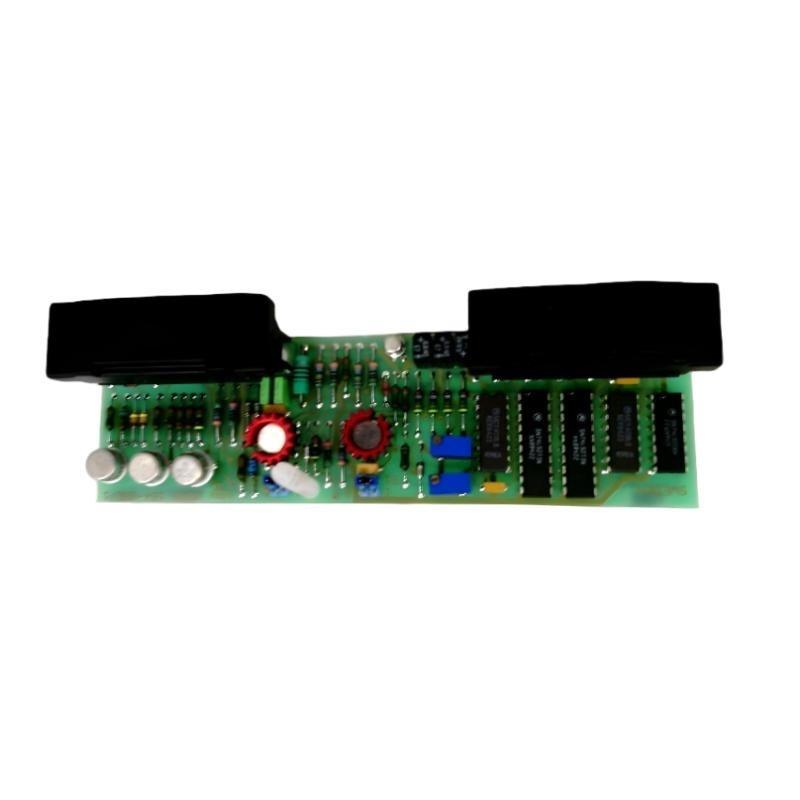

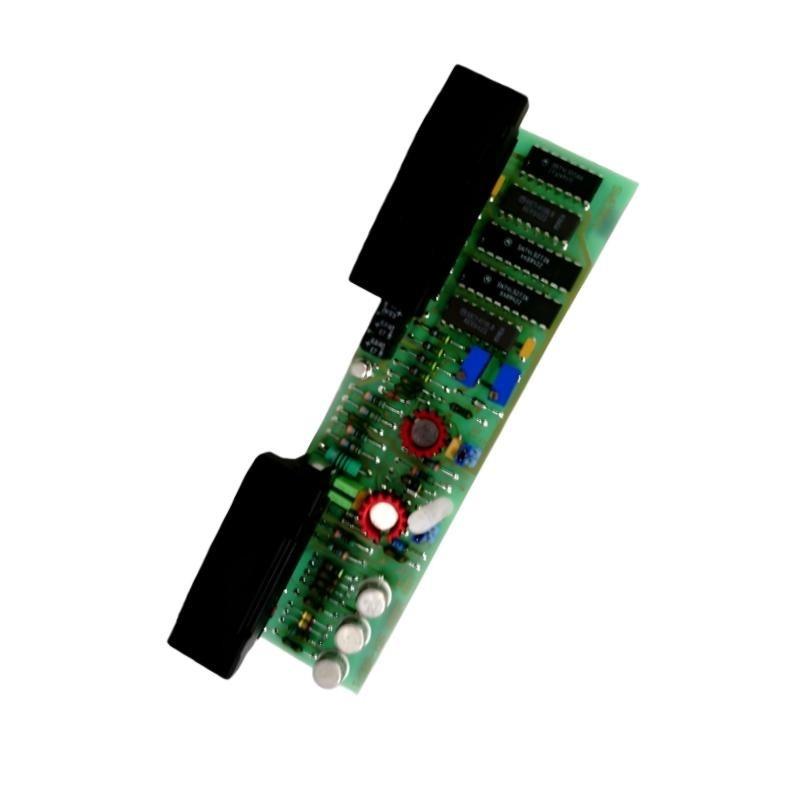

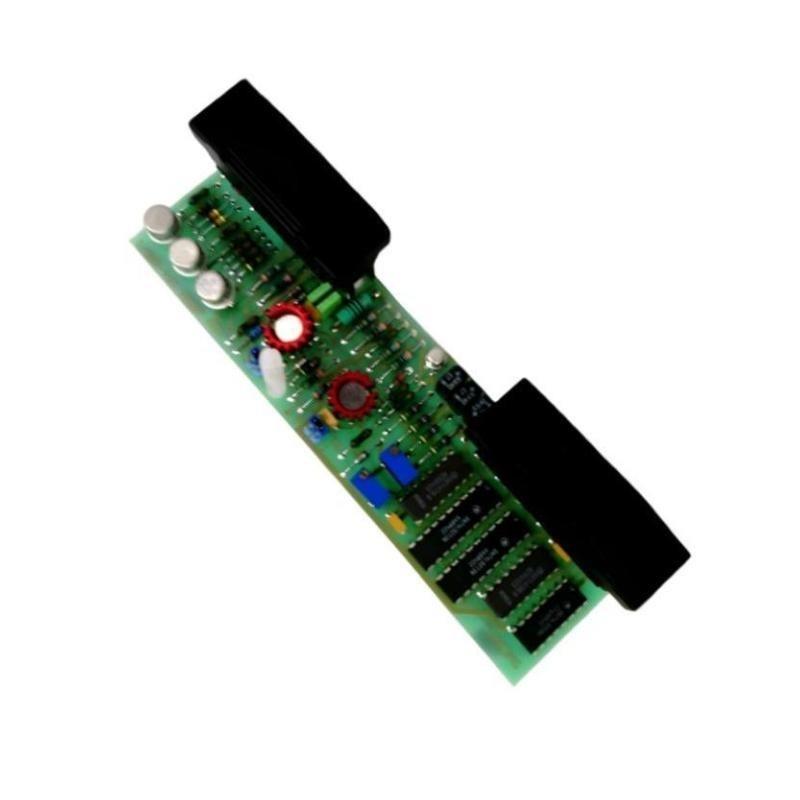

The ABB DSAO 301 57120001-DZ is an advanced analog output module designed for seamless integration into ABB’s Distributed Control Systems (DCS). This module plays a crucial role in industrial applications where precise and reliable analog signal output is required. It allows for the conversion / digital commands from the control system into accurate analog signals, which are then sent to field devices like actuators, valves, and other control equipment.
The DSAO 301 module is designed with high accuracy and fast response times, making it suitable for real-time control applications in industries such as process control, energy management, and automation. By providing multiple output channels and versatile signal types, the DSAO 301 is a reliable choice for complex industrial systems where multiple devices need to be controlled simultaneously.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | ABB DSAO 301 57120001-DZ |
| Input Type | Analog Output |
| Dimensions | 234 x 27 x 117 mm |
| 重量 | 0.1 kg |
| Signal Range | ±10 V, 0-20 mA, 4-20 mA |
| Signal Resolution | 16 bits |
| Output Channels | 4 Channels |
| Output Accuracy | ±0.1% / full scale |
| Sampling Rate | 50 samples per second |
| Power Supply | 24V DC ±20% |
| Operating Temperature | -20°C to 60°C |
| Mounting Type | DIN rail mounting |
| Protection | Over-voltage, Overcurrent |
Product Applications
The ABB DSAO 301 module is highly versatile and can be used in various industrial applications where high-precision analog signals are required. Some / the most common applications include:
-
Process Control Systems: Used to control variables such as pressure, temperature, and flow by providing accurate analog output signals to valves, actuators, and other control devices.
-
Energy Management: Helps in energy consumption monitoring and control by providing analog signals to energy meters, transformers, and other monitoring equipment.
-
Manufacturing Automation: In automated production lines, it provides control signals to machines, conveyors, and equipment, ensuring smooth and efficient operation.
-
Power Generation: Used in power plants to control equipment such as turbines, generators, and transformers by providing high-precision analog control signals.
-
HVAC Systems: In building automation, the DSAO 301 controls heating, ventilation, and air conditioning systems by regulating signals to fans, pumps, and temperature controllers.
-
Water Treatment: Provides control signals to actuators and valves in water treatment plants, ensuring proper flow rates and chemical dosing.
Product Advantages
-
High Accuracy: The DSAO 301 /fers an output accuracy / ±0.1% / full scale, ensuring precise signal output and stable control for critical processes.
-
Multiple Output Channels: With 4 output channels, the module allows for the simultaneous control / multiple devices, reducing the need for additional modules and simplifying the system design.
-
Flexible Signal Types: The module supports multiple output signal types, including ±10V, 0-20 mA, and 4-20 mA, making it adaptable to various industrial control systems.
-
Fast Sampling Rate: With a sampling rate / 50 samples per second, the DSAO 301 can rapidly respond to control inputs, ensuring real-time adjustments to process variables.
-
Compact Design: The compact size (234 x 27 x 117 mm) and lightweight (0.1 kg) design make it easy to install in tight spaces within control cabinets.
-
Reliable Protection Features: The module includes over-voltage and overcurrent protection, enhancing the reliability and safety / the system during operation.
-
DIN Rail Mounting: The module is designed for easy installation on a DIN rail, which simplifies the setup and integration process in existing systems.
FAQ
1. What types / output signals does the DSAO 301 module support?
The DSAO 301 supports a variety / output signals, including ±10V, 0-20mA, and 4-20mA, /fering flexibility for different industrial applications.
2. How many output channels does the DSAO 301 have?
The DSAO 301 has 4 output channels, enabling the simultaneous control / multiple devices.
3. What is the output accuracy / the DSAO 301?
The module /fers an output accuracy / ±0.1% / full scale, ensuring precise and stable control for critical applications.
4. What is the sampling rate / the DSAO 301 module?
The DSAO 301 has a sampling rate / 50 samples per second, providing quick response times in real-time control applications.
5. What power supply is required for the DSAO 301?
The module operates on a 24V DC power supply with a tolerance / ±20%.
6. Can the DSAO 301 operate in extreme temperatures?
Yes, the module is designed to operate within a temperature range / -20°C to 60°C, making it suitable for a variety / industrial environments.
7. How is the DSAO 301 mounted?
The DSAO 301 can be mounted on a DIN rail, making installation quick and easy in standard control panels.
8. What protection does the DSAO 301 include?
The module includes over-voltage and overcurrent protection to safeguard the system from electrical faults.
9. What industries typically use the DSAO 301?
The DSAO 301 is used in industries such as process control, energy management, manufacturing automation, power generation, HVAC, and water treatment.
10. Can the DSAO 301 control multiple devices at the same time?
Yes, with 4 output channels, the DSAO 301 can control multiple devices simultaneously, making it ideal for complex control systems.
Recommended モデルs
| モデル Number | 説明 |
|---|---|
| DSAO 301 | DS Analog Output Module, 4 Channels |
| DSAO 302 | High-Speed Analog Output Module |
| DSAO 303 | Multi-Output Analog Output Module |
| DSAO 310 | Universal Analog Output Module |
| DSAO 120 | Compact Analog Output Module |
| DSAO 130 | Precision Analog Output Module |
