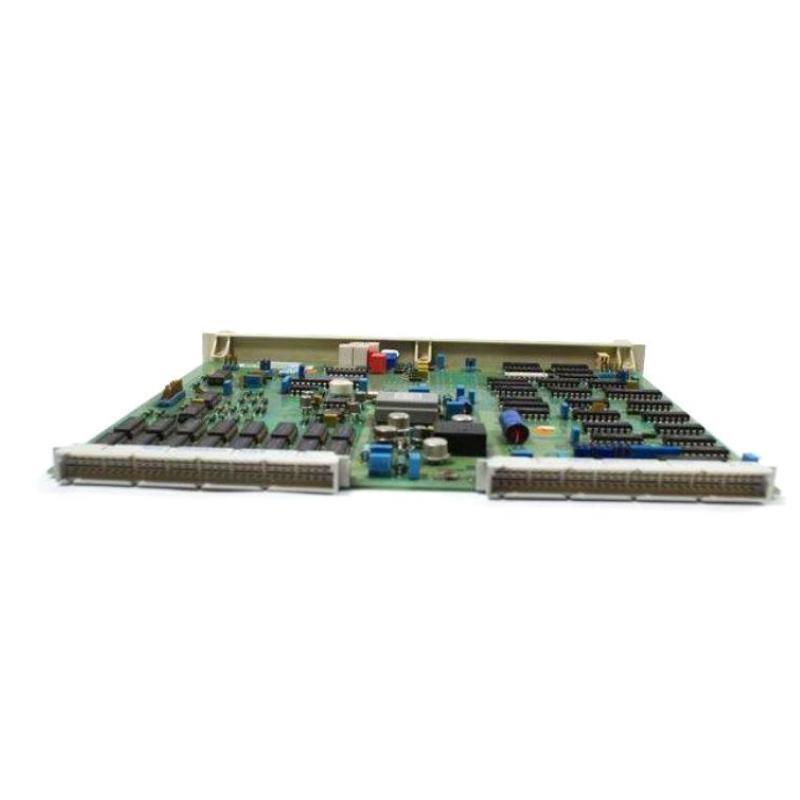

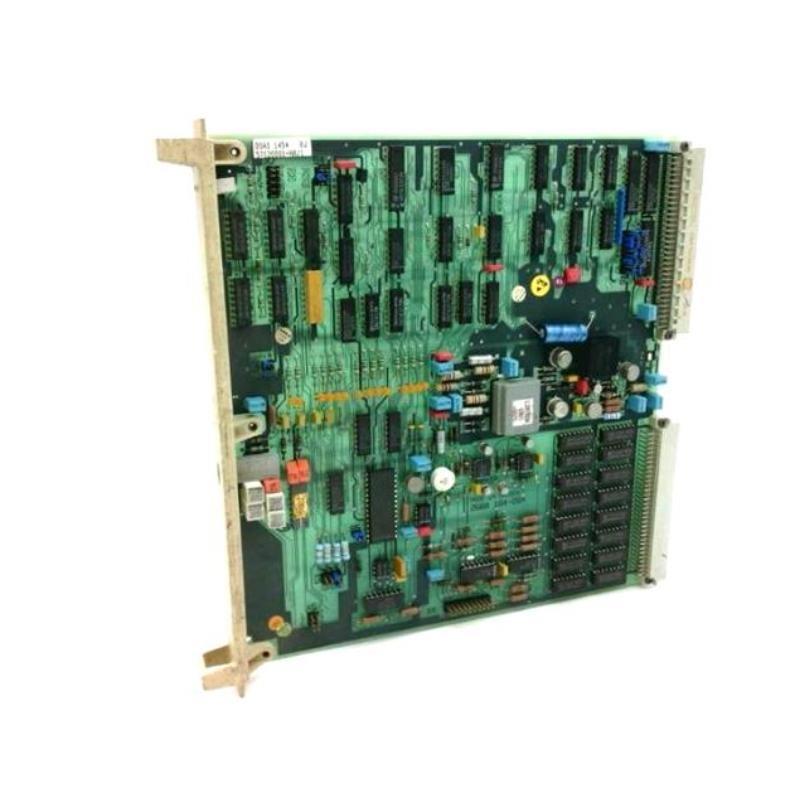

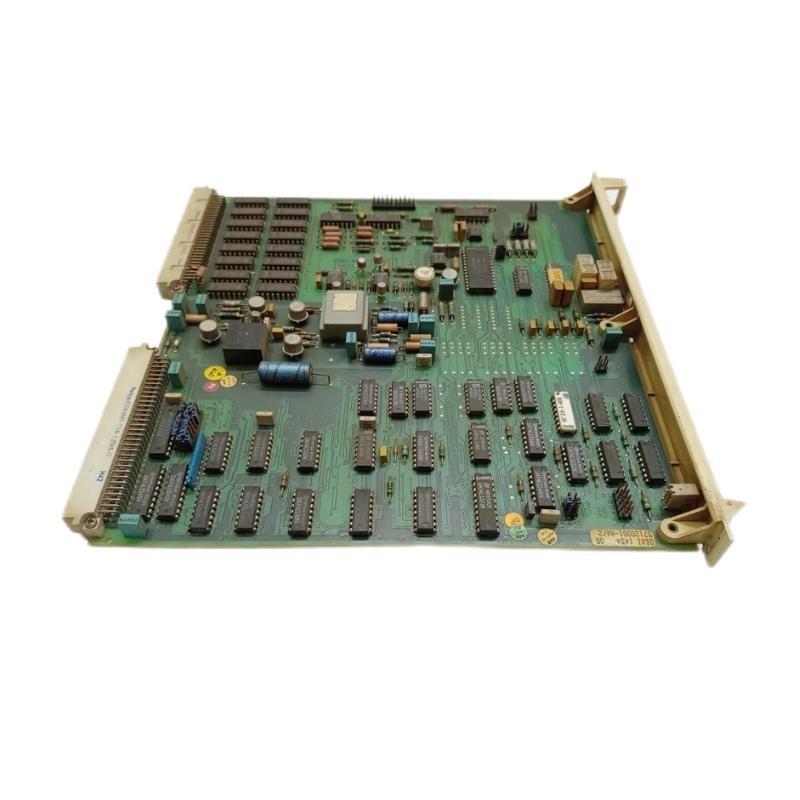

The ABB DSAI145 57120001-HA is a high-performance signal conditioner designed for industrial automation and process control applications. It ensures accurate signal conversion, isolation, and transmission, making it suitable for harsh environments where reliability is critical. This module is part / ABB’s extensive range / signal conditioning devices, known for their durability and precision.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル Number | DSAI145 57120001-HA |
| Input Signal | Analog (Voltage/Current) |
| Output Signal | Analog (Voltage/Current) |
| Isolation Voltage | 1500 V DC |
| Power Supply | 24 V DC (±10%) |
| Operating Temp. | -20°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions | 324 x22.5 x 234mm |
| 重量 | 0.44 kg |
| Mounting | DIN Rail |
| Certifications | CE, UL, IEC 61010 |
Product Applications
The ABB DSAI145 57120001-HA is widely used in industries requiring precise signal conditioning and isolation, including:
-
Process Control Systems – Ensures stable signal transmission in chemical and oil & gas industries.
-
Power Generation – Used in monitoring and control systems for turbines and generators.
-
Manufacturing Automation – Integrates with PLCs and SCADA systems for real-time data processing.
-
Water & Wastewater Treatment – Provides reliable signal conversion for flow and pressure sensors.
-
HVAC Systems – Maintains accurate signal integrity in building automation.
Product Advantages
-
High Accuracy – Delivers precise signal conversion with minimal drift.
-
Robust Isolation – 1500 V DC isolation protects sensitive equipment from electrical noise.
-
Wide Operating Range – Functions reliably in extreme temperatures and humidity.
-
Compact Design – 保存s space in control cabinets with DIN rail mounting.
-
Certified Safety – Complies with CE, UL, and IEC standards for industrial use.
-
Easy Integration – Compatible with major automation systems and protocols.
よくある質問 (FAQ)
-
What is the primary function / the DSAI145 57120001-HA?
It conditions and isolates analog signals for accurate transmission in industrial systems. -
What input signals does it support?
It accepts standard voltage (0-10V) and current (4-20mA) signals. -
Is this module suitable for hazardous environments?
Yes, it is designed for industrial use but check specific certifications for hazardous areas. -
What is the isolation voltage rating?
1500 V DC, ensuring protection against electrical interference. -
Can it be mounted on a standard DIN rail?
Yes, it supports DIN rail mounting (35 mm). -
What is the operating temperature range?
-20°C to +60°C, making it suitable for harsh conditions. -
Does it require external power?
Yes, it operates on 24 V DC (±10%). -
Is calibration required after installation?
Factory-calibrated, but field calibration may be needed based on application. -
What certifications does it hold?
CE, UL, and IEC 61010 compliance. -
Can it be used in high-vibration environments?
Yes, its robust construction withstands moderate vibrations.
Recommended Related モデルs
Same Series / Related モデルs
| モデル Number | 説明 |
|---|---|
| DSAI145 57120001-HB | Enhanced version with wider temp range |
| DSAI145 57120002-HA | Dual-channel signal conditioner |
| DSAI146 57120001-HA | High-density signal isolation module |
| DSAI147 57120001-HA | Fast-response signal conditioner |
| DSAI148 57120001-HA | High-accuracy version (0.1% precision) |
| DSAI149 57120001-HA | Explosion-pro/ variant for hazardous areas |
Popular ABB モデルs (Same ブランド)
| モデル Number | 説明 |
|---|---|
| ABB DSTI146 57120001 | Temperature signal conditioner |
| ABB DSDI148 57120001 | Digital input isolator module |
| ABB DSDO149 57120001 | Digital output isolator module |
| ABB DSAO150 57120001 | Analog output signal conditioner |
| ABB DSCA151 57120001 | Communication interface module |
| ABB DSRP152 57120001 | Redundant power supply module |
