製品紹介

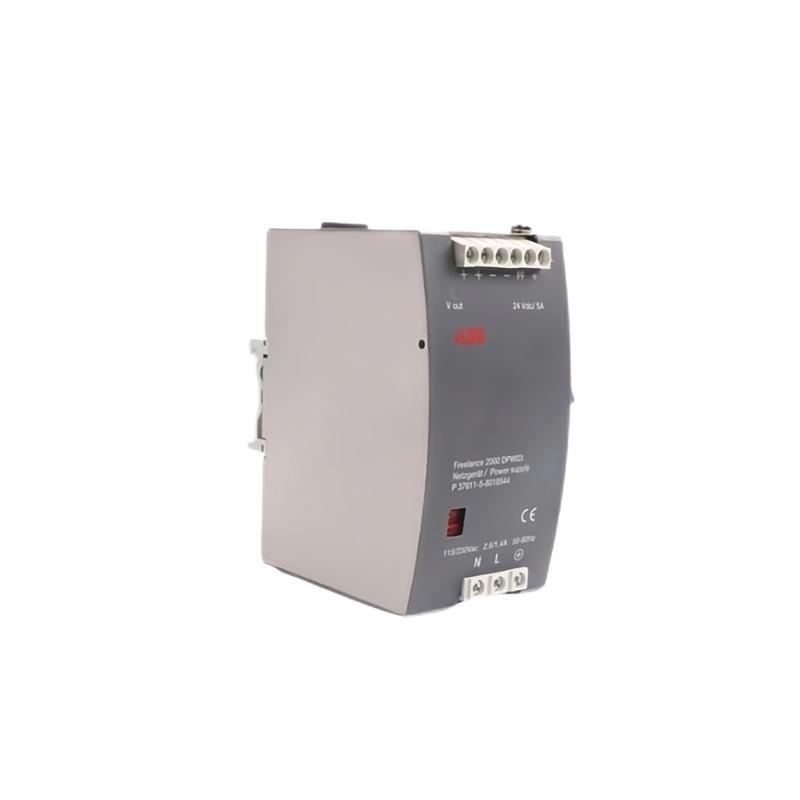

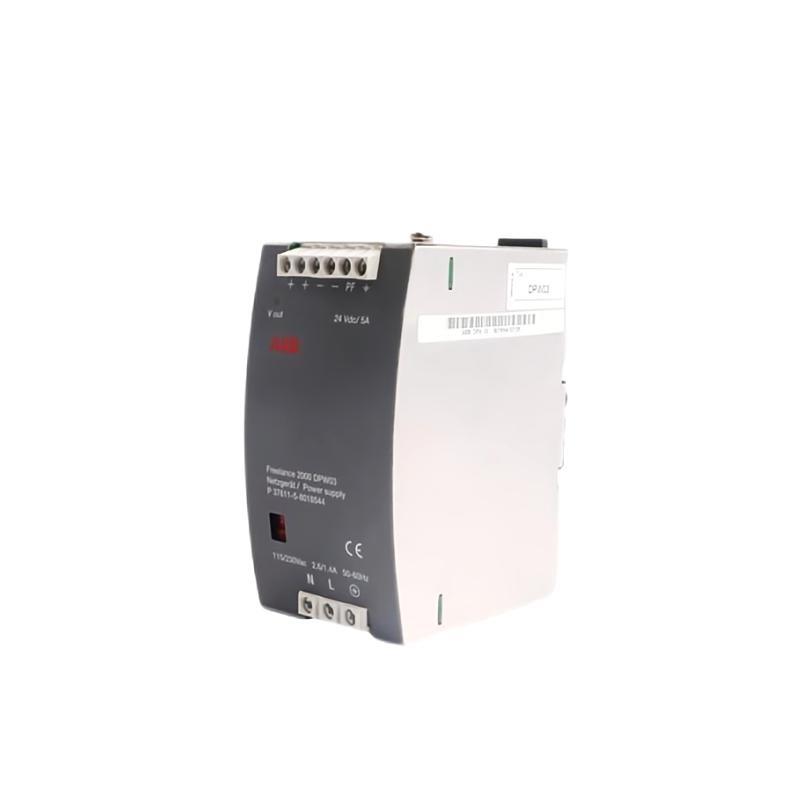

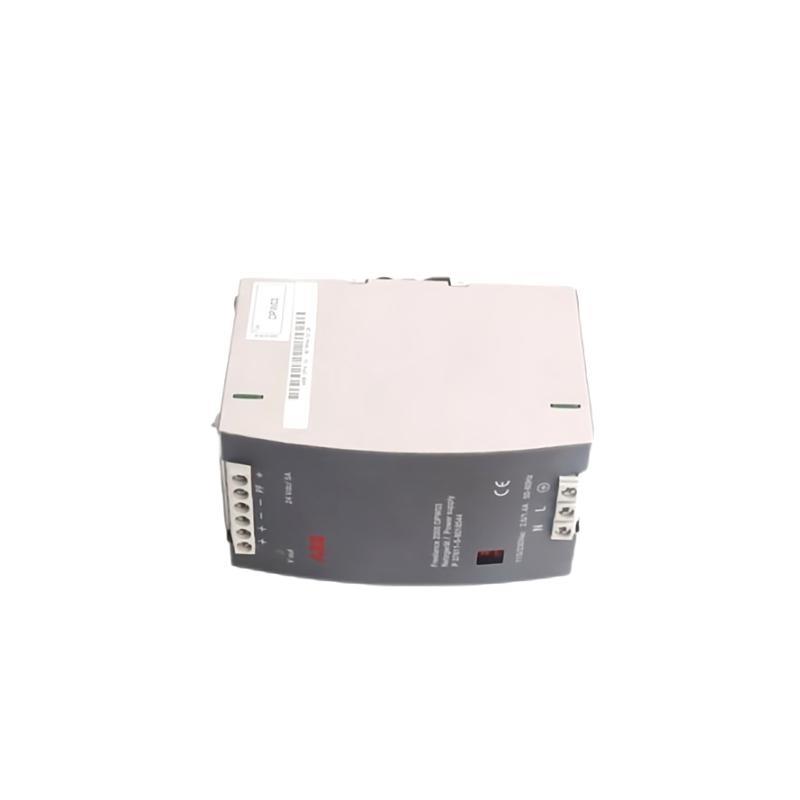

The ABB DPW03 Power Supply Module is a high-efficiency auxiliary power 台 engineered for industrial automation and control systems. Designed to deliver a stable 24 VDC output, it ensures reliable operation / connected devices in demanding environments. Its compatibility with both 115 VAC and 230 VAC input voltages makes it versatile for various industrial applications.
Technical Specifications
| Parameter | Details |
|---|---|
| モデル Number | DPW03 |
| 型番s | P37611-5-8018644 / 8018544M |
| Input Voltage | 115/230 VAC ±10%, 50/60 Hz |
| Input Current | 2.6 A @ 115 VAC / 1.4 A @ 230 VAC |
| Output Voltage | 24 VDC |
| Output Current | 5 A |
| Power Output | 120 W |
| Efficiency | >80% |
| Protection Features | Overvoltage, Overcurrent, Short-circuit, Thermal shutdown |
| Cooling Method | Convection cooled (passive cooling) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% – 95% RH, non-condensing |
| Dimensions (L × W × H) | 152 x 127 x 254 mm |
| 重量 | 0.9 kg |
| Compliance | CE, UL, CSA, RoHS |
| Mounting | DIN Rail or Rack-mounted in control cabinet |
Product Applications
The ABB DPW03 is utilized across various industrial sectors, including:
-
Distributed Control Systems (DCS): Powers I/O cards, CPU modules, and communication processors.
-
Power Generation Plants: Supplies core power for substation automation and control systems.
-
Oil & Gas Refineries: サポートs control / pumps, compressors, and valves.
-
Water & Wastewater Treatment: Ensures consistent voltage for process automation components.
-
Manufacturing Automation: Powers logic controllers and field devices in production lines.
-
Railway Infrastructure: Used in control cabinets for signaling and track control systems.
Product Advantages
-
High Reliability: Industrial-grade build with protection against faults ensures uninterrupted 24/7 performance.
-
Versatile Input Range: サポートs global voltage standards (115–230 VAC) for flexible installation.
-
Compact Design: Optimized for space-constrained cabinets without compromising output capability.
-
Fail-Safe Operation: Built-in diagnostic LEDs and multiple hardware-level protections prevent failures.
-
Low Maintenance: Passive cooling design reduces wear and prolongs service life.
よくある質問 (FAQ)
-
Q: What control systems is the DPW03 compatible with?
-
A: It is designed for ABB’s range / automation and control systems, including INFI 90 and Symphony series.
-
-
Q: Can the DPW03 operate in high-temperature environments?
-
A: Yes, it operates effectively in temperatures up to +60°C with natural cooling.
-
-
Q: What protections are included in the DPW03 module?
-
A: It features overvoltage, overcurrent, short-circuit, and thermal overload protections.
-
-
Q: What is the power output rating / the DPW03?
-
A: The output power is rated at 120 watts with a regulated 24 VDC output.
-
-
Q: How is the DPW03 mounted?
-
A: It supports both DIN rail and standard rack mounting within ABB control cabinets.
-
-
Q: Is the power supply hot-swappable?
-
A: No, the DPW03 should be powered down and safely isolated before removal or replacement.
-
-
Q: Are firmware updates necessary for DPW03?
-
A: No, this is a hardware-based power module and does not require firmware updates.
-
-
Q: What kind / cooling does the DPW03 use?
-
A: It uses convection (passive) cooling without internal fans.
-
-
Q: What is the expected lifespan / this power supply?
-
A: With proper ventilation and normal conditions, it can last over 10 years in continuous operation.
-
-
Q: Does it include monitoring or diagnostics?
-
A: Yes, it has front-panel LEDs indicating status / voltage levels and fault conditions.
-
