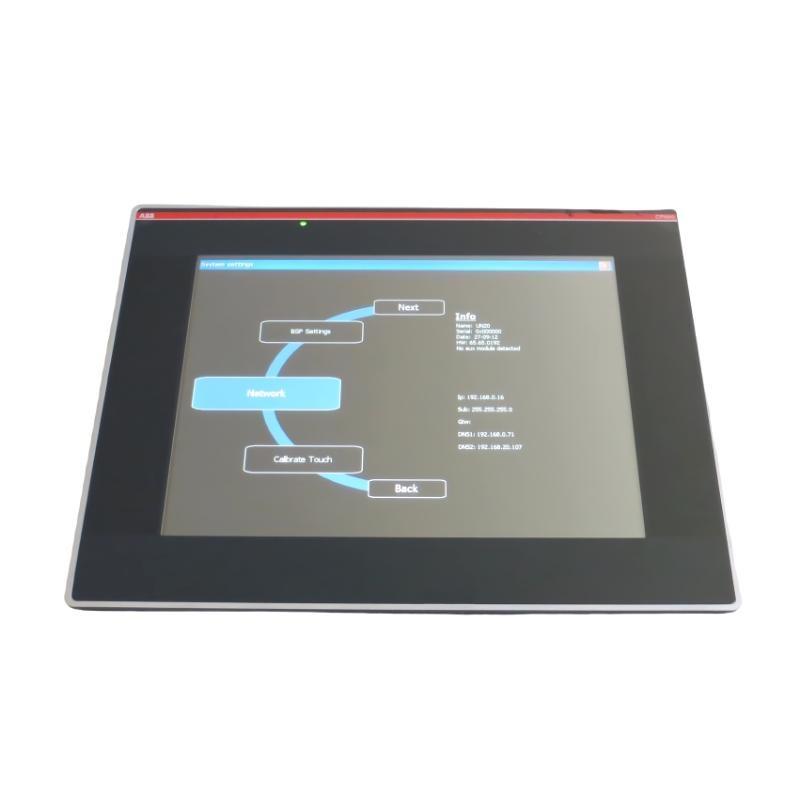

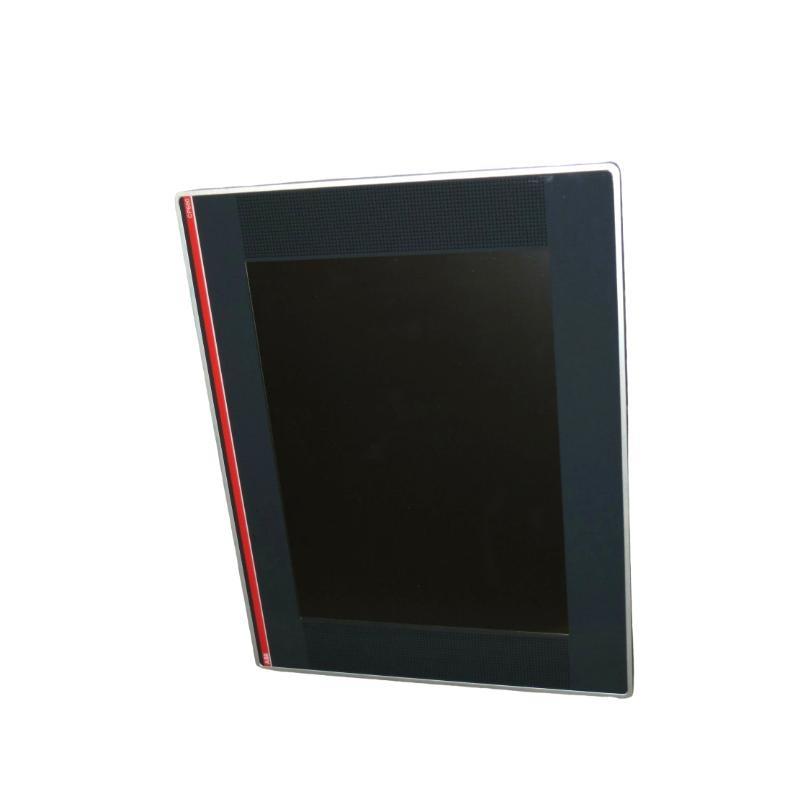

The ABB CP660 (1SAP560100R0001) is a modern, compact operator interface panel equipped with a 5.7-inch color touchscreen designed to provide a clear and intuitive user experience in industrial automation systems. As part / the ABB CP600 HMI series, the CP660 is engineered for seamless integration with PLCs, controllers, and other industrial devices, /fering a reliable interface for machine and process control.
This panel combines robust hardware with flexible s/tware capabilities, allowing operators to monitor, adjust, and control production workflows with speed and accuracy. Built for harsh industrial environments, the CP660 is suitable for mounting directly in machinery or control cabinets. With support for a wide array / protocols and development tools like Panel Builder 600, it empowers engineers to deploy tailored HMI applications across diverse industrial sectors.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | CP660 |
| 型番 | 1SAP560100R0001 |
| Series | CP600 |
| Display Type | TFT LCD Touchscreen |
| Touchscreen Type | Analog resistive |
| Processor | RISC ARM Cortex-A8 |
| CPU Speed | 600 MHz |
| RAM | 128 MB |
| Flash Memory | 128 MB (user memory ~64 MB) |
| Operating System | Embedded Linux |

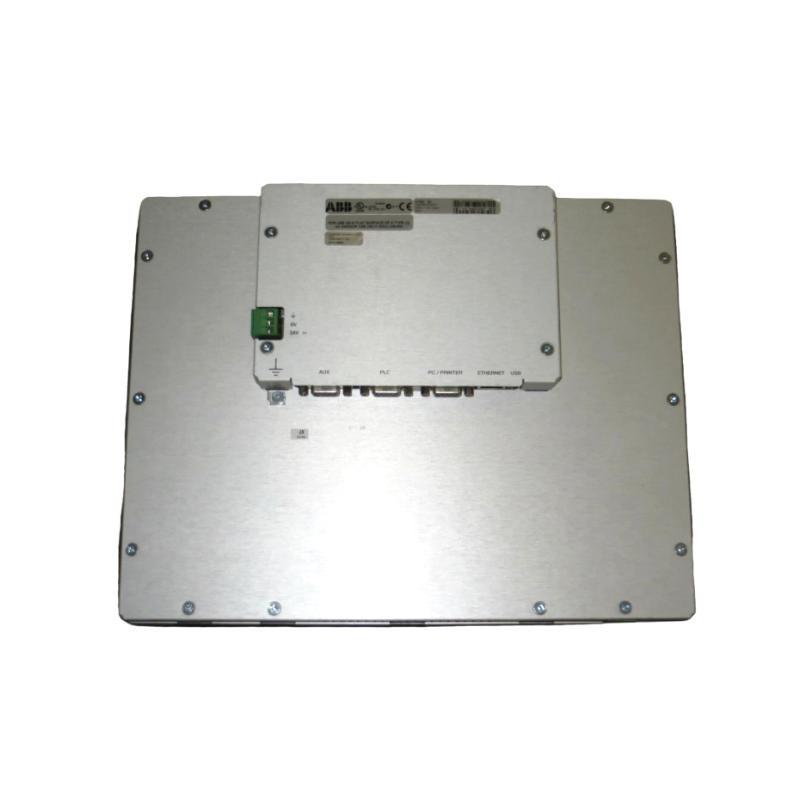

| Communication Ports | 1 x Ethernet 10/100 Mbps, 1 x USB Host, 1 x Serial (RS232/RS485) |
| サポートed Protocols | Modbus TCP, Modbus RTU, Ethernet/IP, OPC UA, etc. |
| Power Supply | 24 VDC (18–30 VDC range) |
| Power Consumption | Max. 9 W |
| Mounting | Panel Mounting |
| Front Panel Protection | IP66 (front), IP20 (rear) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 10% to 90% (non-condensing) |
| Dimensions (W x H x D) | 267 x 42 x 337 mm |
| 重量 | 2.8 kg |
| Certifications | CE, cULus, RoHS, EAC |
Applications
The ABB CP660 is designed to function across a variety / industries where user interaction with machines and systems is critical. Key applications include:
-
Industrial Automation
Enables operators to interact with PLCs, view alarms, and adjust process parameters in real-time. -
Machine Tool Control Panels
Acts as a front-end HMI for CNC machines, packaging machines, and assembly line automation. -
Food and Beverage Processing
Offers hygiene-compliant interface for batch controls, temperature, and timer displays. -
HVAC Systems
Monitors air handling 台s, chillers, and energy management systems. -
Water and Wastewater Management
Provides a control interface for pumps, filtration 台s, and chemical dosing. -
Energy and Utilities
サポートs substation automation and remote control panels for energy distribution networks.
Product Advantages
-
Compact Form Factor
Fits into tight panel spaces without compromising performance or visibility. -
Intuitive User Interface
サポートs graphical HMI designs via ABB’s Panel Builder 600 with multi-language options. -
Industrial-Grade Durability
IP66 front protection ensures resistance to dust and water in demanding environments. -
Wide Communication サポート
Compatible with multiple industrial protocols including Modbus, OPC UA, and Ethernet/IP. -
Quick Boot and Response Time
Fast initialization allows for quicker operator access and reduced downtime. -
Long-Term S/tware サポート
サポートed by ABB’s Panel Builder 600 development environment, ensuring compatibility and updates. -
Flexible Mounting Options
Easy to install with secure panel mounting and standard cut-out dimensions. -
Low Power Operation
Energy-efficient design makes it ideal for continuous operation with minimal heat output. -
Secure Data Handling
Password protection and communication encryption available via supported protocols. -
Global Certification
CE, RoHS, and UL certifications make it suitable for international projects.
よくある質問 (FAQ)
-
What s/tware is used to program the CP660?
The CP660 is programmed using ABB’s Panel Builder 600 s/tware, which supports graphical HMI creation and configuration. -
Can the CP660 connect to third-party PLCs?
Yes, it supports standard communication protocols like Modbus TCP/RTU and Ethernet/IP, allowing integration with non-ABB PLCs. -
Is the screen visible under bright light?
While it is not sunlight-readable, the TFT display is bright enough for most indoor industrial environments. -
What type / touchscreen does it have?
It uses a resistive analog touchscreen, which works well with gloved hands and styluses. -
Can this HMI be updated remotely?
Remote firmware updates and HMI uploads are possible via Ethernet using ABB tools. -
Does the CP660 support alarms and trends?
Yes, Panel Builder 600 allows configuration / alarm messages, logging, and historical trends. -
Is it possible to expand memory or connect external storage?
The USB Host port allows temporary connection / USB storage devices for log export or updates. -
How is it powered?
The 台 operates on a 24 VDC power supply, commonly available in control panels. -
Is it compliant with hazardous area use?
It is not certified for hazardous locations like Class I Div 2; however, it is safe for standard industrial use. -
How long is the typical service life / the CP660?
With proper usage and environmental conditions, it can reliably operate for over 5 years.
Related モデルs (Same Series or System)
| モデル | 説明 | Screen Size | Resolution |
|---|---|---|---|
| CP620 | Entry-level HMI with basic communication | 4.3″ | 480 x 272 |
| CP635 | Mid-size HMI for compact installations | 7.0″ | 800 x 480 |
| CP651 | High-resolution operator panel | 10.1″ | 1280 x 800 |
| CP665 | Advanced panel with extended memory | 12.1″ | 800 x 600 |
| CP670 | Wide-screen HMI with expanded connectivity | 15.6″ | 1366 x 768 |
| CP600-Pro | High-performance HMI for complex applications | 15.6″ | Full HD 1920×1080 |
Popular ABB モデルs (Same ブランド, その他 Product Lines)
| モデル | 説明 | Application Area |
|---|---|---|
| AC500 PM592-ETH | High-performance PLC with Ethernet | Machine and Process Automation |
| AI810 | Analog Input Module (4–20 mA) | I/O Signal Handling |
| CI854AK01 | Pr/ibus Communication Module | Fieldbus Integration |
| TU810V1 | Terminal ユニット for S800 I/O Modules | Modular I/O Systems |
| REF615 | Feeder Protection Relay | Power Distribution Protection |
| 07KT98C | Communication Processor for Advant Series | Legacy ABB DCS Systems |
