Product Overview

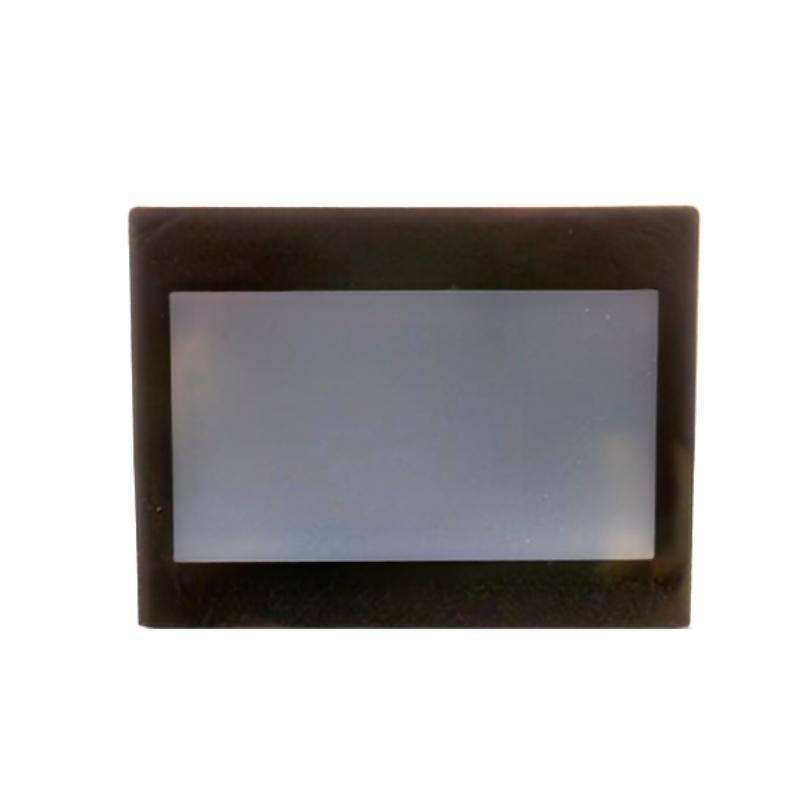

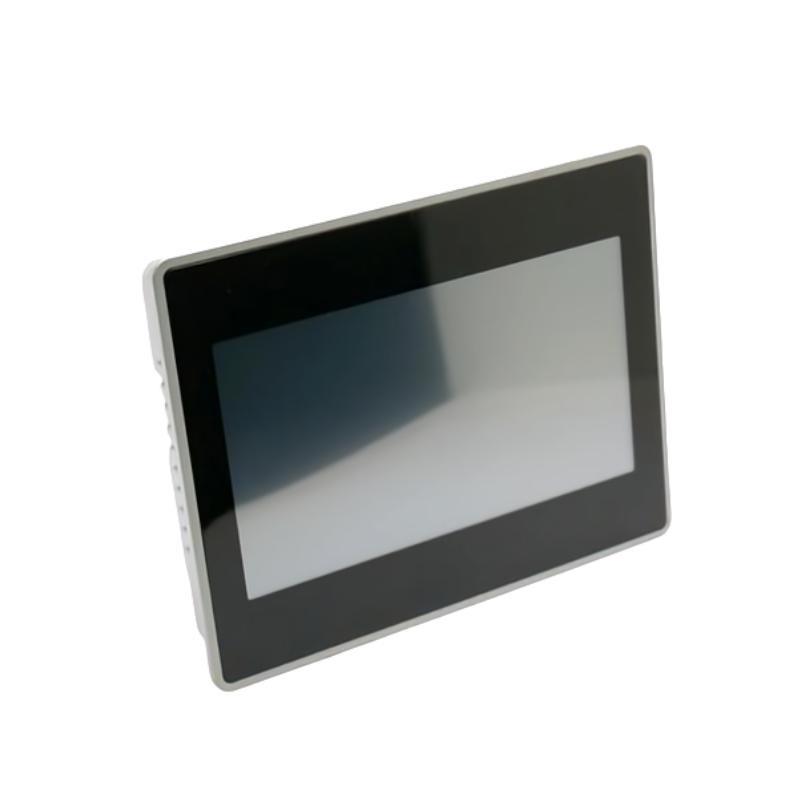

The ABB CP6407 (型番: 1SAP540710R0001) is a high-performance HMI (Human-Machine Interface) control panel designed for real-time interaction with ABB’s AC500 PLC systems and other industrial automation platforms. Equipped with a 7-inch widescreen TFT touchscreen, the CP6407 /fers intuitive navigation, vivid graphics, and fast response times, making it ideal for a wide range / machine and process control applications.
The panel runs on ABB’s Panel Builder s/tware, allowing for the creation / customizable and user-friendly interfaces. It supports various communication protocols, including Modbus TCP, Ethernet, and serial connections, ensuring seamless integration into existing control architectures. The CP6407 is rugged enough for industrial environments and compact enough for space-limited installations, making it a highly versatile HMI solution.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | CP6407 |
| 型番 | 1SAP540710R0001 |
| Display Type | TFT Color Touchscreen |
| Screen Size | 7 inches (widescreen, 16:9 ratio) |
| Resolution | 800 × 480 pixels (WVGA) |
| Touch Technology | Resistive touch panel |
| Processor | ARM Cortex-A8, 600 MHz |
| Memory | 256 MB RAM, 512 MB Flash |

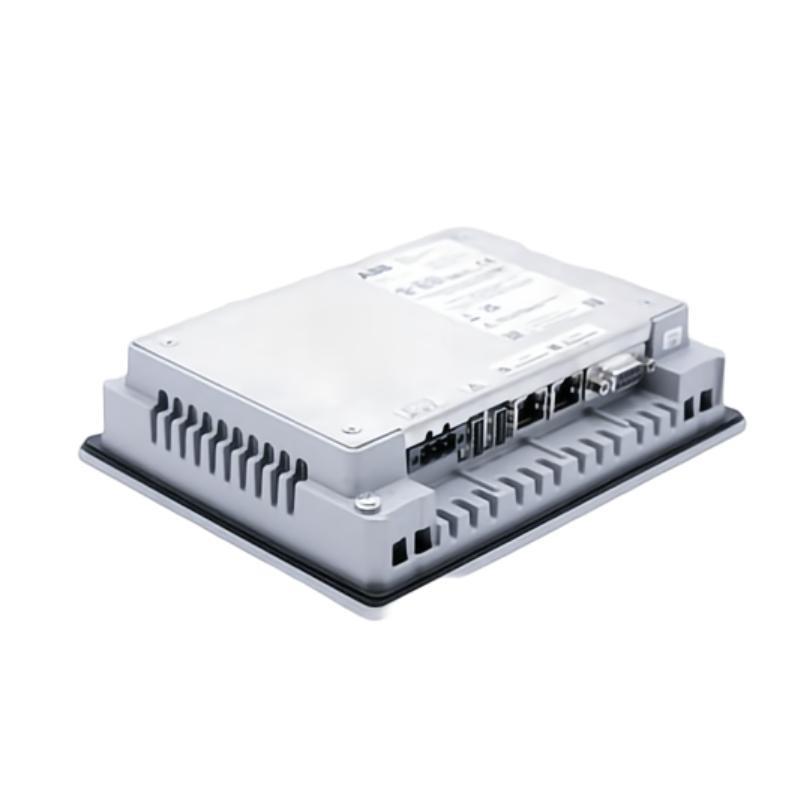

| Interface Ports | 1 × Ethernet, 2 × USB, 1 × RS-232, 1 × RS-485 |
| Operating System | Embedded OS for HMI runtime (Windows CE or equivalent) |
| S/tware | Compatible with ABB Panel Builder 600 |
| Input Voltage | 24 VDC |
| Power Consumption | Approx. 10 W |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 10% to 90% non-condensing |
| Mounting Type | Panel-mounted |
| Front Protection | IP65 (front), IP20 (rear) |
| Dimensions (H × W × D) | 42 x 147 x 187 mm |
| 重量 | 0.92 kg |
| Certifications | CE, UL, cULus, RoHS |
| メーカー | ABB Ltd. |
Applications
The CP6407 Control Panel is a versatile HMI device used across various industries to facilitate operator interaction with PLC systems. It is designed for fast, reliable, and visually engaging operation / automated processes.
-
Machine Automation: Real-time monitoring and control / machinery such as packaging, CNC, and textile machines.
-
Process Control: Used in chemical, pharmaceutical, and food processing to monitor temperatures, pressures, and flows.
-
Power & Energy: Visual interface for energy management and substation automation systems.
-
Water and Wastewater: Allows field operators to control pumps, valves, and filtration systems.
-
Material Handling Systems: Enables interactive conveyor, lift, and sorting system interfaces.
-
OEM Applications: Pre-integrated into systems built by equipment manufacturers for user control access.
Product Advantages
-
High-Quality Display: The 7-inch TFT screen delivers sharp and clear graphics for enhanced user experience.
-
Intuitive Touch Interface: The resistive touch panel ensures reliable operation even with gloves or styluses.
-
Robust Industrial Design: IP65-rated front panel resists dust, water, and harsh environmental conditions.
-
Versatile Connectivity: Equipped with multiple communication ports (USB, Ethernet, serial) for flexible integration.
-
Low Power Consumption: Energy-efficient performance with only 10W power usage.
-
User-Friendly S/tware: サポートs ABB’s Panel Builder 600 for easy interface design and deployment.
-
Compact & Lightweight: Small form factor allows for seamless installation in confined control panels.
-
Long Service Life: Designed for continuous 24/7 operation in industrial environments.
よくある質問 (FAQ)
1. What is the CP6407 used for?
It functions as a Human-Machine Interface (HMI) to interact with PLCs and control industrial processes visually.
2. What kind / touchscreen does it have?
The CP6407 uses a 7-inch resistive touchscreen, suitable for finger or gloved operation.
3. Can I use this panel with other PLC brands?
Yes, it supports standard protocols like Modbus TCP and RS-485, making it usable with non-ABB PLCs.
4. What operating system does it run?
It typically runs an embedded OS designed for ABB HMI applications, /ten based on Windows CE.
5. Is the front panel waterpro/?
The front panel is IP65-rated, meaning it is dust-tight and water-jet resistant.
6. Can the panel be programmed easily?
Yes, it supports ABB’s Panel Builder 600 s/tware, which is user-friendly and efficient for HMI design.
7. What kind / industrial certifications does it have?
It is CE, UL, and RoHS certified, meeting global industrial safety standards.
8. Is it suitable for outdoor use?
It is designed for indoor use. For outdoor applications, it should be installed in a sealed enclosure.
9. What are the connectivity options?
It includes Ethernet, USB, RS-232, and RS-485 ports for various industrial communications.
10. Can the panel operate continuously in 24/7 environments?
Yes, it is built for continuous industrial use and performs reliably in demanding conditions.
Related モデルs from the Same CP600 Series
| モデル Number | Display Size | Resolution | Touch Type | Mounting | 重量 (kg) |
|---|---|---|---|---|---|
| CP6307 | 7-inch | 800 × 480 | Resistive | Panel Mount | 0.8 |
| CP6507 | 7-inch | 800 × 480 | Capacitive | Panel Mount | 0.82 |
| CP6410 | 10.1-inch | 1280 × 800 | Resistive | Panel Mount | 1.2 |
| CP6607 | 7-inch | 800 × 480 | Wide Temp Range | Panel Mount | 0.85 |
| CP6510 | 10.1-inch | 1280 × 800 | Capacitive | Panel Mount | 1.25 |
| CP6204 | 4.3-inch | 480 × 272 | Resistive | Panel Mount | 0.55 |
Popular ABB Modules Across Automation Platforms
| モデル Number | 説明 | Function | System | 重量 (kg) |
|---|---|---|---|---|
| PM864A | AC 800M CPU Module | Controller ユニット | ABB 800xA | 1.5 |
| DO810 | Digital Output Module (16 ch) | Discrete Signal Output | S800 I/O | 0.6 |
| AI810 | Analog Input Module (8 ch) | Analog Signal Acquisition | S800 I/O | 0.65 |
| CI854AK01 | Pr/ibus-DP Communication Module | Fieldbus Communication | AC 800M | 0.35 |
| TB840 | Bus Terminator Module | Bus Signal Termination | S800 I/O | 0.05 |
| CP6601 | HMI Operator Panel (10.1″) | Human-Machine Interface | Panel 600 Series | 1.8 |
