Product Overview

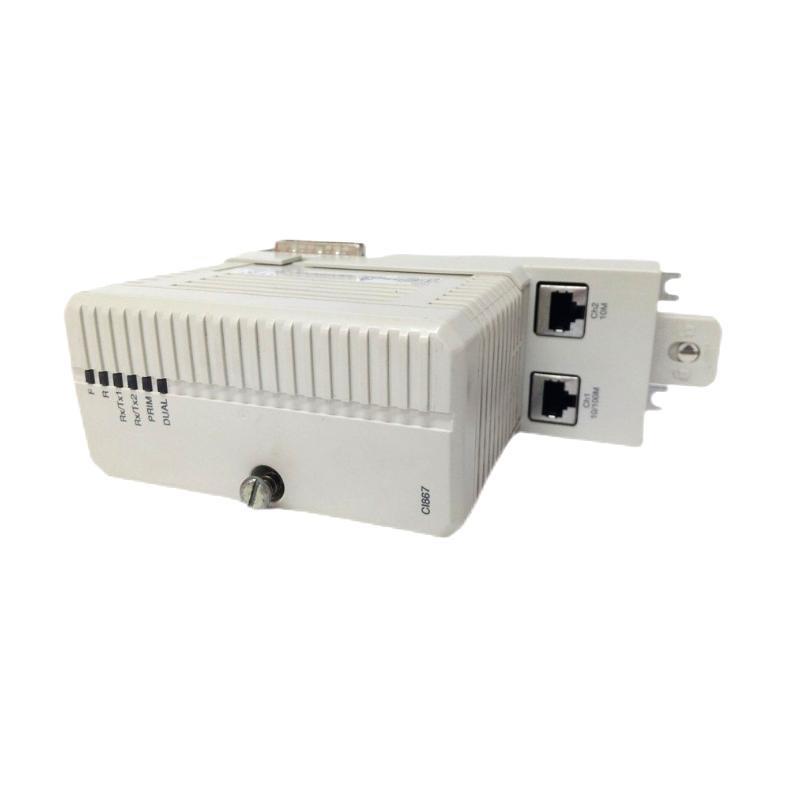

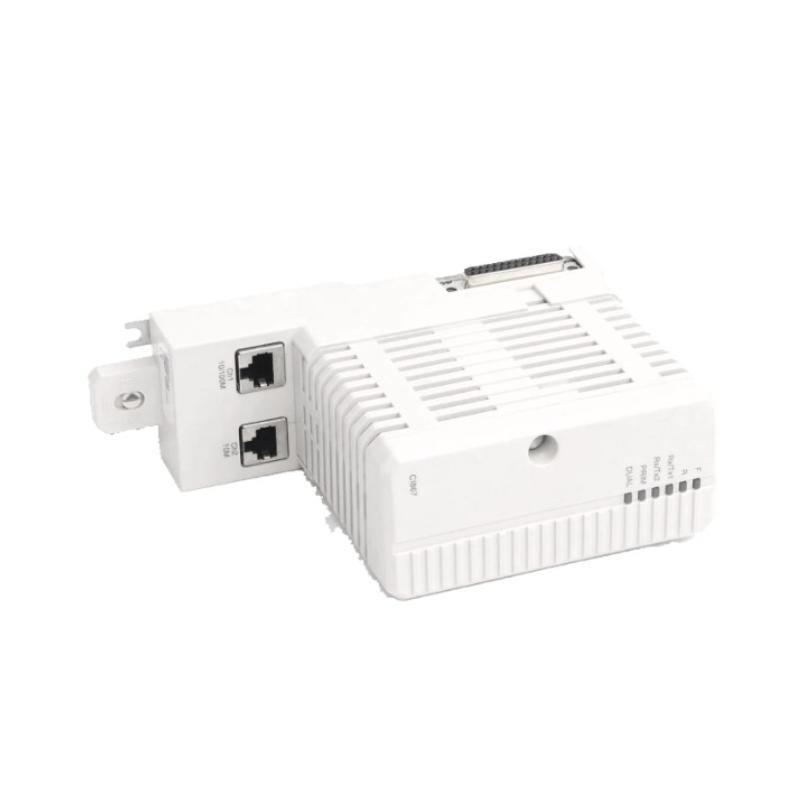

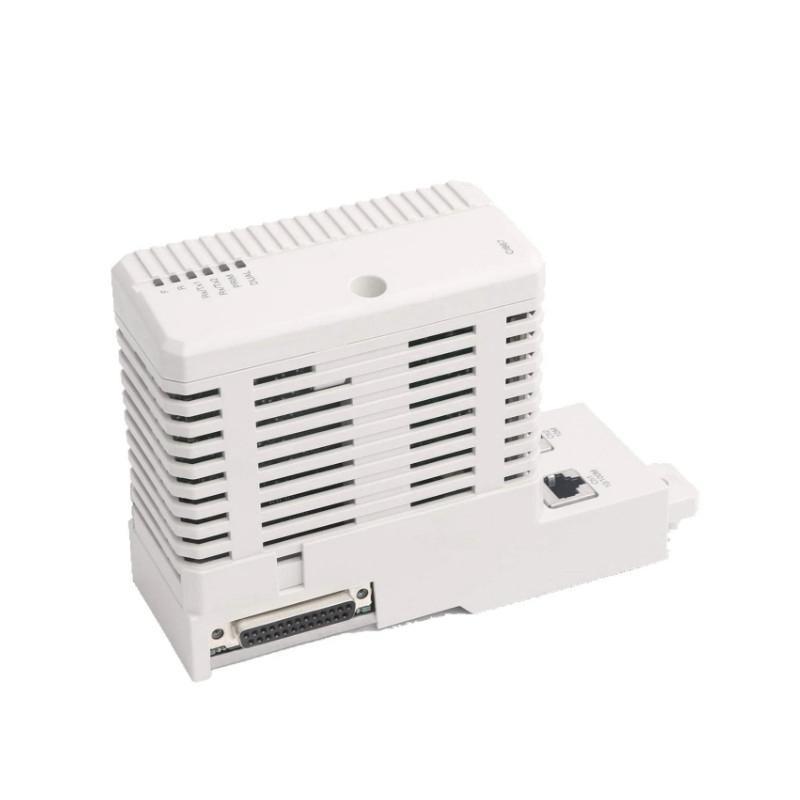

The ABB CI867AK01 is a high-performance communication interface module for the AC 800M controller. It supports IEC 61850 communication, enabling seamless integration with substation automation systems. Designed for critical industrial applications, the CI867AK01 ensures robust data exchange, redundancy capabilities, and high reliability in power generation and distribution environments.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | CI867AK01 |
| Article Number | 3BSE092689R1 |
| Communication Protocol | IEC 61850 Edition 1/2 |
| Redundancy | Hot standby support |
| Ports | 2 x 100 Mbps Ethernet |
| Connector Type | RJ-45 |
| Power Supply | 24 V DC |
| Operating Temperature | -25°C to +70°C |
| Protection Class | IP20 |
| Certification | CE, RoHS, WEEE, IEC 61850 compliant |
| Dimensions (W x H x D) | 59 x 186 x 127.5 mm |
| 重量 | 0.7 kg |
Applications
-
Electrical substations (IEC 61850-based)
-
Power generation and distribution automation
-
Smart grid systems
-
Industrial control networks requiring protocol standardization
-
Integration with SCADA systems in energy and utility sectors
Product Advantages
-
Native IEC 61850 support ensures compatibility with substation systems.
-
Redundant communication design enhances availability and fault tolerance.
-
Dual Ethernet ports enable flexible network configuration.
-
Seamless integration with ABB AC 800M controllers.
-
Compact form factor facilitates installation in space-constrained panels.
-
Industrial-grade reliability ensures continuous operation in harsh environments.
よくある質問 (FAQ)
Q1: What is the primary function / the CI867AK01?
A1: It serves as a communication interface between the AC 800M controller and systems using the IEC 61850 protocol.
Q2: Does the CI867AK01 support redundant communication?
A2: Yes, it supports hot standby redundancy for high availability.
Q3: Which communication protocol is supported?
A3: IEC 61850 Editions 1 and 2.
Q4: Can this module be used in high-temperature environments?
A4: Yes, it operates reliably between -25°C and +70°C.
Q5: How many Ethernet ports does it have?
A5: It includes two 100 Mbps Ethernet ports.
Q6: What type / connector is used?
A6: Standard RJ-45 connectors.
Q7: Is it compatible with other ABB controllers?
A7: It is specifically designed for the AC 800M series.
Q8: What is the module’s protection rating?
A8: The CI867AK01 has an IP20 protection class.
Q9: Is it compliant with industry standards?
A9: Yes, it meets IEC 61850, CE, RoHS, and WEEE standards.
Q10: Can it be installed in substations?
A10: Yes, it is ideal for IEC 61850-based substation automation.
