製品紹介

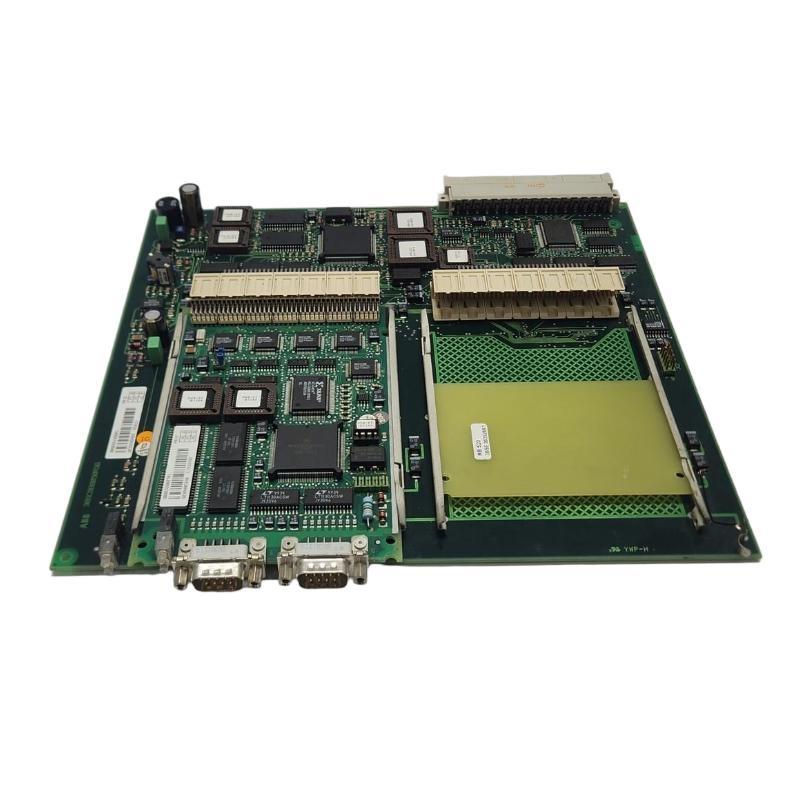

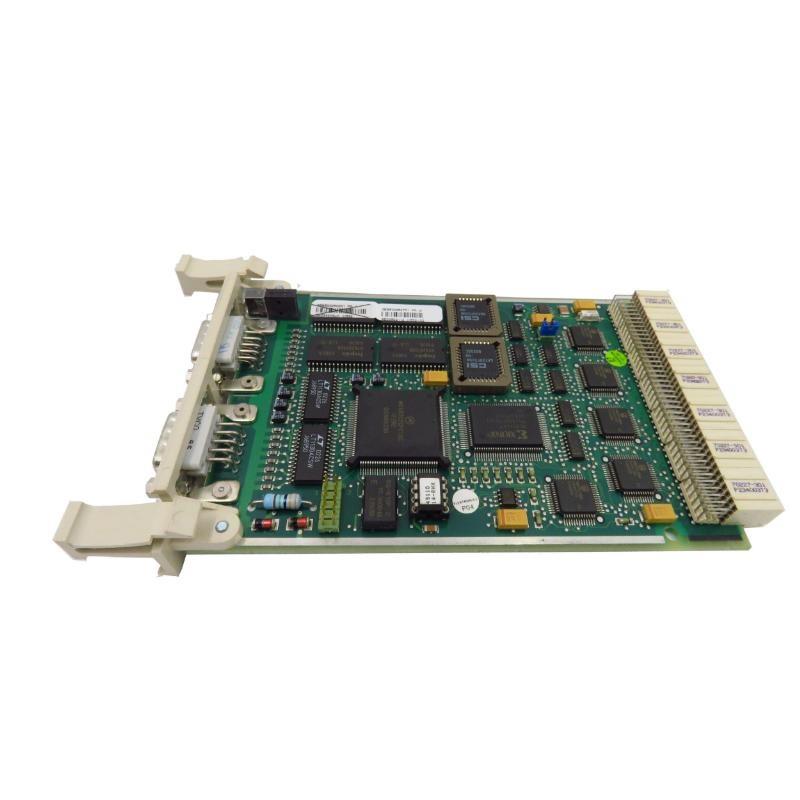

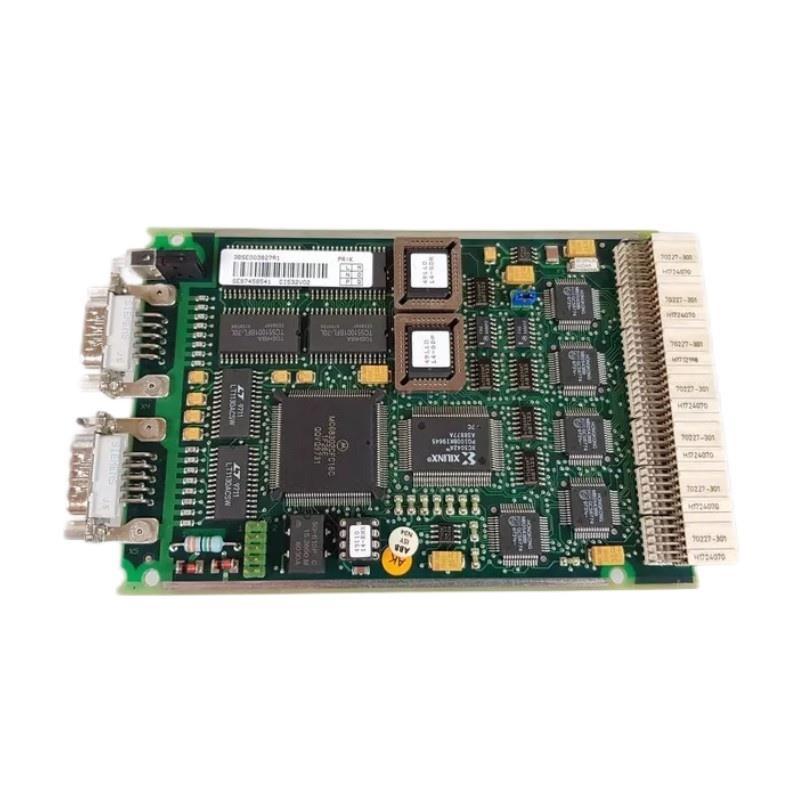

The ABB CI532V02 3BSE003827R1 interface module is designed to provide flexible and reliable communication between the ABB S500 I/O systems and the industrial control network. This module is engineered for high-speed data transmission, /fering superior performance in demanding industrial environments. It is equipped with a range / connectivity options that ensure seamless integration with a variety / control systems, making it an ideal choice for industrial automation, process control, and manufacturing applications.
The CI532V02 module is known for its compact design, measuring 234 x 22.5 x 108 mm and weighing only 0.155 kg, which allows for easy installation in tight spaces. Its robust construction ensures reliable operation in harsh industrial conditions, while the built-in diagnostic features assist in quick identification / communication issues, minimizing downtime and enhancing overall system reliability.
製品仕様
| Specification | Details |
|---|---|
| モデル | ABB CI532V02 3BSE003827R1 |
| Dimensions (L x W x H) | 234 x 22.5 x 108 mm |
| 重量 | 0.155 kg |
| Communication Protocol | EtherNet/IP |
| Bus Type | ABB S500 Series I/O |
| Input Voltage | 24 V DC |
| Power Consumption | Approx. 2 W |
| Communication Ports | 1 x EtherNet/IP |
| Diagnostic LEDs | Yes |
| Mounting Type | DIN Rail |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
Product Applications
The CI532V02 3BSE003827R1 interface module serves a variety / applications that require high-speed communication and reliable data exchange. Its key uses include:
-
Factory Automation: Enables real-time communication between control systems and remote I/O devices, optimizing automation processes in manufacturing environments.
-
Process Control: Commonly used in chemical, petrochemical, and pharmaceutical industries, where accurate and fast data transmission is essential for process regulation.
-
Industrial Robotics: サポートs synchronization and control in robotics applications, ensuring minimal latency and high reliability.
-
Material Handling: Provides reliable data exchange for automated conveyor systems and robotic material handling systems.
-
Energy Management: Used in power generation and distribution automation, where stable, high-speed communication is critical for system monitoring and control.
-
Building Automation: Integrates various building systems, including HVAC, lighting, and security, with centralized control networks for efficient management.
Product Advantages
-
EtherNet/IP Protocol サポート: Provides reliable and high-speed communication over industrial Ethernet networks.
-
Compact and Lightweight: Measuring 234 x 22.5 x 108 mm and weighing 0.155 kg, the module fits easily into tight spaces and minimizes panel clutter.
-
High Compatibility: Fully compatible with ABB’s S500 series I/O systems, enhancing the flexibility / the automation system.
-
DIN Rail Mounting: Simplifies installation and provides easy integration into control panels and cabinets.
-
Energy Efficient: Consumes only about 2 W / power, helping to reduce energy costs in large-scale automation systems.
-
Enhanced Diagnostics: Features diagnostic LEDs that provide instant feedback on the status / the module, aiding quick troubleshooting and system reliability.
-
Wide Operating Temperature Range: Operates effectively from -20°C to +60°C, suitable for use in diverse industrial environments.
-
Robust Protection: IP20 rated for protection against dust and indirect contact, ensuring reliable operation in typical industrial conditions.
-
Improved Network Performance: The module enhances the overall communication speed and system responsiveness in automated applications.
-
Reliable Integration: Allows seamless integration with a wide range / industrial control systems, ensuring smooth data flow and system synchronization.
よくある質問 (FAQs)
-
What protocol does the CI532V02 3BSE003827R1 use for communication?
It uses the EtherNet/IP protocol for reliable and fast communication. -
What is the operating voltage / the CI532V02 module?
The module operates on a 24 V DC input voltage. -
What are the physical dimensions / the CI532V02?
The module has dimensions / 234 x 22.5 x 108 mm. -
How much does the CI532V02 weigh?
The weight / the module is 0.155 kg. -
What is the power consumption / the CI532V02 module?
The module consumes approximately 2 W / power. -
How many communication ports are available on the CI532V02?
The module has 1 EtherNet/IP communication port. -
Is the CI532V02 module compatible with ABB S500 I/O systems?
Yes, it is fully compatible with the ABB S500 series I/O systems. -
What diagnostic features does the module /fer?
The module comes with diagnostic LEDs for easy monitoring / the system’s status. -
What is the temperature range for operating the CI532V02?
The operating temperature range is between -20°C and +60°C. -
How is the CI532V02 module mounted?
The module is designed for easy DIN rail mounting.
Related モデルs from the Same Series
| モデル | Key Features |
|---|---|
| CI530 | Compact design, supports multiple I/O systems |
| CI531 | High-speed communication, multiple protocol support |
| CI533 | Flexible I/O integration, robust performance |
| CI535 | High compatibility, low power consumption |
| CI536 | Enhanced diagnostics, flexible integration |
| CI537 | Reliable data exchange, ideal for industrial automation |
Popular モデルs from ABB
| モデル | Key Features |
|---|---|
| CI541-DP | Pr/ibus DP interface, high-speed communication |
| CI541V1 | Pr/ibus DP, enhanced diagnostic features |
| CI542-DP | Pr/ibus DP, real-time data transmission |
| CI543-ETH | Ethernet interface, flexible connectivity |
| CI544-V1 | Advanced diagnostics, Pr/ibus DP support |
| CI545-ETH | Ethernet, high-performance communication |
