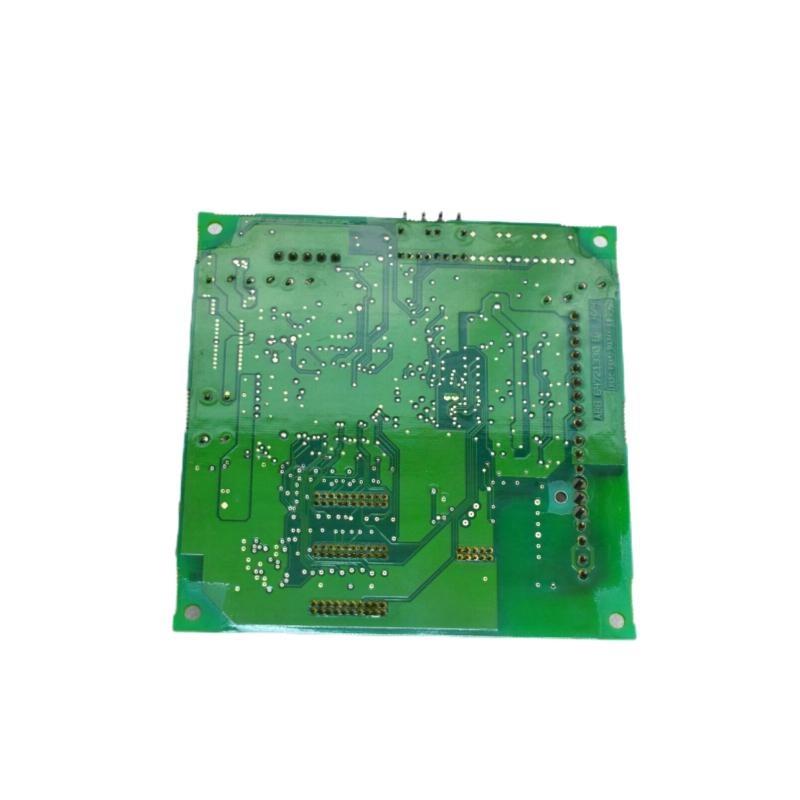

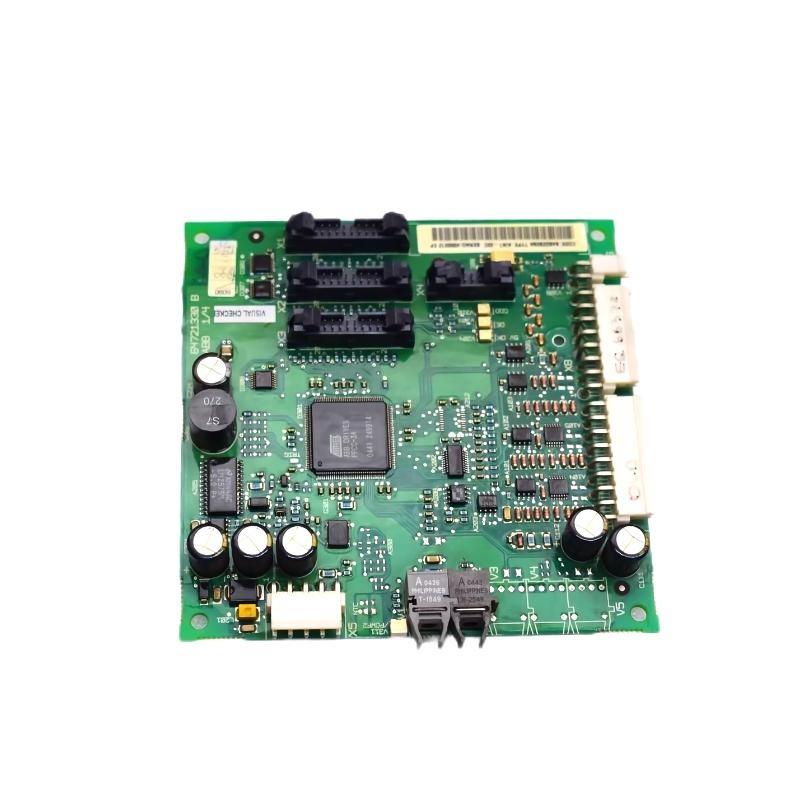

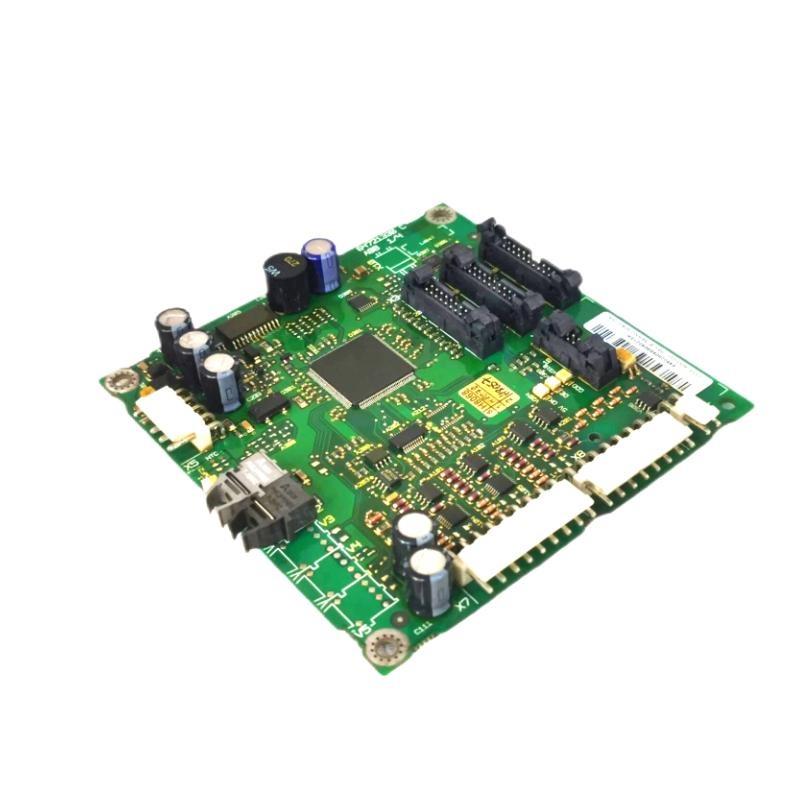

The ABB AINT-02C 64721330B SP Kit Main Interface is a critical component within ABB’s Industrial Automation control system portfolio. Designed to serve as the main interface between various I/O subsystems and controllers, the AINT-02C provides robust signal handling, streamlined communication capabilities, and durable mechanical construction, making it a highly reliable 台 for use in mission-critical automation infrastructures. The module is a part / the AINT-series and acts as the foundational building block for modular expansion within ABB’s control architecture.
This interface module is commonly deployed in high-availability environments such as power plants, oil and gas platforms, chemical processing 台s, and large-scale manufacturing facilities. ABB’s legacy / industrial control excellence ensures that the AINT-02C /fers high compatibility, long lifecycle support, and easy integration into both legacy and modern control environments.
製品仕様
| Parameter | Specification |
|---|---|
| Product モデル | AINT-02C |
| Product Code | 64721330B |
| Function | Main Interface Module |
| Series | AINT |
| Communication Ports | 1 x Optical Interface, 1 x RS-232, 1 x Parallel Port |
| Input Voltage | 24 VDC (typical) |
| Power Consumption | Max 5W |
| Mounting Type | DIN Rail / Panel Mount |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% – 95% non-condensing |
| Protection Class | IP20 (According to EN 60529) |
| Compliance | CE, UL, RoHS |
| Dimensions (H x W x D) | 140 × 110 × 60 mm |
| 重量 | 0.1 kg |
Product Applications
The ABB AINT-02C SP Kit is suitable for integration into a wide variety / industrial sectors. Its reliable interfacing and communication features make it ideal for:
-
Power Generation and Distribution Systems
-
Oil & Gas Platforms and Refineries
-
Process Automation in Chemical and Petrochemical Industries
-
Water and Wastewater Treatment Plants
-
Factory and Assembly Line Automation
-
Transportation Infrastructure Control Systems
These applications benefit from the AINT-02C’s dependable signal conversion and data transmission capabilities, which are vital for ensuring smooth, uninterrupted control system performance.
Product Advantages
-
High Integration Flexibility:
Seamlessly integrates with ABB control systems and supports a wide range / I/O modules. -
Industrial-grade Reliability:
Engineered for use in demanding industrial environments with high resistance to shock, vibration, and temperature extremes. -
Longevity & Lifecycle サポート:
Backed by ABB’s commitment to long-term product support, minimizing obsolescence risk. -
Efficient Data Handling:
サポートs high-speed communication and efficient signal routing to enhance overall system responsiveness. -
Modular Design:
Enables easy expansion or system upgrades without overhauling the entire infrastructure. -
Certified Safety and Compliance:
Meets global safety and environmental standards including CE and RoHS.
よくある質問 (FAQ)
-
Is the AINT-02C compatible with ABB Symphony DCS systems?
Yes, the AINT-02C is fully compatible with Symphony DCS platforms and supports seamless integration with standard ABB communication protocols. -
What types / communication interfaces are available on the AINT-02C?
The module /fers optical fiber communication, RS-232 serial interface, and a parallel port for flexible connectivity across various system topologies. -
Does the AINT-02C require external cooling or ventilation?
No external cooling is required under standard operating conditions. Adequate enclosure ventilation is recommended to maintain thermal stability. -
How is the AINT-02C module mounted in a control cabinet?
It can be DIN-rail or panel-mounted, allowing for flexibility in system layout depending on space and design constraints. -
Can the AINT-02C be used in environments with high vibration?
Yes, it is designed for industrial environments and complies with shock and vibration standards typically required in power and process industries. -
What is the typical boot-up time / the AINT-02C after power-up?
The module typically initializes and establishes communication within 5 to 8 seconds after stable power is applied. -
Is there LED status indication available on the front panel?
Yes, there are multiple LED indicators for power, communication status, and error diagnostics, which assist in real-time monitoring and fault isolation. -
What kind / cable is recommended for the optical communication port?
Single-mode or multimode fiber can be used depending on system design, with SC-type connectors being the most commonly supported interface. -
How /ten should the module be replaced or serviced?
Under normal operating conditions, the AINT-02C requires no scheduled maintenance and has a typical operational lifespan / over 15 years. -
Can the module be configured or adjusted in the field without specialized s/tware?
No, configuration and diagnostics should be performed using ABB’s engineering tools or via the system’s control s/tware environment for proper functionality and safety compliance.
Recommended Related モデルs (Same Series or Functionality)
| モデル Number | 説明 | Communication サポート | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| AINT-01C | Main Interface Module, Basic | Serial/Parallel | 150 x 90 x 60 | 0.60 |
| AINT-11C | Enhanced Interface with Redundancy | Optical + RS232 | 150 x 90 x 60 | 0.68 |
| AINT-03C | Compact Interface Module | RS485/RS232 | 140 x 85 x 50 | 0.55 |
| INICT03A | Network Interface Module for Harmony | Ethernet | 160 x 90 x 60 | 0.70 |
| INNIS01 | Serial Network Interface | Serial | 150 x 90 x 60 | 0.62 |
| INNPM12 | Network Processor Module | Ethernet/Serial | 160 x 100 x 65 | 0.75 |
Popular ABB モデルs Across Industrial Automation
| モデル Number | Product 説明 | Function | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| PM564-R-ETH | AC500 PLC CPU Module | Control CPU with Ethernet | 142 x 100 x 74 | 0.65 |
| CI854AK01 | Pr/ibus-DP Communication Interface | Communication Module | 120 x 90 x 60 | 0.58 |
| TU810V1 | Extended Terminal ユニット | I/O Interface | 126 x 127 x 56 | 0.45 |
| AI810 | Analog Input Module (8 ch) | Signal 状態ing | 146 x 106 x 48 | 0.40 |
| DO810 | Digital Output Module (16 ch) | Digital Signal Output | 146 x 106 x 48 | 0.43 |
| PM866K02 | AC 800M High Performance Controller | Main CPU Module | 142 x 186 x 127 | 1.05 |
