製品紹介

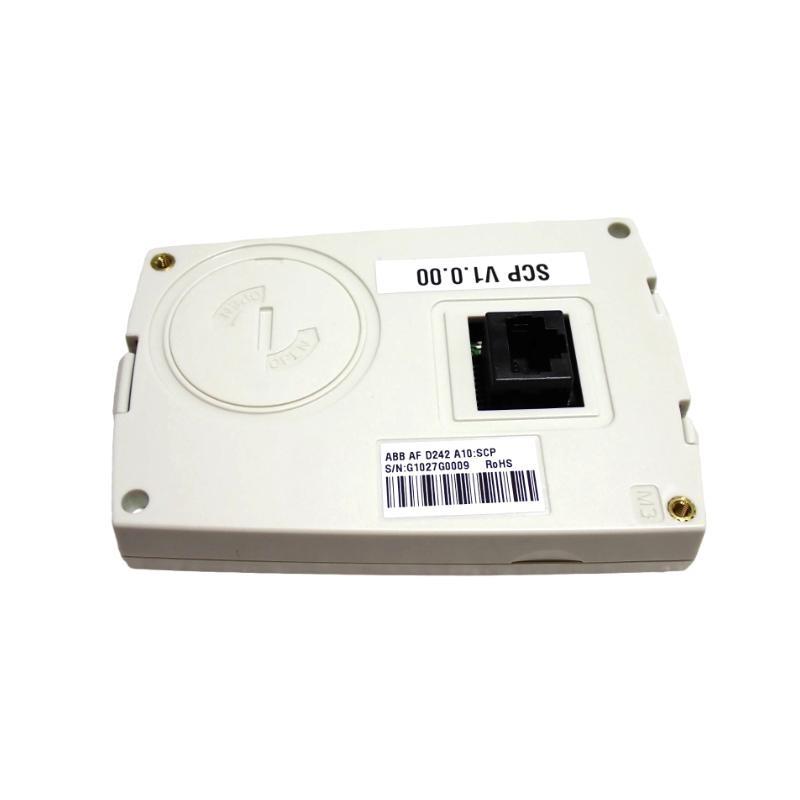

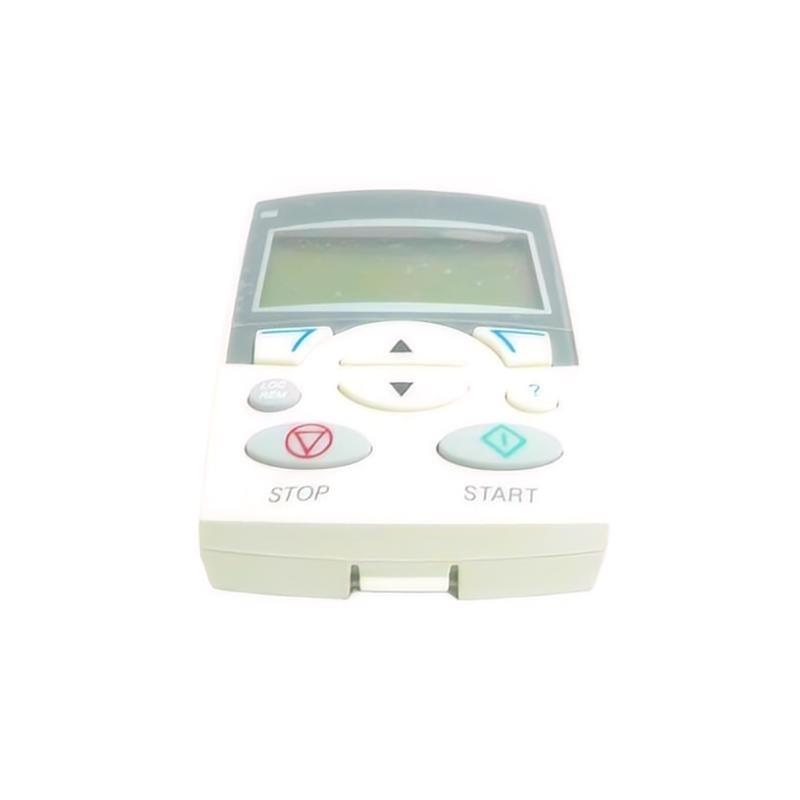

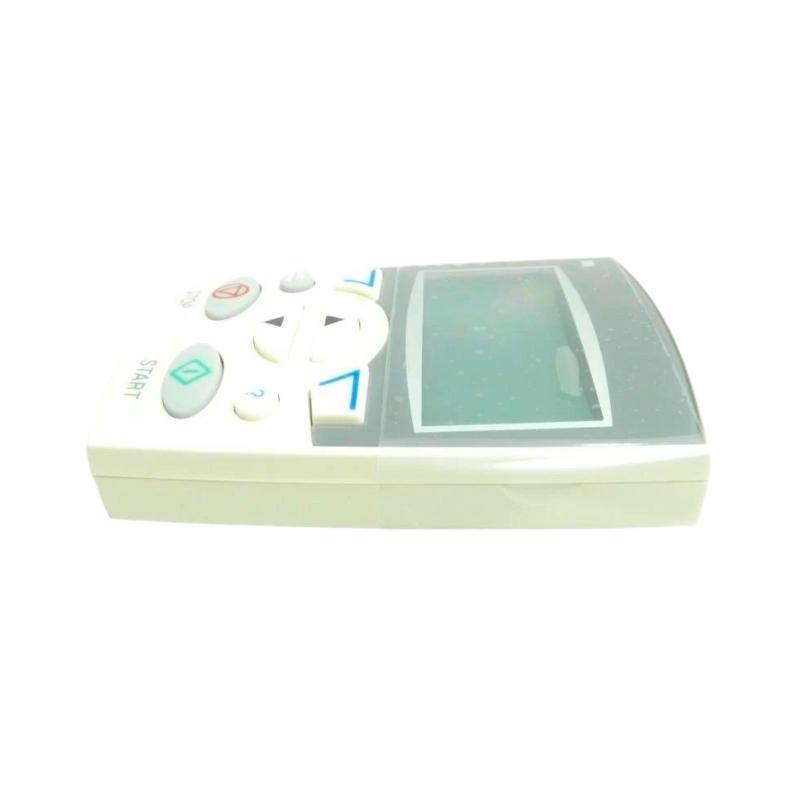

The ABB AF D242 A10 3BHE023126R0010 is a Service Control Panel (SCP) specifically designed for integration into ABB drive and automation systems, providing a reliable and user-friendly interface for system configuration, diagnostics, and maintenance. Engineered to meet the needs / demanding industrial environments, this SCP ensures efficient service access and real-time system communication, enabling smooth operations and reduced downtime.
The panel is part / ABB’s service support infrastructure for its frequenting drives and control systems, /ten used in applications requiring real-time monitoring and adjustment capabilities. Whether integrated into a decentralized automation cabinet, a motor control center, or a field-mounted panel, the AF D242 A10 is designed to withstand harsh industrial conditions while delivering responsive performance and intuitive control.
It supports communication with a wide range / ABB devices and is compatible with specific models in the ACS drive families and robotic/PLC controller systems, making it an essential component for technicians and engineers during commissioning, fault analysis, and system tuning.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Service Control Panel (SCP) |
| モデル Number | AF D242 A10 |
| Ordering Code | 3BHE023126R0010 |
| メーカー | ABB |
| Function | Local service interface for ABB drives/controllers |
| サポートed Systems | ACS600/800/880 series, ABB PLCs, Control Panels |
| Display Type | Backlit LCD or graphical (model-specific) |
| User Interface | Push buttons, navigation keys, emergency stop (optional) |
| Communication Interface | RS-485 / CAN / proprietary ABB interface |
| Power Supply Requirement | 24 VDC (supplied from control circuit) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | Door/panel mount (with screw brackets) |
| Material & Housing | Industrial-grade polycarbonate with aluminum front panel |
| Ingress Protection | IP54 (front panel); IP20 (rear side) |
| Certifications | CE, RoHS, UL Recognized Component |
| Cooling | Passive (natural convection) |
| Dimensions (H x W x D) | 29 x 70 x 13 mm |
| 重量 | 0.1 kg |
Product Applications
The ABB AF D242 A10 SCP is used across various sectors where industrial automation, drives, and power control systems require a dedicated local interface for control and monitoring. Primary application areas include:
-
Variable Frequency Drive (VFD) Systems
Provides access to drive parameters, fault logs, and real-time operational data. -
Industrial Control Cabinets
Installed in front panels for on-site diagnostics and configuration without opening the enclosure. -
Power Distribution Systems
Enables technicians to monitor load parameters and communication status in switchgear. -
Process Industries (Chemical, Oil & Gas, Pulp & Paper)
Used in control rooms or in the field for process tuning and alarm management. -
Robotics and Motion Systems
Interfaced with robotic controllers for service checks and positional diagnostics. -
Maintenance and Commissioning
Provides vital feedback during the setup, commissioning, and routine maintenance phases.
Product Advantages
-
Plug-and-Play Integration
Simplifies setup and minimizes downtime during commissioning and service procedures. -
Robust Industrial Design
Built to endure challenging environments such as dust, vibration, and temperature variation. -
Real-Time Access
Provides engineers with immediate visibility into system health and operational status. -
User-Friendly Interface
Intuitive button layout and backlit display ensure ease / use, even with gloves or in low-light conditions. -
Multi-Protocol Compatibility
Compatible with a wide range / ABB systems and communication protocols. -
Compact Form Factor
保存s valuable cabinet space while delivering maximum utility on-site. -
Safety Integration
Optional Emergency Stop (E-Stop) functionality for critical service operations. -
Long Service Life
Designed for durability with low-maintenance components and long-term operational stability.
よくある質問 (FAQ)
1. What is the primary use / the ABB AF D242 A10 Service Control Panel?
It is used as a service interface for ABB drives and controllers, /fering diagnostic and configuration access.
2. Is this panel compatible with all ABB drive series?
It is compatible with many ABB drives, including ACS600, ACS800, and ACS880, but compatibility should be confirmed for specific models.
3. Can I mount this panel on any cabinet door?
Yes, the SCP is designed for front-panel mounting with standard brackets and IP54 protection on the front.
4. Does the panel support multi-language interfaces?
Yes, depending on the firmware version, multiple language options may be available on the display.
5. How is the SCP powered?
It typically draws 24 VDC from the system’s control power supply or auxiliary power 台.
6. Can this panel store historical fault logs?
Yes, it allows access to recent fault logs and event history from connected ABB devices.
7. Does it require any special s/tware for setup?
No external s/tware is needed; all operations are done via the panel’s built-in interface.
8. What kind / communication cable does it use?
It commonly uses RS-485 or CAN-based ABB-specific communication cables.
9. Can the SCP be used outdoors?
It is not rated for outdoor use unless housed in a weatherpro/ enclosure.
10. Is firmware update possible?
Firmware updates are possible but typically done via a connected ABB system or service tool.
Related or Same-Series ABB モデルs
| モデル Number | 説明 | Application | Compatibility |
|---|---|---|---|
| AF D243 A10 3BHE023127R0101 | Advanced SCP with enhanced display | Diagnostics, parameter access | ABB ACS880, PLCs |
| SCP-01 3AFE64550586 | Basic Control Panel for ACS drives | Compact systems | ACS550/ACS800 |
| CP600-Pro | High-performance control panel | HMI with extended features | ABB PLCs and robots |
| 3BSE018126R1 | Panel 800 10″ Touchscreen HMI | SCADA/Process Control | AC800M, Freelance |
| FPBA-01 | Fieldbus Adapter Panel | Pr/ibus/DeviceNet communication | ACS800 and industrial networks |
| CP651 | Web-based control panel | Remote visualization | ABB control systems |
Popular ABB モデルs Across Product Lines
| モデル Number | 説明 | Application | Product Family |
|---|---|---|---|
| ACS880-01-07A6-3 | Industrial VFD for motor control | Variable speed drive systems | ACS880 Series |
| PM866K02 | High-performance processor 台 for control | Distributed control applications | AC800M |
| TU830V1 | Extended I/O terminal 台 | Signal interfacing | S800 I/O |
| REF630 | Feeder protection and control relay | Medium voltage protection | Relion Series |
| 07KT98 GJR5253100R3162 | Communication module for Advant Controller 31 | Field device integration | Advant Controller |
| PPD113B101 | HMI Panel with Proview | Human-machine interface | Panel 800 Series |
