製品紹介

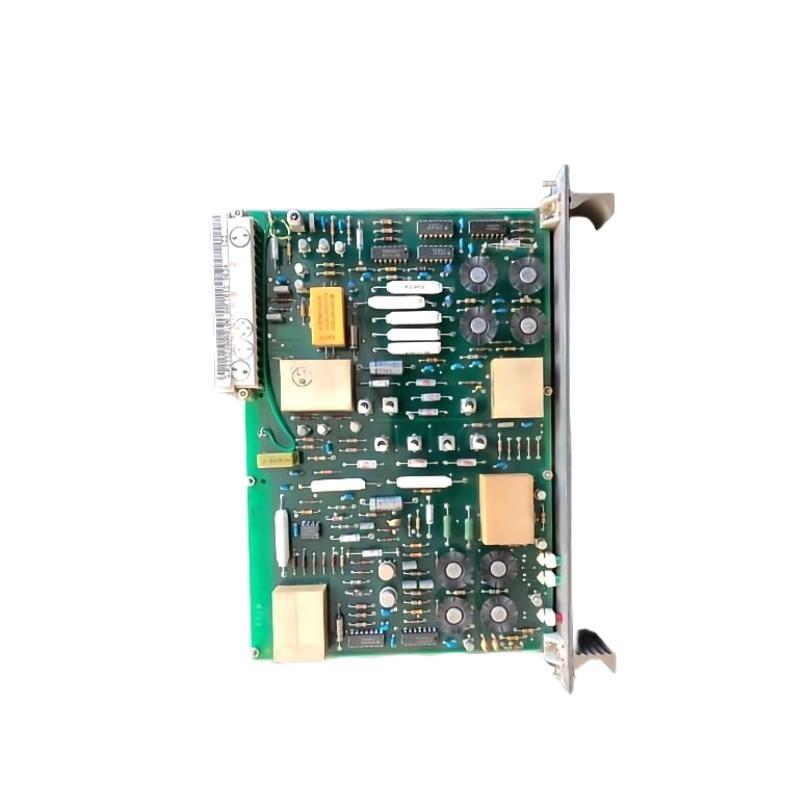

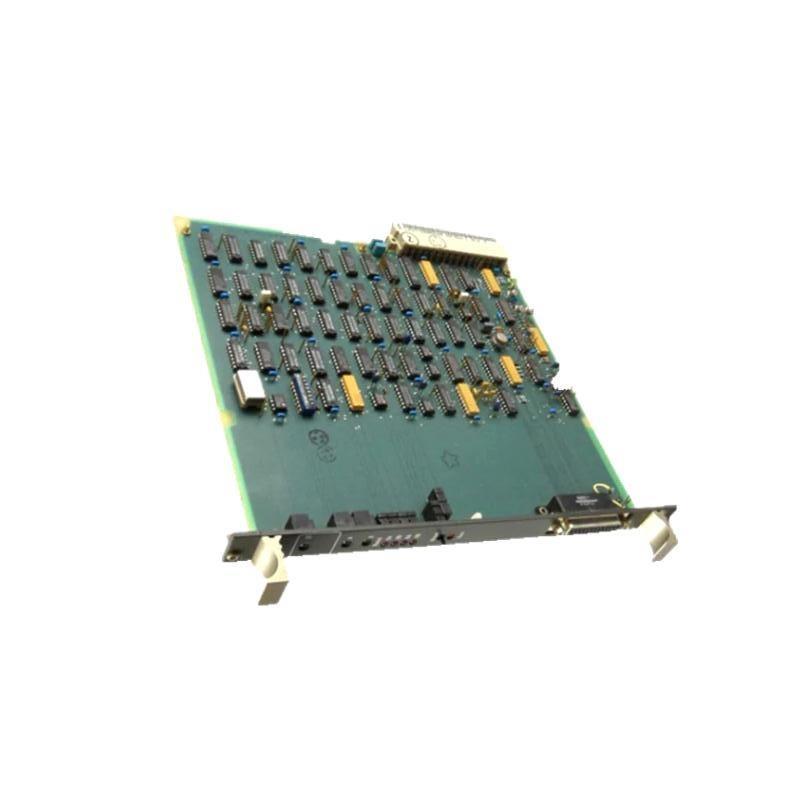

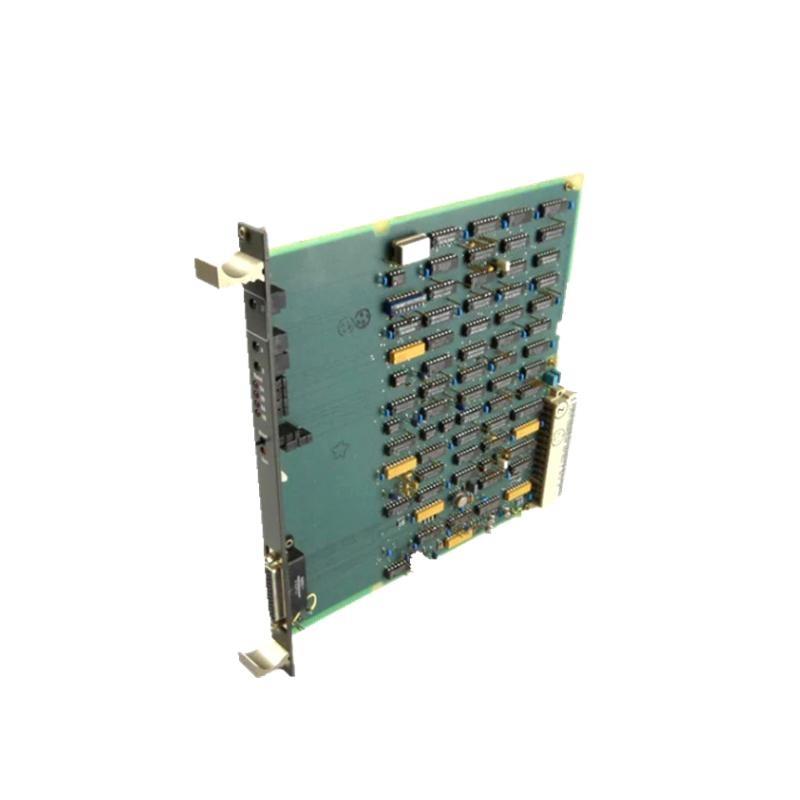

The ABB 88FV01F GJR2332300R0100 is a Master Modem Module specifically designed for use in ABB’s industrial automation and control systems. This module facilitates reliable and stable communication between process control systems and remote stations via dial-up or leased line modems. It is an integral component in many legacy ABB control systems, including the Advant Master and Symphony series, where robust, long-distance communication is critical.
The module acts as a central communication hub, /fering enhanced signal integrity and compatibility with a wide range / analog communication standards. Designed for harsh industrial environments, the 88FV01F ensures uninterrupted data transmission even under fluctuating electrical conditions. It is well-suited for retr/it applications, enabling legacy systems to maintain long-term operability.
製品仕様
| Parameter | Specification |
|---|---|
| Product Code | 88FV01F |
| 型番 | GJR2332300R0100 |
| Product Type | Master Modem Module |
| Compatible Systems | ABB Advant Master, Symphony, legacy DCS |
| Interface Type | Analog (Modem Communication) |
| Communication Standards | V.24, RS-232, 4-wire leased line, dial-up modem |
| Mounting Type | Rack-mounted |
| Power Supply | 24 V DC (typical from system rack) |
| Power Consumption | < 4 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5%–95% non-condensing |
| Dimensions (H x W x D) | 90 x 45 x 66 mm |
| 重量 | 0.35 kg |
| Status Indicators | LED for power, communication status |
| Isolation | Galvanic isolation between communication and logic |
| Firmware サポート | System-specific, typically requires DCS update |
Product Applications
-
Distributed Control Systems (DCS): Provides modem-based communication in ABB’s Advant and Symphony series systems.
-
Remote Station Integration: Used in remote I/O stations, substations, and outlying process 台s.
-
Retr/it & Modernization Projects: Maintains communication compatibility with older ABB equipment in plant-wide control schemes.
-
Utilities and Energy Systems: Especially suited for power plants, substations, and remote switching stations.
-
Chemical and Process Industries: Ensures reliable control system communication over long distances.
Product Advantages
-
High Compatibility: Fully compatible with ABB’s legacy and current automation platforms.
-
Reliable Communication: サポートs stable modem communication over long distances, essential in industrial environments.
-
Easy Integration: Seamlessly integrates into existing ABB DCS configurations without complex setup.
-
Rugged Design: Engineered for demanding industrial conditions with high electrical noise imm台y.
-
Longevity サポート: ABB provides long-term support, making it ideal for legacy systems where continuity is critical.
-
Status Monitoring: Built-in LED indicators assist in quick diagnostics and maintenance.
よくある質問 (FAQ)
-
What is the primary function / the ABB 88FV01F module?
It serves as a Master Modem Module enabling analog communication between ABB control systems and remote equipment. -
Which control systems are compatible with the 88FV01F?
It is primarily used in ABB’s Advant Master, Symphony, and other legacy DCS platforms. -
Does the module support both dial-up and leased line connections?
Yes, it supports both dial-up and 4-wire leased line modem communications. -
Can I use the 88FV01F in new ABB DCS systems?
It is designed mainly for legacy systems. Compatibility with new systems should be verified per project requirements. -
What is the power supply requirement for this module?
It typically requires 24 V DC supplied through the rack system. -
What are the environmental tolerances / the device?
It operates between 0°C to +60°C and stores between -25°C to +70°C, with up to 95% non-condensing humidity. -
Is the 88FV01F hot-swappable?
No, it should only be inserted or removed with the system powered down, following proper procedures. -
How can I check if the module is functioning properly?
The front-panel LEDs indicate power and communication status for quick on-site diagnostics. -
Can it be used in high-voltage substations?
Yes, it is /ten deployed in substations, thanks to its galvanic isolation and industrial-grade design. -
Is firmware updating required for operation?
Firmware compatibility must be verified during installation. Updates are rarely needed unless system-wide changes are made.
