製品紹介:

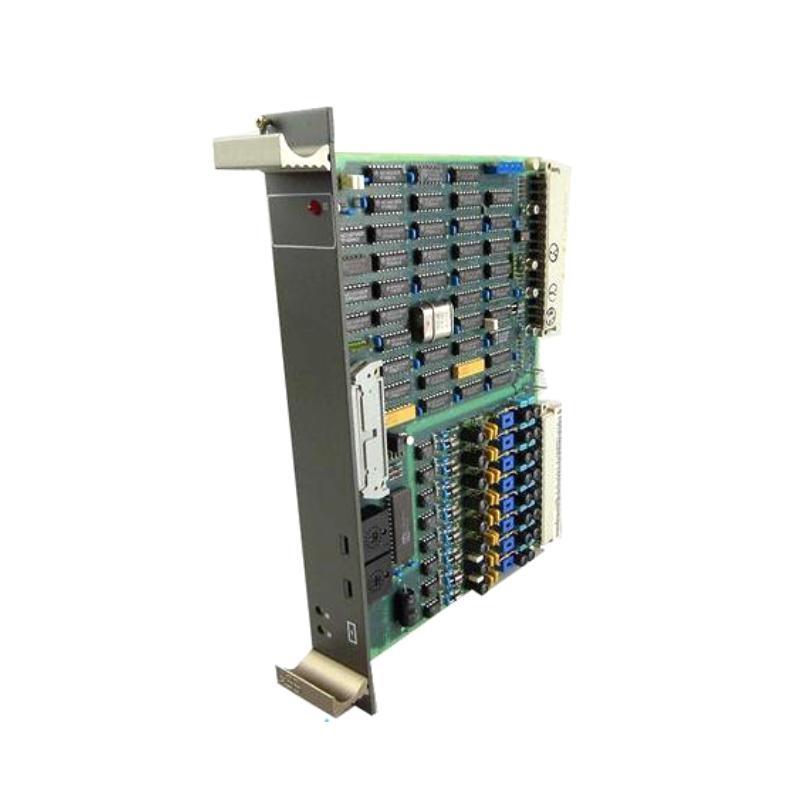

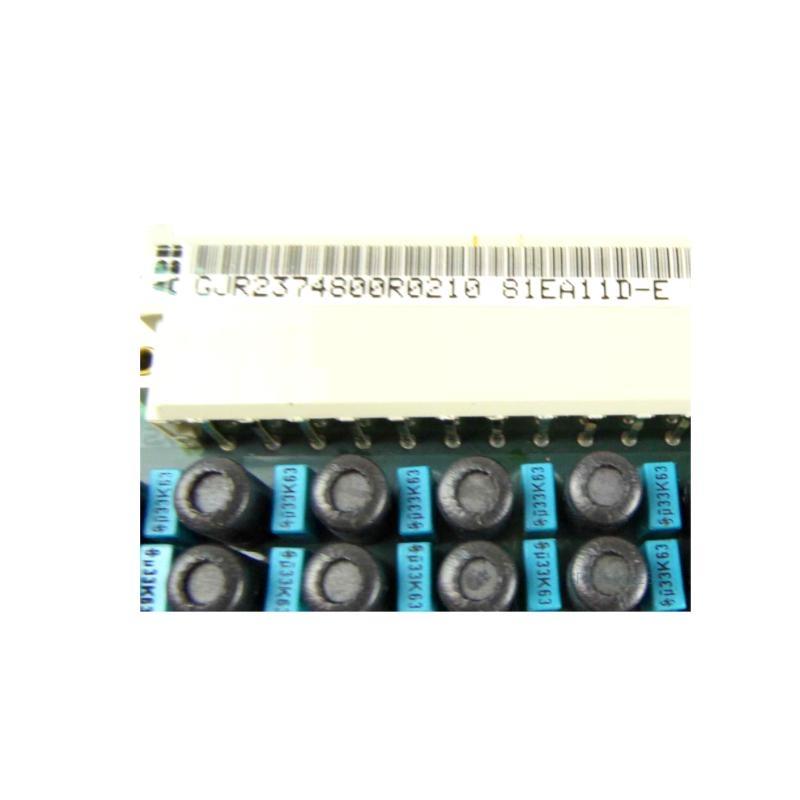

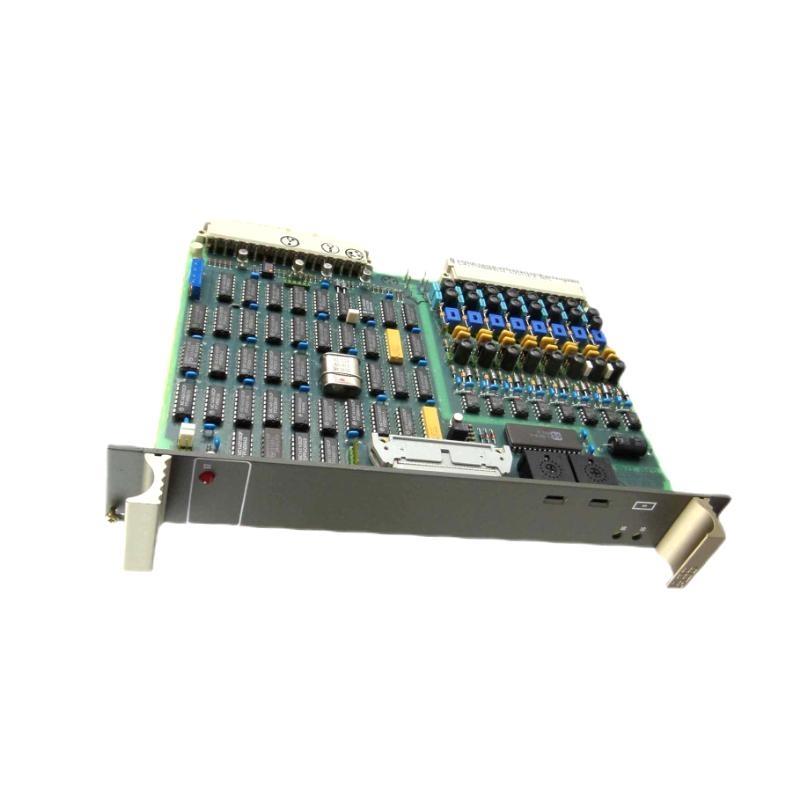

The ABB 81EA11D-E GJR2374800R0210 Analog Input Module is a critical component in industrial automation and control systems. This module is part / ABB’s comprehensive portfolio / I/O modules and is designed to interface between various field devices and a control system. The module accepts analog signals from sensors, transmitters, and other devices in the field and provides these signals to a programmable logic controller (PLC) or distributed control system (DCS).
With high precision and excellent reliability, the 81EA11D-E module supports multiple input types such as current and voltage, making it versatile for use in various industries, including manufacturing, energy, and process control. It ensures the accurate transmission / analog data and enables effective process monitoring and control.
製品仕様:
| Specification | Details |
|---|---|
| モデル Number | ABB 81EA11D-E GJR2374800R0210 |
| Module Type | Analog Input Module |
| Input Signal Types | Current (4-20 mA), Voltage (0-10 V) |
| Number / Channels | 8 Channels |
| Input Voltage Range | 0-10 V (Voltage), 4-20 mA (Current) |
| Input Impedance | > 10 MΩ |
| Accuracy | ±0.1% / Full Scale |
| Resolution | 16-bit |
| Power Consumption | 2.5 W |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (WxHxD) | 100 x 120 x 75 mm |
| 重量 | 0.25 kg |
| Mounting Type | DIN Rail |
| Compliance Standards | CE, UL, RoHS |
Applications:
The ABB 81EA11D-E GJR2374800R0210 Analog Input Module is designed for use in a variety / industries, particularly in process automation, power distribution, and control systems. Some common applications include:
-
Process Control: Monitoring / flow, temperature, and pressure sensors in industries such as oil & gas, chemical, and pharmaceutical.
-
Building Automation: Integration with HVAC (Heating, Ventilation, and Air 状態ing) systems to monitor and control environmental conditions.
-
Energy Management: Measurement / energy parameters like voltage and current to ensure optimal energy consumption and improve efficiency in industrial settings.
-
Manufacturing Systems: Integration with industrial robots, conveyors, and other machinery for automated control and monitoring.
-
Water Treatment: Used for collecting data from various sensors such as pH, turbidity, and flow in water treatment plants.
Advantages:
-
High Accuracy: The 81EA11D-E module provides high-precision data with an accuracy / ±0.1% / the full scale, ensuring that the control system receives reliable signals for critical processes.
-
Versatile Input Compatibility: サポートs both current (4-20 mA) and voltage (0-10 V) inputs, making it compatible with a wide range / field devices and sensors.
-
Flexible Integration: Easy to integrate into existing control systems, whether for centralized or distributed automation. The DIN rail mounting system simplifies installation in industrial environments.
-
Wide Operating Temperature Range: With an operating temperature range from -10°C to +60°C, the module is suitable for deployment in challenging environments, ensuring reliable operation across various industries.
-
Low Power Consumption: Consumes only 2.5 W, which makes it energy-efficient, thus reducing the overall power consumption in industrial applications.
-
Compact Design: With a compact size / 100 mm x 120 mm x 75 mm, it is space-efficient and ideal for installations with limited space.
-
Durable and Reliable: Designed to meet rigorous industrial standards, ensuring long-term durability and reducing the need for frequent replacements.
FAQs:
-
What is the input signal range / the ABB 81EA11D-E module?
-
The module supports both 4-20 mA current and 0-10 V voltage input signals.
-
-
How many input channels does the ABB 81EA11D-E module have?
-
The module has 8 input channels.
-
-
What is the power consumption / the 81EA11D-E module?
-
The power consumption is 2.5 W.
-
-
What is the accuracy / the module?
-
The accuracy is ±0.1% / the full scale.
-
-
Can the module be used in outdoor environments?
-
The module is rated for operation in temperatures from -10°C to +60°C, making it suitable for indoor industrial environments. Outdoor use may require additional environmental protection.
-
-
Is the module compatible with all ABB PLCs?
-
Yes, it is designed to integrate with ABB’s PLCs and DCS systems, as well as other compatible automation systems.
-
-
What is the weight / the module?
-
The weight / the module is 0.25 kg.
-
-
Can the module handle signals from all types / sensors?
-
The module is compatible with sensors that provide either current (4-20 mA) or voltage (0-10 V) output.
-
-
How is the ABB 81EA11D-E module mounted?
-
The module is mounted on a DIN rail, making it easy to install in industrial control panels.
-
-
Does the module comply with international standards?
-
Yes, the module complies with CE, UL, and RoHS standards for safety and environmental compatibility.
-
Recommended Related モデルs:
| モデル Number | Channels | Input Signal Types | Accuracy | Dimensions (WxHxD) | 重量 |
|---|---|---|---|---|---|
| ABB 81EA11D-F | 8 | 4-20 mA, 0-10 V | ±0.1% | 100 x 120 x 75 mm | 250 g |
| ABB 81EA12D-E | 16 | 4-20 mA, 0-10 V | ±0.05% | 100 x 150 x 90 mm | 300 g |
| ABB 81EA10D-E | 8 | 4-20 mA | ±0.1% | 100 x 120 x 75 mm | 240 g |
| ABB 81EA11C-E | 12 | 0-10 V, 4-20 mA | ±0.1% | 100 x 140 x 80 mm | 270 g |
| ABB 81EA12C-E | 16 | 4-20 mA, 0-10 V | ±0.1% | 120 x 140 x 85 mm | 320 g |
| ABB 81EA13D-E | 8 | 0-10 V, 4-20 mA | ±0.1% | 100 x 120 x 75 mm | 260 g |
Recommended Popular モデルs from ABB:
| モデル Number | Channels | Input Signal Types | Accuracy | Dimensions (WxHxD) | 重量 |
|---|---|---|---|---|---|
| ABB 07KT98C GJR5253100R3260 | 16 | 4-20 mA, 0-10 V | ±0.05% | 120 x 150 x 90 mm | 350 g |
| ABB 07AC91 GJR5252300R0101 | 8 | 0-10 V, 4-20 mA | ±0.1% | 100 x 120 x 75 mm | 250 g |
| ABB 07KT97C GJR5252400R0310 | 16 | 4-20 mA, 0-10 V | ±0.1% | 110 x 130 x 80 mm | 280 g |
| ABB 81EF11A-E | 8 | 0-10 V, 4-20 mA | ±0.1% | 100 x 120 x 75 mm | 240 g |
| ABB 81EC12A-E | 16 | 4-20 mA, 0-10 V | ±0.1% | 110 x 140 x 80 mm | 300 g |
| ABB 81EA11B-E | 8 | 4-20 mA, 0-10 V | ±0.1% | 100 x 120 x 75 mm | 250 g |
