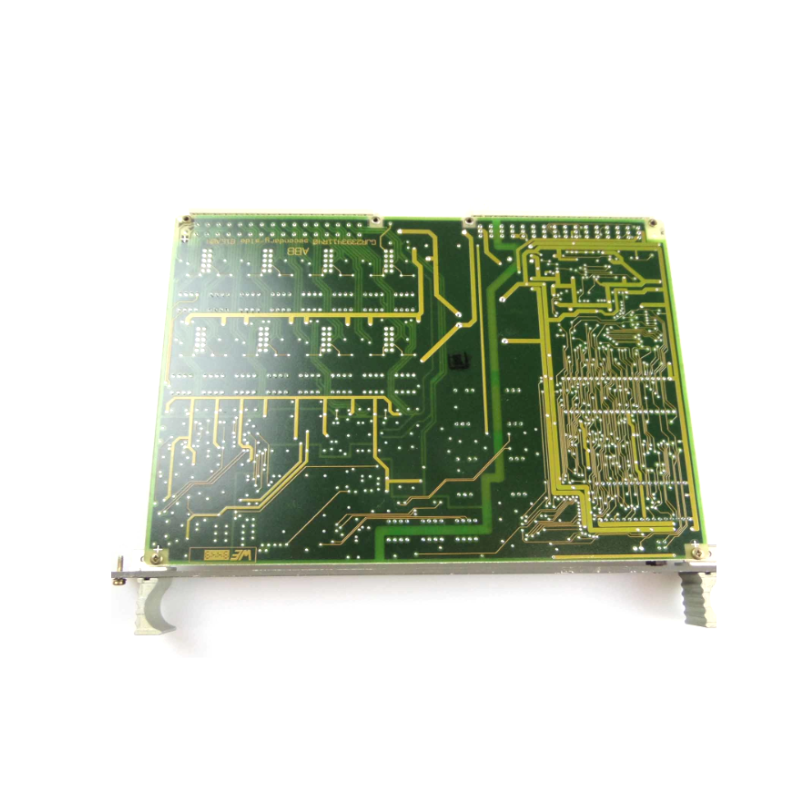

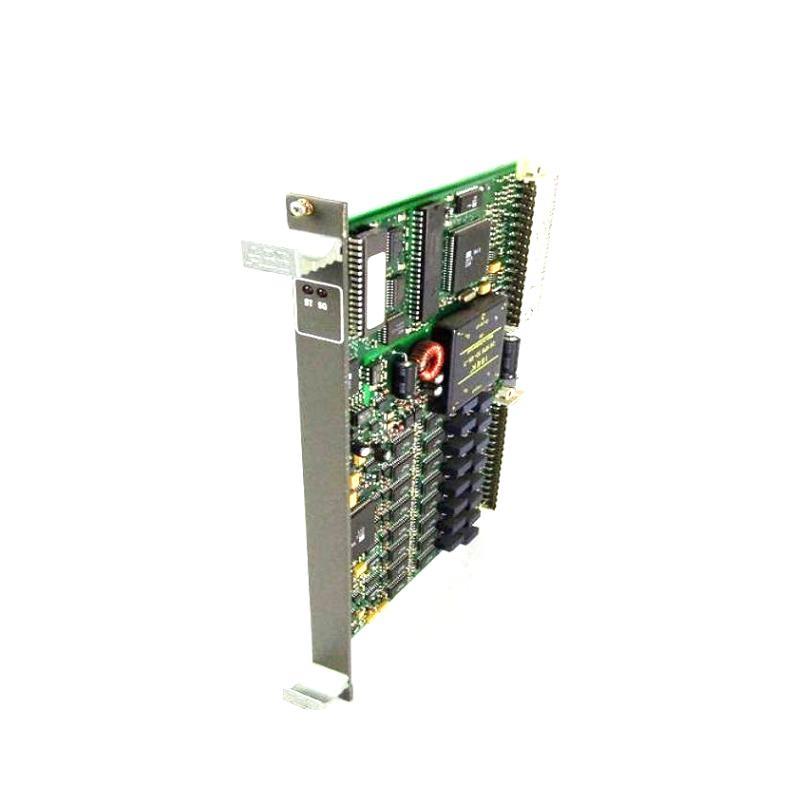

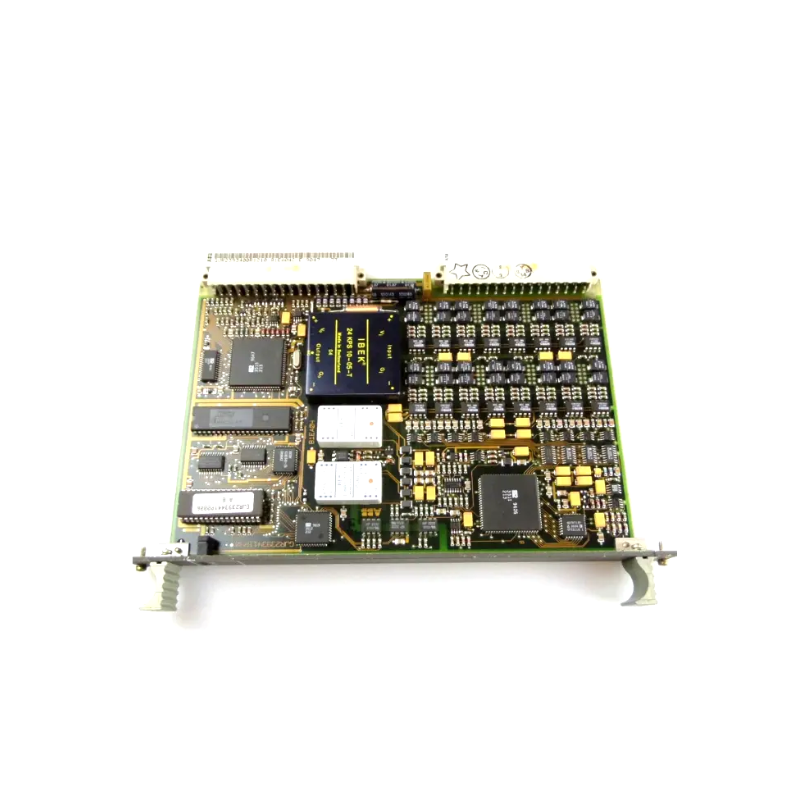

Product Overview
The ABB 81EA04 GJR2393400R1210 is an analog input module designed to interface with various sensors, converting analog signals into digital data for industrial automation systems. It supports multiple current signal ranges, making it adaptable to diverse industrial applications.
Technical Specifications
| Specification | Details |
|---|---|
| Product ID | GJR2393400R1210 |
| ABB Type Designation | 81EA04R1210 |
| Catalog 説明 | 81EA04R1210 Input Module Analog |
| Input Signal Ranges | 0–5 mA, 0–20 mA, 4–20 mA, 0–50 mA |
| Number / Channels | 16 |
| Channel Type | Analog Input (AI) |
| Dimensions | 198 × 261× 20 mm |
| 重量 | 0.5 kg |
| Country / Origin | Sweden |
Applications
The ABB 81EA04 module is utilized across various industries for tasks such as:
-
Process Control: Monitoring and controlling parameters like temperature, pressure, and flow rates.
-
Manufacturing: Integrating with production line sensors to ensure quality and efficiency.
-
Energy Sector: Collecting data from power generation and distribution equipment.
-
Water Treatment: Monitoring water quality parameters through sensor inputs.
Advantages
-
Versatility: サポートs multiple current input ranges, accommodating various sensor types.
-
High Channel Density: Offers 16 input channels, allowing for extensive data collection within a compact module.
-
Precision: Ensures accurate data conversion from analog to digital signals.
-
Compact Design: Its slim pr/ile (20 mm width) facilitates integration into space-constrained control panels.
よくある質問 (FAQs)
-
What types / input signals does the ABB 81EA04 module support?
-
It supports current input ranges / 0–5 mA, 0–20 mA, 4–20 mA, and 0–50 mA.
-
-
How many input channels are available on this module?
-
The module provides 16 analog input channels.
-
-
What are the dimensions / the ABB 81EA04 module?
-
It measures 198 mm in length, 261 mm in height, and 20 mm in width.
-
-
How much does the module weigh?
-
The module weighs 0.5 kg.
-
-
In which industries can this module be applied?
-
It is suitable for industries such as process control, manufacturing, energy, and water treatment.
-
-
Does the module provide isolation between channels?
-
Yes, it /fers galvanic isolation between channels and external power sources for safety.
-
-
What is the country / origin for the ABB 81EA04 module?
-
The module is manufactured in Sweden.
-
-
Is the module compatible with other ABB automation systems?
-
Yes, it is designed to integrate seamlessly with ABB’s Procontrol P14 series and other compatible systems.
-
-
What is the power supply requirement for this module?
-
The module operates on a 24V DC power supply.
-
-
How is the module mounted in an industrial control cabinet?
-
It can be mounted using DIN Rail or panel mounting options.
-
