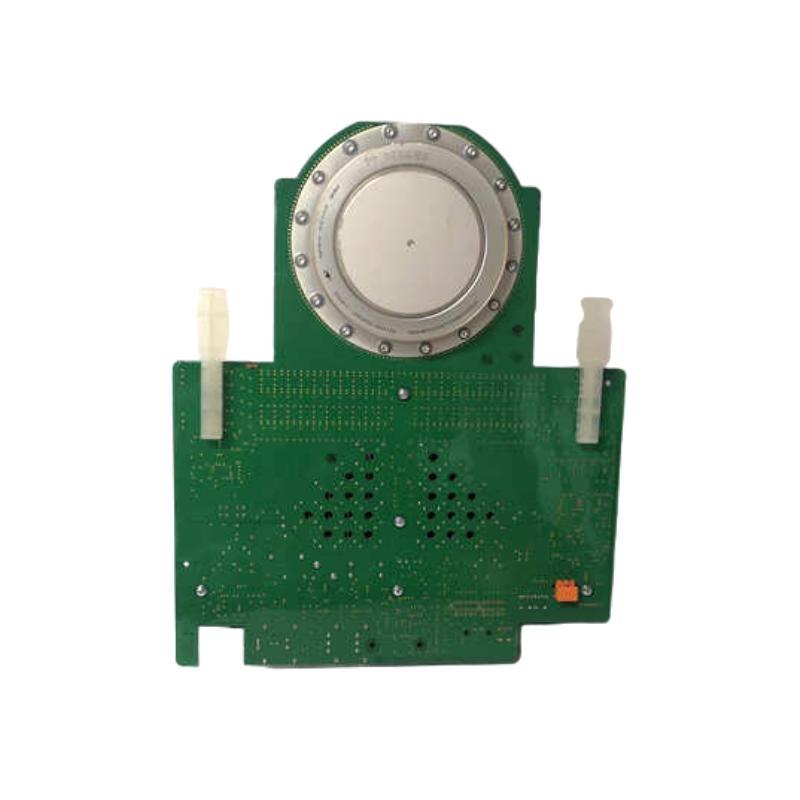

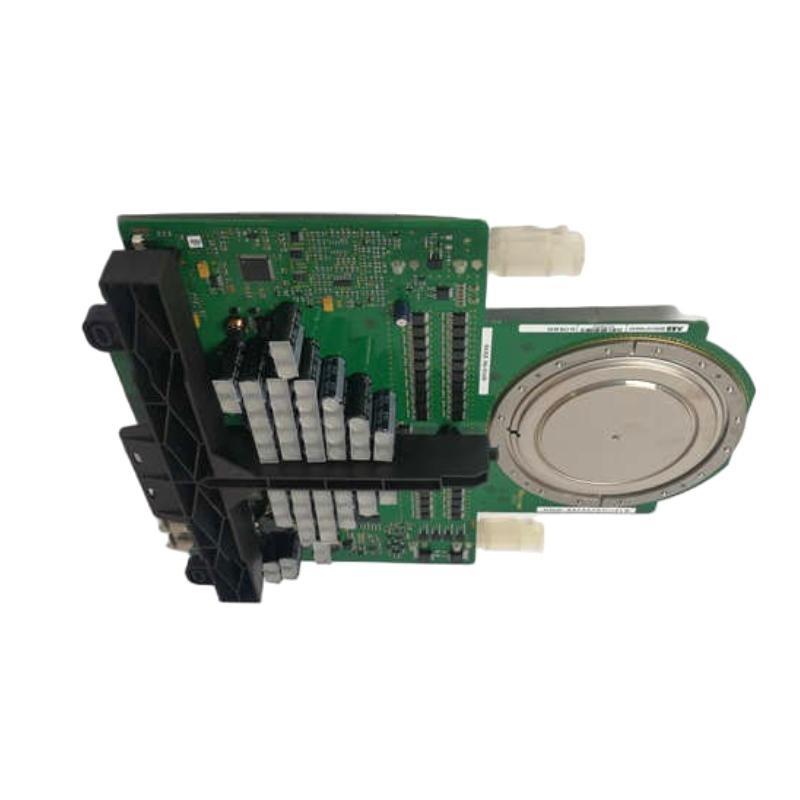

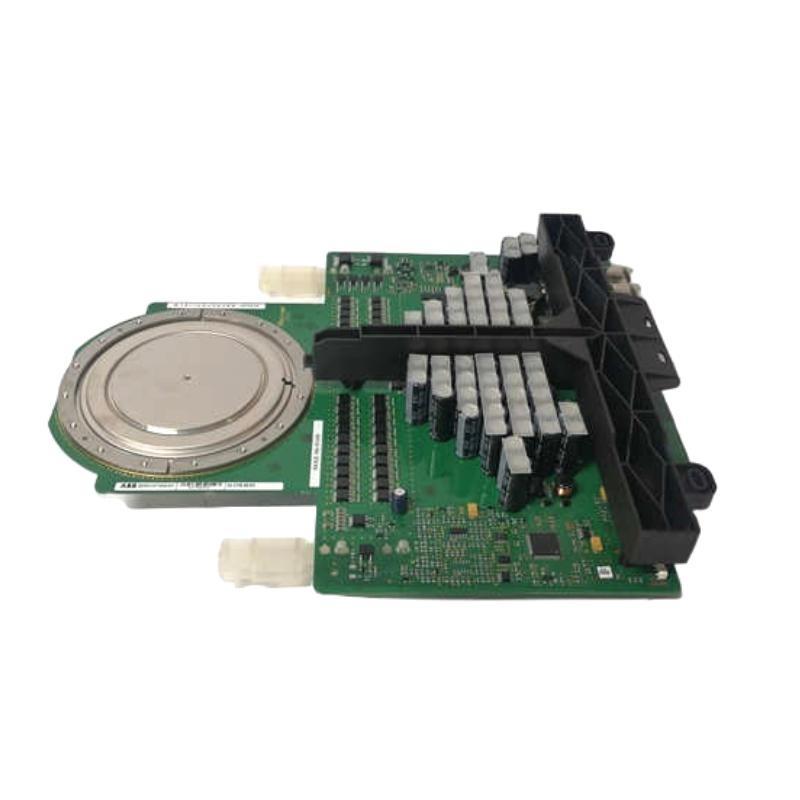

The ABB 5SHY3545L0016 (3BHB020720R0002) IGCT Module is a high-performance Integrated Gate-Commutated Thyristor (IGCT) designed for medium- and high-voltage power electronics applications. IGCT modules are key components in power conversion systems, providing high-efficiency switching, precise controllability, and robust reliability.
This module combines the advantages / conventional GTO thyristors with advanced gate-drive technology, allowing fast turn-on and turn-/f, low conduction losses, and superior thermal performance. The 5SHY3545L0016 is specifically engineered for industrial drives, traction systems, renewable energy converters, and flexible AC transmission systems, where high current handling and reliable switching are critical. Its compact design and integrated gate control simplify installation and enhance system reliability.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | ABB 5SHY3545L0016 / 3BHB020720R0002 |
| Type | Integrated Gate-Commutated Thyristor (IGCT) Module |
| Rated Voltage | 4.5 kV DC |
| Rated Current | 4500 A |
| Switching Frequency | Up to 500 Hz |
| Gate Drive | Integrated gate drive with turn-/f control |
| Cooling Method | Liquid-cooled or forced-air cooling |
| Isolation Voltage | 8 kV AC for 1 min |
| Operating Temperature | -40 to 85 °C |
| Storage Temperature | -40 to 125 °C |
| Mounting | Baseplate with insulated mounting |
| Dimensions (W x H x D) | 150 × 100 × 40 mm |
| 重量 | 1.5 kg |
| Applications | Traction inverters, industrial drives, HVDC converters, renewable energy systems |
| Standards Compliance | IEC 60747-1, UL recognized, CE |
Product Applications
The ABB 5SHY3545L0016 IGCT module is widely utilized in high-power applications requiring fast and reliable switching:
-
Rail Traction Systems – Drives and inverters for electric locomotives, light rail, and high-speed trains.
-
Industrial Drives – Medium- and high-voltage motor drives in steel, cement, and mining plants.
-
Renewable Energy – Power converters for wind turbines, solar inverters, and hybrid power systems.
-
Power Transmission – HVDC converters and Flexible AC Transmission Systems (FACTS).
-
Electrochemical Processes – High-current applications in aluminum smelting, chlor-alkali production, and other chemical processes.
-
Marine Propulsion – High-power inverters for ships and /fshore installations.
Product Advantages
-
High Current Capability – Handles up to 4500 A, suitable for demanding industrial loads.
-
Fast Switching – Integrated gate drive enables precise and rapid turn-/f, reducing system losses.
-
Low Conduction Losses – Optimized semiconductor design minimizes energy dissipation.
-
Integrated Gate Control – Simplifies system architecture and reduces external components.
-
Compact and Robust Design – Ensures reliable operation in harsh industrial environments.
-
Flexible Cooling Options – Can be liquid- or air-cooled to match application requirements.
-
Standards Compliant – IEC, UL, and CE certifications ensure safe and reliable operation.
FAQ
-
What is the rated voltage and current / the 5SHY3545L0016?
The module is rated for 4.5 kV DC and can handle currents up to 4500 A, making it suitable for heavy industrial loads. -
Does this IGCT module include an integrated gate drive?
Yes, it features an integrated gate drive for precise turn-on and turn-/f control / the thyristor. -
What types / cooling are supported?
The module supports both liquid cooling and forced-air cooling depending on the application and thermal requirements. -
What is the maximum switching frequency / this IGCT?
It can operate up to 500 Hz, depending on system design and cooling efficiency. -
Is it suitable for traction applications?
Yes, it is widely used in electric locomotives, high-speed trains, and light rail traction inverters. -
What is the isolation voltage / the module?
It is rated for 8 kV AC for one minute, ensuring safety against electrical breakdown. -
Can this module be used in HVDC converters?
Yes, it is suitable for both AC and DC power conversion, including HVDC systems. -
What are the operating temperature limits?
It operates reliably from -40 °C to 85 °C in industrial and traction environments. -
Does the module comply with international standards?
Yes, it meets IEC 60747-1, UL, and CE standards for safety and performance. -
How is the module mounted in a system?
It is mounted on a baseplate with insulated mounting points to ensure secure mechanical and electrical installation.
