Product 説明

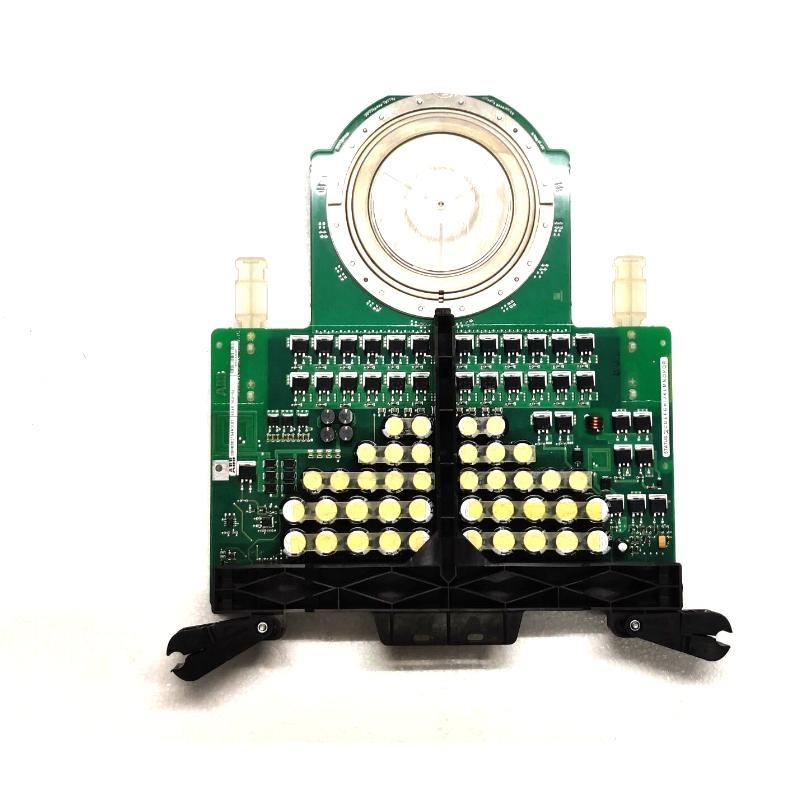

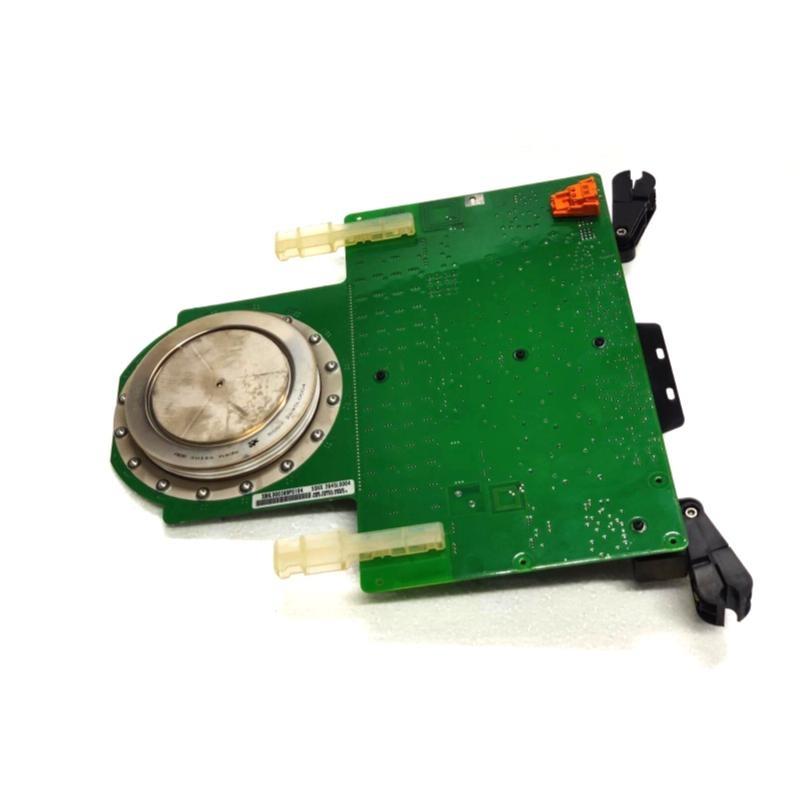

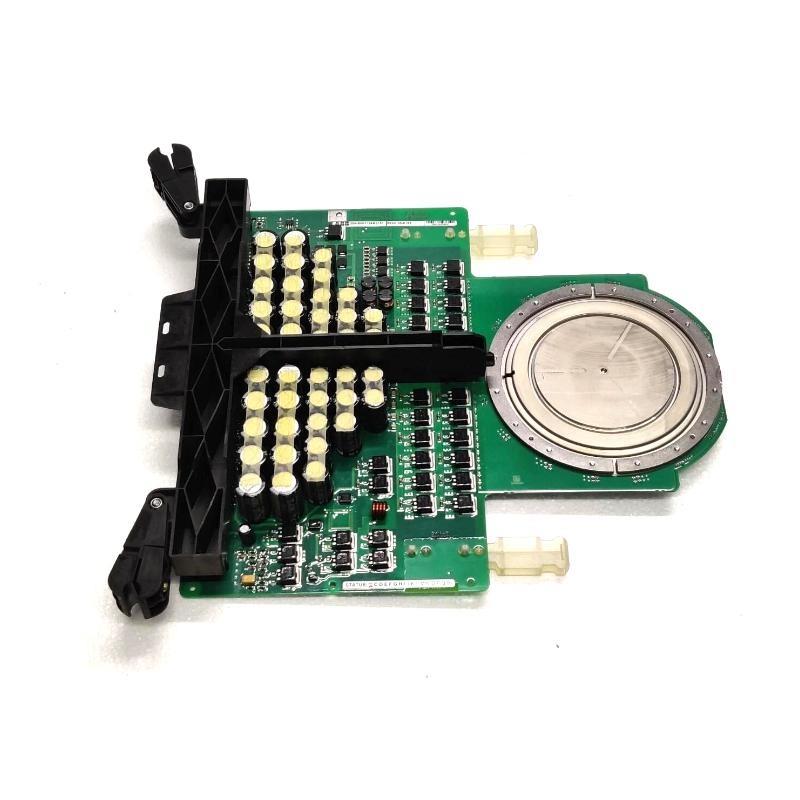

The ABB 5SHX2645L0004 3BHL000389R0104 is an Integrated Gate-Commutated Thyristor (IGCT) Reverse Conducting (RC) module, designed for high power, high reliability switching applications. It combines robust performance and efficient power control in industrial systems, particularly in traction, drives, and energy conversion.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | IGCT-RC Module |
| モデル Number | 5SHX2645L0004 / 3BHL000389R0104 |
| Type | Reverse Conducting IGCT |
| Voltage Rating | 4500 V |
| Current Rating | 4000 A |
| Turn-/f Capability | High |
| Commutation Type | Hard switching |
| Mounting Type | Press Pack |
| Application Area | High-power industrial control |
| Cooling Method | Direct liquid or air cooling |
| Dimensions | 140 × 62 × 30 mm |
| 重量 | 0.4 kg |
Applications
-
Medium-voltage drives
-
Traction converters
-
Power grid converters
-
Static synchronous compensators (STATCOM)
-
High-voltage DC transmission (HVDC)
-
Energy storage systems
Product Advantages
-
High current and voltage handling
-
Integrated gate and RC snubber structure
-
Efficient thermal design for improved cooling
-
Robust and reliable under high switching stress
-
Reduced system complexity due to compact design
-
Low losses enable high system efficiency
FAQ Section
Q1: What type / device is the 5SHX2645L0004 module?
A1: It is an Integrated Gate-Commutated Thyristor (IGCT) with reverse conducting capability.
Q2: What is the voltage rating / this IGCT module?
A2: The voltage rating is 4500 volts.
Q3: What is the current carrying capacity / the device?
A3: It can handle up to 4000 amperes / current.
Q4: What cooling methods are suitable for this module?
A4: It supports both air and direct liquid cooling.
Q5: In which industrial sectors is this module commonly used?
A5: It is used in traction systems, grid converters, and industrial drives.
Q6: Does this module include integrated RC-snubber functionality?
A6: Yes, it comes with integrated reverse conducting (RC) functionality.
Q7: What mounting style does this module use?
A7: It uses a press pack mounting configuration.
Q8: Can it operate under high switching frequency conditions?
A8: Yes, the design supports high-frequency switching environments.
Q9: Is the module suitable for HVDC applications?
A9: Yes, it’s well-suited for HVDC power conversion systems.
Q10: What are the physical dimensions and weight / the product?
A10: The module measures 140 × 62 × 30 mm and weighs 0.4 kg.
Related モデルs from the Same Series or Type
| モデル Number | Voltage Rating | Current Rating | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| 5SHX2645L0005 | 4500 V | 3600 A | 140 × 62 × 30 | 0.4 |
| 5SHX1060L0002 | 6500 V | 3000 A | 150 × 65 × 35 | 0.45 |
| 5SHX0650L0001 | 6500 V | 2000 A | 135 × 60 × 28 | 0.38 |
| 5SHX1060L0003 | 6500 V | 4000 A | 150 × 70 × 35 | 0.46 |
| 5SHX1060L0004 | 6500 V | 4500 A | 150 × 70 × 35 | 0.48 |
| 5SHX2645L0006 | 4500 V | 5000 A | 140 × 62 × 32 | 0.42 |
Popular ABB モデルs
| モデル Number | Product Type | Voltage Rating | Current Rating | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| 5SHX1060L0001 | IGCT Module | 6500 V | 3000 A | 150 × 65 × 35 | 0.45 |
| 5SHX2645L0002 | IGCT Module | 4500 V | 4000 A | 140 × 62 × 30 | 0.4 |
| 5STP27L5200 | Phase Control Thyristor | 5200 V | 2700 A | 120 × 60 × 30 | 0.38 |
| 5SHX0850L0001 | Reverse Conducting IGCT | 4500 V | 2500 A | 140 × 62 × 30 | 0.4 |
| 5STP24N6500 | Fast Thyristor | 6500 V | 2400 A | 110 × 60 × 25 | 0.36 |
| 5SHY3545L0020 | IGCT with Gate ユニット | 4500 V | 4500 A | 150 × 70 × 35 | 0.5 |
