製品紹介

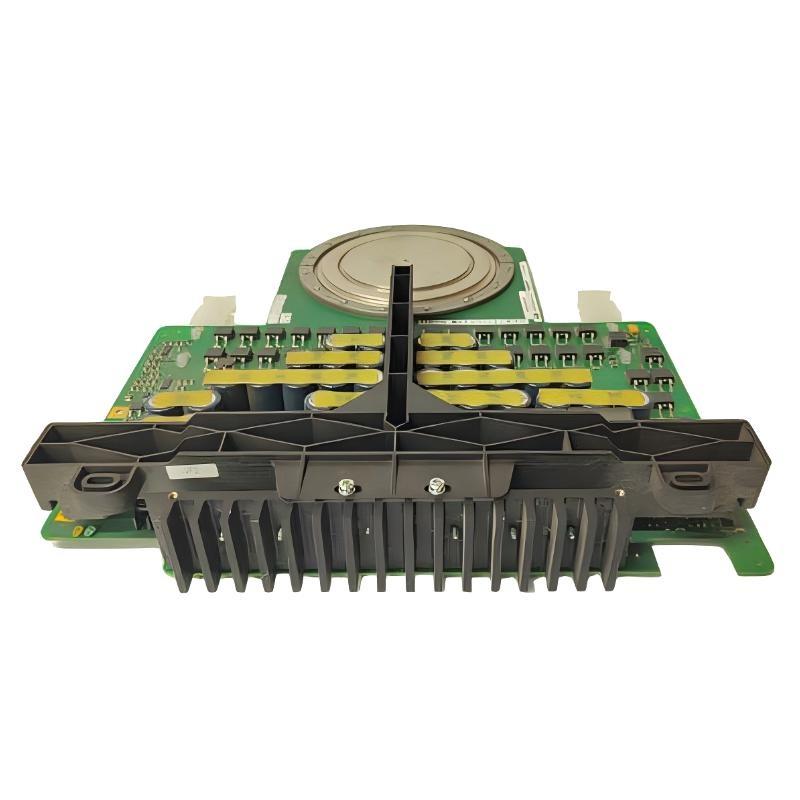

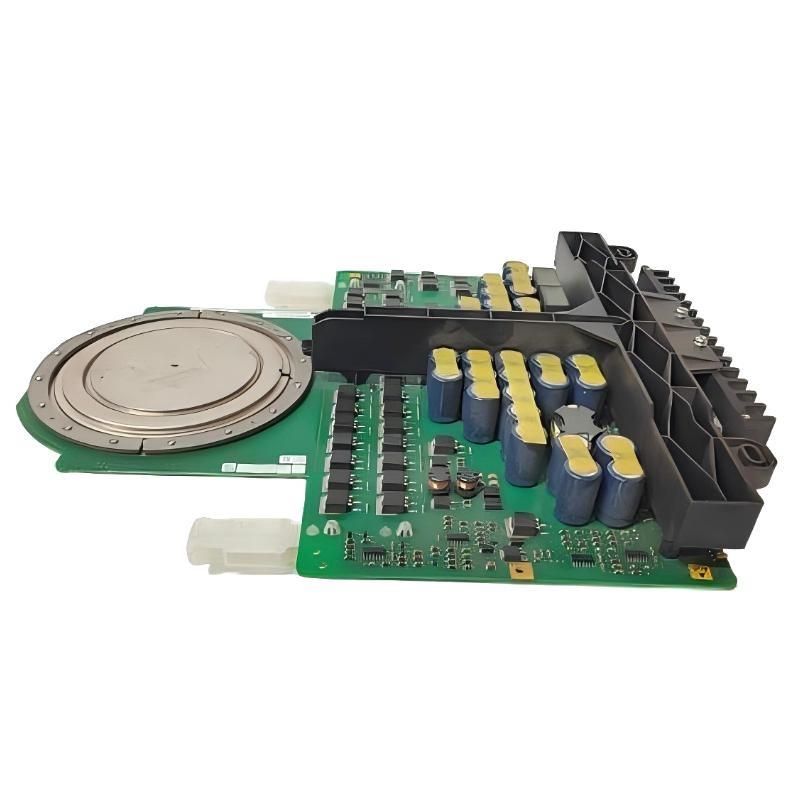

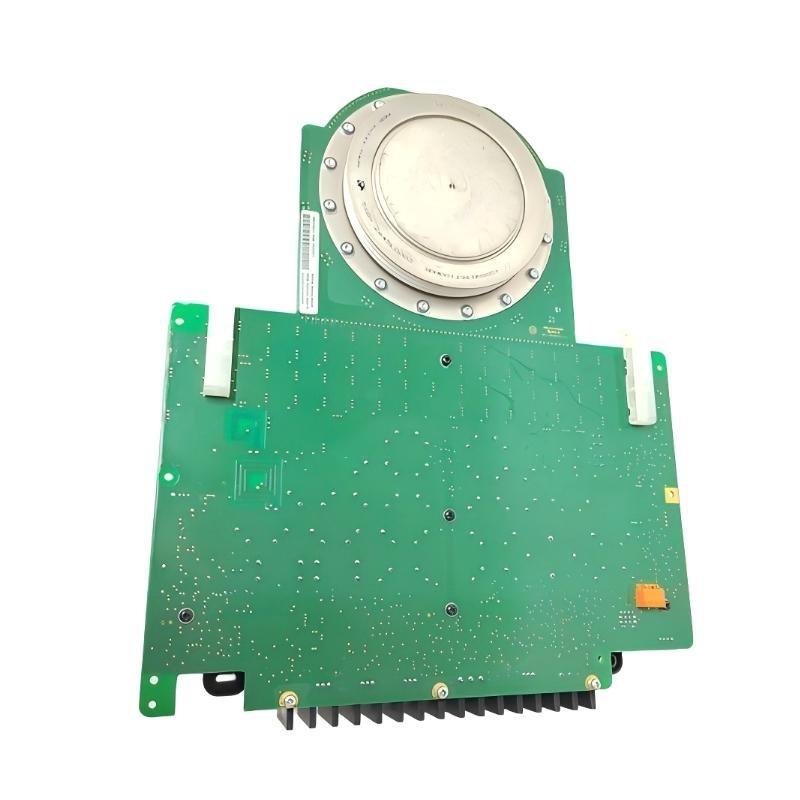

The ABB 5SHX2645L0002 IGCT Module (ABB Order Number: 3BHB012961R0001) is a high-performance industrial power semiconductor module designed for medium- and high-voltage applications. It provides fast switching capability, high current conduction, and robust thermal handling suitable for modern power electronic systems.
This module is intended for integration in industrial converters, motor drives, and power control applications where high efficiency, reliability, and precise switching performance are critical. The design emphasizes low conduction losses, controlled switching behavior, and safe operation under continuous industrial duty.
The IGCT module is engineered to meet ABB’s stringent quality and reliability standards, ensuring long-term stability in harsh industrial environments. Its compact form factor and modular design facilitate integration into power assemblies and maintenance accessibility.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Name | IGCT Module |
| モデル | 5SHX2645L0002 |
| ABB Order Number | 3BHB012961R0001 |
| Module Type | Industrial power semiconductor module |
| Functional Role | High-current switching and power control |
| System Compatibility | Medium- and high-voltage industrial converters and drives |
| Installation Method | Mounted on heatsink with electrical connections to power bus |
| Switching Type | Gate Commutated Thyristor (IGCT) |
| Maximum Current Rating | Defined by system design and ABB specifications |
| Maximum Voltage Rating | Defined by system design and ABB specifications |
| Thermal Handling | High thermal conductivity packaging for continuous duty |
| Cooling Requirement | Forced or liquid-cooled as per system design |
| Dimensions (W × T × H) | 190 × 140 × 38 mm |
| 重量 | 1.2 kg |
Product Applications
• Industrial power converters and variable-speed drives where fast switching and precise control / large currents are required.
• High-power motor drives in steel, cement, or mining industries.
• Medium-voltage power electronic systems such as static VAR compensators or HVDC converters.
• Integration into modular power assemblies for centralized industrial control.
• Applications requiring high reliability and low conduction losses under continuous duty.
Product Advantages
• Fast switching capability with high current conduction efficiency, reducing overall system losses.
• Robust thermal design ensures stable operation under high load and industrial conditions.
• Compact and modular form factor allows easy integration into power assemblies and simplifies maintenance.
• Designed to meet ABB industrial quality and reliability standards for harsh environments.
• Enhances system performance by providing precise and controlled switching for complex industrial processes.
