製品紹介:

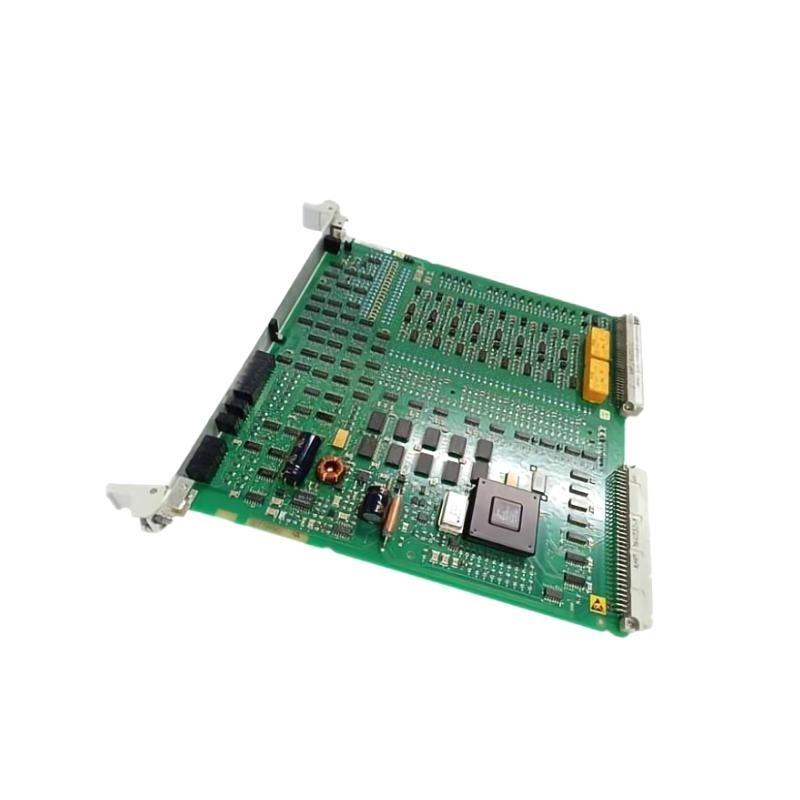

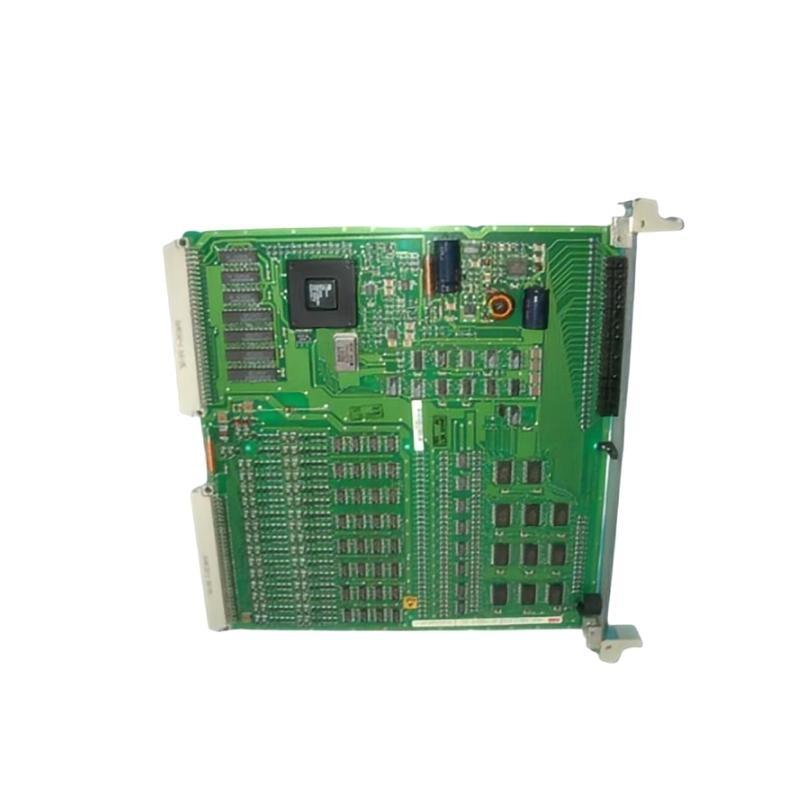

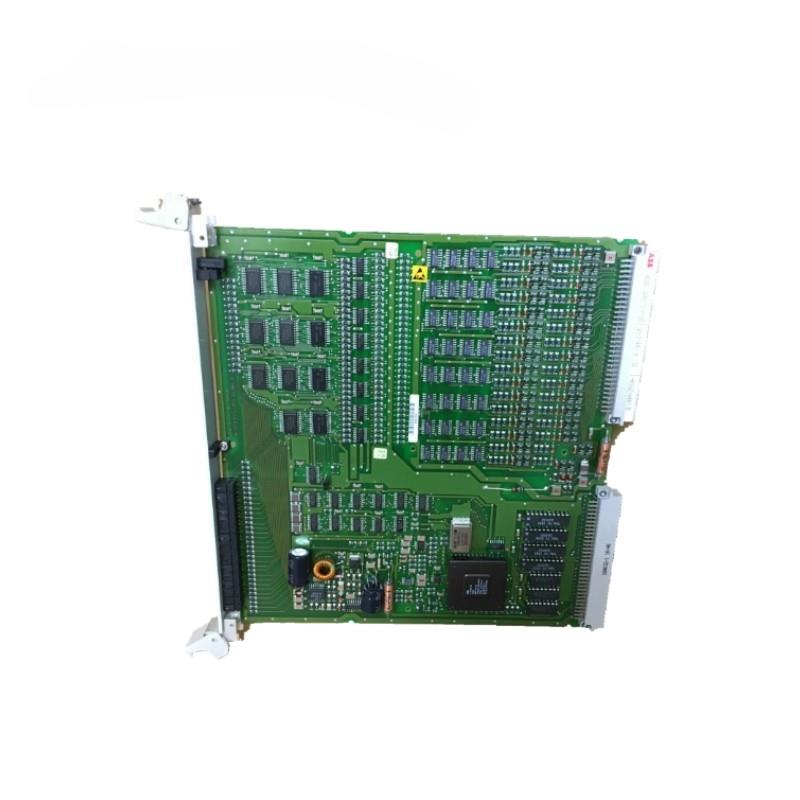

The ABB 216AB61 HESG324013R100 Binary Output Module is part / the ABB 216 Series designed for use in advanced automation systems. This binary output module is a critical component for managing and controlling binary signals, providing output capabilities for a variety / industrial applications. It operates seamlessly within systems requiring reliable and high-performance digital output modules. This module ensures stable and precise control, with robust safety features, enhancing the efficiency / the automation process.
Its compact design allows for easy installation in control cabinets or systems, and it is highly regarded for its durability and reliability. It supports several output configurations, enabling flexible integration with existing systems and architectures.
製品仕様:
| Specification | Details |
|---|---|
| モデル | 216AB61 HESG324013R100 |
| Type | Binary Output Module |
| Input Voltage | 24V DC |
| Output Channels | 16 channels |
| Output Type | Digital (Binary) |
| Max Output Current | 2A per channel (max) |
| Response Time | < 5 ms |
| Operating Temperature | -25°C to 60°C |
| Dimensions (W x H x D) | 100 x 60 x 25 mm |
| 重量 | 0.25 kg |
| Enclosure | IP20 |
| Mounting | DIN Rail Mounting |
| Certification | CE, UL, IEC Ex |
Applications:
The ABB 216AB61 HESG324013R100 Binary Output Module is primarily used in industrial control systems, particularly in environments that require the reliable switching / digital signals. Its typical applications include:
-
Process Control Systems: Used for controlling valves, motors, or other binary devices.
-
Manufacturing Automation: Suitable for controlling output devices such as relays, solenoids, and actuators.
-
Energy Management: Utilized in systems for switching power circuits or managing load control in substations.
-
Building Automation: Implements efficient control over various building systems such as HVAC, lighting, and security.
-
Machine Automation: In robotics and automated machinery, this module manages signals to control machine states and transitions.
Advantages:
The ABB 216AB61 HESG324013R100 /fers several advantages that make it a preferred choice for industrial automation applications:
-
High Performance: Capable / delivering a fast response time (< 5 ms), which is crucial for real-time control applications.
-
Flexibility: With 16 binary outputs, it provides great flexibility for diverse applications and can be integrated into existing automation architectures.
-
Durability: Built to withstand harsh industrial environments, with an extended operating temperature range and high-quality construction.
-
Compact Design: The module’s compact size allows for installation in tight spaces, saving valuable cabinet space while maintaining robust performance.
-
Safety Compliance: It is designed in compliance with international safety standards, ensuring reliable performance in safety-critical applications.
-
Easy Integration: With its wide compatibility with ABB’s control systems and other devices, the module ensures ease / integration and scalability in projects.
FAQ:
-
What is the purpose / the ABB 216AB61 module?
-
It is a binary output module used to control digital devices in automation systems.
-
-
How many output channels does the 216AB61 module support?
-
The module supports 16 output channels.
-
-
What is the maximum output current per channel?
-
The maximum output current per channel is 2A.
-
-
What is the operating temperature range / this module?
-
The module operates within a temperature range / -25°C to 60°C.
-
-
Can this module be used in hazardous areas?
-
Yes, the module is designed to meet IEC Ex safety standards, making it suitable for hazardous environments.
-
-
Is this module compatible with other ABB automation systems?
-
Yes, it integrates seamlessly with other ABB control systems, allowing for easy integration into existing setups.
-
-
What is the mounting type for the 216AB61 module?
-
It uses DIN rail mounting, making installation quick and easy.
-
-
What certifications does the 216AB61 module hold?
-
The module is CE, UL, and IEC Ex certified, ensuring it meets international safety and performance standards.
-
-
Can this module be used for controlling motors?
-
Yes, the module is suitable for controlling motors and other binary output devices such as solenoids.
-
-
What is the warranty on the ABB 216AB61 module?
-
We provide one year warranty.
Related モデルs from the Same Series or Similar:
| モデル | Type | Input Voltage | Output Channels | Max Output Current | 重量 |
|---|---|---|---|---|---|
| 216AB62 HESG324013R101 | Binary Output Module | 24V DC | 8 | 2A per channel | 0.4 kg |
| 216AB63 HESG324013R102 | Binary Output Module | 24V DC | 16 | 1A per channel | 0.55 kg |
| 216AB64 HESG324013R103 | Binary Output Module | 24V DC | 16 | 3A per channel | 0.6 kg |
| 216AB65 HESG324013R104 | Binary Output Module | 24V DC | 8 | 3A per channel | 0.45 kg |
| 216AB66 HESG324013R105 | Binary Output Module | 24V DC | 12 | 2A per channel | 0.52 kg |
| 216AB67 HESG324013R106 | Binary Output Module | 24V DC | 16 | 2A per channel | 0.58 kg |
Popular モデルs from ABB:
| モデル | Type | Input Voltage | Output Channels | Max Output Current | 重量 |
|---|---|---|---|---|---|
| 07AC91 GJR5252300R0101 | Analog Input Module | 24V DC | 16 | 2A per channel | 0.35 kg |
| 07KT98C GJR5253100R3260 | Digital Output Module | 24V DC | 16 | 2A per channel | 0.45 kg |
| 07DC91 GJR5252400R0102 | Digital Input Module | 24V DC | 16 | 1A per channel | 0.4 kg |
| 07CR92 GJR5253600R0202 | Relay Output Module | 24V DC | 8 | 2A per channel | 0.5 kg |
| 07KR10 GJR5253700R0101 | Analog Output Module | 24V DC | 8 | 2A per channel | 0.48 kg |
| 07AB91 GJR5252200R0201 | Binary Input Module | 24V DC | 16 | 1A per channel | 0.38 kg |
