Product Overview

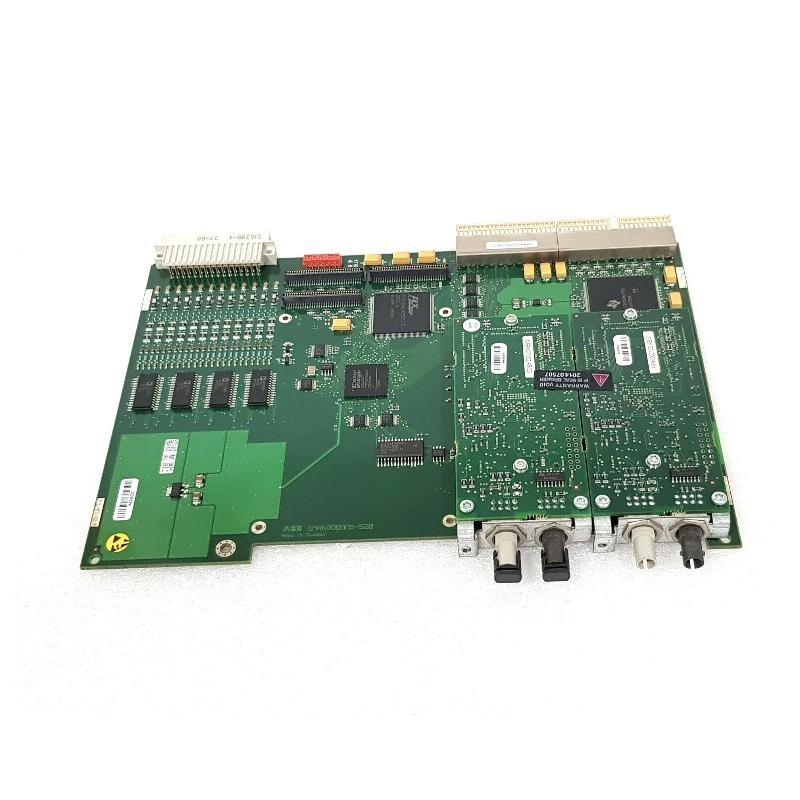

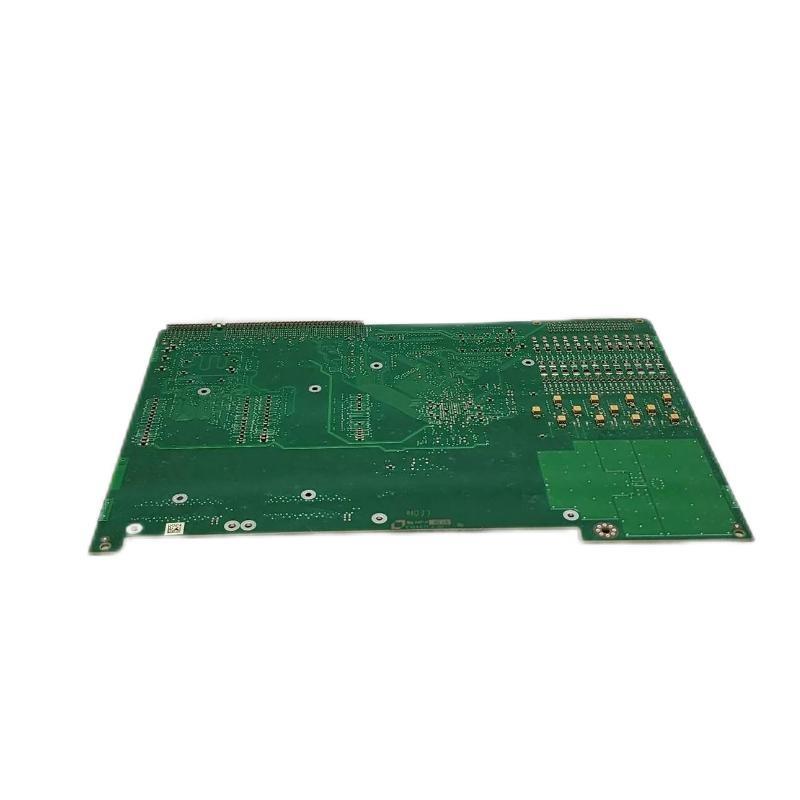

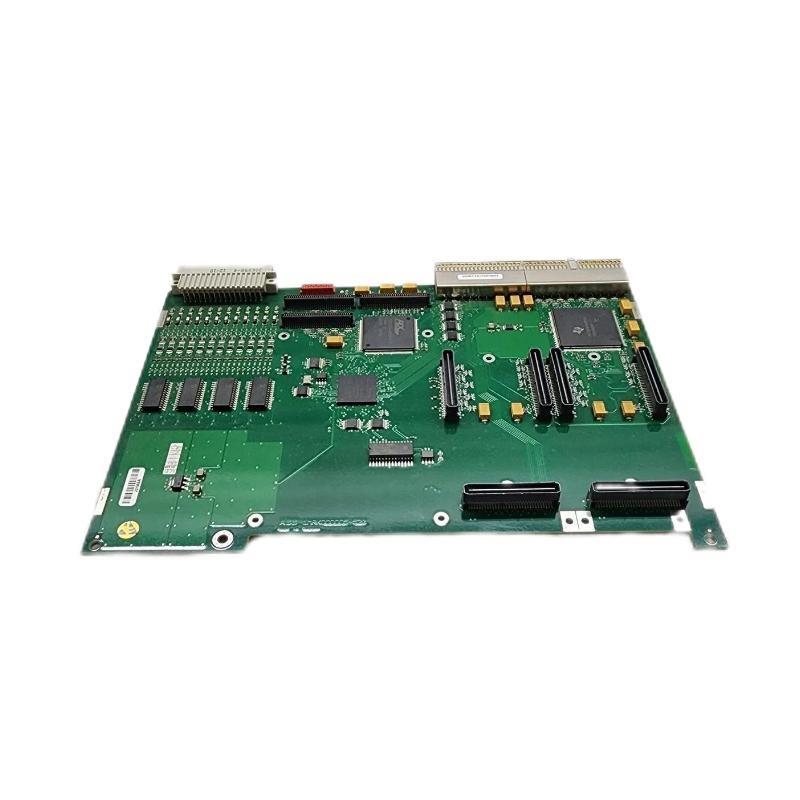

The ABB 1MRK002133-ABr03 is a high-performance protection relay designed for industrial and utility applications. It ensures reliable fault detection, system monitoring, and grid stability. This device is part / ABB’s renowned relay series, known for precision, durability, and advanced communication capabilities.
製品仕様
| Parameter | Value |
|---|---|
| モデル Number | 1MRK002133-ABr03 |
| Input Voltage | 24-250V AC/DC |
| Frequency Range | 50/60 Hz |
| Protection Functions | Overcurrent, Earth Fault, Short Circuit |
| Communication | IEC 61850, Modbus RTU, DNP3 |
| Dimensions | 220 x 120 x 30mm |
| 重量 | 0.186kg |
| Operating Temp. | -25°C to +70°C |
| Ingress Protection | IP54 |
| Mounting | DIN Rail or Panel Mount |
| Certifications | UL, CE, IEC |
Applications
-
Power Distribution Networks: Ensures stable grid operation.
-
Industrial Automation: Protects motors, transformers, and generators.
-
Renewable Energy Systems: Safeguards solar/wind power installations.
-
Railway Electrification: Monitors traction power supply.
-
Oil & Gas: Used in hazardous environments with high reliability.
Product Advantages
-
High Accuracy: Precise fault detection with minimal false alarms.
-
Modular Design: Easy to install and expand with additional modules.
-
Robust Construction: IP54 rating ensures dust/water resistance.
-
Multi-Protocol サポート: Seamless integration with SCADA systems.
-
Wide Voltage Range: Compatible with diverse power systems.
-
Long Lifespan: Designed for 10+ years / continuous operation.
よくある質問 (FAQ)
-
What is the warranty period for this relay?
ABB /fers a standard 1-year warranty. -
Can it be used in outdoor installations?
Yes, the IP54 rating makes it suitable for outdoor use. -
Does it support wireless communication?
No, but it supports wired protocols like Modbus and IEC 61850. -
What is the typical response time for overcurrent protection?
Less than 20ms for most fault conditions. -
Is programming s/tware included?
Yes, ABB provides PCM600 or Relay Configuration Tool for setup. -
Can it be retr/itted into existing panels?
Yes, its DIN rail/panel-mount design ensures compatibility. -
What is the maximum cable length for communication ports?
Up to 100m for RS485 (shielded cable recommended). -
Does it require external power supply?
Yes, it operates on 24-250V AC/DC. -
Are firmware updates available?
Yes, updates are released periodically for enhanced features. -
How to troubleshoot a communication failure?
Check wiring, baud rate settings, and ensure proper termination.
