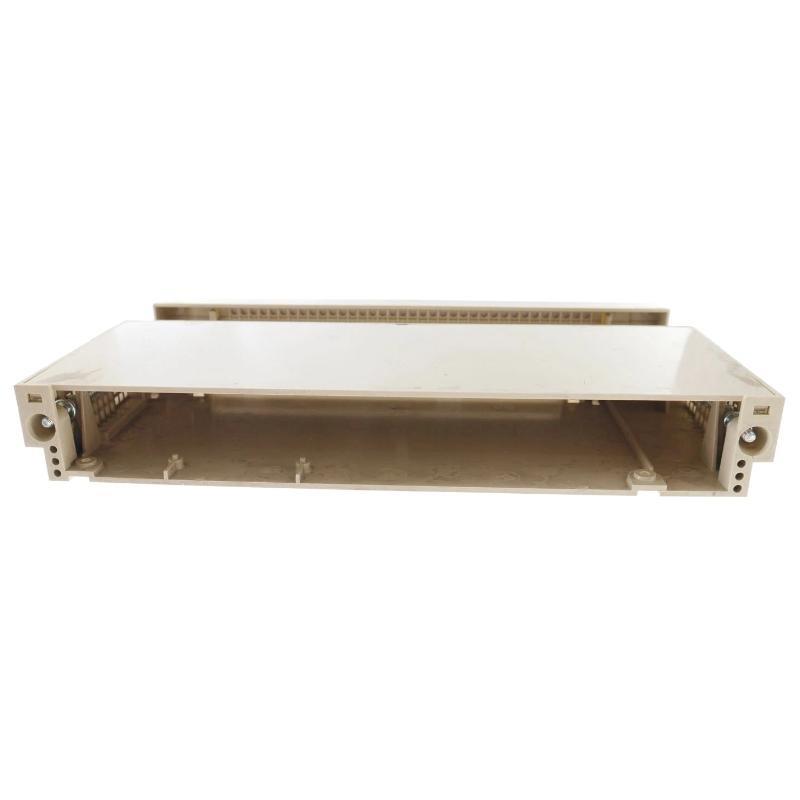

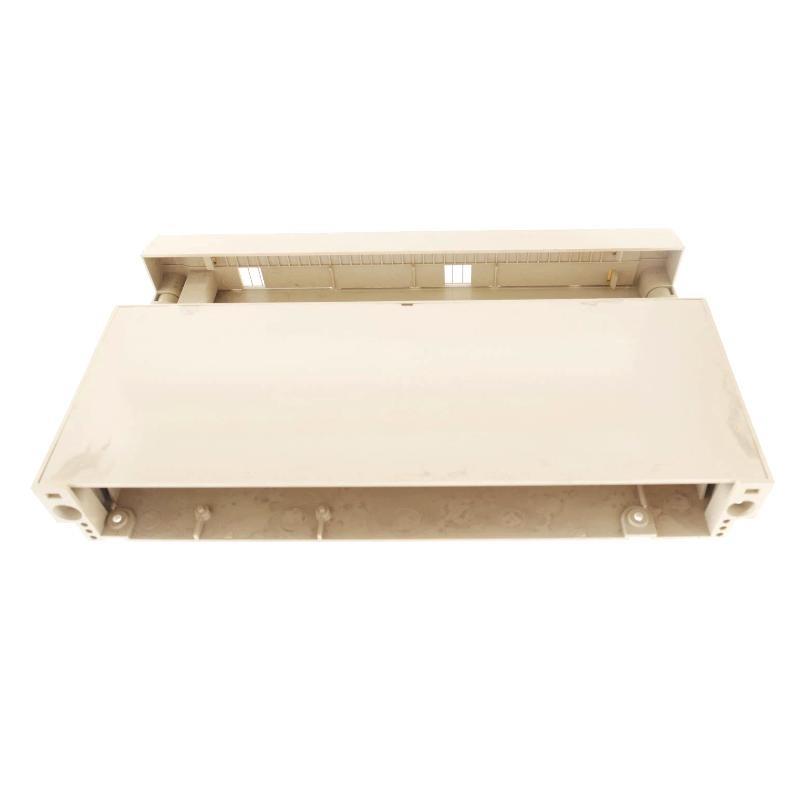

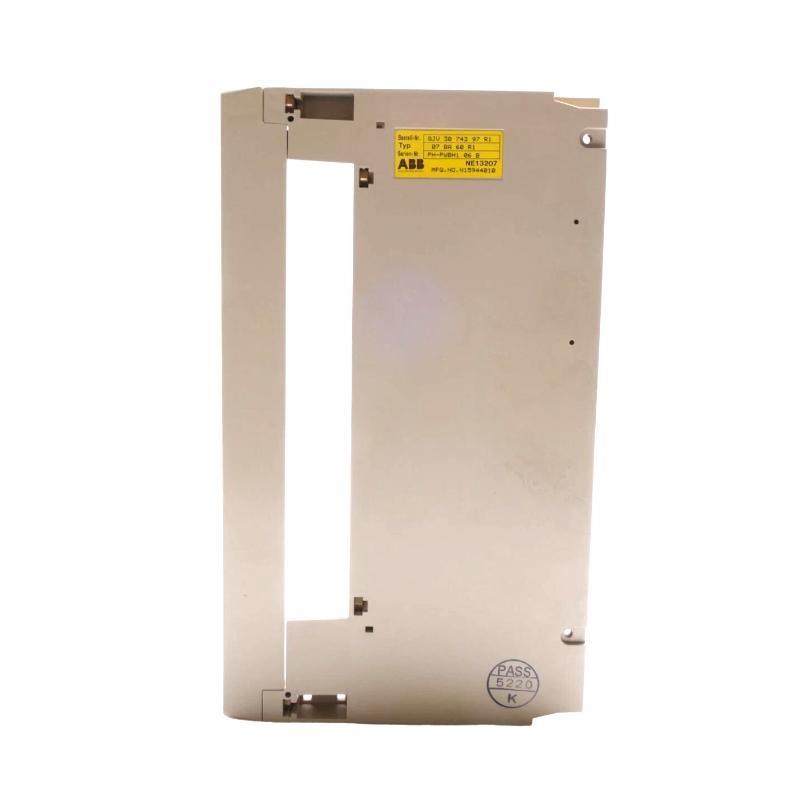

The ABB 07 BA 60 R1 GJV3074397R1 Blank Slot is a mechanical and electrical accessory designed for use within ABB’s Advant Controller 400 Series and other compatible industrial control systems. It serves as a blanking or filler module, ensuring that unused module slots in the controller rack are properly sealed and mechanically protected.
This blank slot maintains the integrity / the system’s internal environment by preventing the ingress / dust, moisture, or contaminants into the backplane connectors and module interfaces. It also plays an important role in maintaining optimal airflow and thermal balance within the cabinet, preventing hot spots and ensuring stable operating conditions for neighboring electronic modules.
Constructed from industrial-grade materials, the ABB 07 BA 60 R1 provides durability, electrical insulation, and structural stability. It fits seamlessly into ABB rack systems, /fering easy installation and secure fastening.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Blank Slot / Filler Module |
| Product Code | 07 BA 60 R1 (GJV3074397R1) |
| Compatible System | ABB Advant Controller 400 Series |
| Function | Slot sealing, dust and EMC protection |
| Material | High-strength industrial plastic with metal shielding components |
| 重量 | 0.09 kg |
| Dimensions (W × H × D) | 25 × 220 × 125 mm |
| Mounting Type | Snap-in or screw mount into rack slot |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Resistance | 95% RH, non-condensing |
| Protection Level | IP20 (when installed) |
| Compliance | CE, RoHS, and IEC industrial standards |
Applications
The ABB 07 BA 60 R1 is widely applied in automation and process control systems where open module slots must be protected or reserved for future expansion. Common applications include:
-
Industrial Control Cabinets – Used to cover unused module slots in control racks.
-
Process Automation Systems – Ensures internal cleanliness and proper cooling in systems like ABB Advant Controller 400 and 800xA.
-
Power and Energy Plants – Maintains enclosure integrity in DCS and PLC cabinets.
-
Oil, Gas, and Chemical Industries – Prevents corrosion and dust ingress in harsh field environments.
-
Machine Automation – Provides safe closure for racks during maintenance or configuration changes.
-
Future Expansion Panels – Keeps spare slots ready for future system upgrades without contamination or connector damage.
Its presence ensures the mechanical and environmental protection / the control system, prolonging the lifespan and reliability / neighboring modules.
Advantages
-
Effective Protection – Prevents dust, debris, and contaminants from entering open rack slots.
-
Thermal Stability – Maintains proper airflow and cooling efficiency inside the control cabinet.
-
Mechanical Integrity – Adds structural support and prevents accidental contact with electrical connectors.
-
Future-Pro/ Design – Allows for safe slot reservation for upcoming module additions.
-
Ease / Installation – Designed for quick snap-in or screw mounting without specialized tools.
-
Material Durability – Manufactured from anti-static, flame-retardant, and vibration-resistant materials.
-
Compatibility – Fully compatible with ABB Advant Controller 400 system frames.
-
Compliance and Safety – Conforms to industrial EMC and environmental protection standards.
FAQ
-
What is the main function / the ABB 07 BA 60 R1?
It acts as a blank or filler module to seal unused slots in ABB control racks. -
Is it compatible with the Advant Controller 400 series?
Yes, it is fully compatible with the ABB Advant Controller 400 system rack. -
Does it provide any electrical shielding?
Yes, it includes EMC shielding to reduce electromagnetic interference. -
Can it be used in high-vibration environments?
Yes, it is built from vibration-resistant materials suitable for industrial machinery. -
Is the 07BA60R1 reusable?
Yes, it can be removed and reused when system configurations change. -
Does it affect the cooling system / the rack?
It helps maintain balanced airflow, ensuring proper heat dissipation for installed modules. -
How is it mounted into the rack?
It supports snap-in or screw-type mounting, depending on the rack configuration. -
Does the blank slot provide IP protection?
When installed, it provides up to IP20 protection, sufficient for control cabinet interiors. -
What materials are used for its construction?
The body is made / industrial-grade plastic with metallic EMC shielding layers. -
Is it compliant with industrial environmental standards?
Yes, it complies with CE, RoHS, and IEC standards for industrial use.
Related or Series モデルs
| モデル | 説明 | Compatibility | 重量 | Mount Type |
|---|---|---|---|---|
| 07BA61R1 | Blank Slot for Advant Controller 400 | Advant Controller 400 | 0.24 kg | Snap-in |
| 07BA62R1 | Blank Module with Metal Shielding | Advant Controller 400 | 0.28 kg | Screw mount |
| 07BA63R1 | Shielded Filler for Expansion Rack | Advant Controller 410 | 0.27 kg | Snap-in |
| 07BA64R1 | EMC Protected Slot Cover | Advant Controller 400 | 0.26 kg | Screw mount |
| 07BA65R1 | Ventilated Blank Panel | Advant Controller 400 | 0.30 kg | Snap-in |
| 07BA66R1 | Sealed Dustpro/ Filler | Advant Controller 410 | 0.25 kg | Snap-in |
Popular ABB モデルs
| モデル | 説明 | Application | 重量 | System Compatibility |
|---|---|---|---|---|
| 07KT98C GJR5253100R3260 | Processor Module | Advant Controller 400 | 0.65 kg | Main CPU ユニット |
| 07DC92 GJR5252200R0101 | Digital Output Module | Advant Controller 400 | 0.58 kg | I/O Control |
| 07AI91 GJR5251600R0101 | Analog Input Module | Advant Controller 400 | 0.55 kg | Signal Input |
| 07AC91 GJR5252300R0101 | Communication Module | Advant Controller 400 | 0.60 kg | Data Transmission |
| 07KT97B GJR5253000R0270 | Processor Module | Advant Controller 400 | 0.62 kg | Redundant CPU Systems |
| 07BT62R1 GJV3074353R1 | Power Supply Module | Advant Controller 400 | 0.70 kg | System Power Management |
