Product Overview

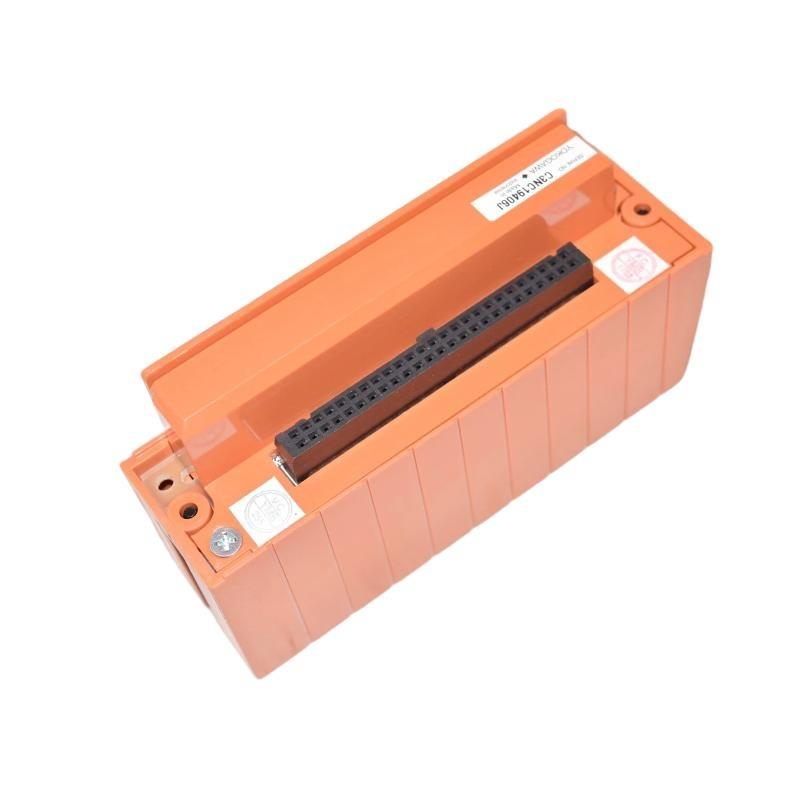

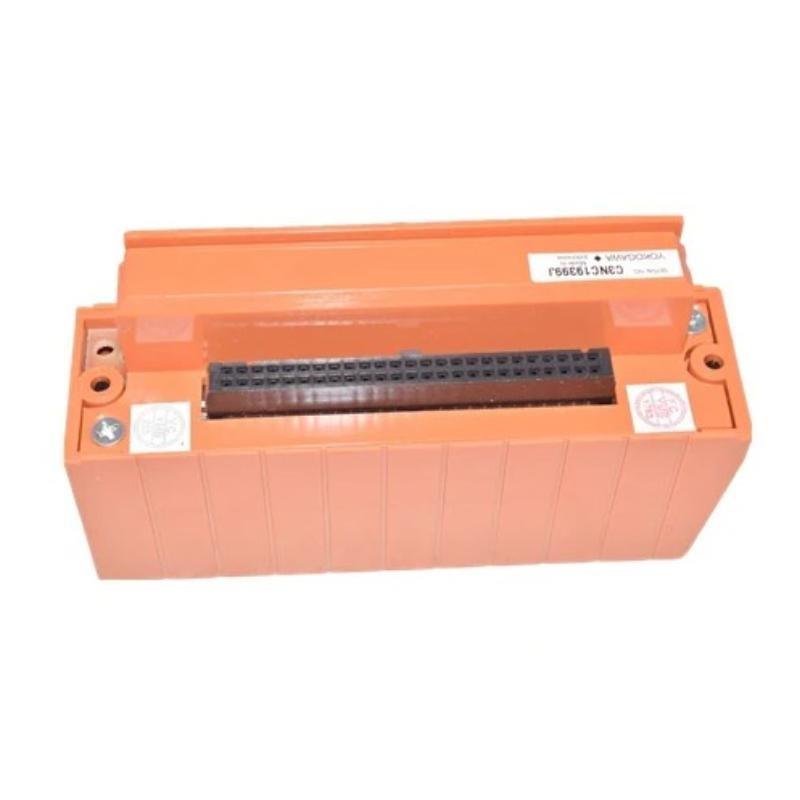

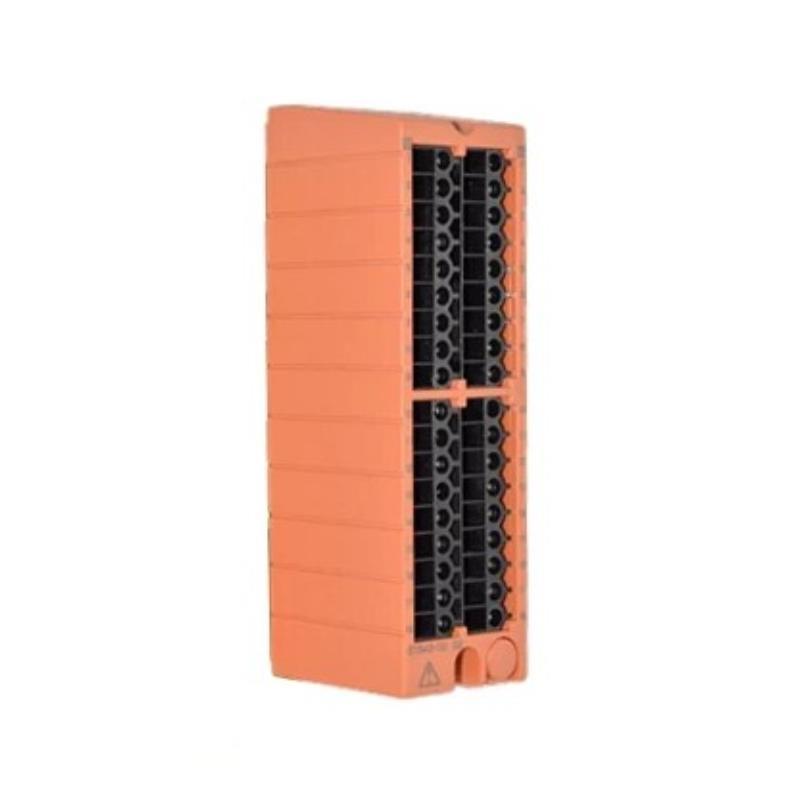

The Yokogawa STB4S-00 Terminal Blocks provide a reliable interface for connecting field wiring to Yokogawa automation and control systems. Designed for industrial environments, these terminal blocks facilitate organized, safe, and durable connections for I/O modules and field devices.Engineered for ease sur installation and maintenance, the STB4S-00 ensures stable signal transmission and supports efficient system management in process control applications.
Key Features
-
Provides secure connections for I/O modules and field wiring
-
Supports DIN rail or panel mounting for flexible installation
-
Robust construction for industrial environments
-
Simplifies wiring management and identification
-
Compatible with multiple Yokogawa I/O modules
-
Reduces downtime with reliable terminal connections
Technical Specifications
| Item | Specification |
|---|---|
| Modèle Number | STB4S-00 |
| Type | Terminal Block |
| Compatible Modules | Yokogawa S series I/O modules |
| Terminal Type | Screw connection |
| Wire Size | 0.2 – 2.5 mm² (24–14 AWG) |
| Mounting | DIN rail or panel mount |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Dimensions | 120 × 50 × 45 mm |
| Poids | 0.3 kg |
| Compliance | CE, UL, CSA, RoHS |
Industry Applications
-
Oil & Gas – field device wiring and automation
-
Power Generation – turbine and generator monitoring
-
Petrochemical & Chemical – process control systems
-
Water & Wastewater – pump and valve automation
-
Manufacturing – process and machinery control
-
Food & Beverage – industrial automation systems
Advantages
-
Ensures reliable electrical connections for field devices
-
Simplifies installation and wiring organization
-
Durable construction suitable for harsh industrial conditions
-
Supports clear labeling for field wiring identification
-
Reduces signal loss and system downtime
-
Compatible with a wide range sur Yokogawa control systems
Questions fréquentes (FAQ)
Q1: What is the main function sur the STB4S-00?
It provides a reliable interface between field wiring and Yokogawa I/O modules.
Q2: Which modules are compatible with this terminal block?
It is compatible with Yokogawa S series I/O modules.
Q3: What wire sizes can it accommodate?
0.2 – 2.5 mm² (24–14 AWG).
Q4: How is it mounted?
DIN rail or panel mount.
Q5: What is the operating temperature range?
-20 °C to +70 °C.
Q6: Can it be used in harsh industrial environments?
Yes, it is designed for standard industrial conditions.
Q7: What are its dimensions and weight?
120 mm × 50 mm × 45 mm, approximately 0.3 kg.
Q8: Does it support labeling for wiring identification?
Yes, it allows organized labeling for field wiring management.
Q9: Does it comply with industry standards?
Yes, it meets CE, UL, CSA, and RoHS standards.
Q10: Which industries commonly use this terminal block?
Oil & Gas, Power Generation, Petrochemical, Water & Wastewater, Manufacturing, and Food & Beverage.
Related Yokogawa Modules
| Modèle Number | Description |
|---|---|
| S2BN1D-19010 | Terminal Base |
| S2BN1D-19020 | Terminal Base |
| NFBU200-S00 | Basic Module |
| NFBU200-S05 | Basic Module |
| NFPW444-11 | Power Module |
| PW484-10 S1 | Power Module |
Popular Yokogawa Modules
| Modèle Number | Description |
|---|---|
| F3LE12-0T | Ethernet Interface Module |
| F3PU10-0S | Power Supply Module |
| F3WD64-3P | Input/Output Module |
| F3XD16-3F | DC Input Module |
| F3YD14-5B | Output Module |
