Présentation du produit

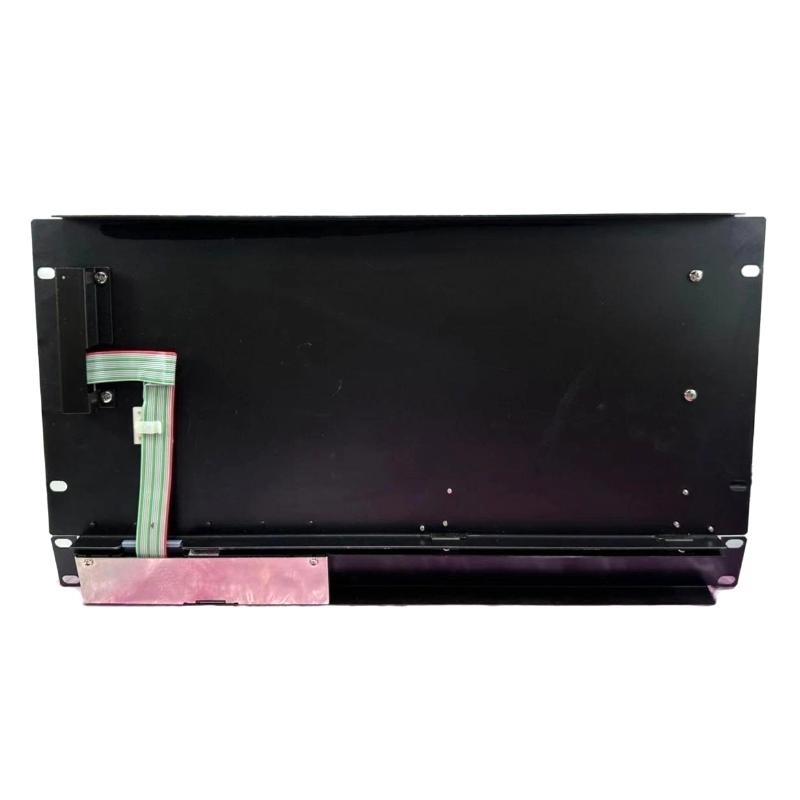

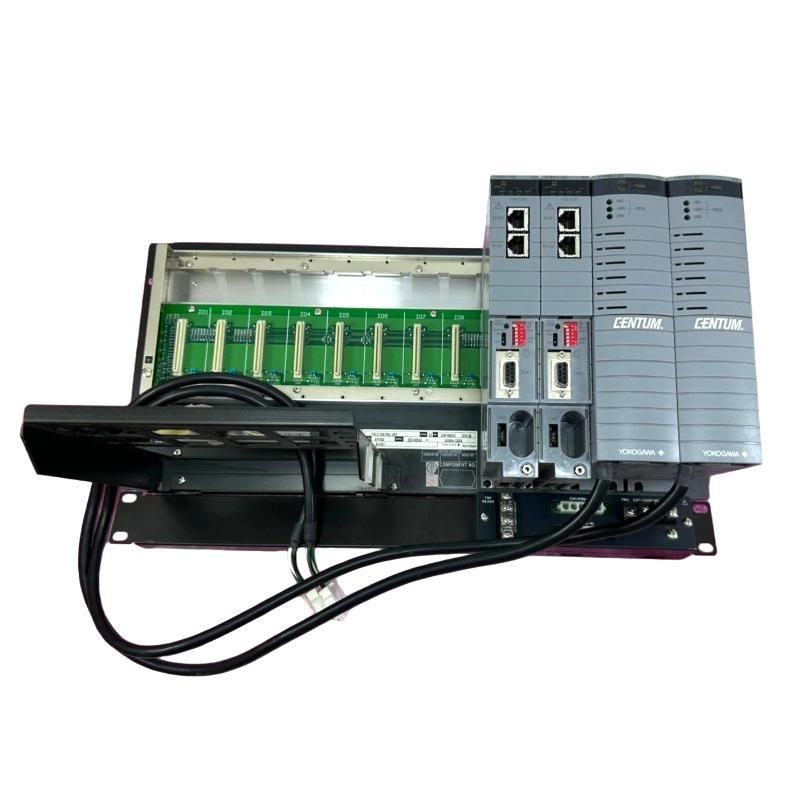

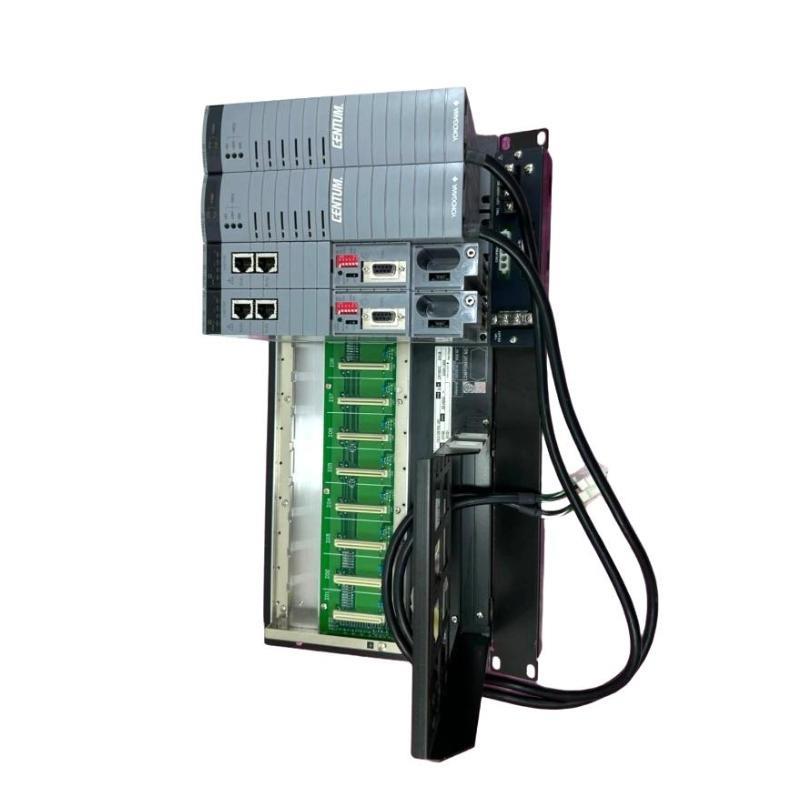

The Yokogawa SED2D-11 Digital Terminal Board is a high-performance industrial interface module developed for digital signal transmission within Yokogawa’s CENTUM VP and ProSafe-RS control systems. It functions as a connection interface between I/O modules and field devices, ensuring reliable, isolated, and interference-free digital signal communication.
Designed for both digital input and output applications, the SED2D-11 board provides safe signal handling for field devices such as switches, relays, and solenoids. Its robust build quality and superior electrical isolation make it well-suited for harsh industrial environments where consistent performance and electrical protection are essential.
With LED status indicators, fault diagnostics, and modular wiring options, the SED2D-11 improves maintainability and minimizes downtime. It has become a standard choice for users seeking durable, flexible, and easily integrable digital terminal solutions in automation systems.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Name | Yokogawa SED2D-11 Digital Terminal Board |
| Fabricant | Yokogawa Electric Corporation |
| Product Type | Digital I/O Terminal Board |
| Function | Signal termination and transmission for discrete I/O channels |
| Compatible Systems | CENTUM CS 3000, CENTUM VP, ProSafe-RS |
| Input Type | Discrete / Digital (ON/OFF) |
| Output Type | Relay or transistor, depending on connected module |
| Number sur Channels | 16 or 32 (depending on system configuration) |
| Isolation Method | Optical or galvanic isolation |
| Input Voltage | 24 VDC nominal (tolerance ±10%) |
| Signal Logic | High = ON, Low = OFF |
| Input Current | 5–8 mA per channel |
| Output Load Capacity | Max. 0.5 A per channel |
| Response Time | <5 ms typical |
| Connector Type | Screw or clamp terminal |
| Mounting Method | Rack or panel mount |
| Protection Features | Overvoltage, reverse polarity, surge protection |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 10%–90% RH, non-condensing |
| Power Consumption | Approx. 3 W |
| Dimensions (W × H × D) | 482.6 x 177 x 85 mm |
| Poids | 2.3 kg |
| Certification | CE, UL, CSA, RoHS |
| Maintenance | Hot-swappable, LED channel indicators |
| Diagnostic Function | Channel fault detection and signal verification |
Product Applications
The SED2D-11 is widely used across industrial control and automation systems, ensuring stable signal processing for critical operations.
-
Distributed Control Systems (DCS) – Interfaces field equipment with central processors in process automation.
-
Safety Instrumented Systems (SIS) – Used in ProSafe-RS systems for discrete safety inputs and outputs.
-
Oil & Gas Industry – For emergency shutdown systems and valve position monitoring.
-
Power Generation – Supervises and controls breaker signals and turbine control logic.
-
Chemical & Petrochemical Plants – Handles interlock and status signal processing.
-
Water Treatment Facilities – Controls solenoid valves, switches, and flow indicators.
Product Advantages
-
High Signal Reliability – Ensures stable and interference-free communication in electrically noisy environments.
-
Built-in Protection – Overvoltage and reverse polarity protection safeguard both module and field devices.
-
Modular Structure – Facilitates fast maintenance and system expansion.
-
LED Channel Indication – Provides instant visual status sur each signal channel.
-
Redundant Configuration Support – Ensures continuous operation during module failure.
-
Compact Design – Enregistrers panel space while surfering high channel density.
-
Certified Quality – Compliant with major industrial and environmental standards.
FAQ
-
What type sur isolation does the SED2D-11 use?
The board provides optical or galvanic isolation between the field and logic circuits to prevent electrical interference. -
Can the SED2D-11 operate with different digital I/O modules?
Yes, it supports multiple Yokogawa I/O module types within the CENTUM and ProSafe-RS series. -
Does the board provide status indication for each channel?
Yes, each channel is equipped with an LED indicator that displays its ON/OFF condition. -
Is redundancy supported by the SED2D-11?
Yes, it can be configured for redundant operation when paired with compatible redundant I/O modules. -
How does the board handle signal faults?
It automatically detects short circuits or disconnections and reports diagnostic information to the control processor. -
What is the maximum load current supported by output channels?
Each output channel can handle up to 0.5 A, depending on the connected output module. -
Can the board process fast pulse signals?
Yes, it supports pulse input signals within its specified response time (<5 ms). -
Is hot-swapping possible during operation?
Yes, the SED2D-11 can be replaced without system shutdown, provided proper safety procedures are followed. -
What is the typical power consumption sur the unité?
The board consumes approximately 3 W during normal operation. -
Does the board include built-in surge protection?
Yes, integrated surge protection circuits protect against transient voltage spikes and surges.
Related Modèles from the Same Series
| Modèle | Description | Type | Channels | Key Feature |
|---|---|---|---|---|
| SED2D-12 | Enhanced digital terminal board | Digital I/O | 32 | Improved EMI resistance |
| SED2D-13 | High-density digital interface | Digital I/O | 64 | Compact design |
| SED2A-11 | Analog terminal board | Analog I/O | 16 | Current/voltage input support |
| SED2R-11 | Relay output terminal board | Output | 16 | Mechanical relay switching |
| SED2T-11 | Transistor output terminal board | Output | 32 | Fast electronic switching |
| SED2I-11 | Isolated digital input terminal board | Input | 16 | Optical isolation design |
Popular Yokogawa Modèles
| Modèle | Product Type | System Compatibility | Key Feature |
|---|---|---|---|
| AAM50 | Analog Input Module | CENTUM VP | 16-bit precision A/D conversion |
| ADV151 | Digital Output Module | ProSafe-RS | Safety-rated discrete output |
| CP401-10 | CPU Module | CENTUM CS 3000 | Dual-redundant processor |
| PDM104 | Power Supply Module | DCS | Wide input range, high reliability |
| SB401-10 | Communication Module | Field Control Unité | High-speed redundant networking |
| AV55D | Digital Input Module | CENTUM VP | High-density 32-channel input |
