Product Overview

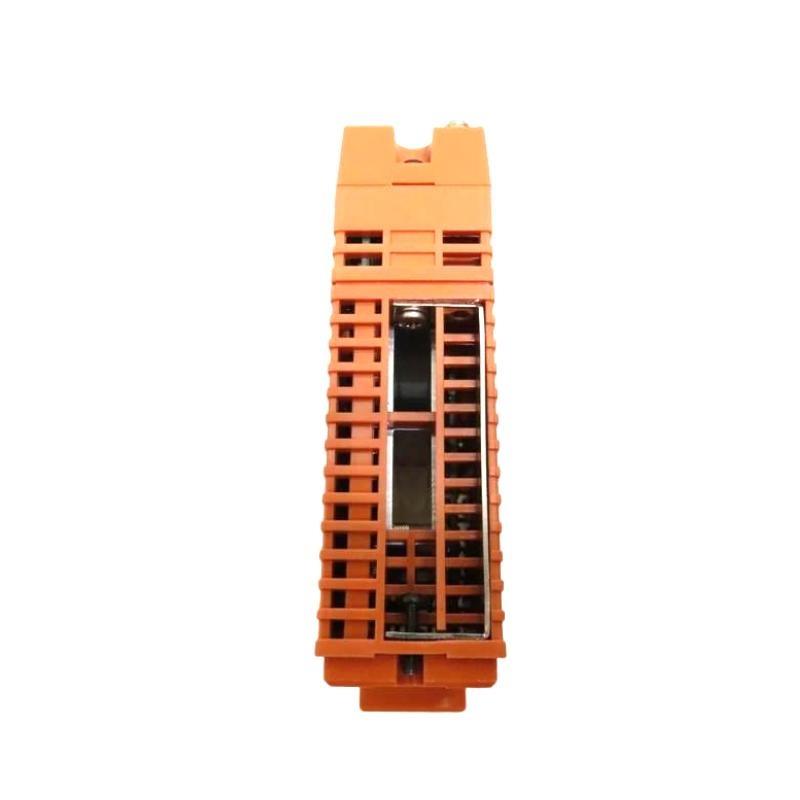

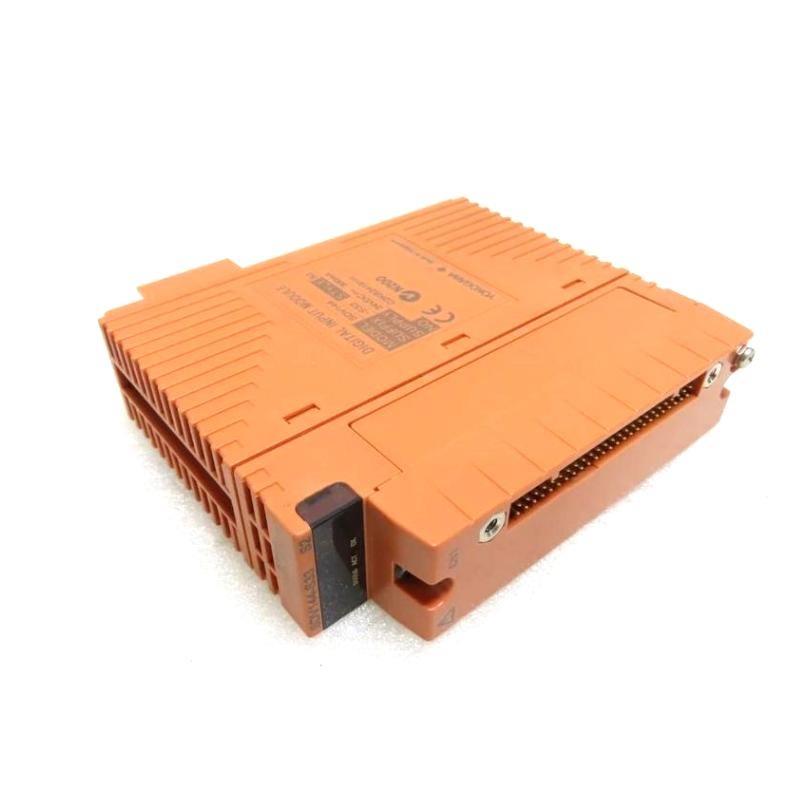

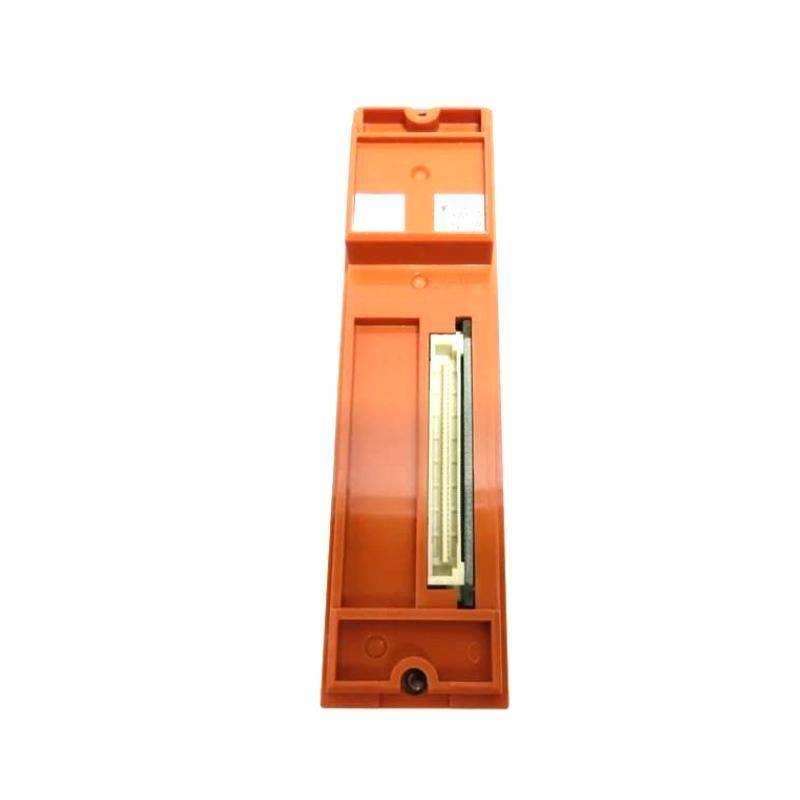

The Yokogawa SDV144-S33 S2 Digital Input Module is engineered for precise and reliable signal acquisition in industrial automation and control systems. It converts field digital signals into process data for controllers, ensuring high-speed, accurate monitoring and system integration. The module is designed for seamless compatibility with Yokogawa’s CENTUM VP and other DCS platforms, supporting enhanced operational stability and process safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Digital Input Module |
| Input Points | 16 points |
| Input Signal Type | DC Contact / Voltage |
| Isolation | Channel-to-channel / Channel-to-system |
| Response Time | ≤10 ms |
| Power Consumption | ≤3 W |
| Operating Temperature | 0–55°C |
| Storage Temperature | -20–70°C |
| Humidity | 5–95% RH, non-condensing |
| Dimensions | 130 x 32.8 x 107.5 mm |
| Poids | 0.36 kg |
| Mounting | DIN Rail / Rack Mounting |
| Standards Compliance | CE, UL |
Applications
-
Industrial process control systems
-
Distributed Control Systems (DCS)
-
Factory automation signal monitoring
-
Safety instrumented systems (SIS)
-
Power plant and chemical plant monitoring
Advantages
-
High signal reliability with noise-resistant design
-
Compact size allows flexible installation in control racks
-
Fast response time for real-time monitoring
-
Compatible with multiple Yokogawa DCS systems
-
Low power consumption and stable long-term operation
-
Supports extensive digital signal integration
Questions fréquentes (FAQ)
1. What type sur signals does the SDV144-S33 S2 module accept?
It supports DC contact and voltage signals, suitable for standard industrial digital inputs.
2. How many input points are available?
The module provides 16 digital input channels.
3. Is the module compatible with Yokogawa CENTUM VP?
Yes, it is fully compatible with CENTUM VP and other Yokogawa DCS systems.
4. What is the operating temperature range?
It operates reliably between 0–55°C.
5. How fast is the response time?
The module has a response time sur less than or equal to 10 ms.
6. Can the module be mounted on a DIN rail?
Yes, it supports both DIN rail and rack mounting.
7. What is the module’s weight and size?
Dimensions are 130 x 32.8 x 107.5 mm, and weight is 0.36 kg.
8. Does it support channel-to-channel isolation?
Yes, it provides full channel-to-channel and channel-to-system isolation.
9. Is the module suitable for safety applications?
Yes, it is suitable for SIS and other safety-critical digital input monitoring.
10. What standards does the module comply with?
The module complies with CE and UL safety standards.
Related or Same-Series Modèles
| Modèle Number | Input Points | Dimensions (mm) | Poids (kg) |
|---|---|---|---|
| SDV144-S32 | 16 | 130 x 32.8 x 107.5 | 0.36 |
| SDV144-S34 | 32 | 130 x 64 x 107.5 | 0.48 |
| SDV144-S35 | 16 | 130 x 32.8 x 107.5 | 0.36 |
| SDV144-S36 | 32 | 130 x 64 x 107.5 | 0.48 |
| SDV144-S37 | 16 | 130 x 32.8 x 107.5 | 0.36 |
| SDV144-S38 | 32 | 130 x 64 x 107.5 | 0.48 |
Popular Yokogawa Modèles
| Modèle Number | Type | Input Points | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|
| SDV144-S31 | Digital Input | 16 | 130 x 32.8 x 107.5 | 0.36 |
| SDV144-S39 | Digital Input | 32 | 130 x 64 x 107.5 | 0.48 |
| SDV144-A10 | Analog Input | 8 | 130 x 32.8 x 107.5 | 0.36 |
| SDV144-A20 | Analog Input | 16 | 130 x 32.8 x 107.5 | 0.36 |
| SDV144-D10 | Digital Output | 16 | 130 x 32.8 x 107.5 | 0.36 |
| SDV144-D20 | Digital Output | 32 | 130 x 64 x 107.5 | 0.48 |
