Présentation du produit

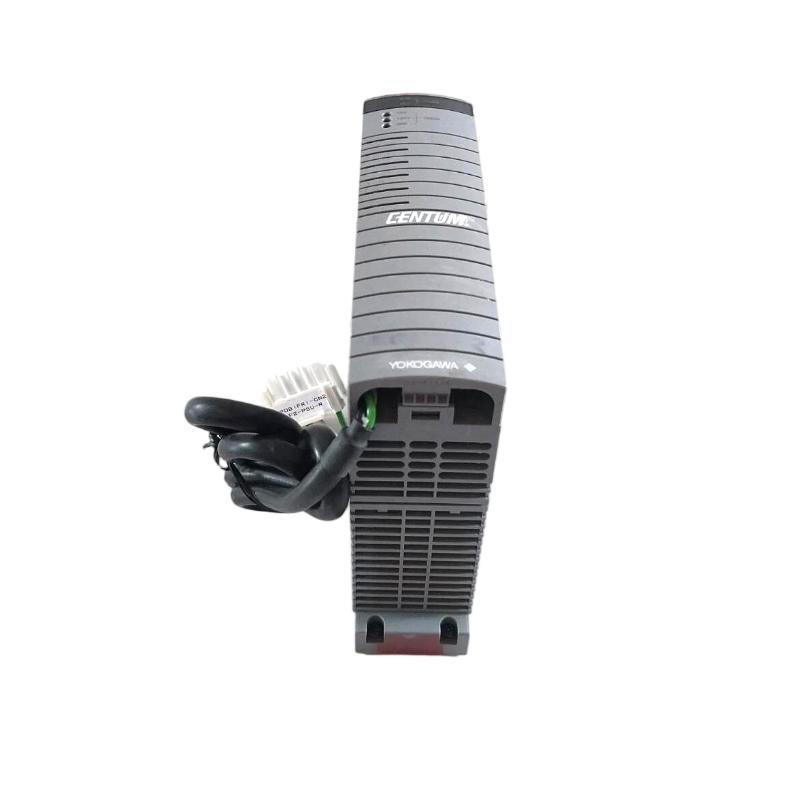

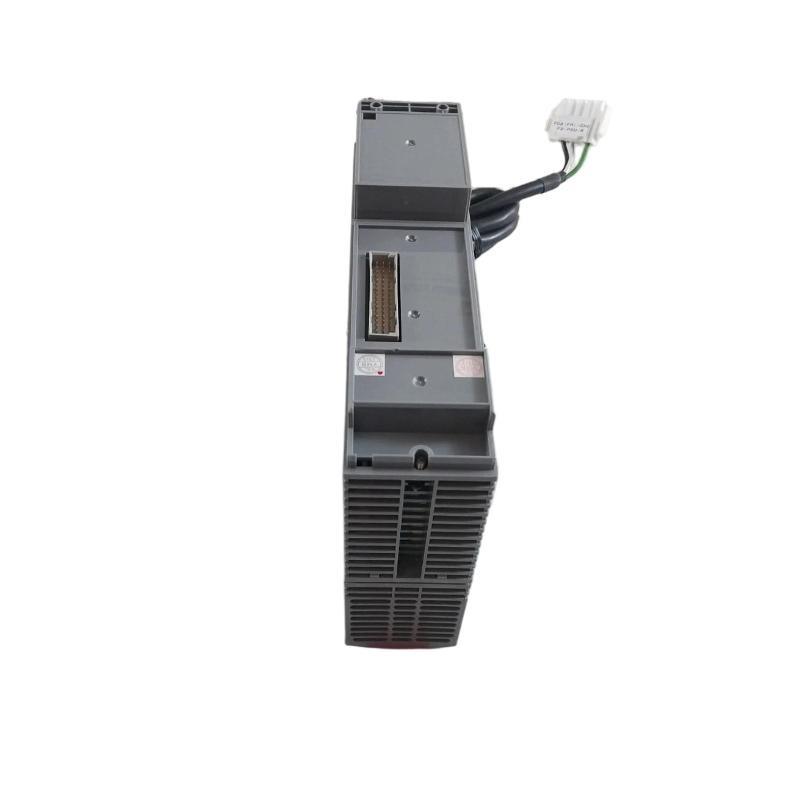

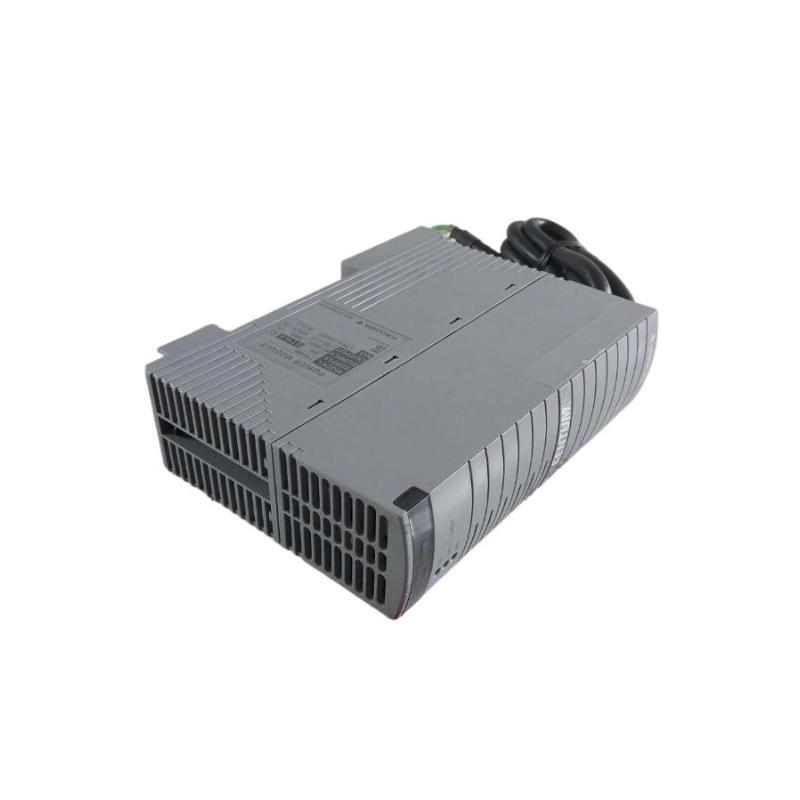

The Yokogawa PW482-50 S1 is a robust and reliable power supply module designed specifically for advanced automation systems. Built for industrial-strength performance, its primary role is to deliver clean and consistent AC power (220–240 VAC) to Yokogawa Field Control Unités (FCUs), I/O nodes, and ESB repeater unités. This module ensures uninterrupted operations and lightning-fast responsiveness within automation networks. Crafted to integrate into redundant configurations, it enhances system resilience and uptime in demanding industrial environments.
Spécifications du produit
| Feature | Specification |
|---|---|
| Modèle | PW482-50 S1 |
| Type | Power Supply Module (220–240 VAC input, S1 variant) |
| Dimensions | 49.7 × 199.5 × 149 mm |
| Poids | 1 kg |
| Input Voltage | 220–240 VAC ± 10 %, 50/60 Hz ± 3 Hz |
| Maximum Power Consumption | 230 VA |
| Interface | Proprietary Yokogawa connector |
| Upgrade Option | S1 – Standard, non-explosion protected |
Product Applications
The PW482-50 S1 is ideally suited for:
-
Distributed Control Systems (DCS): Delivers stable power which is essential for handling real-time process control and automation seamlessly.
-
Field Control Unités & I/O Nodes: Maintains accurate data acquisition and command execution by powering critical field components.
-
ESB Bus Repeater Unités: Ensures signal integrity across extended network distances by powering network amplifiers.
-
Redundant Architectures: Installed in dual configuration slots (P1 & P2) to enable seamless redundancy and fault tolerance.
-
Harsh Industrial Environments: Designed to thrive under fluctuating voltage, temperature, and humidity.
-
Scalable Automation Solutions: Supports expanded system capabilities while maintaining consistent power delivery.
Product Advantages
-
Industry-Grade Compatibility: Tailored for Yokogawa infrastructure, ensuring seamless integration with Yokogawa automation platforms.
-
High Availability: Dual-module redundancy enhances uptime and protects against single-point failure.
-
Compact, Efficient Design: Smaller footprint and lightweight (1 kg) design simplifies cabinet layout and reduces installation complexity.
-
Global Input Compatibility: Broad AC input range supports diverse regional power standards.
-
Ample Power Capacity: With 230 VA consumption, it handles moderate automation workloads with ease.
-
Secure Connection: Proprietary connector ensures reliable, vibration-resistant interface.
-
User-Friendly Configuration: Simple installation in designated slots P1/P2 with straightforward configuration logic.
-
Long-Term Stability: Engineered for sustained industrial use with minimal maintenance.
FAQ
1. What input voltage range does the PW482-50 S1 support?
It supports 220–240 VAC ± 10 %, 50/60 Hz ± 3 Hz.
2. What is the maximum power consumption sur this module?
It consumes up to 230 VA.
3. Which interface does it use for connection?
It uses a proprietary Yokogawa connector for both input and output interfaces.
4. Where should the module be installed?
Install in slot P1 for single use, or both P1 & P2 for a dual-redundant setup.
5. Can two sur these modules be used for redundancy?
Yes — installing two identical modules enables seamless switching in case sur failure.
6. What devices is it intended to power?
It powers Field Control Unités, I/O Nodes, and Optical ESB Bus Repeater Unités within Yokogawa systems.
7. What are the physical dimensions and weight?
Dimensions: 49.7 × 199.5 × 149 mm
Poids: 1 kg
8. Is this module suitable for global deployment?
Yes — it supports global power standards through its wide input range.
9. Is it suitable for high-reliability environments?
Absolutely — redundant configuration ensures maximum availability.
10. Can it be deployed in explosive or hazardous locations?
No — S1 indicates the standard variant. Explosion-protected versions (S2 or E suffix) are available separately.
Related Modèles from the Same Series
| Modèle | Description |
|---|---|
| PW482-50 S2 | Redundant-ready, explosion-protected variant for hazardous areas. |
| PW482-11 S1 | Legacy variant supporting the same power and interface in older systems. |
| PW481-50 S1 | 100–120 VAC input counterpart sur the same series. |
| PW484-50 S1 | 24 V DC input version for environments with DC power sources. |
| PW482-50 E1 | Extended temperature-range and explosion-protected variant. |
| PW482-60 S1 | High-power variant for larger system loads (estimated output). |
