Présentation du produit

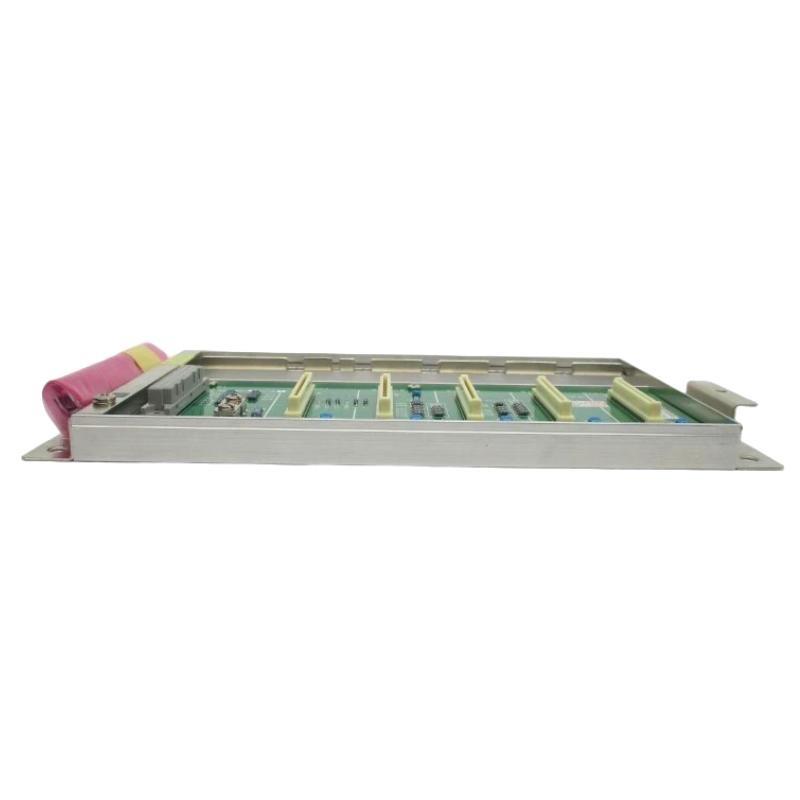

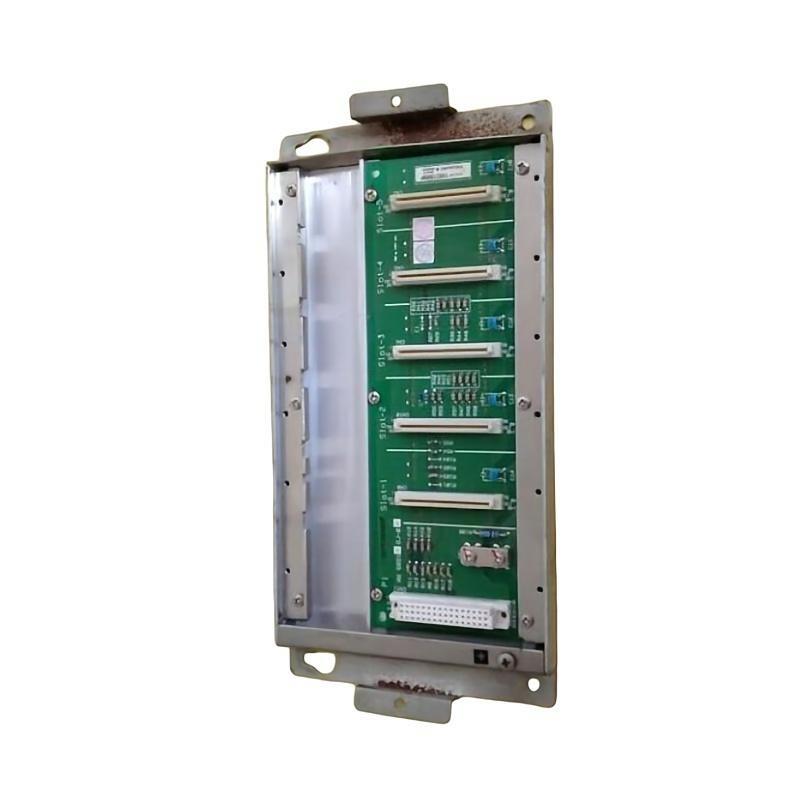

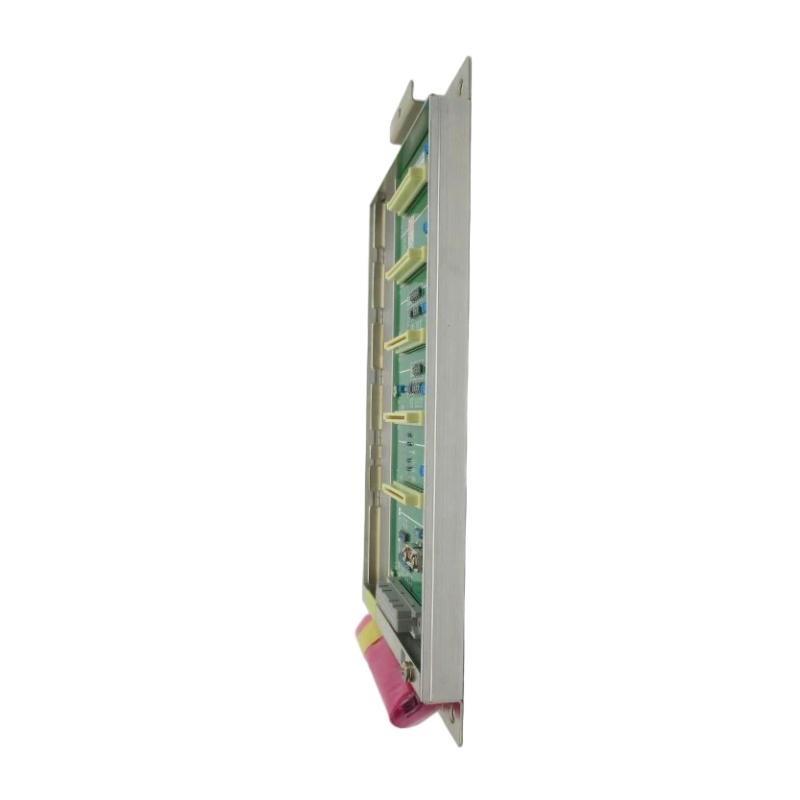

The Yokogawa NFBU050-S15 Base Module (Short) is a compact base unité designed for seamless integration into the Yokogawa CENTUM VP and ProSafe-RS series control systems. It serves as a critical foundation for mounting various I/O modules, providing secure mechanical support, electrical connectivity, and reliable communication between the modules and the system backplane. This base module surfers high durability, modular flexibility, and stable operation in both continuous process control and safety-critical applications.
Its short-form design makes it suitable for installations where panel space is limited, without compromising on reliability or system performance. The NFBU050-S15 is engineered to support efficient wiring, minimize maintenance, and provide a standardized connection interface, making it an ideal choice for modern process industries that demand high reliability and scalability.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle | NFBU050-S15 Base Module (Short) |
| Type | Base unité for I/O module installation |
| System Compatibility | Yokogawa CENTUM VP, ProSafe-RS |
| Supported Modules | Analog Input, Analog Output, Digital Input, Digital Output, Pulse Input, RTD, TC/mV |
| Power Supply Interface | Internal distribution via system backplane |
| Mounting Method | DIN rail or cabinet-mounted |
| Operating Voltage | 24 V DC (distributed through system) |
| Insulation | Optical/electrical isolation depending on module installed |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Vibration Resistance | 10–57 Hz, 0.075 mm amplitude; 57–150 Hz, 1.0 G |
| Shock Resistance | 10 G, 11 ms |
| Dimensions | 283 x 131 x 24.2 mm |
| Poids | 0.58 kg |
| Material | High-strength, flame-retardant engineering plastic |
| Certifications | CE, RoHS, CSA, UL, ATEX (depending on configuration) |
Product Applications
The Yokogawa NFBU050-S15 Base Module (Short) finds application across multiple industries where process automation and control are essential:
-
Oil & Gas: Reliable module base for I/O systems in surfshore platforms and refineries.
-
Chemical & Petrochemical: Ensures stable support for analog and digital signal modules in hazardous environments.
-
Power Generation: Facilitates efficient integration sur measurement and control signals in thermal, hydro, and nuclear power plants.
-
Pharmaceutical Manufacturing: Provides stable I/O foundation for critical temperature and process monitoring.
-
Water Treatment & Utilities: Ensures proper connectivity for distributed control sur pumps, valves, and monitoring devices.
-
Pulp & Paper: Supports robust process monitoring and optimization.
Product Advantages
-
Compact Short Design – Enregistrers valuable cabinet space while maintaining full system functionality.
-
High Reliability – Engineered to endure industrial environments with excellent resistance to vibration, shock, and temperature variations.
-
Modular Flexibility – Compatible with a wide range sur Yokogawa I/O modules for versatile applications.
-
Ease sur Installation – DIN-rail and cabinet mounting options make installation quick and straightforward.
-
Enhanced Safety – Designed for integration into ProSafe-RS safety systems where reliability is critical.
-
Reduced Maintenance – Simplified wiring and robust construction minimize downtime.
-
Scalability – Supports expansion and upgrades as system requirements grow.
-
Global Compliance – Certified to meet international industrial safety and performance standards.
FAQ
-
What communication interface does the NFBU050-S15 support with the system backplane?
It provides a direct electrical backplane interface for seamless data transfer between I/O modules and the system controller. -
Can the NFBU050-S15 accommodate mixed module types in one base?
Yes, it supports both analog and digital I/O modules within the same base unité. -
What is the isolation method used for signal integrity?
Isolation is implemented at the module level, but the base ensures stable grounding and shielding for noise reduction. -
How does the module handle grounding for noise immunitéy?
It uses reinforced grounding points and shield connections to minimize EMI/RFI interference. -
Does the NFBU050-S15 allow hot-swapping sur modules?
Yes, modules can be replaced without removing the base, depending on system configuration. -
Is redundant installation supported with this base module?
Yes, it can be used in redundant control system configurations for higher reliability. -
What is the recommended wiring method for field devices?
It supports terminal block connections, ensuring secure wiring for analog and digital signals. -
How does it ensure module alignment during installation?
The base has precision-guided slots to ensure accurate mechanical and electrical alignment. -
What protective mechanisms are built into the base module?
It includes over-voltage and short-circuit protection through integrated design features. -
Can the NFBU050-S15 be used in hazardous area environments?
Yes, with proper certification (e.g., ATEX), it can be deployed in hazardous zones.
