Product Overview

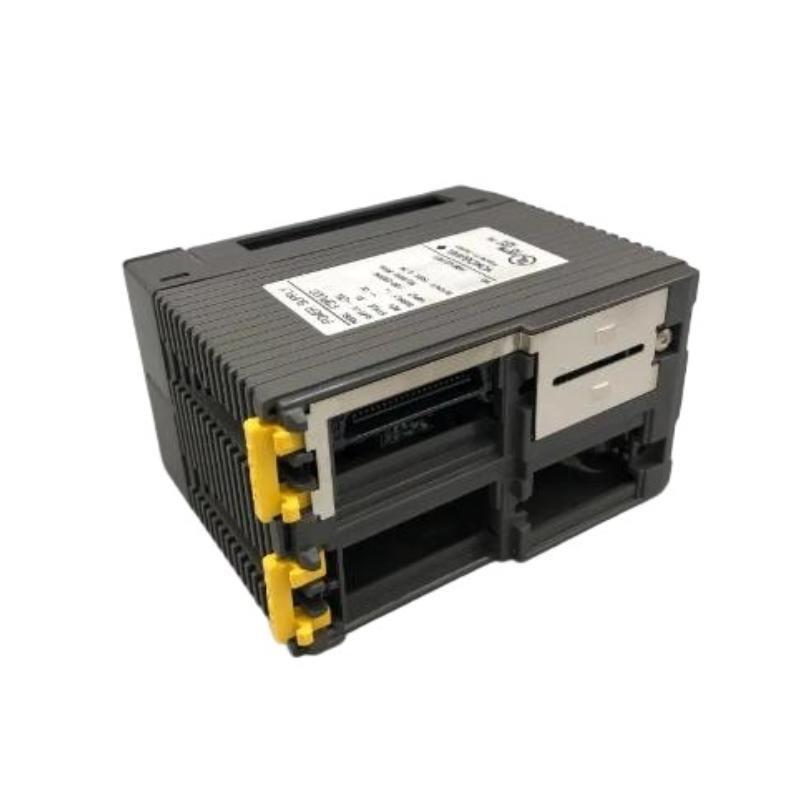

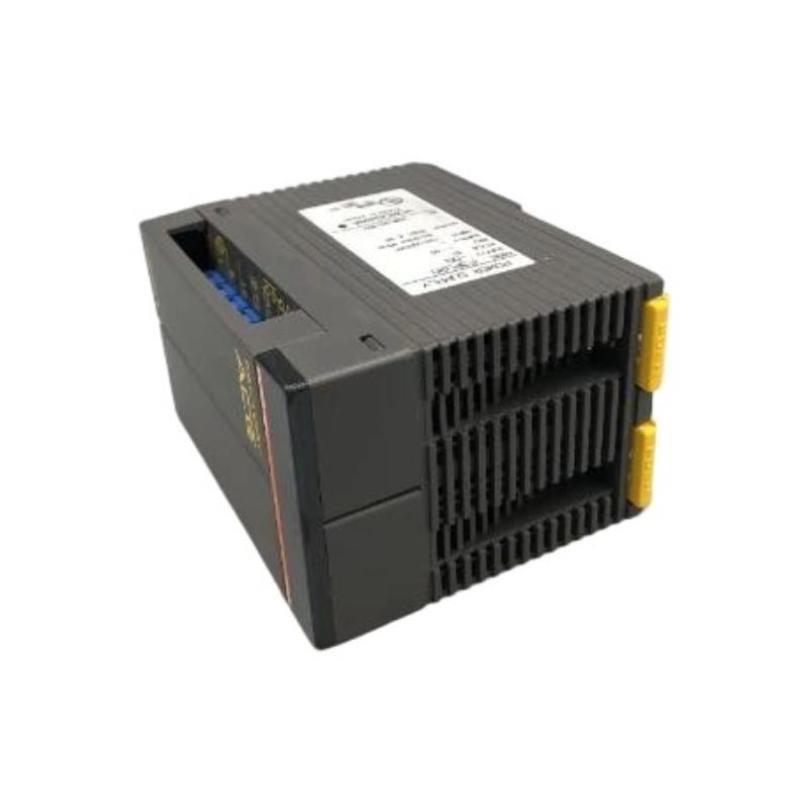

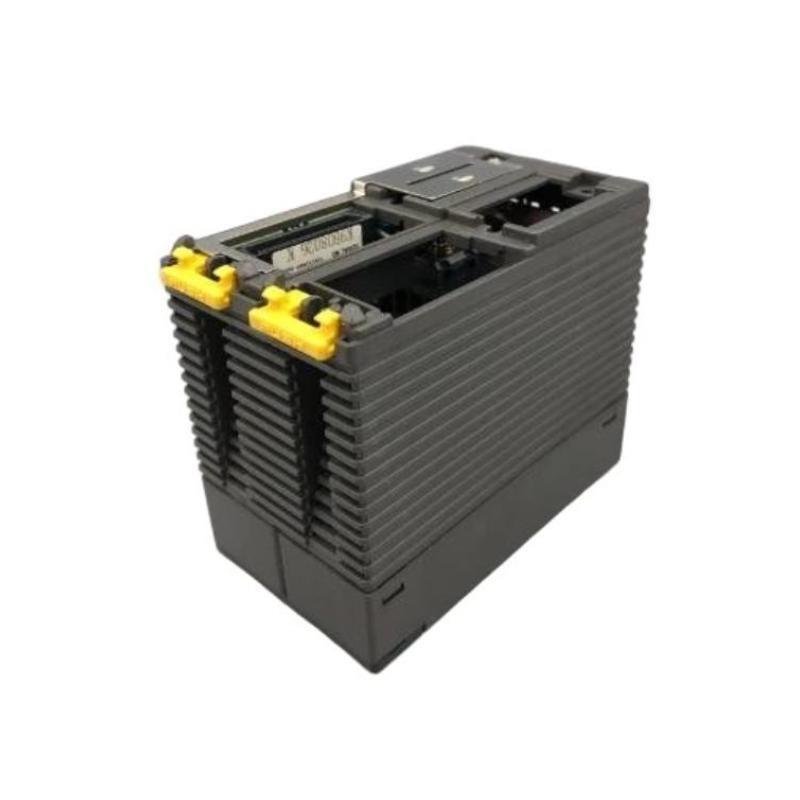

The Yokogawa F3PU20-0N Power Supply is a high-performance and reliable power module for F3 Series control systems, designed to deliver stable DC power to controllers and I/O modules. This module ensures uninterrupted operation sur critical automation and process control systems.
Key Features
-
Provides stable 24 V DC power for F3 Series controllers and I/O modules
-
Supports continuous operation in industrial environments
-
Built-in protection against overcurrent, short circuits, and voltage fluctuations
-
Compact design for easy integration into F3 control racks
-
Ensures reliable system operation and reduces maintenance needs
-
Compatible with all standard F3 Series modules
Technical Specifications
| Item | Specification |
|---|---|
| Modèle Number | F3PU20-0N |
| Module Type | Power Supply |
| Output Voltage | 24 V DC |
| Output Current | 20 A |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Efficiency | ≥ 90% |
| Protection | Overcurrent, short circuit, overvoltage |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN rail or panel mounting via base unité |
| Dimensions | 58 x 100 x 83.2 mm |
| Poids | 0.32 kg |
Industry Applications
-
Oil & Gas – Powering automation and control systems
-
Power Generation – Controller network power supply
-
Chemical & Petrochemical – Process control power applications
-
Water & Wastewater – SCADA and monitoring system power
-
Manufacturing – Automation and control network power
Advantages
-
Delivers stable and reliable power for uninterrupted operation
-
Protects connected modules with built-in safety features
-
Compact and industrial-grade design for F3 control racks
-
Enhances system reliability and reduces maintenance requirements
-
Supports critical industrial and process automation applications
Questions fréquentes (FAQ)
Q1: What is the primary function sur the F3PU20-0N?
It supplies stable DC power to Yokogawa F3 Series controllers and I/O modules.
Q2: What is the output voltage and current?
24 V DC output with a maximum sur 20 A.
Q3: What is the input voltage range?
100–240 V AC, 50/60 Hz.
Q4: Does it have protection features?
Yes, overcurrent, short circuit, and overvoltage protection are included.
Q5: Can it operate in industrial environments?
Yes, it is designed for reliable operation under industrial conditions.
Q6: What is the operating temperature range?
0 °C to +55 °C.
Q7: How is the module mounted?
DIN rail or panel mounting via the base unité.
Q8: What are the dimensions?
58 mm x 100 mm x 83.2 mm.
Q9: What is the module weight?
0.32 kg.
Q10: Which industries typically use this power supply?
Oil & Gas, Power Generation, Chemical & Petrochemical, Water & Wastewater, and Manufacturing.
Related Yokogawa Modules
| Modèle Number | Description |
|---|---|
| F3PU10-0S | 10 A Power Supply Module |
| F3PU05-0S | 5 A Power Supply Module |
| F3LC01-0T | Local Communication Module |
| F3LE12-0T | Ethernet Interface Module |
| F3LE11-0T | Serial Interface Module |
Popular Yokogawa Modules
| Modèle Number | Description |
|---|---|
| F3PU20-0N | Power Supply Module |
| F3PU10-0S | Power Supply Module |
| F3LE12-0T | Ethernet Interface Module |
| F3LC01-0T | Local Communication Module |
| F3LE11-0T | Serial Interface Module |
