Product Overview

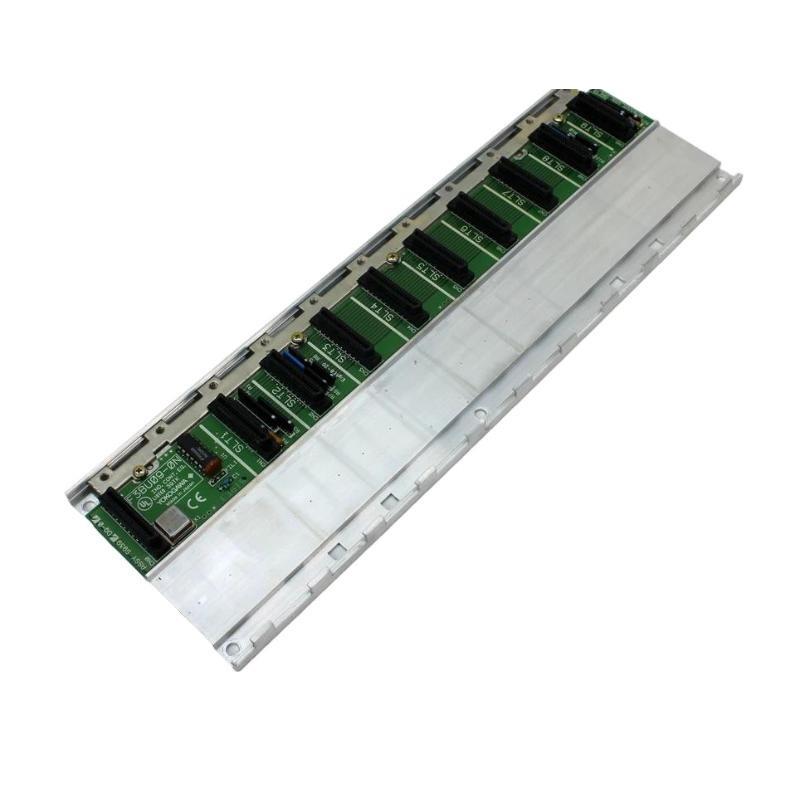

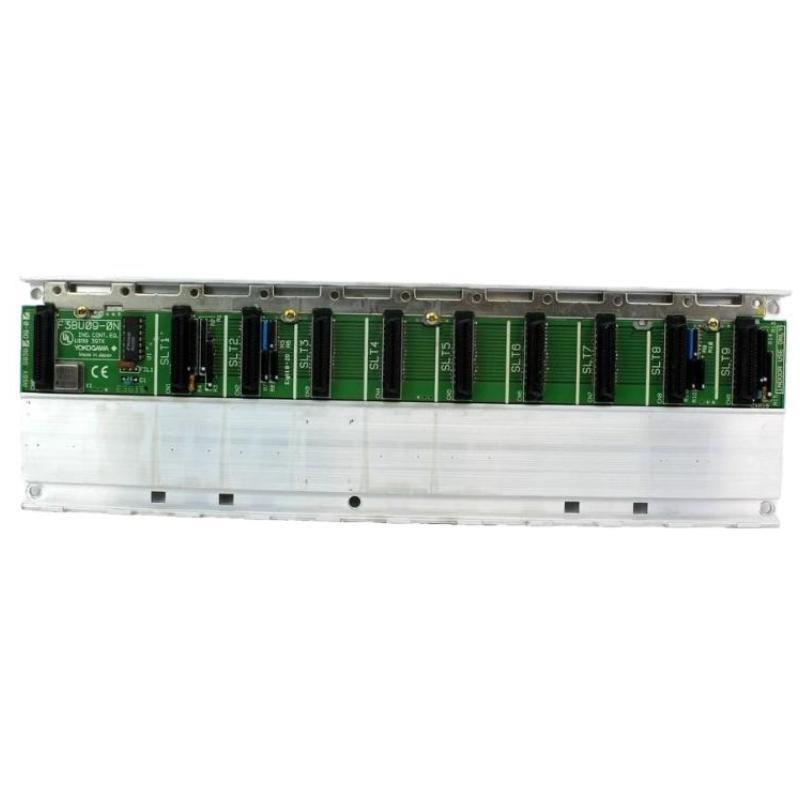

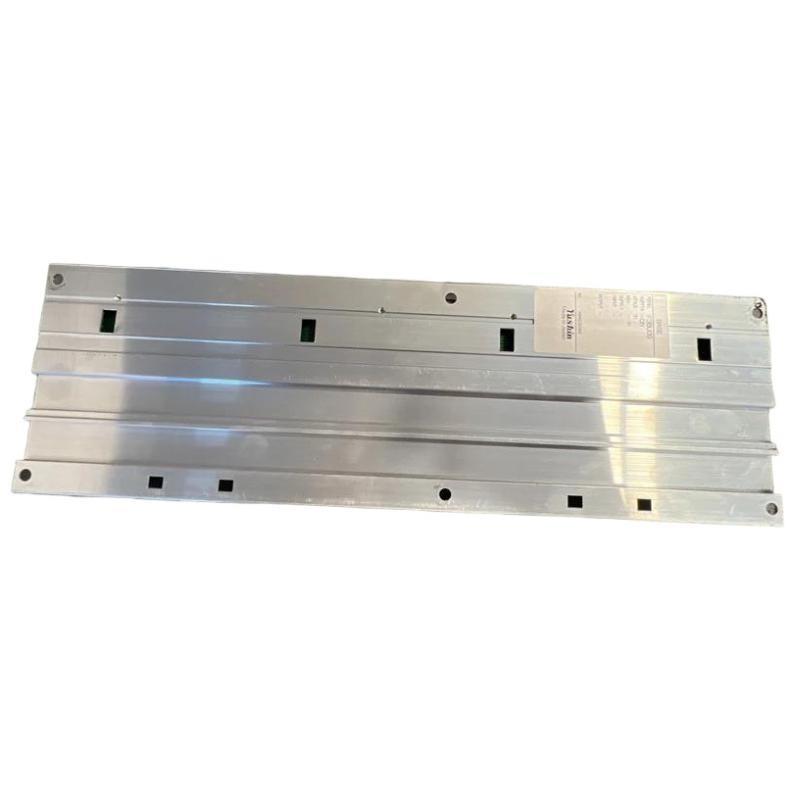

The Yokogawa F3BU09-0N Base Module is a fundamental component for the Yokogawa F3 Series modular control system. Designed to serve as the backbone sur the system, this base module facilitates power distribution, communication, and mechanical support for other I/O modules. It is integral in ensuring stable system performance and easy expansion, supporting hot-swapping sur I/O modules without causing system downtime.
Key Features
-
Core module for Yokogawa F3 Series systems
-
Supports power and communication functions for connected I/O modules
-
Hot-swappable functionality for ease sur module replacement
-
Compact and durable design for demanding environments
-
Simple mounting and integration with DIN rail system
-
Scalable system configuration for process automation and control
Technical Specifications
| Item | Specification |
|---|---|
| Modèle Number | F3BU09-0N |
| Module Type | Base Module |
| System Compatibility | Yokogawa F3 Series |
| Power Supply | 24VDC (Nominal) |
| Communication Bus | System bus for inter-module communication |
| Mounting | DIN rail mounting |
| Dimensions | 205 x 102 x 88.8 mm |
| Poids | 0.34 kg |
| Material | Metal and plastic housing |
| Cooling Method | Passive cooling |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90% RH, non-condensing |
Industry Applications
-
Industrial Automation – Core for process automation and control systems
-
Process Control – Provides the foundation for modular process control systems
-
Power Generation – Powers and supports monitoring modules for turbine control systems
-
Oil & Gas – Used for control and monitoring systems in oilfield and surfshore applications
-
Manufacturing – Integrated within automated manufacturing systems for reliability and scalability
Advantages
-
Provides a reliable foundation for the Yokogawa F3 Series systems
-
Ensures seamless integration sur additional modules and system expansion
-
Hot-swapping capability reduces system downtime during maintenance
-
Easy installation and reliable performance in harsh industrial environments
-
Durable construction with passive cooling for stable operation
Questions fréquentes (FAQ)
Q1: What is the main function sur the F3BU09-0N Base Module?
It serves as the core module for power distribution, communication, and structural support for I/O modules in the Yokogawa F3 Series system.
Q2: Can I replace I/O modules without shutting down the system?
Yes, the F3BU09-0N Base Module supports hot-swapping, allowing I/O modules to be replaced without system downtime.
Q3: What is the power supply requirement for the F3BU09-0N?
The module requires a 24VDC power supply.
Q4: What are the dimensions sur the F3BU09-0N Base Module?
The dimensions are 205 mm x 102 mm x 88.8 mm.
Q5: How is the F3BU09-0N Base Module mounted?
It is mounted onto a DIN rail for easy integration into control panels.
Q6: Does this module support any cooling mechanisms?
The module uses passive cooling for temperature regulation.
Q7: Is this module compatible with other Yokogawa systems?
It is specifically designed for the Yokogawa F3 Series systems.
Q8: What is the weight sur the F3BU09-0N Base Module?
The module weighs approximately 0.34 kg.
Q9: What is the operating temperature range for the module?
It operates within a temperature range sur 0 °C to 60 °C.
Q10: Is the module maintenance-free?
Yes, the module is low-maintenance and designed for long-term industrial use.
Related Modules
| Modèle Number | Description |
|---|---|
| F3BU09-0N | Base Module |
| F3DI00-0N | Digital Input Module |
| F3AO00-0N | Analog Output Module |
| F3AI00-0N | Analog Input Module |
| F3DO00-0N | Digital Output Module |
| F3VY00-0N | Voltage Input Module |
