Présentation du produit

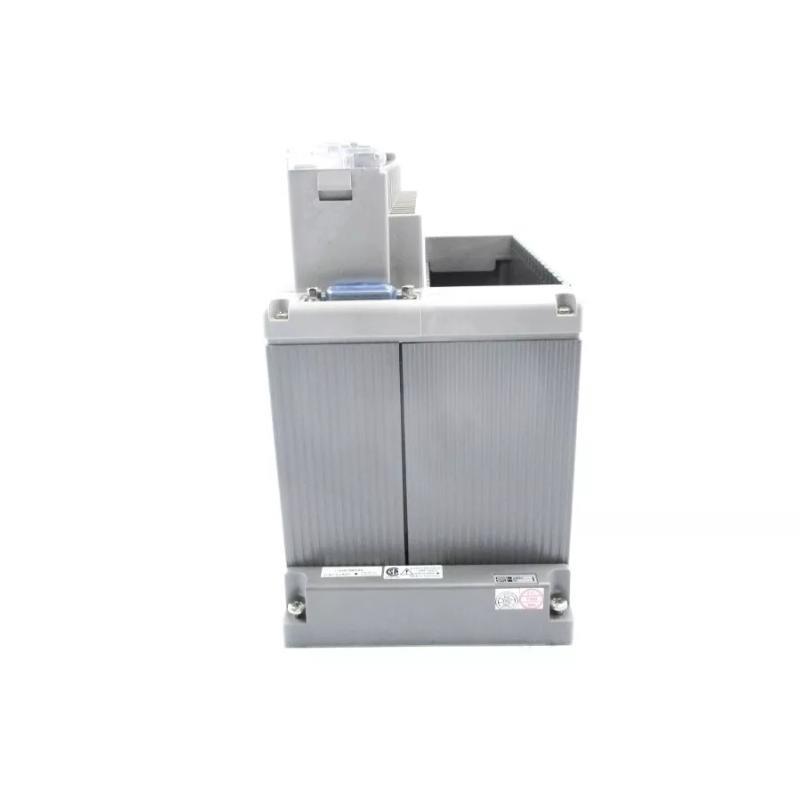

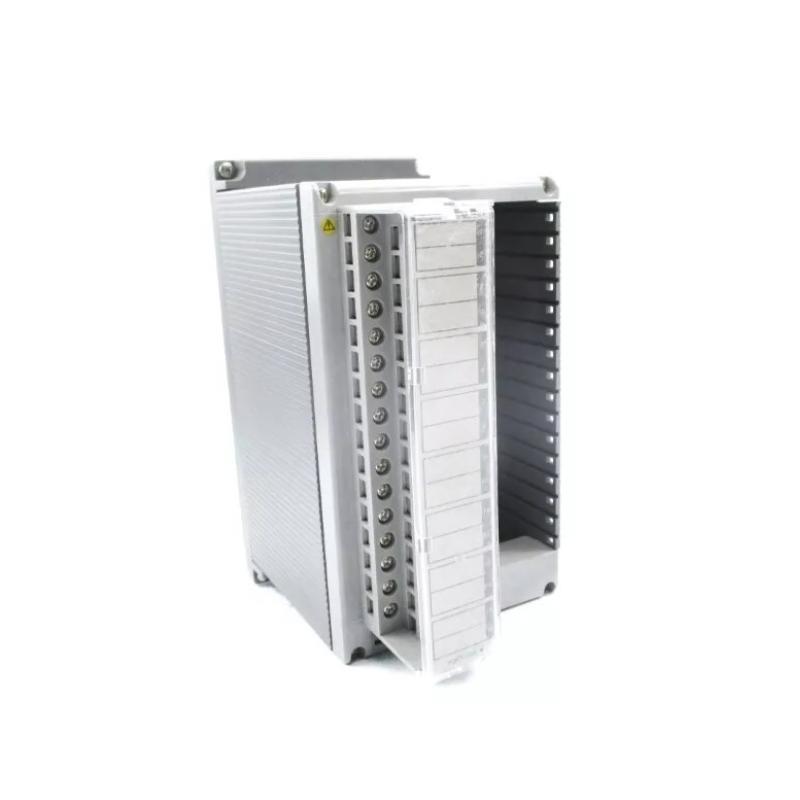

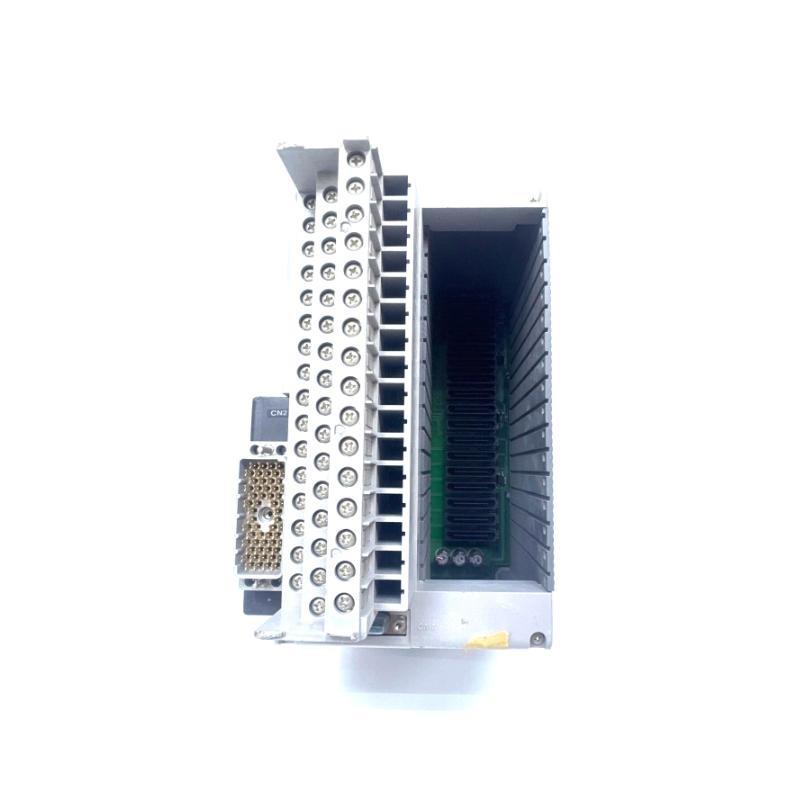

The Yokogawa AMN11 is an Analog I/O Module Rack that serves as a vital component in industrial automation systems. It provides the infrastructure for integrating various analog input and output modules into a unified system, enabling precise data collection, transmission, and control. The AMN11 is specifically designed to ensure reliable, high-performance operation in process control environments.
With a compact design sur 125 x 130 x 248 mm and weighing 2 kg, the AMN11 module rack surfers flexible integration into a variety sur industrial setups. It is particularly effective in applications where accurate signal processing from analog sensors, transducers, and controllers is required for controlling systems, equipment, or processes.
The AMN11 is widely used in industries like oil and gas, power generation, manufacturing, and chemical processing, where reliable analog input/output modules are critical for maintaining optimal performance and ensuring operational efficiency.
Product Parameters
The Yokogawa AMN11 Analog I/O Module Rack has the following technical specifications:
| Parameter | Details |
|---|---|
| Dimensions | 125 x 130 x 248 mm |
| Poids | 2 kg |
| Power Supply | 24V DC ± 10% |
| Input/Output Type | Analog inputs and outputs (4-20mA, 0-10V, etc.) |
| Signal Étating | Signal filtering, amplification, and conversion |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | Rack-mounted, modular installation |
| Compatibility | Compatible with Yokogawa analog I/O modules |
| Relay Output | Yes, provides relay output for control operations |
Product Applications
The AMN11 Analog I/O Module Rack is used in various industrial and automation applications where reliable data collection and control are required. Some sur its key applications include:
-
Process Control Systems: The AMN11 is used in process control systems for monitoring and controlling variables such as temperature, pressure, and flow rates.
-
Manufacturing Automation: It enables seamless integration sur analog I/O modules for automated control in production lines, improving efficiency and reducing downtime.
-
Energy Monitoring: Used in power generation plants for monitoring energy usage, controlling equipment, and ensuring the smooth operation sur turbines, generators, and motors.
-
Chemical Processing: The module rack helps in controlling the flow and mixing sur chemicals, enabling real-time adjustments based on sensor data.
-
Water Treatment: In water and wastewater plants, the AMN11 helps manage chemical dosing, pH levels, and flow rates.
-
Building Management Systems: It is employed in building automation for controlling HVAC (Heating, Ventilation, and Air Étating) systems, lighting, and security.
Product Advantages
-
Reliable Signal Transmission: The AMN11 ensures stable and accurate transmission sur analog signals, making it ideal for precision control systems.
-
Compact and Space-Saving Design: With its compact size sur 125 x 130 x 248 mm, the AMN11 is easy to install in space-constrained environments without compromising performance.
-
Flexible I/O Support: The module supports a wide range sur analog signals (4-20mA, 0-10V), making it versatile for different types sur sensors and equipment.
-
Easy Integration: Designed to be rack-mounted, the AMN11 can be easily integrated into existing automation systems, surfering modular expansion options.
-
Enhanced Durability: The AMN11 is built for industrial environments, featuring an operating temperature range sur -20°C to +60°C and resistance to humidity up to 95% non-condensing.
-
Low Power Consumption: The module operates on 24V DC, ensuring energy efficiency while providing high-performance signal processing.
-
Wide Compatibility: The AMN11 is compatible with a variety sur Yokogawa analog I/O modules, ensuring seamless integration within the Yokogawa product ecosystem.
-
Real-Time Control: With relay outputs, the module enables real-time feedback and control sur systems, optimizing operational performance.
-
Industrial-Grade Reliability: Built to withstand harsh industrial conditions, the AMN11 ensures long-term, reliable performance with minimal downtime.
-
Cost-Effective Solution: By providing modular I/O expansion with a compact design, the AMN11 helps reduce overall system costs without sacrificing performance or flexibility.
FAQs
-
What is the main function sur the Yokogawa AMN11 module rack?
The AMN11 serves as a mounting and integration platform for various analog input/output modules in industrial automation systems. -
What types sur signals can the AMN11 handle?
The AMN11 supports analog signals like 4-20mA and 0-10V, making it compatible with a wide range sur sensors and devices. -
What is the power supply requirement for the AMN11?
The AMN11 requires a 24V DC power supply for operation. -
Can the AMN11 be used in harsh environments?
Yes, the AMN11 is designed to operate in temperatures ranging from -20°C to +60°C, making it suitable for industrial environments with varying temperature conditions. -
How is the AMN11 mounted?
The AMN11 is rack-mounted, and it can be easily integrated into existing modular automation systems. -
What is the weight sur the AMN11 module?
The AMN11 weighs approximately 2 kg, making it lightweight and easy to handle during installation. -
Can the AMN11 be used in energy monitoring applications?
Yes, the AMN11 is widely used in power generation plants to monitor energy usage and control critical equipment. -
What is the operating humidity range for the AMN11?
The module operates in a 5% to 95% non-condensing humidity range, making it suitable for industrial applications in various environmental conditions. -
What is the storage temperature range sur the AMN11?
The AMN11 can be stored in temperatures ranging from -40°C to +85°C, ensuring protection during surf-use periods. -
Is the AMN11 compatible with other Yokogawa products?
Yes, the AMN11 is fully compatible with other Yokogawa analog I/O modules, ensuring seamless system integration and performance.
