Présentation du produit

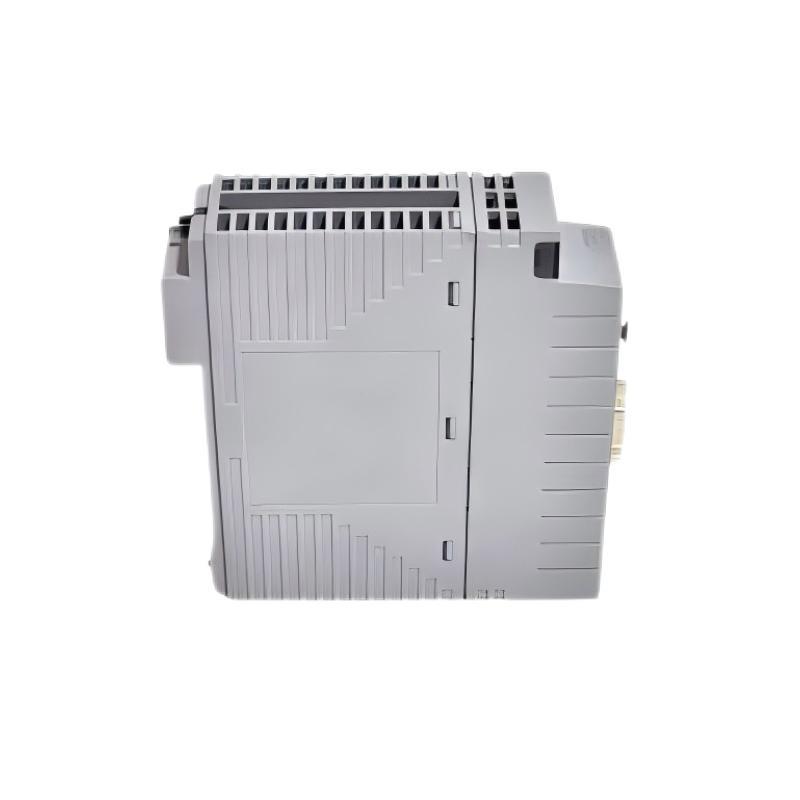

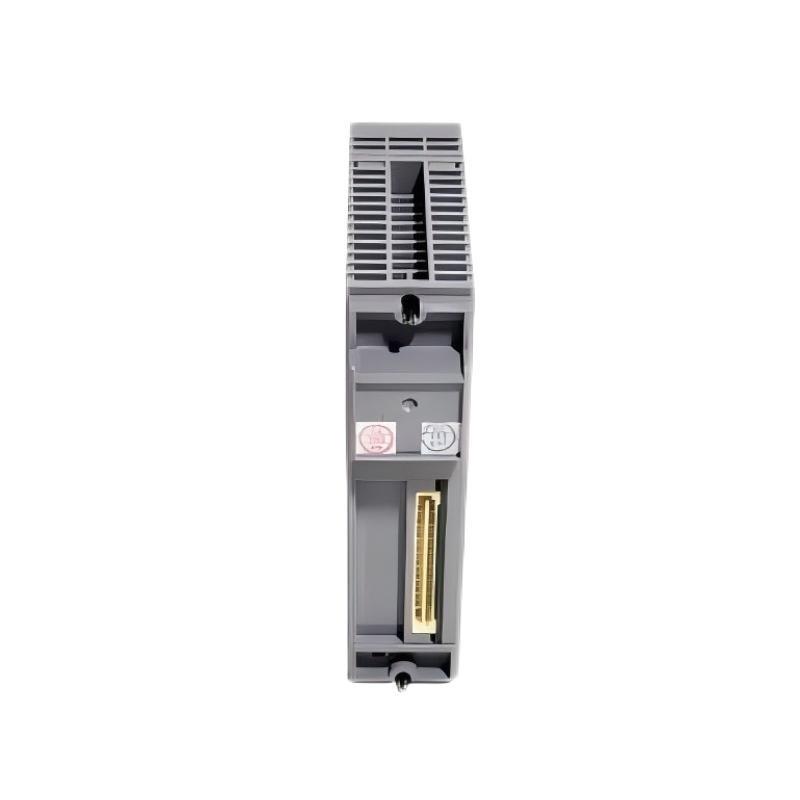

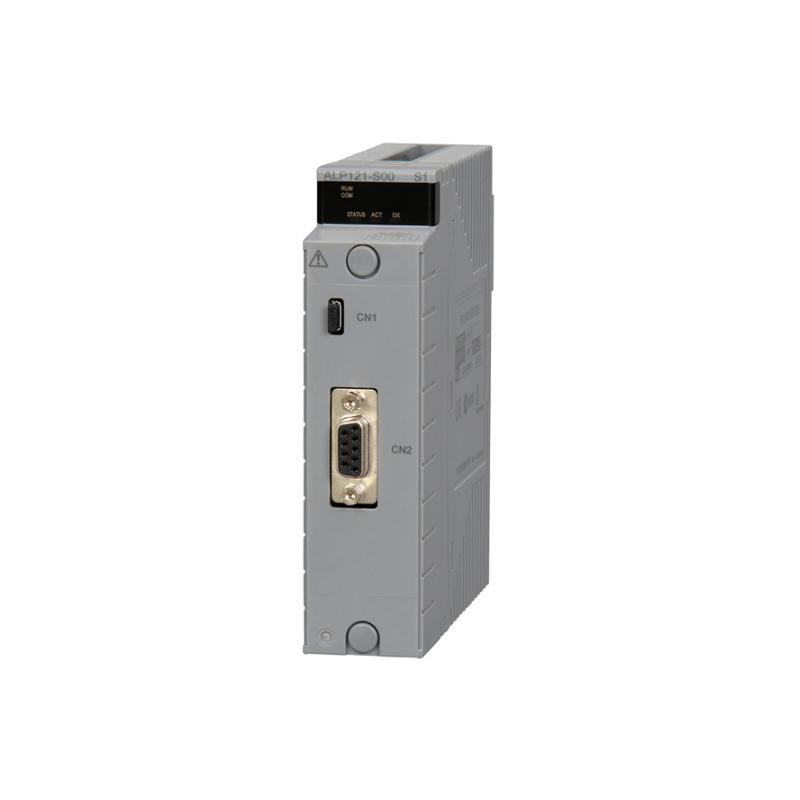

The Yokogawa ALP121 Communication Module is a robust and reliable PROFIBUS-DP interface designed specifically for integration with Yokogawa’s CENTUM VP and CENTUM CS 3000 distributed control systems. As a master communication module, it enables smooth, real-time data exchange between the control system and field devices via the PROFIBUS-DP protocol.
The ALP121 supports both DP-V0 and DP-V1 communication standards, allowing it to handle cyclic and acyclic data transfers, which are essential for process control and device diagnostics. This module is built to perform reliably in harsh industrial environments and supports hot standby redundancy to maximize system availability. Its compact form factor, advanced diagnostics, and seamless compatibility with Yokogawa engineering tools make it a preferred choice for process automation applications requiring high integrity and flexibility.
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle | ALP121 |
| Fabricant | Yokogawa Electric Corporation |
| Communication Protocol | PROFIBUS-DP (DP-V0 / DP-V1) |
| Baud Rate | 9.6 kbps to 12 Mbps |
| Number sur Channels | 1 PROFIBUS-DP master channel |
| Max Devices Supported | Up to 32 devices per segment (without repeater) |
| Redundancy Support | Hot standby capable |
| Diagnostics | Comprehensive diagnostics including event and device status |
| Functionality | Master-slave communication with PROFIBUS field devices |
| System Compatibility | CENTUM VP, CENTUM CS 3000 |
| Power Supply | Supplied through FCS rack (24 VDC nominal) |
| Connector Type | D-sub 9-pin interface (terminal block optional) |
| Configuration Tool | Yokogawa Engineering Tool, PRM, FDT/DTM compatible |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting | Rack-mounted in Field Control Station |
| Dimensions (H × W × D) | 121 x 130.5 x 32.8 mm |
| Poids | 0.3 kg |
| Compliance Standards | IEC 61158, PROFIBUS DP-V1 |
Applications
The ALP121 module is widely used in industries where reliable and high-speed PROFIBUS communication is critical. Common applications include:
-
Oil & Gas
Controls and monitors field devices such as valve positioners, flow meters, and analyzers in refining and petrochemical processes. -
Power Generation
Supports turbine and boiler instrumentation, enabling precise control and real-time monitoring. -
Chemical and Petrochemical Plants
Provides digital communication to field instruments to improve process efficiency and safety. -
Pharmaceutical Manufacturing
Ensures accurate and traceable communication with compliant field devices for strict quality control. -
Food & Beverage Processing
Facilitates integration sur field devices across complex processing lines, improving consistency and control. -
Water and Wastewater Treatment
Manages distributed sensors and actuators for remote monitoring and control.
Key Advantages
-
Reliable PROFIBUS-DP Master Communication
Supports DP-V0 and DP-V1 protocols, enabling robust cyclic and acyclic data exchange. -
Hot Standby Redundancy
Reduces system downtime by enabling seamless switchover to a backup module. -
Comprehensive Diagnostic Support
Provides detailed communication and device status information to simplify troubleshooting. -
Wide Device Compatibility
Works with a broad range sur PROFIBUS-DP compliant devices, including third-party instruments. -
Compact Design
Space-saving form factor enables efficient use sur control room rack space. -
Integrated Engineering Tools
Compatible with Yokogawa’s suite sur configuration and monitoring tools for easy setup and maintenance.
Questions fréquentes (FAQ)
-
What is the main purpose sur the ALP121 module?
It serves as a PROFIBUS-DP master, facilitating communication between the control system and field devices. -
How many devices can the ALP121 handle on a PROFIBUS segment?
It supports up to 32 devices per segment without the need for repeaters. -
Does the ALP121 support redundant operation?
Yes, it supports hot standby redundancy to enhance system reliability. -
Which control systems is the ALP121 compatible with?
The module is compatible with Yokogawa CENTUM VP and CENTUM CS 3000 systems. -
What communication speeds does the ALP121 support?
It supports baud rates from 9.6 kbps up to 12 Mbps. -
Can the ALP121 communicate with devices from other manufacturers?
Yes, it supports any PROFIBUS-DP compliant field devices. -
How is the module configured?
Configuration can be done through Yokogawa Engineering Tool, PRM ssurtware, or FDT/DTM-compliant tools. -
What kind sur diagnostics does the ALP121 provide?
It surfers diagnostics on communication status, device health, and network events. -
Is the ALP121 suitable for harsh industrial environments?
Yes, it operates reliably between 0°C to 50°C with humidity tolerance up to 95% non-condensing. -
What physical connection does the ALP121 use?
It uses a D-sub 9-pin connector, with an optional terminal block adapter for field wiring.
Related Modèles from the Same Series or Communication Family
| Modèle | Description | Interface | System Compatibility |
|---|---|---|---|
| ALP111 | PROFIBUS-DP communication module | PROFIBUS-DP | CENTUM VP, CS 3000 |
| ALF111 | FOUNDATION Fieldbus communication module | FOUNDATION Fieldbus | CENTUM VP, CS 3000 |
| ALE111 | Ethernet communication module | Ethernet TCP/IP | CENTUM VP, CS 3000 |
| ALR121 | Redundant Ethernet communication module | Vnet/IP | CENTUM VP |
| AFV10D | Fast Ethernet communication module for safety system | Ethernet/Vnet/IP | ProSafe-RS |
| ANB10D | Base Node Unité for I/O modules | Backplane Bus | CENTUM VP |
Popular Yokogawa Modules (Same Marque)
| Modèle | Function | Interface | System Compatibility |
|---|---|---|---|
| CP451 | Central Processing Unité | Internal Bus | CENTUM VP |
| PW482 | Power Supply Module | Internal Rack Power | CENTUM VP |
| NFCP100 | Compact Field Controller Unité | Ethernet / Vnet/IP | STARDOM |
| F3SP71-4N | Safety Control CPU Module | Safety Bus | ProSafe-RS |
| AAR181-S00 | Analog Output Module | I/O Interface | ProSafe-RS |
| S2PCU | Power Control Unité | Power Bus | CENTUM CS 3000 |
