Présentation du produit

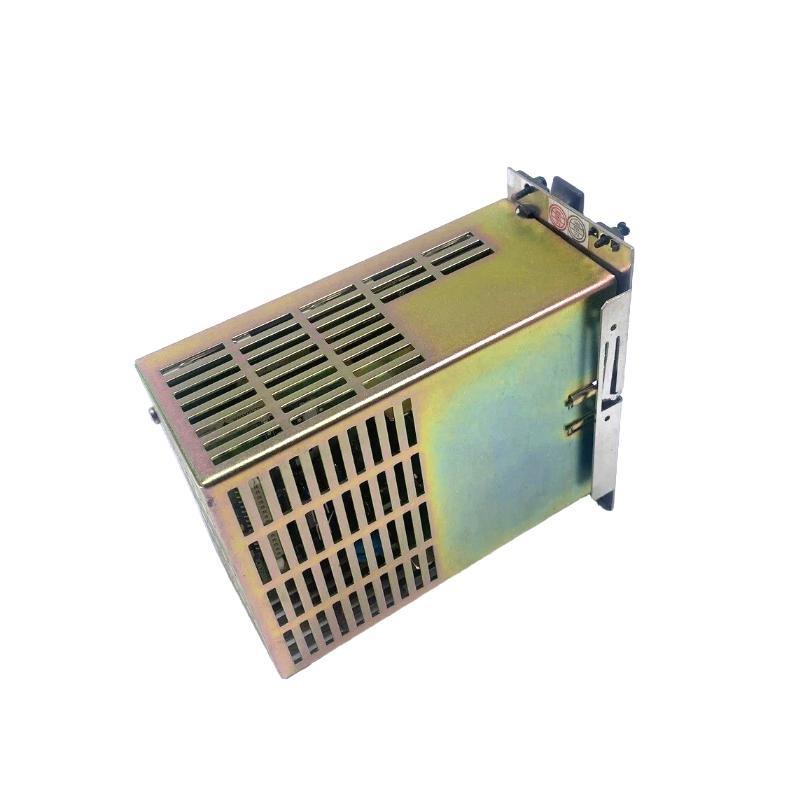

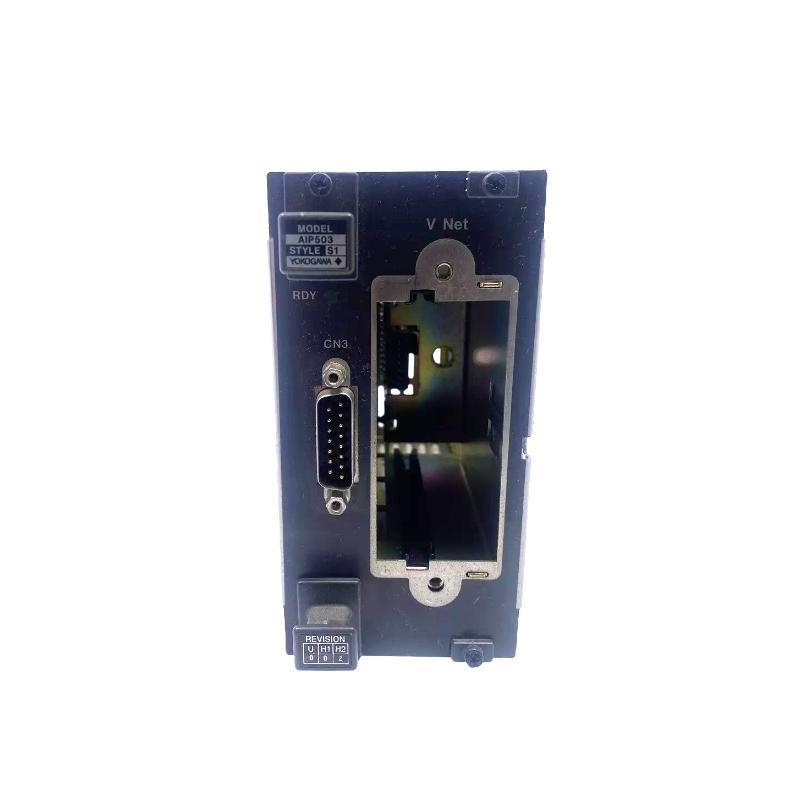

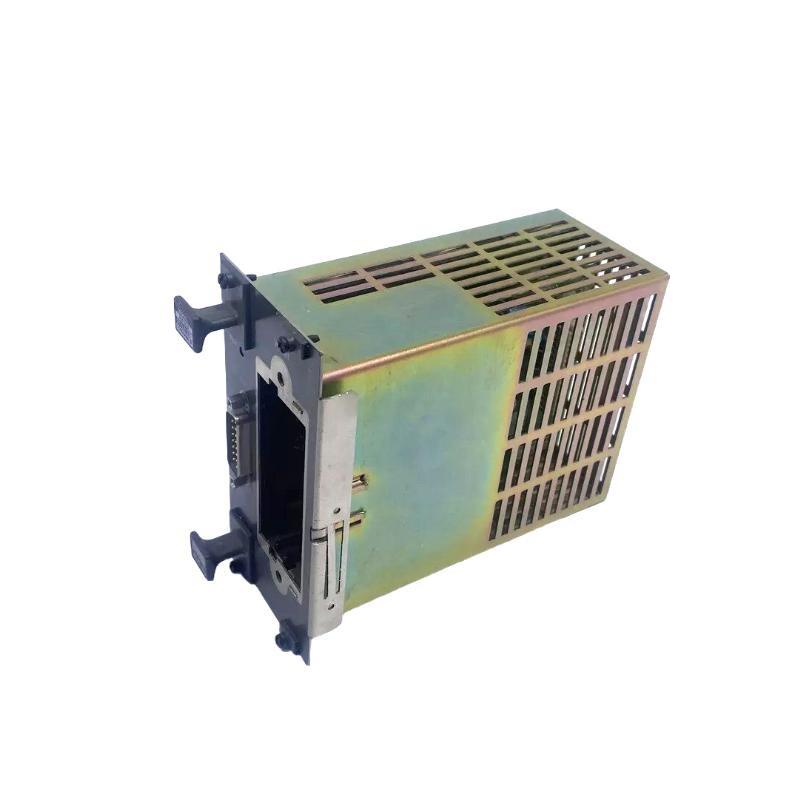

The Yokogawa AIP503 is a V-NET Coupler Module used in the CENTUM CS 3000/VP DCS (Distributed Control System) architecture. As a vital part sur the field control subsystem, the AIP503 enables high-speed, reliable communication between Field Control Stations (FCS) and other system components via the V-Net (Vertical Net) network. V-NET is Yokogawa’s proprietary control network designed for robust, deterministic, and fault-tolerant communication in industrial automation.
The AIP503 is specifically engineered to enhance data integrity, ensure redundancy, and maintain time synchronization across system nodes. Installed in a Node Interface Unité (NIU) or FCS module rack, this coupler ensures that large volumes sur process data are transmitted with minimum delay, enabling real-time control in mission-critical environments like oil & gas, chemical processing, and power generation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | AIP503 |
| Product Type | V-NET Coupler Module |
| Fabricant | Yokogawa Electric Corporation |
| System Compatibility | CENTUM CS 3000 / CENTUM VP |
| Communication Protocol | V-NET (Yokogawa proprietary high-speed control network) |
| Communication Speed | 10 Mbps |
| Redundancy | Supports redundant V-NET communication |
| Interface Type | Optical and electrical V-NET interfaces (dependent on system configuration) |
| Mounting Method | Mounted in Node Interface Unité (NIU) or FCS rack |
| Power Supply | Supplied via the baseplate |
| Module Status LEDs | Yes (for link, activity, and failure indication) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Shock Resistance | Compliant with IEC 60068-2-27 |
| Vibration Resistance | Compliant with IEC 60068-2-6 |
| Dimensions (H × W × D) | 22.5 × 100 × 115 mm |
| Poids | 0.794 kg |
Applications
The Yokogawa AIP503 V-NET Coupler Module is utilized in high-integrity industrial automation systems where real-time data transmission, system synchronization, and network reliability are essential. Typical application scenarios include:
-
Oil and Gas Processing Facilities
For robust and redundant communication between remote and central control unités. -
Chemical and Petrochemical Plants
Ensures consistent and safe data communication for complex batch or continuous processes. -
Power Generation Stations
Facilitates critical process monitoring and control in turbine and boiler management systems. -
Pharmaceutical Manufacturing
Maintains synchronization across process control nodes for compliance and quality assurance. -
Water and Wastewater Treatment Plants
Enables reliable SCADA and DCS communication for distributed operations. -
Paper and Pulp Industries
Ensures deterministic communication between control stations and field devices.
Product Advantages
-
High-Speed V-NET Communication
Enables rapid and deterministic data transfer for real-time process control. -
Redundant Architecture Support
Supports dual network paths to maintain communication integrity during failures. -
Compact Modular Design
Small form factor allows easy integration into standard FCS or NIU chassis. -
Field Proven Reliability
Widely adopted in Yokogawa DCS environments globally for its performance and durability. -
LED Diagnostic Indicators
Provides immediate visual feedback on communication and module status. -
Seamless Integration
Natively integrates with Yokogawa’s CENTUM CS 3000 and VP systems for minimal configuration. -
Enhanced Time Synchronization
Ensures that all system components operate with accurate time references.
Questions fréquentes (FAQ)
-
What is the role sur the AIP503 in a Yokogawa DCS?
It functions as a V-NET communication coupler, linking the control station to the V-NET network. -
Can the AIP503 be used in redundant configurations?
Yes, it fully supports redundant communication paths for fault tolerance. -
Which systems is the AIP503 compatible with?
It works with Yokogawa CENTUM CS 3000 and CENTUM VP platforms. -
How is the module powered?
It draws power from the system baseplate—no external power supply is needed. -
Does it support both optical and electrical interfaces?
Yes, depending on system setup, the module can use either type. -
Can it be hot-swapped?
Yes, the AIP503 supports hot swapping with minimal system disruption. -
What communication speed does the module support?
It communicates over V-NET at 10 Mbps. -
Where is the AIP503 installed?
It is typically mounted in the Node Interface Unité or Field Control Station rack. -
Does it come with status indicators?
Yes, LED indicators provide real-time diagnostics. -
Is the AIP503 compliant with international standards?
Yes, it meets IEC requirements for vibration and shock resistance.
Related Modèles – Same Series or Function
| Modèle Number | Description | Function | System |
|---|---|---|---|
| AIP501 | V-NET Coupler Module | Legacy V-NET interface | CENTUM CS 3000 |
| AIP502 | V-NET Coupler Module | Updated version for optical V-NET | CENTUM VP |
| ANB10D | Node Base Module | Base unité for I/O connections | CENTUM CS/VP |
| AFV10D | FCS Power Supply Unité | Provides power to FCS modules | CENTUM VP |
| AAI141 | Analog Input Module (16-channel) | 4–20 mA AI with HART support | CENTUM VP |
| AAI543 | Analog Output Module (4-channel) | 4–20 mA AO module | CENTUM VP |
Popular Yokogawa Modèles – Autres Product Lines
| Modèle Number | Product Type | Application | System Compatibility |
|---|---|---|---|
| FCS (AFV10D) | Field Control Station CPU | Core controller for DCS | CENTUM VP |
| PW482-10 | Power Supply Unité | Provides stable DC power | CENTUM CS/VP |
| AAI135-H | Analog Input Module (HART) | High-speed AI module | CENTUM VP |
| CP451-10 | Processor Module | Handles logic and control routines | ProSafe-RS |
| STARDOM FCN-RTU | Compact RTU | Remote telemetry for utilities | STARDOM series |
| N-IO (FieldMate) | Universal I/O Module | Supports multiple signal types | CENTUM VP |
