Présentation du produit

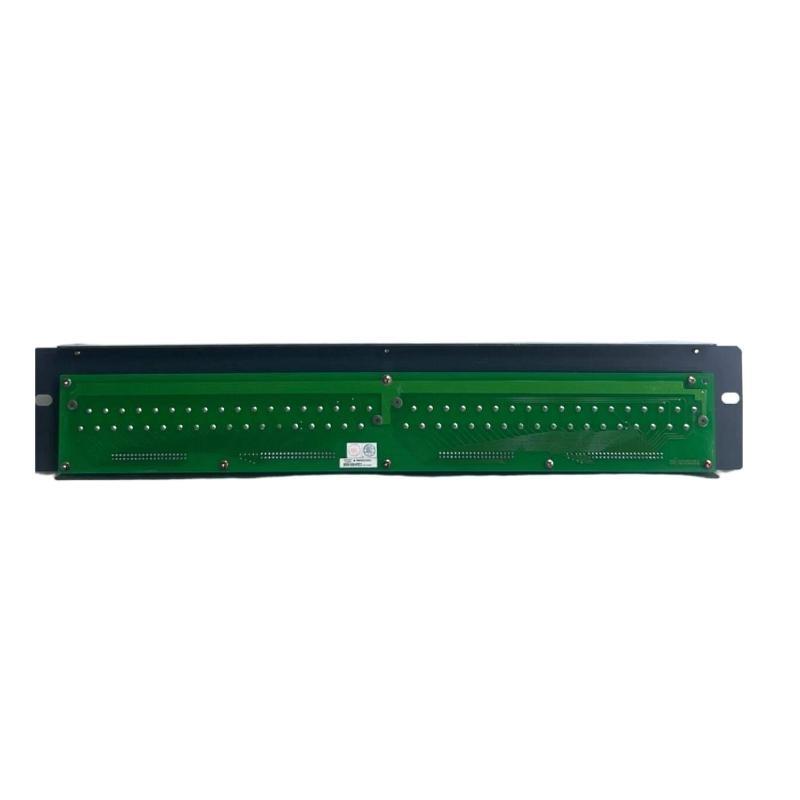

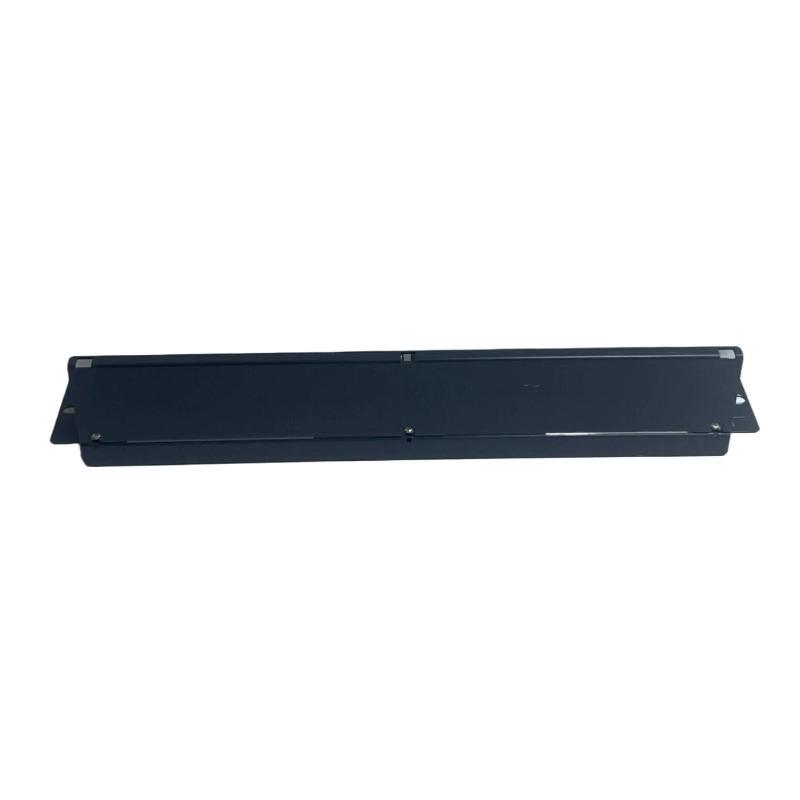

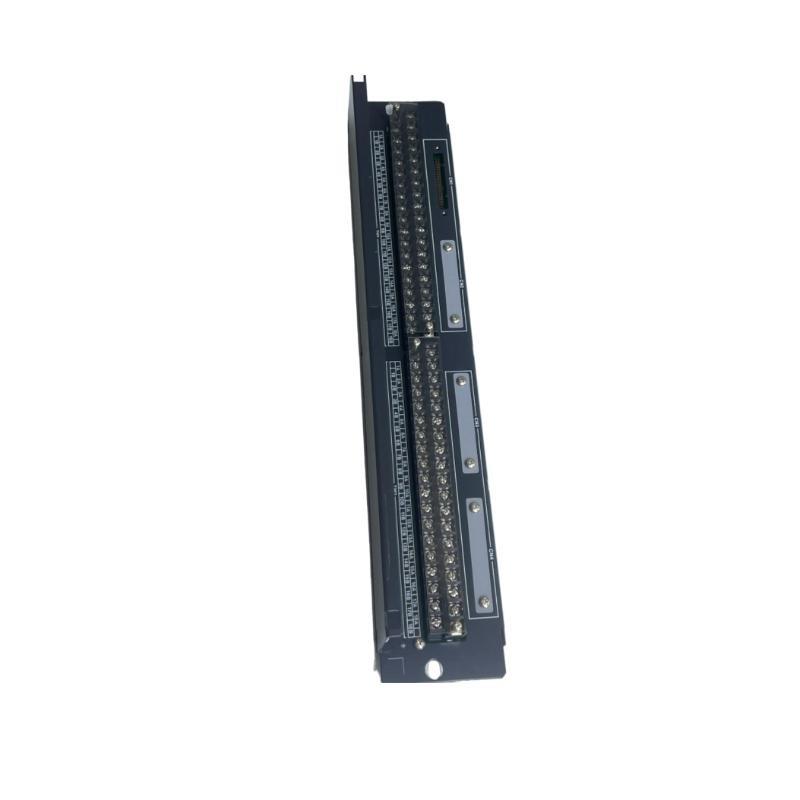

The Yokogawa AER4D-00 S1 Terminal Block is an advanced electrical terminal block designed for industrial control and automation systems. Part sur Yokogawa’s AER series, the AER4D-00 S1 provides reliable and secure connections for wiring in critical industrial applications. This terminal block surfers a perfect solution for high-performance systems, ensuring effective and safe electrical interconnections in environments that require durable, long-lasting components.
Designed with versatility and ease sur use in mind, the AER4D-00 S1 is widely utilized in automation control panels, PLC systems, process control applications, and industrial machinery. Its high-quality construction ensures superior performance, reliability, and flexibility. The terminal block is engineered to withstand harsh operating conditions, including high temperatures, vibrations, and environmental challenges.
The AER4D-00 S1 features a DIN rail mounting system, which simplifies installation and integration into existing electrical control systems. It supports various wiring types and is compatible with both RTD and thermocouple sensors, making it suitable for a wide range sur applications in energy, oil and gas, chemical processing, and manufacturing industries.
Spécifications du produit
| Specification | Details |
|---|---|
| Modèle Number | AER4D-00 S1 |
| Type | Terminal Block |
| Dimensions (L x W x H) | 482.6 x 88.1 x 85 mm |
| Poids | 1.5 kg |
| Number sur Terminals | 4 Terminals per Block |
| Voltage Rating | 300 V |
| Current Rating | 10 A per Terminal |
| Wire Size | 0.2 to 6 mm² |
| Material | Polycarbonate, Copper Alloy |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | DIN Rail Mount |
| Environmental Protection | IP20 |
| Certification | UL, CE, RoHS |
Product Application
The Yokogawa AER4D-00 S1 Terminal Block is specifically designed for a wide range sur industrial and control system applications, including:
-
Industrial Control Panels: This terminal block is ideal for use in control panels, where it serves as a hub for electrical connections, ensuring stable and secure wiring between components like PLCs, sensors, and actuators.
-
Process Control Systems: In process automation, the AER4D-00 S1 is used to connect electrical signals from various devices such as temperature sensors, pressure sensors, and control devices. It ensures safe and efficient data transfer within process control systems.
-
PLC Integration: The AER4D-00 S1 is highly compatible with PLC systems, where it can be used to connect input/output (I/O) signals to the main processor, providing a reliable link between sensors, field devices, and controllers.
-
Industrial Machinery: This terminal block is used in industrial equipment such as motors, drives, valves, and other automated machinery, providing reliable electrical connections that maintain performance even under challenging conditions.
-
Energy and Power Distribution: The AER4D-00 S1 also finds use in energy systems such as transformers, switchgear, and power distribution unités, where it helps maintain safe electrical interconnections in power networks.
The AER4D-00 S1 terminal block plays an essential role in enhancing the reliability and efficiency sur these systems by providing a durable, high-quality connection point for wiring and electrical components.
Product Advantages
-
High Durability: Built with polycarbonate and copper alloy, the AER4D-00 S1 is resistant to mechanical stress, vibration, and extreme environmental conditions. This makes it perfect for demanding industrial environments.
-
Versatility in Wiring: It supports a wide range sur wire sizes, from 0.2 mm² to 6 mm², and can handle different types sur electrical signals, including RTDs and thermocouples.
-
Easy Installation: The DIN rail mount design ensures straightforward installation, reducing setup time and simplifying system upgrades. It can be easily integrated into new or existing control panels and automation systems.
-
Compact and Lightweight: With dimensions sur 482.6 x 88.1 x 85 mm and a weight sur 1.5 kg, the terminal block surfers a compact footprint, allowing it to fit seamlessly into confined spaces in control panels or other equipment.
-
High Current Rating: The terminal block can support up to 10 A per terminal, making it suitable for a variety sur power applications without compromising performance.
-
Reliable Connections: The AER4D-00 S1 is designed to provide stable, reliable electrical connections, reducing the risk sur faults and system failures due to loose or faulty connections.
-
Wide Operating Temperature Range: With an operating temperature range sur -40°C to +85°C, the terminal block is versatile enough for use in environments with significant temperature fluctuations.
-
Compliance with Safety Standards: The AER4D-00 S1 is UL, CE, and RoHS certified, ensuring it meets stringent international safety, environmental, and quality standards.
-
Cost-Effective Solution: The terminal block surfers a cost-effective solution for electrical connection needs, combining durability, reliability, and efficiency at a competitive price.
Questions fréquentes (FAQ)
-
What applications is the Yokogawa AER4D-00 S1 suitable for?
-
The AER4D-00 S1 is suitable for industrial control panels, process control systems, PLC integration, machinery connections, and energy and power distribution systems.
-
-
What is the weight and size sur the AER4D-00 S1 terminal block?
-
The AER4D-00 S1 has dimensions sur 482.6 x 88.1 x 85 mm and weighs 1.5 kg.
-
-
What is the current rating for each terminal on the AER4D-00 S1?
-
Each terminal on the AER4D-00 S1 supports a 10 A current rating.
-
-
What type sur wiring can the AER4D-00 S1 accommodate?
-
The terminal block supports wire sizes ranging from 0.2 mm² to 6 mm², and is compatible with RTDs and thermocouples.
-
-
How is the AER4D-00 S1 mounted?
-
The AER4D-00 S1 is designed for DIN rail mounting, making it easy to install in control panels and other electrical systems.
-
-
What is the operating temperature range sur the AER4D-00 S1?
-
The terminal block operates within a temperature range sur -40°C to +85°C.
-
-
Can the AER4D-00 S1 be used in hazardous environments?
-
Yes, the AER4D-00 S1 is designed for harsh industrial environments, surfering durability and high resistance to mechanical stress and extreme temperatures.
-
-
What certifications does the AER4D-00 S1 hold?
-
The AER4D-00 S1 is certified by UL, CE, and RoHS, ensuring compliance with international safety and environmental standards.
-
-
How many terminals are available on the AER4D-00 S1?
-
The AER4D-00 S1 features 4 terminals per block, providing a convenient and compact solution for electrical interconnections.
-
-
Is the AER4D-00 S1 cost-effective for industrial applications?
-
Yes, the AER4D-00 S1 surfers a cost-effective solution for industrial wiring needs while maintaining high durability and reliability.
-
Recommended Modèles from Yokogawa’s Terminal Block Series
| Modèle Number | Description |
|---|---|
| AER4D-01 | 4-Terminal Block with similar specifications |
| AER3D-00 | 3-Terminal Block for smaller control systems |
| AER4C-00 | 4-Terminal Block with enhanced voltage protection |
| AER6D-00 | 6-Terminal Block with higher current ratings |
| AER5D-00 | 5-Terminal Block for advanced automation systems |
| AER2D-00 | Compact 2-Terminal Block for basic control systems |
Autres Popular Modèles from Yokogawa
| Modèle Number | Description |
|---|---|
| ADV851-P50 | Standard Monitoring Module |
| ADV851-P51 | Enhanced Monitoring Unité |
| ADV851-P52 | High-Sensitivity Monitoring Module |
| AE4D-05 | Multi-Channel Monitoring Unité |
| AE4D-06 | Compact Monitoring System |
| AEA4D-00 S1 | Precision Monitoring Module |
