Product Overview

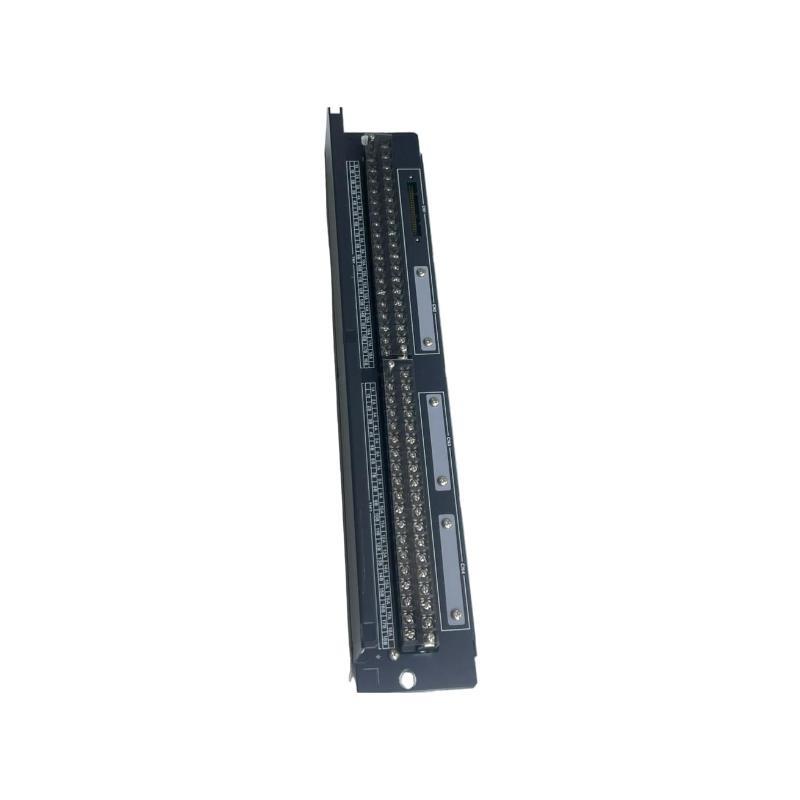

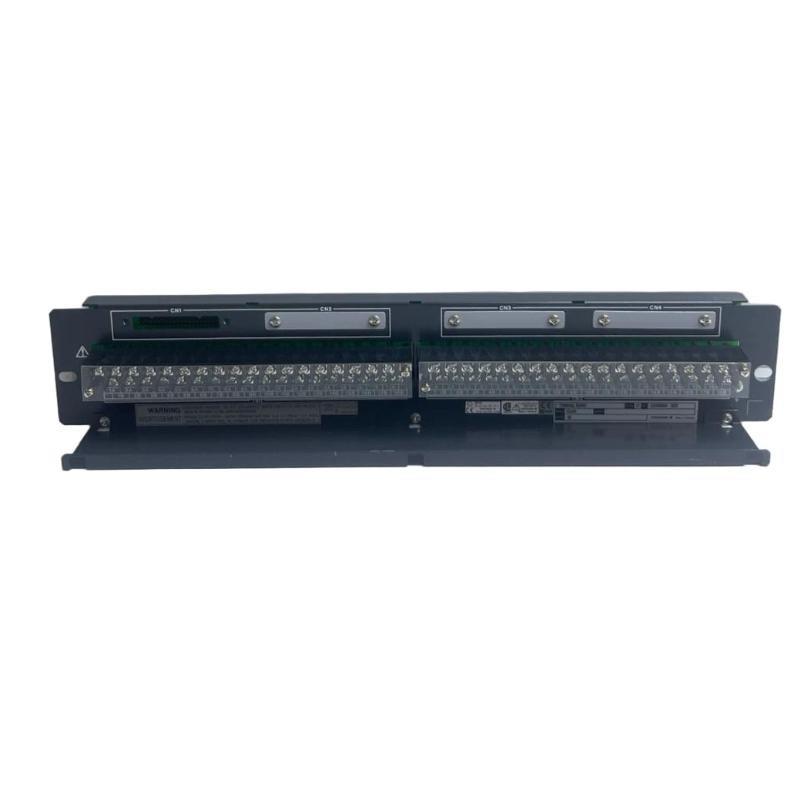

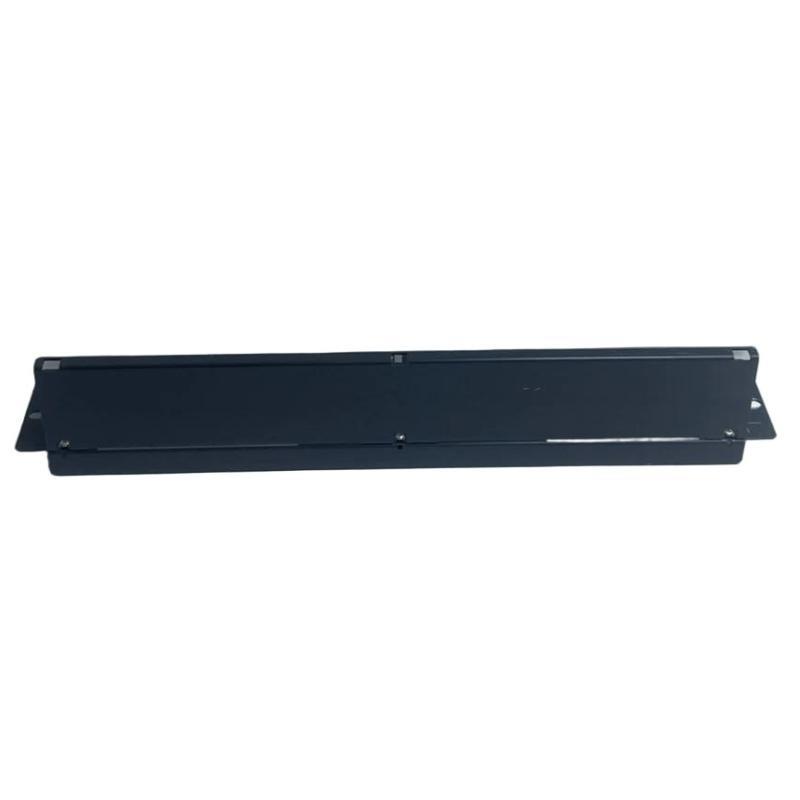

The Yokogawa AEA4D-00 Terminal Board is a high-quality interface module designed to provide secure and organized connections for digital and analog I/O modules in Yokogawa control systems. It ensures reliable signal transmission between field devices and DCS modules, simplifying wiring and maintenance in industrial automation environments.
Key Features
-
Organized and secure wiring interface for DCS modules
-
Supports multiple I/O types including analog, digital, and contact signals
-
Robust construction for reliable operation in industrial environments
-
Compact design for easy integration into control panels
-
Simplifies maintenance and troubleshooting by centralizing connections
-
Fully compatible with Yokogawa DCS and field devices
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Terminal Board |
| Modèle Number | AEA4D-00 |
| Supported I/O Types | Analog, Digital, Contact |
| Number sur Connections | Configurable depending on module rack |
| Mounting | DIN rail or module rack |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95%, non-condensing |
| Dimensions | 482.6 x 88.1 x 85 mm |
| Poids | 1.5 kg |
Industry Applications
-
Interface for digital and analog I/O modules in DCS systems
-
Wiring management in process automation for chemical, petrochemical, and power industries
-
Signal transmission between field devices and control modules
-
Industrial environments requiring reliable and organized terminal connections
Questions fréquentes (FAQ)
Q1: What types sur signals does the AEA4D-00 support?
Analog, digital, and contact signals.
Q2: Is it compatible with Yokogawa DCS systems?
Yes, it is fully compatible with CENTUM and other Yokogawa control systems.
Q3: How is it mounted?
It can be mounted on a DIN rail or in a module rack.
Q4: What is the operating temperature range?
0°C to 60°C.
Q5: Can it operate in humid environments?
Yes, it works reliably in 5% to 95% non-condensing humidity.
Q6: Does it simplify maintenance?
Yes, it centralizes wiring and makes troubleshooting easier.
Q7: What is the approximate weight?
À propos 1.5 kg.
Q8: What is the module’s size?
Approximately 482.6 x 88.1 x 85 mm.
Q9: Is it suitable for industrial environments?
Yes, it is designed for robust operation in harsh industrial conditions.
Q10: Can it handle multiple types sur I/O?
Yes, it supports analog, digital, and contact signals.
Related Modèles
| Modèle | Description |
|---|---|
| AEA4D-01 | Terminal Board (additional connections) |
| AEA4D-02 | Terminal Board (extended I/O support) |
| AEA4D-03 | Terminal Board (enhanced durability) |
| AEA4D-04 | Terminal Board (for large rack systems) |
| AEA4D-05 | Terminal Board (with diagnostic features) |
| AEA4D-06 | Terminal Board (redundant I/O support) |
Popular Yokogawa Modules
| Modèle | Description |
|---|---|
| ADV151-P00 S2 | Digital Input Module |
| ADV151-P10/B5S10 | Digital Input Module |
| ADV151-P13 S2 | Digital Input Module |
| ADV151-P53/D5A00 | Digital Input Module |
| ADV157-S00 | Digital Input Module |
| ADV161-P00 S2 | Digital Input Module |
