Présentation du produit

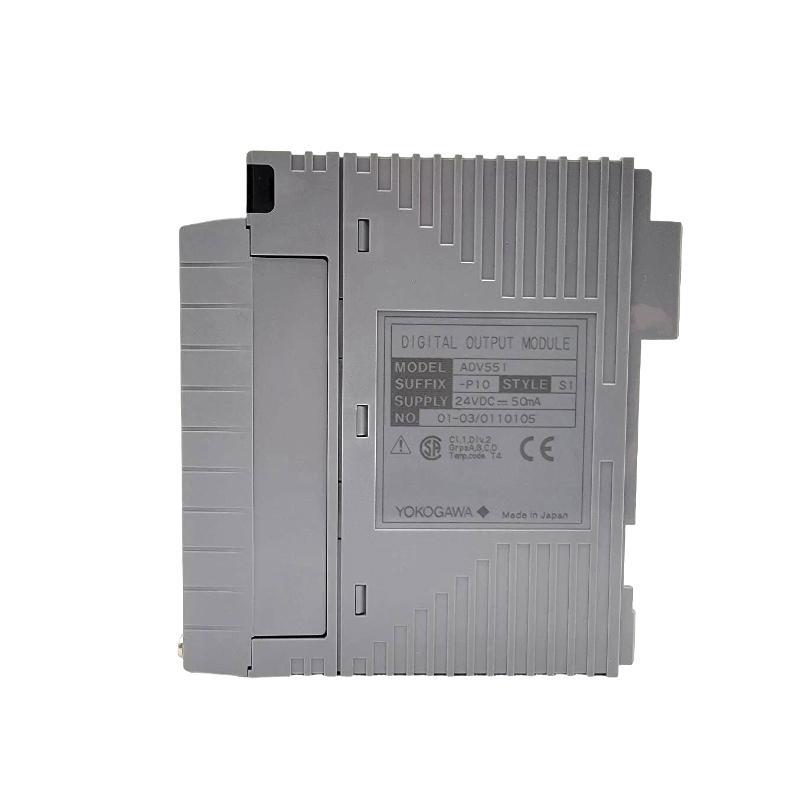

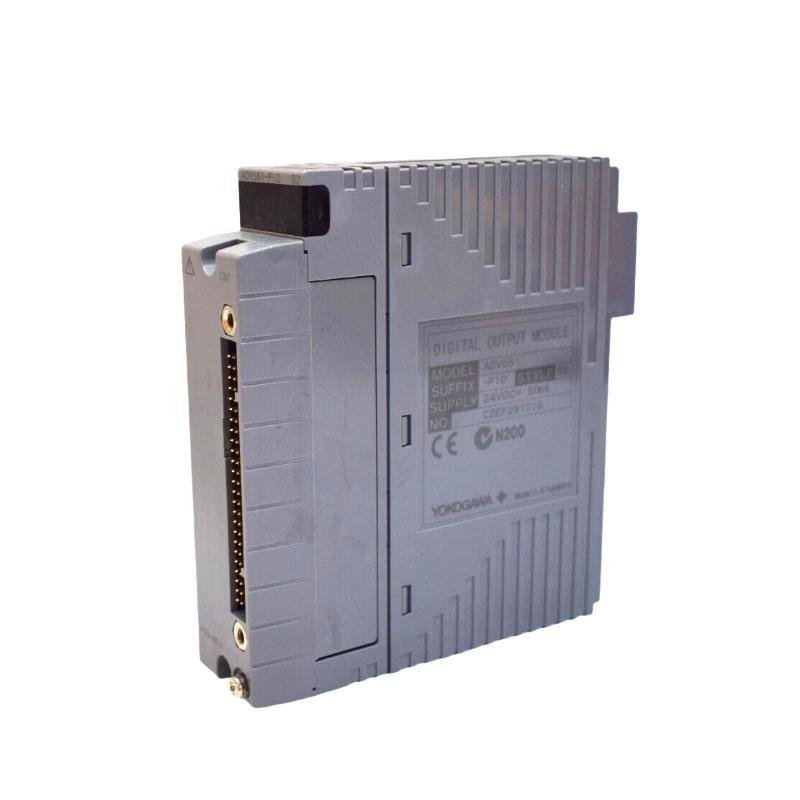

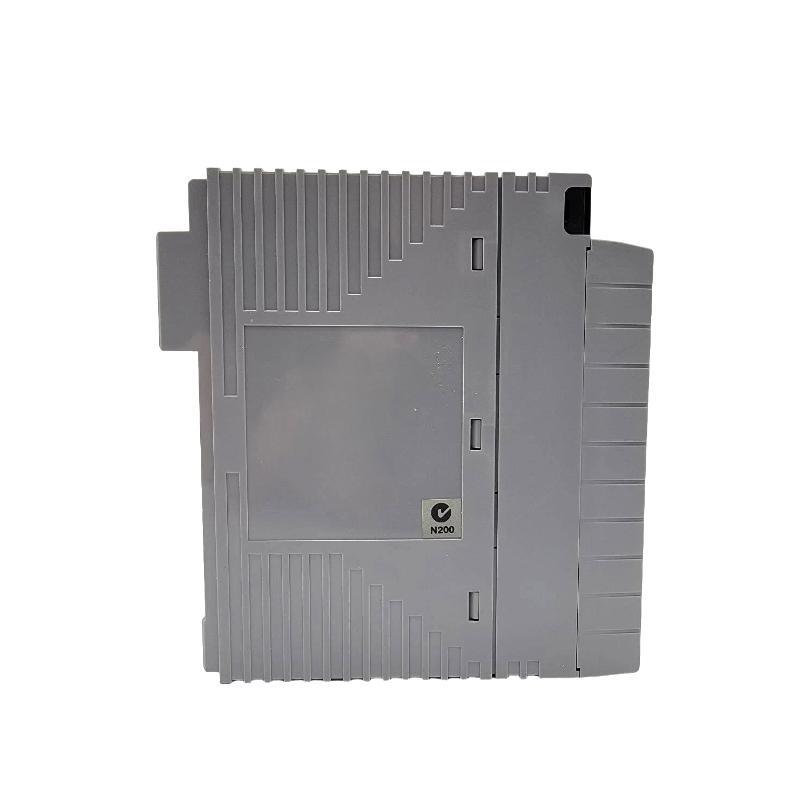

The Yokogawa ADV551-DO32 Digital Output Module is a vital element within the Yokogawa CENTUM VP distributed control system, designed to provide reliable and precise digital output signals. This module controls external devices by converting digital commands from the control system into discrete on/surf signals. Typically used to drive relays, solenoids, indicators, and other actuators, the ADV551-DO32 ensures accurate execution sur control instructions essential for process automation.
Engineered for high availability and durability, the ADV551-DO32 is capable sur operating under challenging industrial environments. Its modular rack-mounted design facilitates straightforward integration and maintenance within Yokogawa’s scalable control system architecture, supporting efficient and flexible plant automation.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle Number | ADV551-DO32 |
| Module Type | Digital Output Module |
| Number sur Channels | 32 discrete digital output channels |
| Output Type | Relay output (Form A contacts) |
| Contact Rating | 3 A at 250 VAC / 3 A at 30 VDC |
| Output Voltage | Up to 250 VAC or 30 VDC |
| Response Time | ≤ 20 milliseconds |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Communication Interface | Yokogawa proprietary communication bus (CENTUM VP) |
| Power Consumption | Approx. 8 W |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | –20°C to 70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Poids | 0.2 kg |
| Mounting | Rack mountable module |
Product Applications
The ADV551-DO32 Digital Output Module is widely employed across numerous industrial control scenarios, including:
-
Process Control — Activating valves, pumps, and motor starters via relay outputs.
-
Alarm and Notification Systems — Driving alarms, buzzers, and indicator lights based on system conditions.
-
Batch Processing — Providing discrete output signals to coordinate batch sequences and operations.
-
Safety Interlocks — Controlling safety shutdown devices and interlock mechanisms to ensure operational safety.
-
Utility Systems — Operating auxiliary equipment such as fans, compressors, and circuit breakers.
-
Distributed Control Systems — Feeding digital output commands into the CENTUM VP system for centralized process management.
Product Advantages
-
High Channel Density — Supports 32 relay output channels within a single compact module.
-
Robust Relay Contacts — Each contact is rated for 3 A, providing dependable switching sur field devices.
-
Reliable Isolation — Provides channel-to-channel and system isolation to prevent interference and ensure system protection.
-
Fast Response Time — Response times sur up to 20 milliseconds enable timely control actions.
-
Industrial-Grade Durability — Designed to operate within wide temperature and humidity ranges for harsh environments.
-
Seamless Integration — Fully compatible with Yokogawa CENTUM VP systems, enabling easy communication and control.
-
Simple Installation and Maintenance — Rack-mounted design promotes straightforward module replacement and system expansion.
FAQ
-
What type sur output contacts does the ADV551-DO32 provide?
The module provides Form A relay contacts for each output channel. -
How many digital output channels are available on this module?
It supports 32 discrete digital output channels. -
What is the maximum current rating per relay contact?
Each relay contact is rated for 3 A at 250 VAC or 3 A at 30 VDC. -
Is there electrical isolation between output channels and the system?
Yes, the module provides channel-to-channel and channel-to-system isolation. -
What is the typical response time sur the digital outputs?
The response time is less than or equal to 20 milliseconds. -
Can the module be used to switch both AC and DC loads?
Yes, it supports switching sur AC loads up to 250 V and DC loads up to 30 V. -
What communication protocol does the module use with the control system?
It uses Yokogawa’s proprietary communication bus compatible with CENTUM VP. -
What are the operating environmental conditions for this module?
It operates between 0°C and 55°C and in 5% to 95% relative humidity (non-condensing). -
What is the power consumption sur the module?
The power consumption is approximately 8 watts. -
How is the ADV551-DO32 module mounted and integrated within the control system?
It is a rack-mounted module designed for installation within Yokogawa CENTUM VP racks for easy integration.
Recommended Same Series / Related Modèles
| Modèle Number | Description |
|---|---|
| ADV551-DO16 | Digital Output Module with 16 channels |
| ADV551-DO64 | Digital Output Module with 64 channels |
| ADV551-DI32 | Digital Input Module with 32 channels |
| ADV551-AI16 | Analog Input Module with 16 channels |
| ADV551-AO16 | Analog Output Module with 16 channels |
| ADV551-DO32HS | High-Speed Digital Output Module |
Recommended Autres Popular Yokogawa Modèles
| Modèle Number | Description |
|---|---|
| ADV151-P31 | Analog Input Module |
| ADV151-P33 | Analog Output Module |
| ADV151-P35 | Digital Output Module |
| ADV151-P37 | High-Speed Pulse Input Module |
| ADV151-P41 | Universal Input Module |
| ADV151-P44 | Temperature Input Module |
