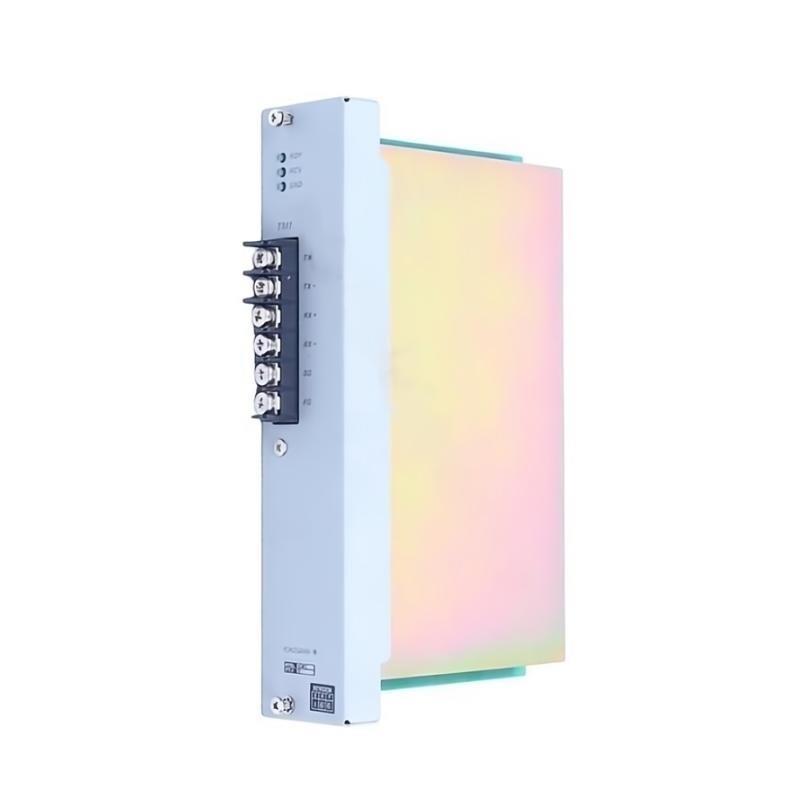

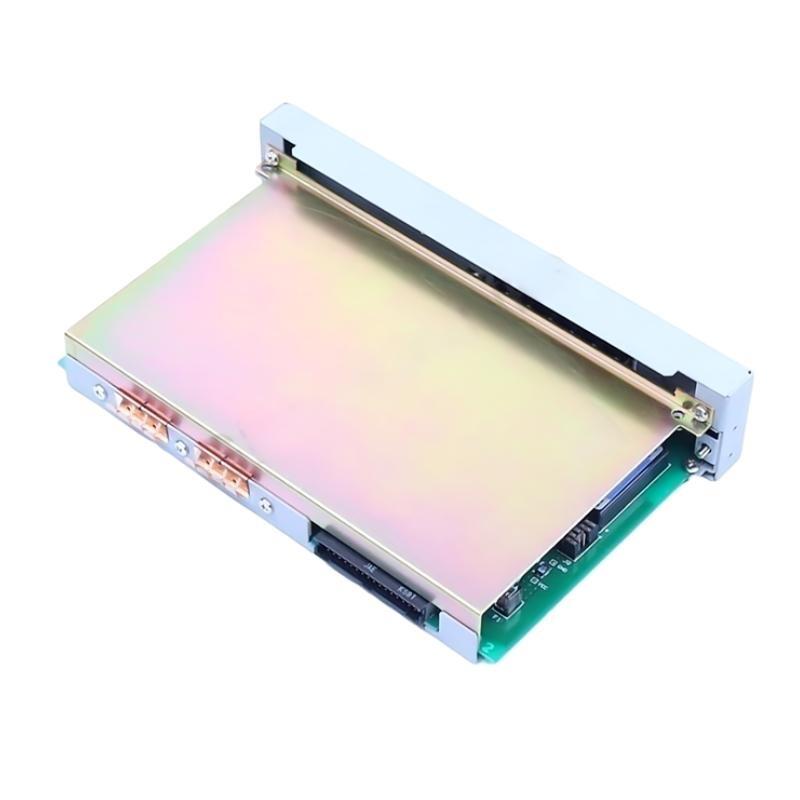

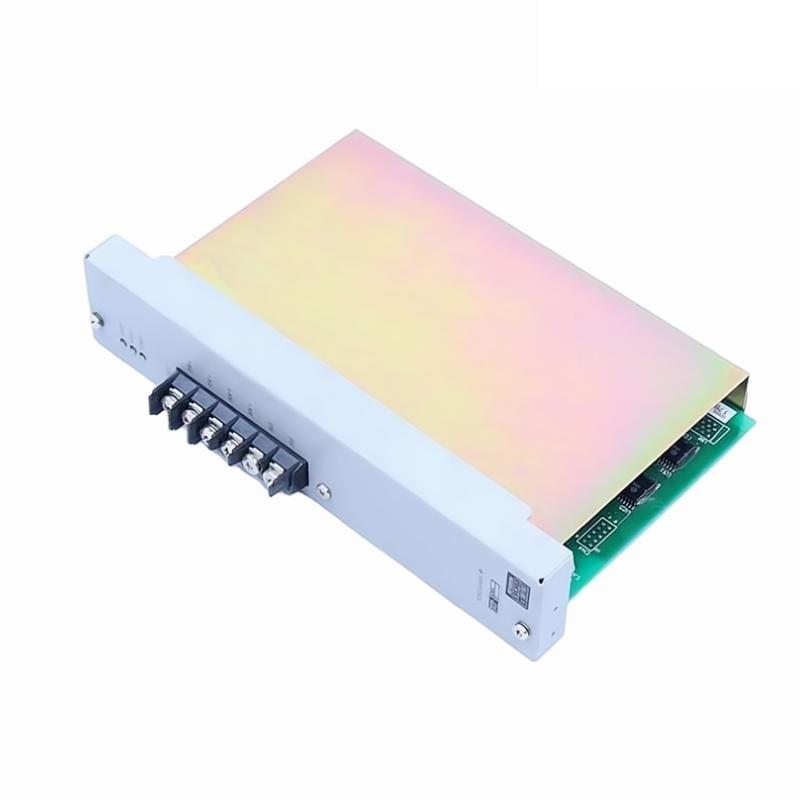

The Yokogawa ACM12/ZCT Communication Module is a specialized communication interface designed for seamless integration sur field devices into Yokogawa automation and safety systems, including CENTUM VP and ProSafe-RS. This module provides robust multi-protocol support, real-time data transfer, and advanced network diagnostics.
ACM12/ZCT is optimized for high-speed, high-reliability communication between controllers and field instruments, ensuring uninterrupted monitoring and control in critical industrial processes. It is widely deployed in oil & gas, petrochemical, power generation, and water treatment plants where reliable communication and precise data acquisition are essential for operational efficiency and safety.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | ACM12/ZCT |
| Series | Yokogawa Communication Module |
| Function | Multi-protocol communication, protocol conversion, network management |
| Supported Protocols | FOUNDATION Fieldbus, HART, Modbus, DeviceNet (model dependent) |
| Number sur Ports | 2 to 4 communication ports |
| Data Transmission Rate | Up to 31.25 kbps (FOUNDATION Fieldbus), up to 115.2 kbps (other protocols) |
| Redundancy Support | Yes, supports redundant communication paths |
| Diagnostic Functions | Communication error detection, device status monitoring, network diagnostics |
| Operating Temperature | 0°C to +55°C |
| Power Supply | 24 VDC via system backplane |
| Communication Interface | RS-485, Ethernet, fieldbus compatible |
| Dimensions | 125 × 248 × 130 mm |
| Poids | 2 kg |
| Mounting | DIN rail or system backplane installation |
| Certifications | CE, UL, CSA, ATEX (depending on configuration) |
Product Applications
The ACM12/ZCT module is used to enable high-speed, reliable communication between field devices and control systems in industrial environments:
-
Process Plants – Consolidates field device data into centralized control systems.
-
Oil & Gas Facilities – Provides secure real-time communication between controllers and instrumentation.
-
Power Generation – Supports monitoring and automated control through high-speed data exchange.
-
Water & Wastewater Treatment – Facilitates data aggregation, protocol conversion, and network diagnostics.
-
Chemical & Petrochemical Plants – Integrates legacy and modern instruments for centralized monitoring.
-
Refineries – Redundant communication paths ensure continuous operation sur safety-critical systems.
Product Advantages
-
Multi-Protocol Support – Enables integration sur FOUNDATION Fieldbus, HART, Modbus, and DeviceNet devices.
-
Redundant Communication – Maintains continuous operation in case sur network failure.
-
Real-Time Diagnostics – Monitors network status and device health with immediate alerts.
-
Flexible Installation – Can be mounted on DIN rails or directly on the system backplane.
-
Seamless System Integration – Direct compatibility with CENTUM VP and ProSafe-RS systems.
-
Compact Design – Lightweight and space-efficient for installation in control racks.
FAQ
-
Which communication protocols are supported by ACM12/ZCT?
Supports FOUNDATION Fieldbus, HART, Modbus, and DeviceNet depending on the module configuration. -
How many communication ports does the module provide?
Offers 2 to 4 communication ports depending on model configuration. -
Does ACM12/ZCT support redundant communication paths?
Yes, redundancy ensures continuous communication and high reliability. -
What is the maximum data transmission rate?
Up to 31.25 kbps for FOUNDATION Fieldbus and up to 115.2 kbps for other supported protocols. -
Can ACM12/ZCT perform real-time diagnostics?
Yes, it continuously monitors communication health and device status. -
What is the operating temperature range?
0°C to +55°C. -
How is the module powered?
Powered through 24 VDC supplied via the system backplane. -
What mounting options are available?
Supports DIN rail or system backplane installation. -
Can ACM12/ZCT integrate both legacy and modern field devices?
Yes, multi-protocol capability allows integration with a wide variety sur instruments. -
Which certifications does the module hold?
CE, UL, CSA, and ATEX depending on configuration.
