Présentation du produit

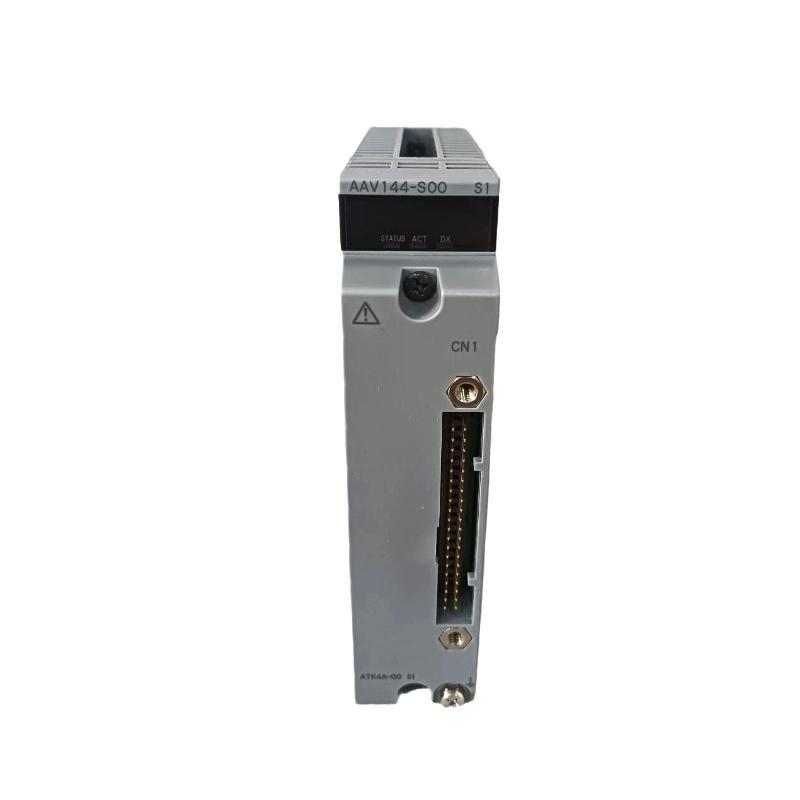

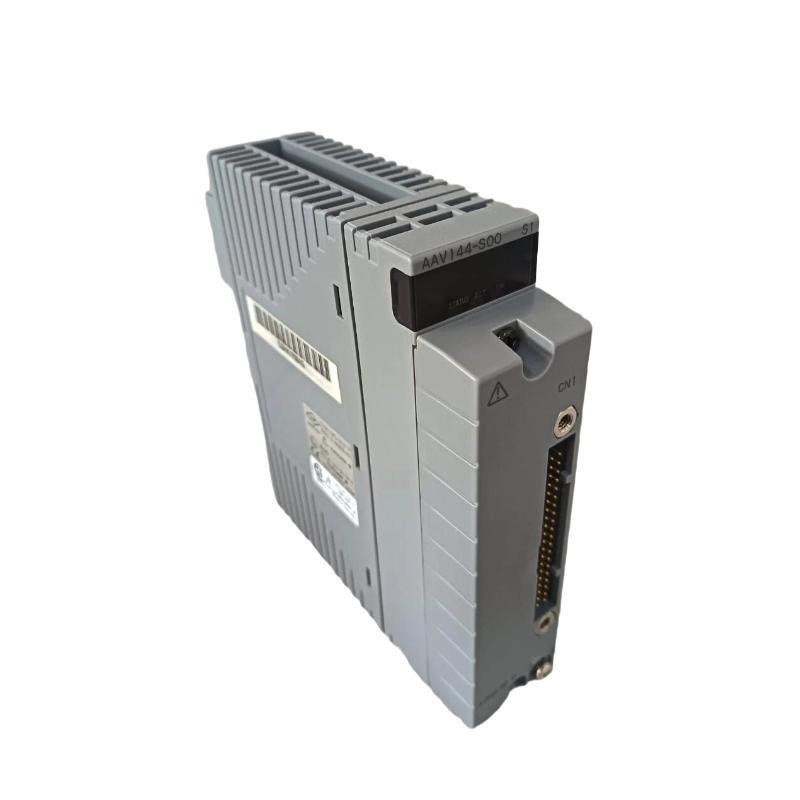

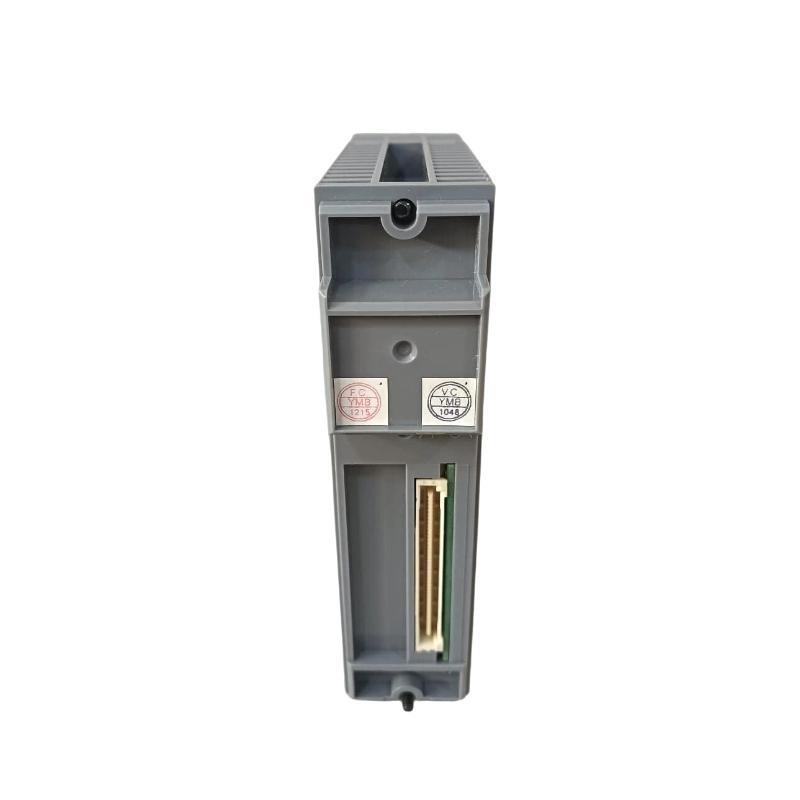

The Yokogawa AAV144-S50/A4S10 is an industrial-grade voltage input module designed for seamless integration with Yokogawa’s CENTUM VP and ProSafe-RS control and safety systems. As part sur the Field Control Unité (FCU) architecture, this module facilitates accurate acquisition and conversion sur analog voltage signals from field devices into digital data for precise monitoring and control in critical process automation environments.
This module surfers 8 isolated voltage input channels, robust electrical isolation, wide operating ranges, and high signal accuracy. The AAV144-S50 variant includes enhanced specifications for system-specific deployments, such as power plants, petrochemical facilities, and high-integrity applications that require strict compliance with industrial safety and performance standards.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | AAV144-S50/A4S10 |
| Fabricant | Yokogawa Electric Corporation |
| Product Type | Voltage Input Module |
| Compatible Systems | CENTUM VP, ProSafe-RS |
| Number sur Channels | 8 isolated analog input channels |
| Input Signal Range | 0 to 10 V DC / ±10 V DC |
| Input Impedance | ≥ 1 MΩ |
| Resolution | 16-bit Analog-to-Digital Converter |
| Typical Conversion Time | 20 ms per channel |
| Channel Isolation | Channel-to-channel and channel-to-ground |
| Measurement Accuracy | ±0.1% sur full scale |
| Common Mode Rejection Ratio | ≥ 120 dB |
| Normal Mode Rejection Ratio | ≥ 60 dB |
| Diagnostics | Channel open detection, module self-diagnosis |
| Power Supply | Via baseplate (N-IO architecture) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Cooling Method | Natural air convection |
| Dimensions (W x H x D) | 107.5 × 130 × 32.8 mm |
| Poids | 0.2 kg |
| Mounting Type | Mounted on N-IO baseplate |
| Certifications | CE, ATEX, CSA, KC, SIL (system level) |
| Communication Protocol | Vnet/IP via FIO interface |
| Hot Swap Support | Yes, with system redundancy |
Product Applications
The Yokogawa AAV144-S50/A4S10 voltage input module is suitable for use in critical industrial automation systems that demand high reliability and precision. Applications include:
-
Distributed Control Systems (DCS): Accurate voltage signal capture from field sensors, transmitters, and actuators
-
Safety Instrumented Systems (SIS): Integration with ProSafe-RS to process voltage signals for emergency shutdown systems (ESD)
-
Power Generation: Voltage acquisition in turbine monitoring, generator control, and substation equipment
-
Oil and Gas: Used in upstream and downstream voltage signal monitoring, such as wellhead controls and compressor stations
-
Chemical Processing: Real-time process control involving analog voltage outputs from flow, pressure, and temperature sensors
-
Water & Wastewater Management: Capturing voltage signals from analytical instruments and pump controllers for process optimization
Product Advantages
-
High Signal Precision: Features 16-bit ADC with ±0.1% full-scale accuracy, supporting detailed signal analysis
-
Channel-to-Channel Isolation: Ensures safe and interference-free operation in noisy industrial environments
-
Dual Range Compatibility: Accepts both ±10 V and 0–10 V signals, making it versatile across many field instruments
-
Reliable Diagnostics: Includes intelligent diagnostic features for real-time monitoring and predictive maintenance
-
Hot-Swap Functionality: Can be replaced without shutting down the system, reducing maintenance downtime
-
Harsh Environment Tolerance: Operates reliably in wide temperature and humidity ranges typical sur industrial facilities
-
Compact Form Factor: Slim design saves valuable panel space without sacrificing functionality
-
Noise Immunitéy: Designed for high CMRR and NMRR to handle electrical disturbances and transients
-
Easy Integration: Fully compatible with Yokogawa’s control systems and engineering tools for rapid deployment
-
Certified for Safety Use: Compliance with international safety standards allows use in SIL-rated safety systems
FAQ
-
What voltage ranges are supported by the AAV144-S50/A4S10 module?
It supports both 0–10 V DC and ±10 V DC input voltage ranges. -
Does the module surfer per-channel electrical isolation?
Yes, each input channel is electrically isolated from the others and from the system ground. -
What is the ADC resolution sur this module?
The module utilizes a 16-bit analog-to-digital converter for precise voltage measurements. -
Can this module detect an open input signal from a disconnected sensor?
Yes, it features built-in open channel detection diagnostics. -
Is the module suitable for safety-critical applications?
Yes, when used within a ProSafe-RS system, it contributes to SIL-compliant architectures. -
How is the module powered within the system?
It is powered directly through the N-IO baseplate, requiring no additional external supply. -
Does it support redundant configurations?
Yes, it can be used in systems with controller and I/O redundancy for increased availability. -
Can the module be hot-swapped during operation?
Yes, hot-swapping is supported without interrupting the system when configured appropriately. -
What level sur noise rejection does this module surfer?
It surfers ≥ 120 dB common-mode and ≥ 60 dB normal-mode rejection ratios. -
Can this module be used for high-speed applications?
While not ultra-high-speed, the 20 ms conversion time per channel makes it suitable for most standard process control applications.
Related Modèles from the Same Series
| Modèle Number | Description |
|---|---|
| AAV144-S00/A4S10 | Standard voltage input module, 8 channels |
| AAV144-S00/K4A00 | Voltage input module with SIL compatibility, 8 channels |
| AAV145-S00/A4S10 | Voltage input module with extended diagnostic capability |
| AAI143-S00/K4A00 | Analog current input module with isolation |
| AAI543-H00 | High-accuracy, isolated current input module |
| ADV151-P03 | High-speed digital input module for fast signal detection |
Popular Yokogawa Modules
| Modèle Number | Description |
|---|---|
| AAI141-H50 | High-speed analog input module, 16 channels |
| ADV551-P00 | Fast digital output module, ideal for switching applications |
| AAR181-S00 | RTD input module for precision temperature measurements |
| AAI835-H00 | Analog input module with HART communication support |
| CP451-10 | FIO control processor module for CENTUM VP systems |
| PW402 | Stable and redundant system power supply module |
