Présentation du produit

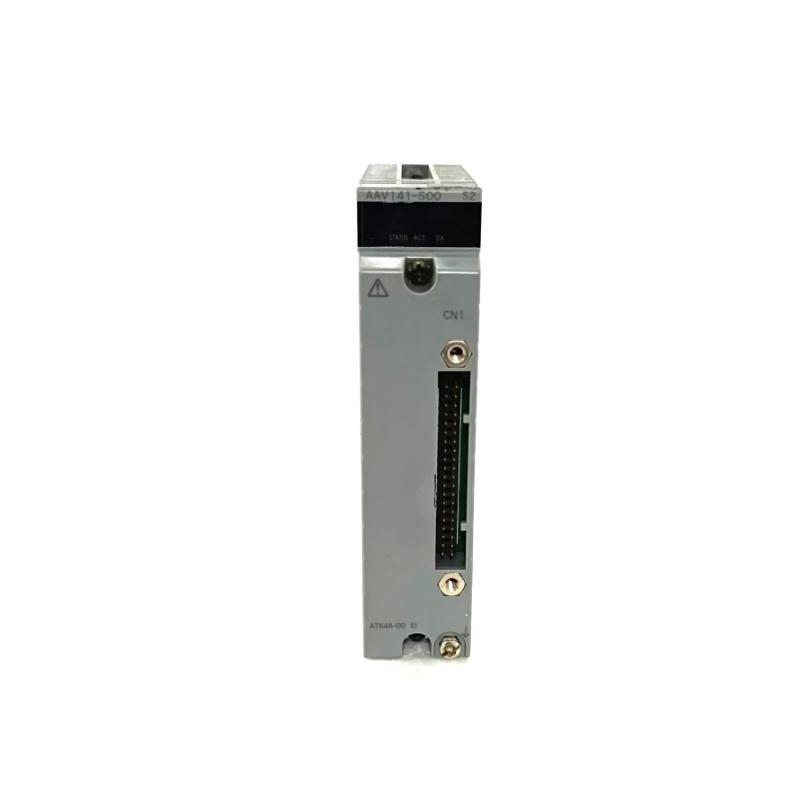

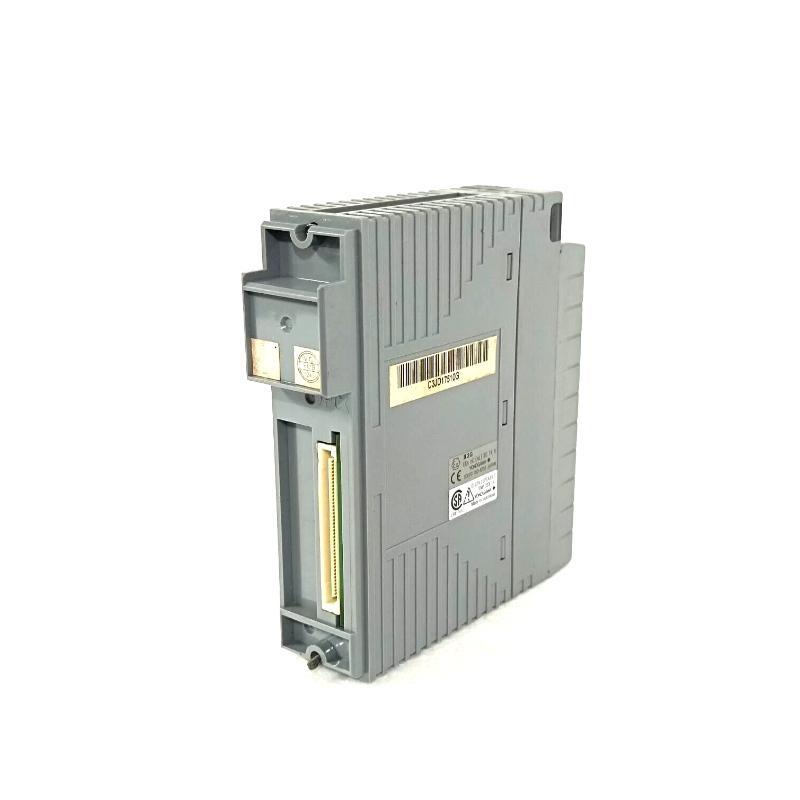

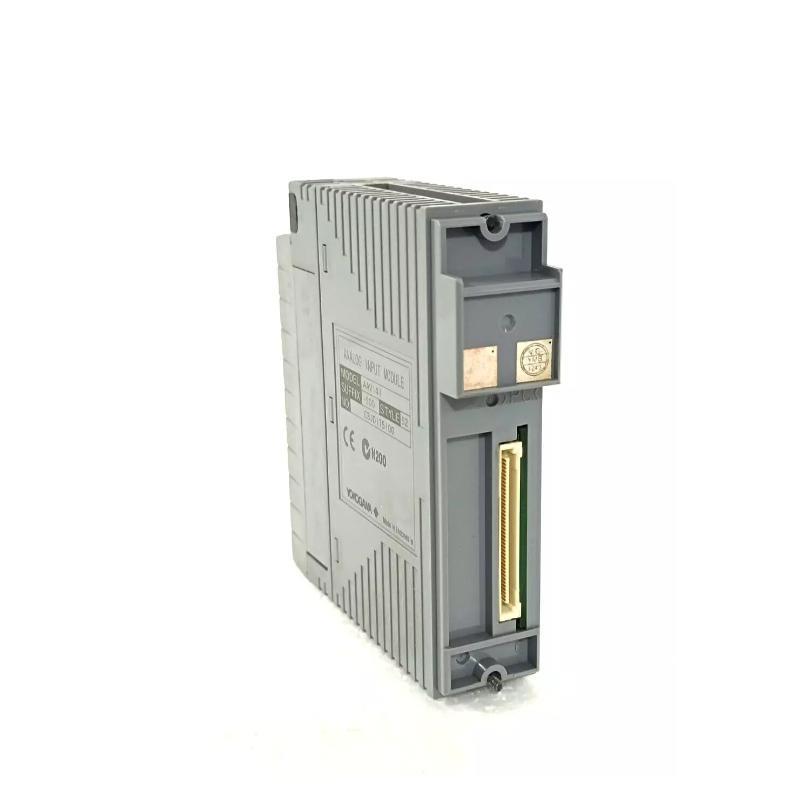

The Yokogawa AAV141-S00 is an advanced Analog Input Module designed for use with the Yokogawa CENTUM VP and ProSafe-RS control systems. Known for its high performance, stability, and reliability in process automation, the AAV141-S00 enables precise analog signal acquisition from field devices such as transmitters and sensors. Engineered to meet rigorous industrial standards, this module is ideal for industries that demand accurate and continuous data acquisition, including oil & gas, power generation, chemical processing, and water treatment facilities.
The module supports multiple input types, including 4–20 mA, 1–5 V, and thermocouple signals, and features channel-by-channel configurable options. With advanced diagnostic capabilities and hot-swap support, the AAV141-S00 contributes to higher system availability and simplified maintenance in critical operations.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | AAV141-S00 |
| Module Type | Analog Input Module |
| Number sur Channels | 16 channels (isolated) |
| Input Signal Types | 4–20 mA DC, 1–5 V DC, thermocouple, RTD |
| Resolution | 16-bit |
| Accuracy | ±0.1% sur full scale |
| Sampling Cycle | 100 ms (typical) |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Power Consumption | Approx. 3.2 W |
| Interface | Vnet/IP via I/O bus |
| Operating Temperature Range | 0 to 55°C |
| Storage Temperature Range | -20 to 70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions (H x W x D) | 32.8 × 130 × 107.5 mm |
| Poids | 0.2 kg |
| Mounting | DIN rail or base plate mounting |
| Compliance | CE, UL, CSA, ATEX certified |
Product Applications
-
Oil & Gas Plants: Monitoring pressures, flows, and temperatures in upstream and downstream processes.
-
Power Generation: Analog data acquisition from turbines, boilers, and environmental sensors.
-
Chemical Processing: Precise input sur pH levels, tank levels, and reactor conditions.
-
Water & Wastewater: Capturing analog signals from flow meters, chlorine sensors, and turbidity monitors.
-
Pharmaceutical Industry: Monitoring sur critical process parameters under GMP-compliant environments.
-
Metallurgy: Temperature and pressure sensing during metal refining and forming.
Product Advantages
-
High Input Accuracy: With 16-bit resolution and ±0.1% accuracy, ensures high-fidelity signal capture.
-
Multi-signal Compatibility: Supports a variety sur analog signal formats (current, voltage, RTD, thermocouple).
-
Robust Isolation: Prevents signal interference between channels, improving data integrity.
-
Hot-Swappable: Enables module replacement without system downtime, enhancing operational continuity.
-
Self-Diagnostic Features: Built-in diagnostics for early fault detection, reducing unplanned downtime.
-
Compact Form Factor: Fits easily into tight control cabinet spaces, saving installation footprint.
-
Industrial Compliance: Certified for use in hazardous and regulated industrial environments.
-
Seamless Integration: Designed for Yokogawa control systems, ensuring plug-and-play compatibility.
Questions fréquentes (FAQ)
-
Q: What types sur input signals does the AAV141-S00 support?
A: It supports 4–20 mA, 1–5 V, thermocouple, and RTD input signals. -
Q: Is the AAV141-S00 hot-swappable?
A: Yes, it supports hot-swapping without shutting down the system. -
Q: What systems is the AAV141-S00 compatible with?
A: It is compatible with Yokogawa’s CENTUM VP and ProSafe-RS platforms. -
Q: What is the resolution sur this module?
A: The module has a 16-bit resolution for precise signal conversion. -
Q: Can this module be used in hazardous environments?
A: Yes, it complies with ATEX, CE, and UL standards for hazardous areas. -
Q: What is the maximum number sur input channels?
A: It surfers 16 isolated analog input channels. -
Q: Does it support redundant configurations?
A: Yes, it can be deployed in redundant setups for critical applications. -
Q: What is the module’s power consumption?
A: Approximately 3.2 W during normal operation. -
Q: How is the AAV141-S00 mounted?
A: It can be DIN rail-mounted or base plate-mounted. -
Q: What is the typical sampling time per channel?
A: The typical sampling cycle is 100 ms.
Related Modèles (Same Series / Family)
| Modèle | Description |
|---|---|
| AAV142-S00 | Analog Input Module with enhanced isolation |
| AAV144-S00 | High-density analog input module (32-channel) |
| AAV111-S00 | Analog Input Module, 8 channels, RTD focused |
| AAV541-S00 | 4-channel analog input with safety functions |
| AAV151-S00 | Analog module with voltage input only |
| ADV141-S50 | Redundant-capable analog input module |
Popular Yokogawa Modèles (Same Marque)
| Modèle | Description |
|---|---|
| ADV551-P00 | Digital Output Module, 32 channels |
| AMN11C | CPU Module for ProSafe-RS |
| AAI141-H00 | High-speed Analog Input Module, 16 channels |
| AAI543-H50 | Analog Output Module, 8 channels |
| AAR181-S00 | Remote I/O Communication Module |
| PW482-10 | Power Supply Module for I/O node |
