Présentation du produit

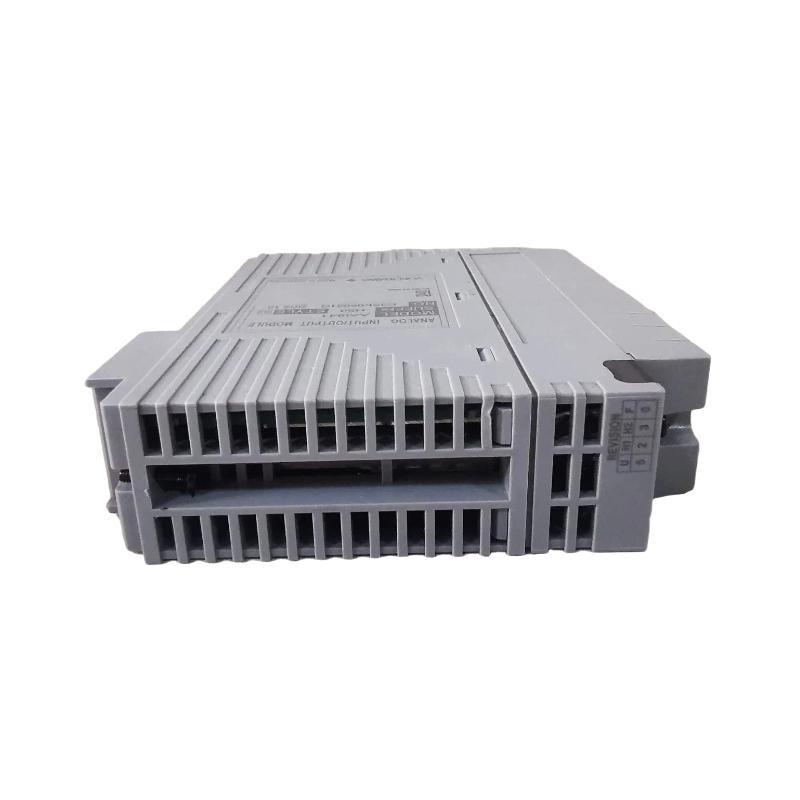

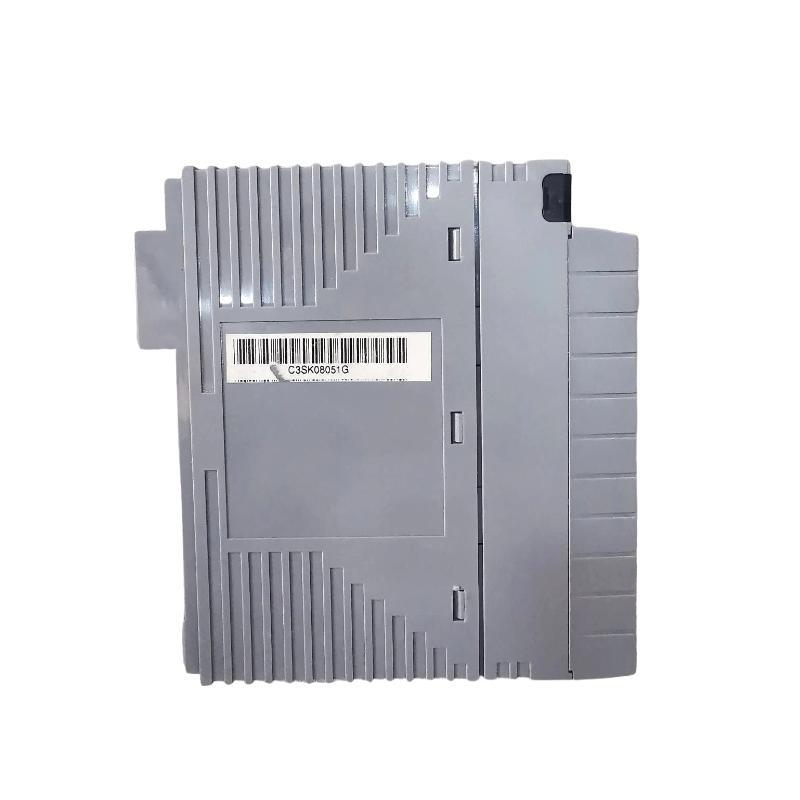

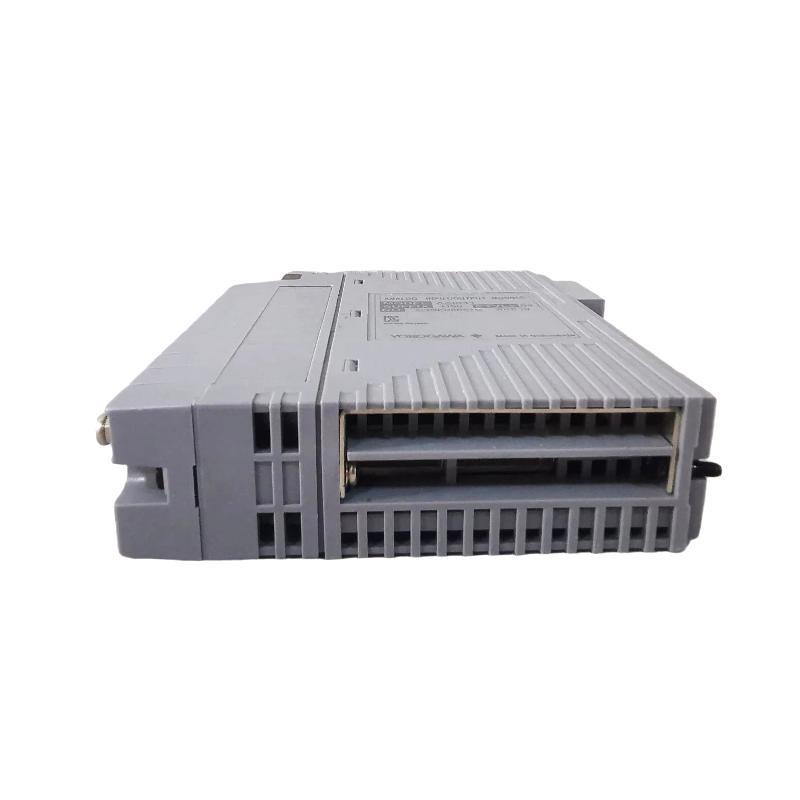

The Yokogawa AAI841-S50/K4A00 Analog I/O Module is a sophisticated component designed for precise analog signal acquisition and control within industrial automation environments. As part sur Yokogawa’s renowned distributed control system (DCS) portfolio, this module provides reliable and high-fidelity conversion between analog field signals and digital system data. Its dual functionality, supporting both analog input and output channels, allows it to effectively manage complex process variables in critical industrial operations.
The AAI841-S50/K4A00 is engineered for enhanced accuracy and stability, tailored to meet the stringent requirements sur industries such as chemical processing, power generation, and oil refining. Its robust construction ensures consistent performance under electrical noise, temperature extremes, and humidity, while its compatibility with Yokogawa’s CENTUM VP and other control platforms enables seamless integration and operational efficiency.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | AAI841-S50/K4A00 |
| Module Type | Analog Input/Output Module |
| Number sur Channels | 4 (Analog Input/Output) |
| Input Signal Range | ±10 V, 0-20 mA, 4-20 mA selectable |
| Output Signal Range | 0-20 mA or 4-20 mA |
| Resolution | 16-bit A/D and D/A conversion |
| Accuracy | ±0.05% sur full scale typical |
| Response Time | Typically less than 50 ms |
| Power Supply | 24 V DC nominal |
| Communication Interface | Yokogawa DCS bus compatible |
| Operating Temperature | -10°C to +65°C |
| Storage Temperature | -25°C to +75°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Dimensions (WxHxD) | 107.5 × 32.8 × 130 mm |
| Poids | 0.3 kg |
| Mounting | DIN rail or rack mount |
Applications
The AAI841-S50/K4A00 module finds use across a wide range sur industries and processes requiring precise analog measurement and control. Typical applications include:
-
Chemical and petrochemical plants for pressure, temperature, and flow measurement and control
-
Power generation plants for turbine and boiler control instrumentation
-
Oil and gas refineries for process monitoring and control
-
Water and wastewater treatment plants for pump and valve control
-
Food and beverage manufacturing for process consistency and quality assurance
-
Pharmaceutical manufacturing where precise process parameters must be maintained
Advantages
-
High Precision: Offers high accuracy sur ±0.05% full scale with stable long-term measurement performance.
-
Rapid Response: Response time under 50 milliseconds suits fast control loops and dynamic processes.
-
Industrial-Grade Robustness: Resilient to noise, temperature variations, and humidity typical sur industrial environments.
-
Versatile Signal Support: Compatible with various analog input and output signals, enhancing adaptability.
-
Comprehensive Isolation: Channel-to-channel and channel-to-ground isolation improves signal integrity and safety.
-
Compact Design: Fits standard DIN rail or rack mounts, facilitating space-saving installation.
-
Seamless System Integration: Designed to integrate smoothly with Yokogawa’s DCS, simplifying configuration and maintenance.
Questions fréquentes (FAQ)
-
What input signal types can the module handle?
It accepts ±10 V voltage inputs, 0-20 mA, and 4-20 mA current inputs. -
Can the output be configured for different current ranges?
Yes, the output can be set for either 0-20 mA or 4-20 mA. -
What level sur accuracy does the module provide?
It maintains ±0.05% accuracy sur full scale under typical operating conditions. -
Is electrical isolation provided between channels?
Yes, each channel is electrically isolated from others and from the chassis ground. -
What is the typical response time for signal processing?
The response time is typically less than 50 milliseconds. -
What power requirements does the module have?
It operates on a nominal 24 V DC power supply. -
Is the module suitable for high-humidity environments?
Yes, it is rated to operate reliably up to 95% relative humidity without condensation. -
Does the module integrate with Yokogawa’s DCS communication protocols?
Yes, it is fully compatible with Yokogawa DCS communication standards. -
Can the module support simultaneous analog input and output?
Yes, it supports mixed analog input and output across four channels. -
What maintenance actions are recommended to ensure optimal performance?
Periodic calibration, terminal cleaning, and verification sur signal accuracy are advised.
Related Modèles (Same Series or Similar Functionality)
| Modèle Number | Description | Channels | Signal Type | Key Feature |
|---|---|---|---|---|
| AAI841-H50/K4A00 | Analog Input/Output Module | 4 | Voltage/Current | High precision module |
| AAI840-S50/K4A00 | Analog Input Module | 4 | Voltage/Current Input | High accuracy input only |
| AAI842-S50/K4A00 | Analog Output Module | 4 | Current Output | High accuracy output |
| AAI843-S50/K4A00 | Analog I/O Combination Module | 8 | Mixed I/O | Larger channel count |
| AAI845-S50/K4A00 | High-Speed Analog Input Module | 4 | Fast response input | Suited for dynamic control |
| AAI846-S50/K4A00 | Redundant Analog Output Module | 4 | Redundant output | Increased reliability |
Popular Yokogawa Modèles (Same Marque)
| Modèle Number | Description | Application | Key Feature |
|---|---|---|---|
| AAI831-S50/K4A00 | Temperature Input Module | Temperature sensing | Thermocouple & RTD support |
| AAI832-S50/K4A00 | General Analog Input Module | Multiple sensor input | High precision input |
| AAI833-S50/K4A00 | Analog Output Module | Control output | Stable 4-20 mA output |
| AAI834-S50/K4A00 | Digital Input Module | Discrete signal input | Fast response time |
| AAI835-S50/K4A00 | Digital Output Module | Relay and actuator control | Electrical isolation |
| AAI837-S50/K4A00 | Universal Input Module | Multi-sensor compatibility | Flexible configuration |
