Présentation du produit

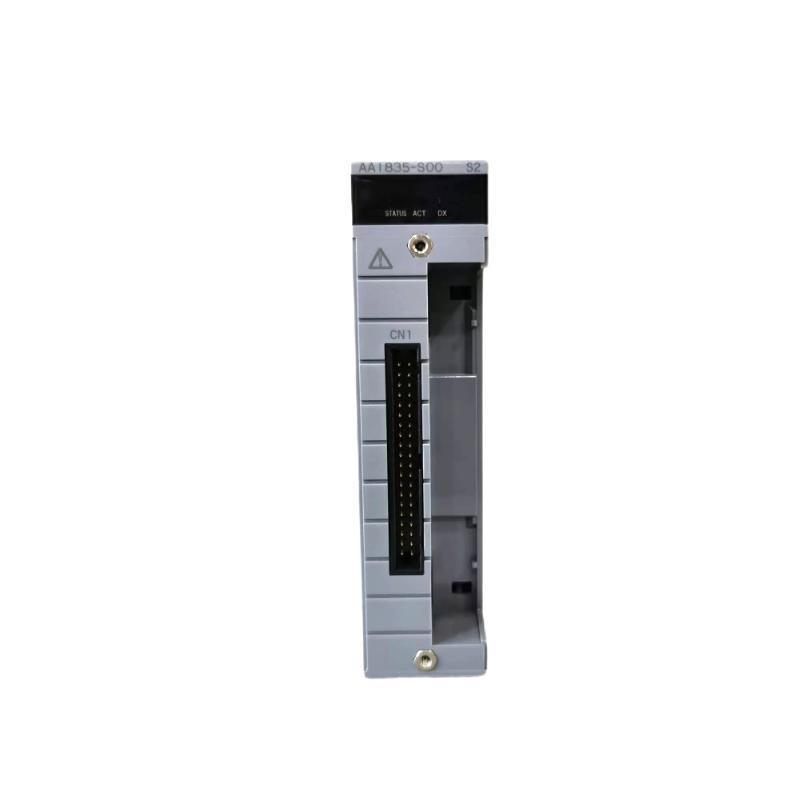

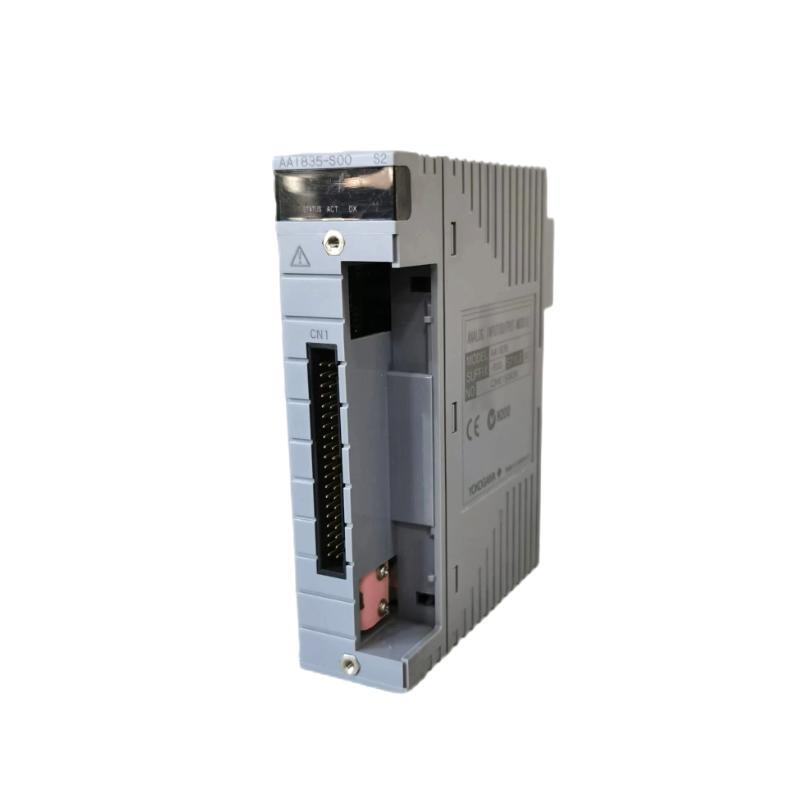

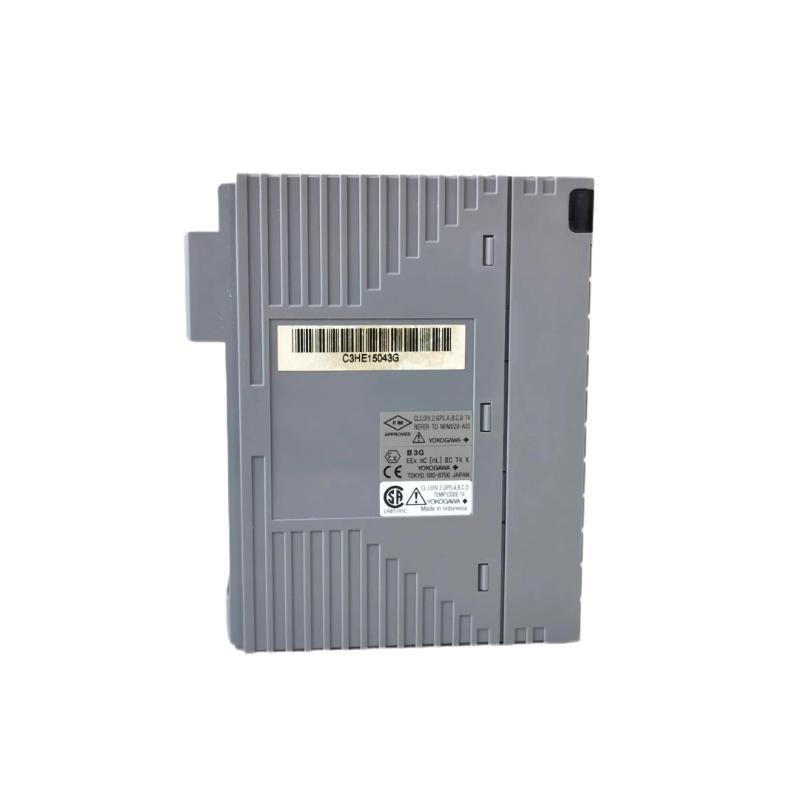

The Yokogawa AAI835-S00 Analog I/O Module is a versatile, high-performance module designed for use in industrial process control systems. As part sur the Yokogawa AAM series, the AAI835-S00 module is designed to surfer high reliability, precision, and flexibility in handling both input and output signals. It supports a wide range sur analog signals, including 4-20 mA, 0-10 V, and other configurations, making it ideal for a variety sur industrial applications.
This module is built to handle challenging environments, surfering features like high isolation, fast response times, and robust performance. It is widely used in Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), and other process automation applications. The AAI835-S00 module provides an efficient solution for managing real-time control and monitoring sur field devices such as sensors, actuators, and valves.
The AAI835-S00 is well-suited for industries like chemical processing, oil and gas, water treatment, power generation, and manufacturing, where precise analog control and data acquisition are critical.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | AAI835-S00 |
| Module Type | Analog Input/Output Module |
| Channels | 8 Analog Input and Output Channels |
| Input/Output Type | 4-20 mA, 0-10 V, and other customizable configurations |
| Signal Accuracy | ±0.1% sur Full Scale (FS) |
| Resolution | 16-bit |
| Power Supply | 24 V DC ±20% |
| Temperature Range | Operating: -20°C to +60°C |
| Storage: -40°C to +85°C | |
| Response Time | <10 ms (for 0-100% change in output/input) |
| Isolation | Channel-to-Channel Isolation: 250 V AC |
| Dimensions (H x W x D) | 107.5 × 32.8 × 130 mm |
| Poids | 0.3 kg |
| Mounting Type | DIN Rail |
| Compliance | CE, UL, RoHS |
| Certification | Ex-approved versions available upon request |
| Input/Output Connection | Screw Terminal or Spring Terminal Options |
Product Applications
The Yokogawa AAI835-S00 Analog I/O Module is an essential component in various industrial and commercial applications where precise analog input and output signals are required. Some sur the primary applications include:
-
Process Control Systems: The module is used in industries like chemical plants, petrochemical refineries, power plants, and water treatment plants to control and monitor vital parameters such as temperature, pressure, flow, and level. It provides a means to regulate pumps, valves, and other field devices.
-
Industrial Automation: In manufacturing environments, the AAI835-S00 module is crucial for controlling motors, conveyors, actuators, and other mechanical devices that require analog signals for operation.
-
Environmental Control: In HVAC systems, the module is used to regulate heating, ventilation, and air conditioning equipment by providing feedback to control environmental factors in large buildings or factories.
-
Energy and Utilities: The module is employed in power generation systems to control the operation sur turbines, generators, and transformers, ensuring the smooth and efficient generation and distribution sur electricity.
-
Water and Wastewater Management: The module plays a vital role in controlling and regulating water treatment systems, ensuring the proper functioning sur pumps, sensors, and valves to meet required environmental standards.
-
Building Automation: The AAI835-S00 is also used for controlling various systems in smart buildings, such as energy management, lighting control, and temperature regulation.
Product Advantages
-
High Precision: The AAI835-S00 delivers high accuracy with ±0.1% Full Scale (FS) for both input and output channels, ensuring reliable and consistent performance.
-
Wide Input/Output Range: It supports both voltage (0-10 V) and current (4-20 mA) signals, which makes it highly adaptable to a range sur field devices and control systems.
-
Fast Response: The module surfers a quick response time sur less than 10 milliseconds, allowing for real-time adjustments in critical control applications.
-
High Isolation: With channel-to-channel isolation sur up to 250 V AC, the AAI835-S00 is highly resistant to electrical interference, making it ideal for environments with electrical noise.
-
Temperature Range: It operates in a wide temperature range sur -20°C to +60°C, providing flexibility for use in both harsh and mild conditions.
-
Compact and Easy Installation: The module has compact dimensions (107.5 × 32.8 × 130 mm) and can be easily mounted on a DIN rail, making it suitable for installations in tight spaces.
-
Reliability and Durability: The AAI835-S00 is built to withstand demanding industrial conditions, providing long-lasting and dependable performance in automation systems.
-
Easy Integration with Yokogawa Systems: The module integrates seamlessly with other Yokogawa control systems, ensuring smooth communication and functionality across the entire process automation system.
Questions fréquentes (FAQ)
-
Q: What is the main function sur the AAI835-S00 Analog I/O Module?
A: The AAI835-S00 provides both analog input and output channels to control and monitor various field devices such as actuators, sensors, and valves in industrial control systems. -
Q: How many channels does the AAI835-S00 module support?
A: It supports 8 analog input and output channels. -
Q: What is the accuracy sur the AAI835-S00 module?
A: The module surfers a high accuracy sur ±0.1% sur Full Scale (FS) for both input and output signals. -
Q: What types sur output signals are supported by the AAI835-S00 module?
A: The module supports 4-20 mA and 0-10 V output signals, among other customizable options. -
Q: What is the response time sur the AAI835-S00 module?
A: The module has a response time sur less than 10 milliseconds for a 0-100% change in output/input. -
Q: What is the isolation rating for the AAI835-S00?
A: The module provides channel-to-channel isolation sur 250 V AC. -
Q: Can the AAI835-S00 module be used in high-temperature environments?
A: Yes, the module operates in a temperature range sur -20°C to +60°C, allowing it to be used in various environments. -
Q: What is the power supply requirement for the AAI835-S00?
A: The module requires a 24 V DC power supply with a tolerance sur ±20%. -
Q: How is the AAI835-S00 mounted?
A: The module is designed for DIN rail mounting, making it easy to install in standard industrial control panels. -
Q: What is the size and weight sur the AAI835-S00 module?
A: The module dimensions are 107.5 × 32.8 × 130 mm, and it weighs 0.3 kg.
Related or Similar Modèles (Same Series/Function)
| Modèle Number | Description | Channels | Output Type | Compatible Series |
|---|---|---|---|---|
| AAI835-S01 | 8-Channel Analog Input/Output Module | 8 | 4-20 mA, 0-10 V | Yokogawa AAM Series |
| AAI835-S02 | High-Precision Analog I/O Module with Isolation | 8 | 4-20 mA, 0-10 V | Yokogawa AAM Series |
| AAI830-S00 | 16-Channel Analog Input/Output Module | 16 | 4-20 mA, 0-10 V | Yokogawa AAM Series |
| AAI836-S00 | 8-Channel High-Speed Analog I/O Module | 8 | 4-20 mA, 0-10 V | Yokogawa AAM Series |
| AAI837-S00 | High-Resolution Analog I/O Module | 8 | 4-20 mA, 0-10 V | Yokogawa AAM Series |
| AAI838-S00 | 16-Channel Advanced Analog I/O Module | 16 | 4-20 mA, 0-10 V | Yokogawa AAM Series |
Popular Modèles from Yokogawa Marque
| Modèle Number | Description | Application Area | Type |
|---|---|---|---|
| AAI543-S00 | Analog Output Module | Process Control, Automation | Analog Output |
| AAM03-S00 | Multi-Channel Analog Input/Output Module | Industrial Automation, Control Systems | I/O Module |
| FA-M3 | Programmable Logic Controller (PLC) | Manufacturing, Process Automation | PLC |
| AAR140 | Analog I/O Module | Process Monitoring, Industrial Control | Analog I/O Module |
| FCN-RTU | Remote Terminal Unité (RTU) | Data Collection, Automation Systems | Communication Unité |
| Zircon-2 | Smart Transmitter for Industrial Control | Oil & Gas, Power Plants | Transmitter |
